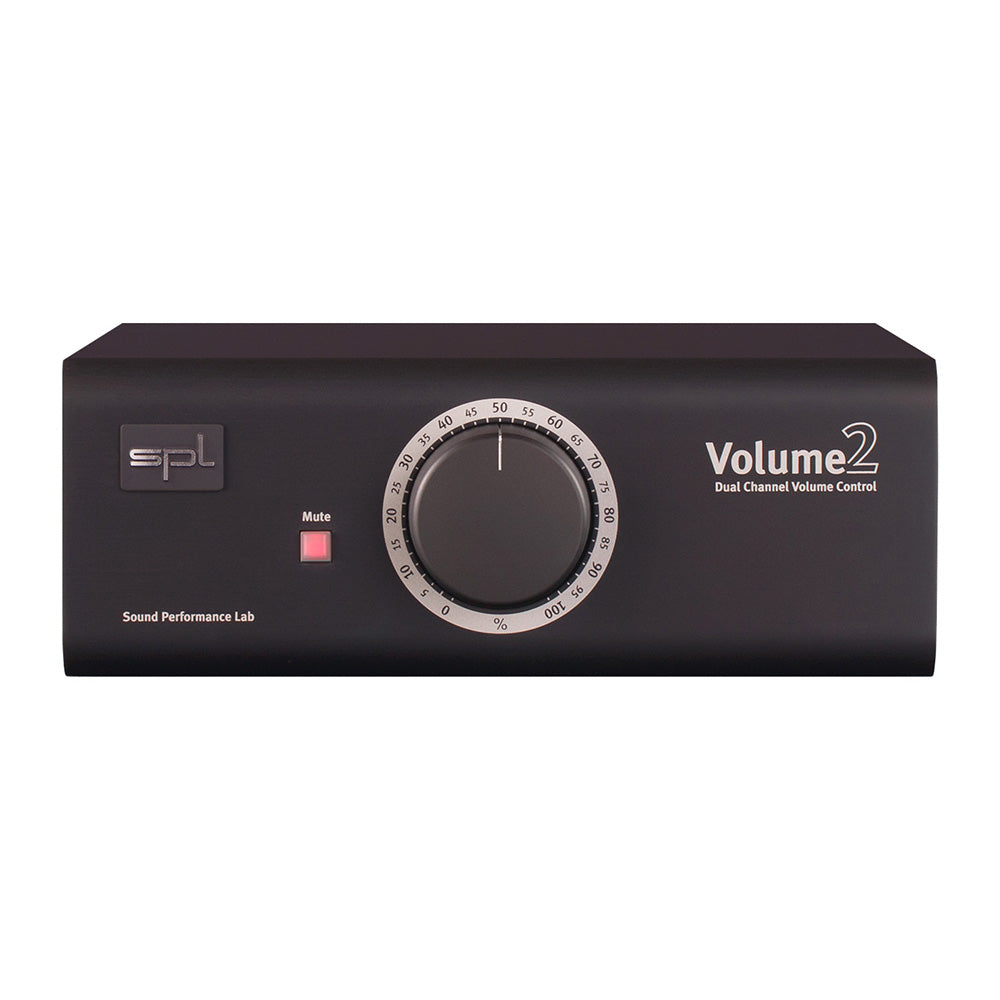

SPL Volume 2 Stereo Monitor Volume Controller


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SPL-2612

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Volume 2 is a fully analog active stereo volume controller and a puristic high-end preamplifier.


    • High end volume potentiometer and illuminated mute switch from ALPS; the potentiometer controls signals directly (without VCA or DAC circuitry)
    • The mute switch allows for very fast reaction times in cases where loud speakers or ears should be protected (for example, with computer crashes)
    • In contrast to digital volume controls which reduce the bit resolution at lower listening levels there is no degration in sound with an analog volume control
    • In contrast to passive volume controls which alter the phase and frequency response there is no alteration in sound with an active volume control
    • Users of analog summing without monitoring facilities can cost effectively improve their systems
    • High quality balancing stages with extremely good common mode rejection minimize interferences and disturbances in the signal paths
    • Balanced XLR in- and outputs
    • A high quality power supply with toroidal transformer
    • Massive, 45 mm diameter aluminum knobs ensure consistent, refined handling
    • The elegant, compact housing allows for flexible desktop positioning near or under a computer monitor.
    • Made in Germany

    As a cost-effective alternative to the full-featured Stereo and Surround Monitoring Controllers MTC and SMC the Volume 2 focuses on the high quality in active volume control. Users who do not need additional monitoring functionality provided by the MTC will find the Volume 2 an cost-effective solution without compromises. The Volume 2‘s design is based on active switching to avoid nonlinear frequency response introduced by impedance changes with passive designs when changing levels.

    The Volume Controller Volume 2 serves as a system-independent analog volume regulator in all areas of audio processing and playback, including

    • Music production
    • Movie and video post production
    • Video computer games production
    • Hi-fidelity applications

    Analog Volume Control - Why?
    The majority of D/A converters and sound cards provide nothing in the way of analog level control, and this means the necessity of varying signal levels at the converter outputs. The result is a lowered bit rate in the monitoring signal, which can lead to commensurate loss of audio quality.

    Compared to passive volume controls which affect the frequency and phase response each time the volume is changed the active design of the Volume 2 is stable in phase and frequency, which is important to always be sure to monitor the same signal.

    A further, very interesting application area is in the construction of a straight, audiophile-quality stereo playback chain, where the Volume2 is situated between the playback machine and either power amp and speakers or simply active speaker system. In such cases, the playback machine must offer analog outputs. This provides for minimal financial and electronic efforts through the most direct possible playback path.

    Unbalanced connections, e. g. to and from RCA or TS Jack
    You can establish unbalanced connections easily and without adaptors – for example from CD-Players with RCA outputs or to (HiFi) power amplifiers with RCA inputs. In any case we recommend to use readily configured cables from XLR to the respective RCA or TS/TRS connector to dispense with adaptors. Ask your dealer for configured cables. It is important to pay attention to the correct polarity of the three XLR wires. With the XLR pin configuration diagram in our manuals any audio expert can ensure to select or configure appropriate cables.

  • Inputs & Outputs Instrumentation amplifier, electronically balanced (differential), transformerless
    Nominal input level: +4dBu
    Input impedance: =22kOhm
    Output impedance: ‹600Ohm
    Max. input level: ›+20dBu
    Volume control range: -80dB bis -4dB
    Measurements Frequency range: 10Hz-100kHz (100kHz = -3dB)
    CMRR: ›60dBu@1kHz
    THD & N (at +15dBu input level): ›-100dBu
    S/N (A-weighted): -102dBu
    Crosstalk L/R (at 1kHz): ›-80dBu
    Dynamic range: 120dB
    Power supply Toroidal transformer: 3,5VA
    Fuses: 250mA (230V), 500mA (115V)
    Voltage selector: 230V/50Hz; 115V/60Hz
    Power consumption: ca. 15W
    Dimensions & Weight (W x H x D): 215 x 80 x 220mm; 8.5" x 3.1" x 8.8"
    Depth incl. Potentiometer, Sockets: 245mm/9.8 inches
    Weight: 1.6kg/3.52lbs
