SurgeX SX20NE/RT Surge Eliminator and Power Conditioner NEMA Enclosure
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
SurgeX SX20NE/RT Surge Eliminator and Power Conditioner NEMA Enclosure with EMI/RFI Filtering and ICE
The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering as well as SurgeX ICE -Inrush Current Elimination for a comprehensive power conditioning solution.
The SurgeX SX20NE/RT provides guaranteed surge protection and power conditioning for audio, video, broadcast and computer equipment.
FEATURES
- Magnetic shielding steel enclosure
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.

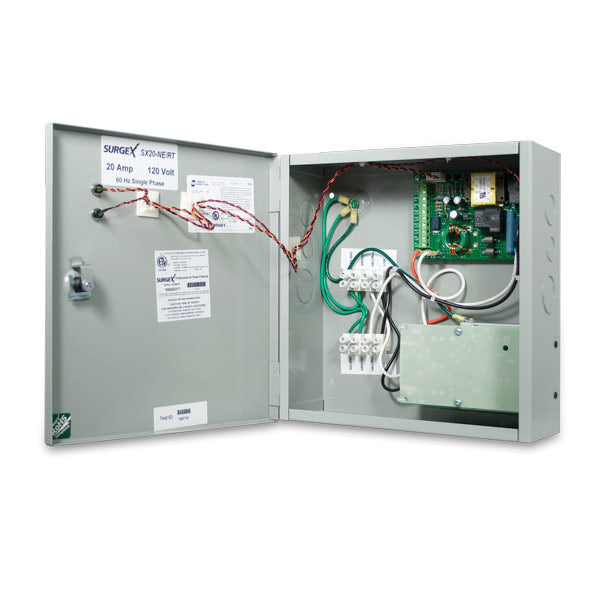

SX20 NE/RT units are 20-amp load-capable, 12" x 12" x 4" NEMA enclosures and meet code for use at the service entrance, sub-panels and in ceiling plenums.
SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.
| Load Rating | 20 amps @ 120 volts |
| Power Requirement (no load) | 15 watts |
| Surge Let-Through Voltage (6000-volt surge) | 0 volts |
| UL 1449 Adjunct Classification Test Results | 1000 surges, 6000 volts, 3000 amps, B3 pulse |
| Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode (50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage | 6000 volts* |
| Maximum Applied Surge Current | Unlimited, due to current limiting* |
| Maximum Applied Surge Energy | Unlimited, due to current limiting* |
| Endurance (C62.41-1991 Category B3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Maximum Load Inrush Current During Power-up | 1000 Joules |
| Remote Turn-on Applied Voltage Range | 5 to 30 volts DC |
| Remote Turn-on Current Draw | Contact Closure: 3 mA 5 V DC Applied Voltage: 1 mA 12 V DC Applied Voltage: 2.5 mA 24 V DC Applied Voltage: 5 mA |
| Auxiliary Relay Contact Rating | 30 Volts at 1 Amp |
| LED Output | 12 volts DC, maximum 20 mA (resistor required) |
| Dimensions | 12.0" H x 12.0" W x 4.0" D (30.5 x 30.5 x 10.2 cm) |
| Weight | 12 lbs (5.45 kg) |
| Temperature Range | 5¼ to 35¼ C |
| Humidity Range | 5% to 95% R.H., non-condensing |
| Agency Listings | ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
| *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 | |
