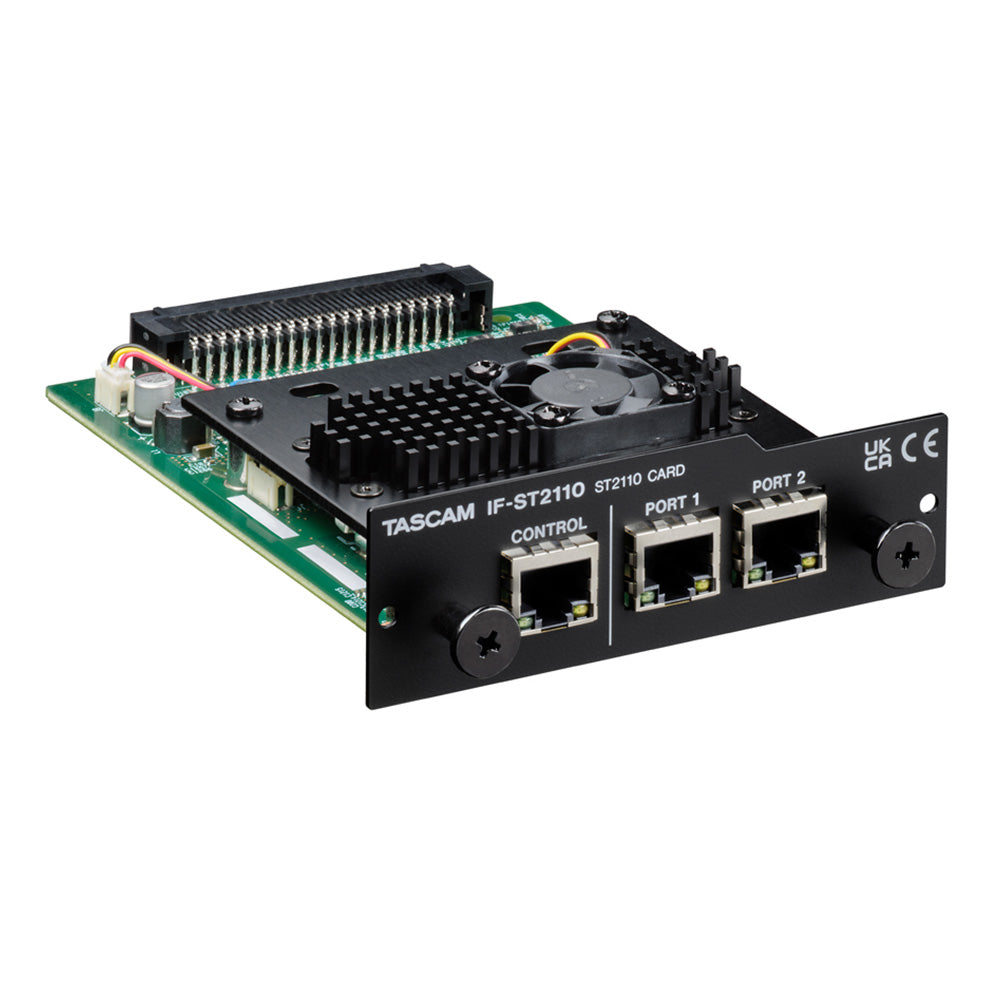

Tascam IF-ST2110 - SMPTE ST-2110 Card for SonicView Mixers



  • Dale #:

    TASC-IFST2110

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The IF-ST2110 is an optional 64in/64out SMPTE ST 2110 compliant interface card for Sonicview 24XP and Sonicview 16XP. Features: Compliant with ST2110-30/31 and AES67 standards 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) audio transmission Redundancy (ST2022-7 compliant) NMOS IS-04/0... Read More

Our Price: $3,999.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The IF-ST2110 is an optional 64in/64out SMPTE ST 2110 compliant interface card for Sonicview 24XP and Sonicview 16XP.

Features:

  • Compliant with ST2110-30/31 and AES67 standards
  • 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) audio transmission
  • Redundancy (ST2022-7 compliant)
  • NMOS IS-04/05

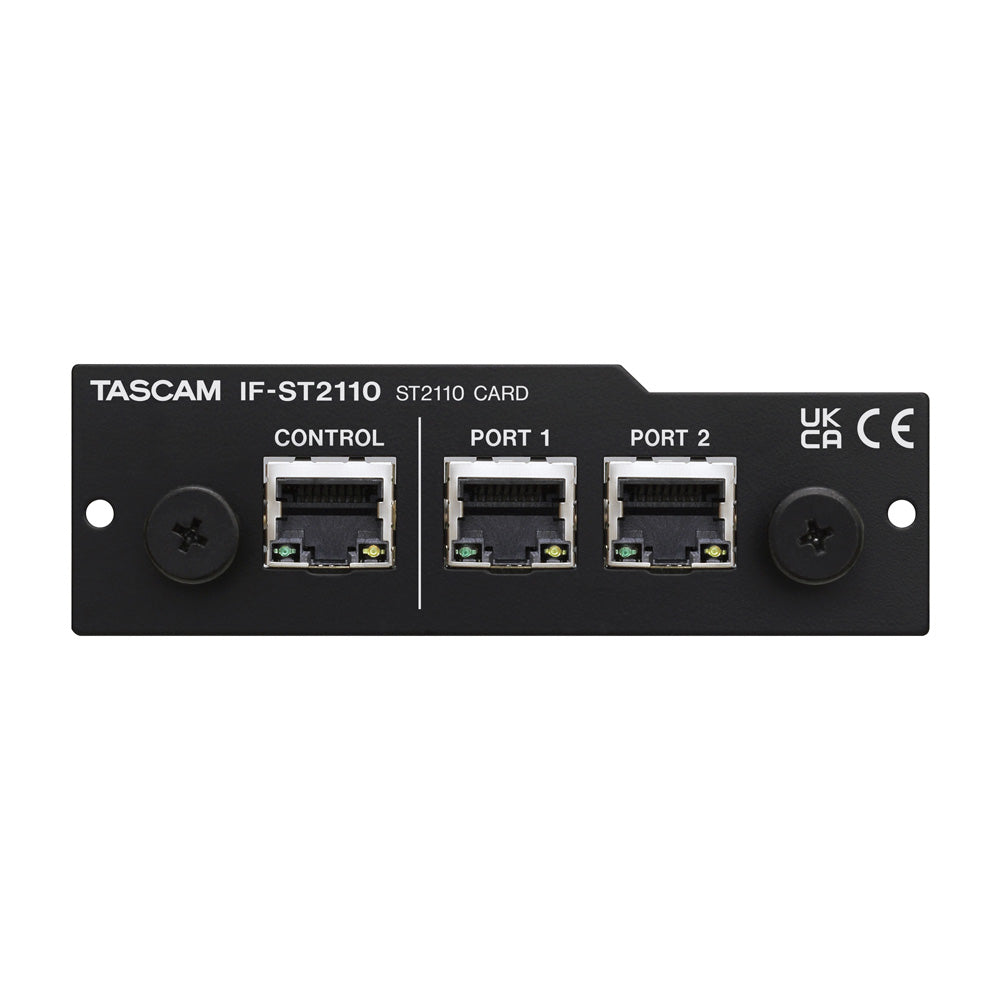

  • Equipped with media stream and independent control ports
    • - 2 media ports (PORT 1 and PORT 2)
    • - 1 Control port (CONTROL)
  • WebUI app included for control including point-to-point connection capability


64 In/64 Out Audio Transmission and Independent Control Ports
Up to 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) capability for audio transmission.

2 Media Ports and Independent Control Ports
2 media ports provide audio stream capability including SMPTE ST 2022-7 compliant redundancy. The independent control port allows set-up, modification, and monitoring. By using a dedicated IF-ST2110 processing card system reliability and stability is insured.

WebUI application included
The IF-ST2110 card includes a companion built-in Web UI application that allows users to configure and monitor the IF-ST2110 using a Web browser.

More +

Product Specs

Supported audio specifications SMPTE ST 2110-30/31, AES67
Maximum number of audio channels 64ch in / 64ch out (48kHz)
32ch in / 32ch out (96kHz)
Sampling frequency 48 or 96 kHz
Bit depth 16-bit, 24-bit or 32-bit (integer)
Supported control specifications AMWA NMOS IS-04/05
*RDS supports DNS-SD and mDNS
Supported synchronization specifications PTP
-AES67
-IEEE 1588-2008
-SMPTE ST 2059-2
Supported redundancy specifications SMPTE ST 2022-7
Buffer time 250us to 32ms
Supported packet times 1 msec / 125 usec
Number of encoding channels per stream Max 64ch
(Varies depending on conditions. Please see the table below for details.)
AES67 (L16/L24)
AM824 (Legacy/AES3 Transparent)		 SMPTE LEVEL
A Ax B Bx C Cx
48kHz, 1msec 1 to 8 channels 1 to 8 channels 1 to 8 channels 1 to 8 channels 1 to 8 channels 1 to 8 channels
48 kHz, 125 usec     1 to 8 channels 1 to 8 channels 1 to 64 channels 1 to 64 channels
96 kHz, 1 msec   1 to 4 channels   1 to 4 channels   1 to 4 channels
96 kHz, 125 usec       1 to 8 channels   1 to 32 channels
AES67(L32) SMPTE LEVEL
A Ax B Bx C Cx
48 kHz, 1 msec 1 to 7 channels 1 to 7 channels 1 to 7 channels 1 to 7 channels 1 to 7 channels 1 to 7 channels
48 kHz, 125 usec     1 to 8 channels 1 to 8 channels 1 to 60 channels 1 to 60 channels
96 kHz, 1 msec   1 to 3 channels   1 to 3 channels   1 to 3 channels
96 kHz, 125 usec       1 to 8 channels   1 to 30 channels
CONTROL / MEDIA ports (PORT 1 / PORT 2)
Connector RJ-45
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Multicast transmission SSM (IGMPv3) supported
External dimensions 107 × 34 × 156.8 mm (width × height × depth, including protrusions)
Weight 211g
Operating temperature range 0 – 40°C (32 – 104°F)
Included items IF-ST2110 x1
Owner's manual, inc. warranty x1

More +
