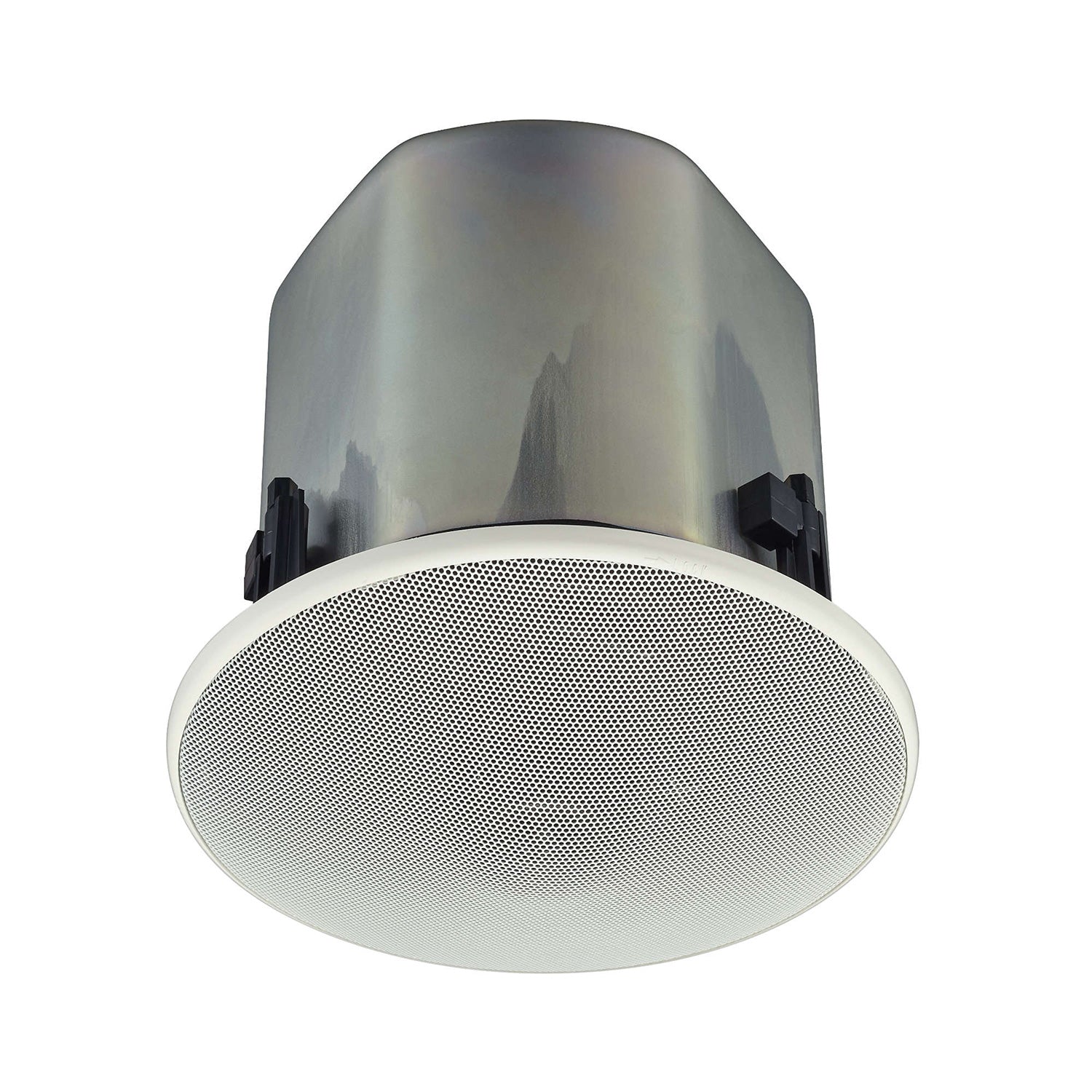

TOA F-2352CU2 Co-Axial Wide-Dispersion 5" Ceiling Speaker with Back-Can - 30 Watts 25/70.7V/16 Ohms
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
TOA F SERIES CEILING SPEAKERS are ideal for music and paging applications such as audio/visual, business music or retail sound systems.The new tile bridges allow simpler and faster installation, ordering convenience and lower shipping costs. Existing TOA mounting C-rings and trim rings will continue to be available for installations that do not require tile bridges. 5" CO-AXIAL, 30 W
Features:- Special diffuser provides wide off-axis high frequency response
- Ported bass-reflex design
- Co-axial: 5" cone driver and dome tweeter
- Wide-dispersion: 170Î_ conical (1-4k Hz avg.)
- Frequency Response: 70 to 20k Hz
- Sensitivity: 90 dB SPL (1 W, 1 m)
- Continuous Power Handling: 120 W (8 ohms)
- Built-in 25/70.7/100 V transformer (30 W max.) with 8/16 ohm direct modes
- Convenient power tap selector on front baffle
- Metal back-can and safety cable
- Removable terminal block with loop-through terminations
- Low-profile, paintable grille
- Overload protection circuitry
- Mounting C-ring included (F-2352C ONLY)
- Optional accessories:
- TB-200 tile bridge (Qty. 2 supplied with F-2352CU2)
- HY-TB1 tile rails (F-122CU, F-2322C, F-2352C, F-2852C)
- HY-BC1 surface-mount back-can (F-122CU, F-2322C, F-2352C)
- HY-TR1 trim ring (F-122CU/CU2, F-2322C/C2, F-2352C/C2, req's HY-TB1)
Key benefits include smooth off-axis coverage, versatile range of models, ease of installation, and competitive pricing. All models include built-in multi-tap transformers with 8/16 ohm direct modes, front baffle power tap selection and double-locking, paintable grilles. Accessories include HY-TB1 tile bridge rails, HY-TR1 trim ring and HY-BC1 surface back-can. The F Series ceiling speakers are individually packaged
Highlights: Tile bridge included with speaker;Faster installation;Easier ordering;Ships two units per box (example: Order (2) F-122CU2 = two speakers and two tile bridges packaged and shipped in one box); All of these new speaker packages are UL Rated:General signaling speaker, UL1480 Category UEAY and CAN/CSA C22.5 No. 205 Category UEAY7;Suitable for use in air-handling spaces, UL2043
| Enclosure | Bass reflex type |
| Rated Input | 30 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 60 W (8 ohms), 30 W (16 ohms); Continuous program: 120 W (8 ohms), 60 W (16 ohms) |
| Impedance | |
| 100 V line | 330 ohms (30 W), 1 kohms (10 W), 3.3 kohms (3 W), 10 kohms (1 W) |
| 70 V line | 170 ohms (30 W), 330 ohms (15 W), 1 kohms (5 W), 3.3 kohms (1.5 W), 10 kohms (0.5 W) |
| 25 V line | 170 ohms (3.7 W), 330 ohms (1.9 W), 1 kohms (0.6 W), 3.3 kohms (0.2 W),10 kohms (0.06 W),16 ohms, 8 ohms |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 70 Ð 20,000 Hz (Ð10 dB), 50 Ð 20,000 Hz (Ð20 dB) at installation in 1/2 free sound field(Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | High frequency: Balanced dome-type; Low frequency: 12 cm (5) cone-type |
| Mounting Hole | ¿200 mm (7 7/8)Maximum ceiling thickness: 37 mm (1 29/64) |
| Input Terminal | Removable locking connector with screw-down terminals(2 input terminals and 2 bridge terminals) |
| Usable Cable | |
| Solid copper wire | ¿0.5 Ð ¿1.6 mm (equivalent to AWG 24 Ð 14) |
| Stranded copper wire | 0.2 Ð 2.5 mm2 (equivalent to AWG 24 Ð 14) |
| Finish | |
| Enclosure | Steel plate, plating |
| Baffle | Fire-resistant ABS resin (resin material grade: UL-94 V-0 or its equivalent), black |
| Rim | Fire-resistant ABS resin (resin material grade: UL-94 V-0 or its equivalent), white, paint |
| Punched net | Steel plate, white, paint |
| Dimensions | ¿230 mm (9 1/16) x Depth 229 mm (9 1/64) |
| Weight | 3.7 kg (including mounting accessories) |
