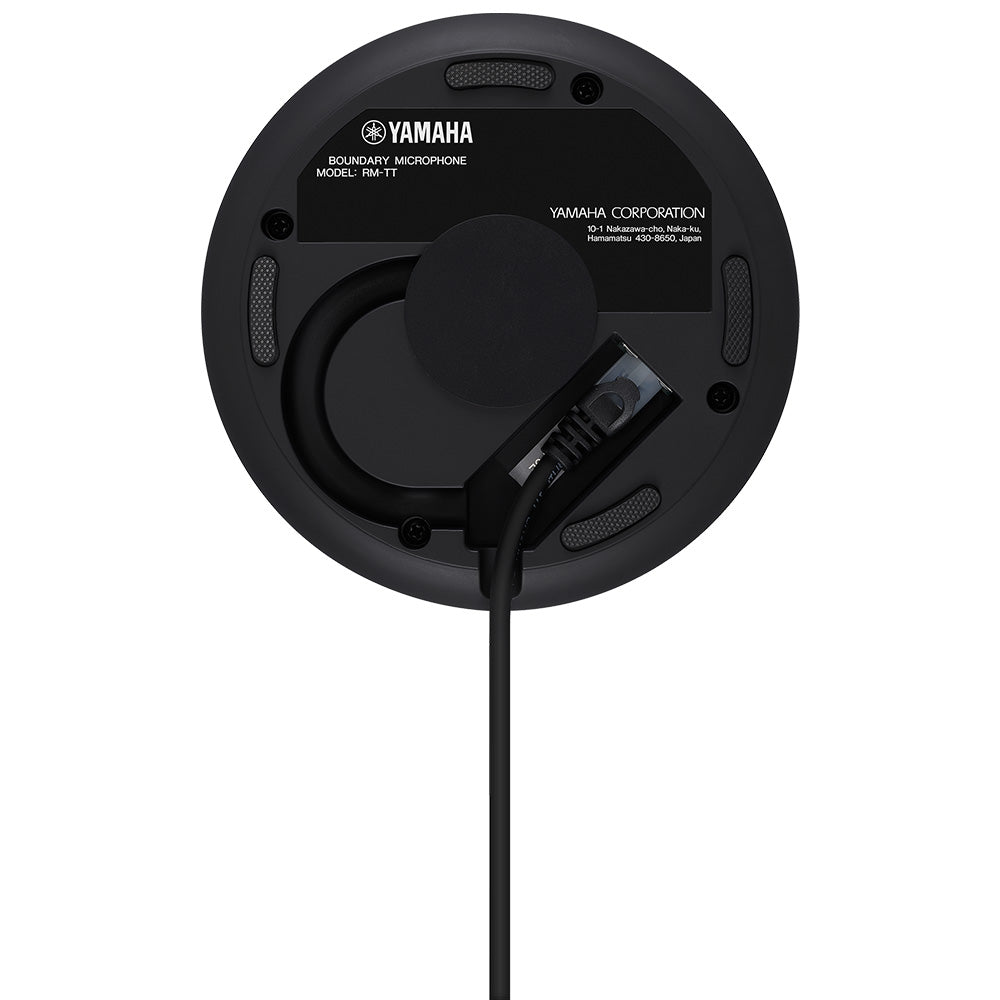

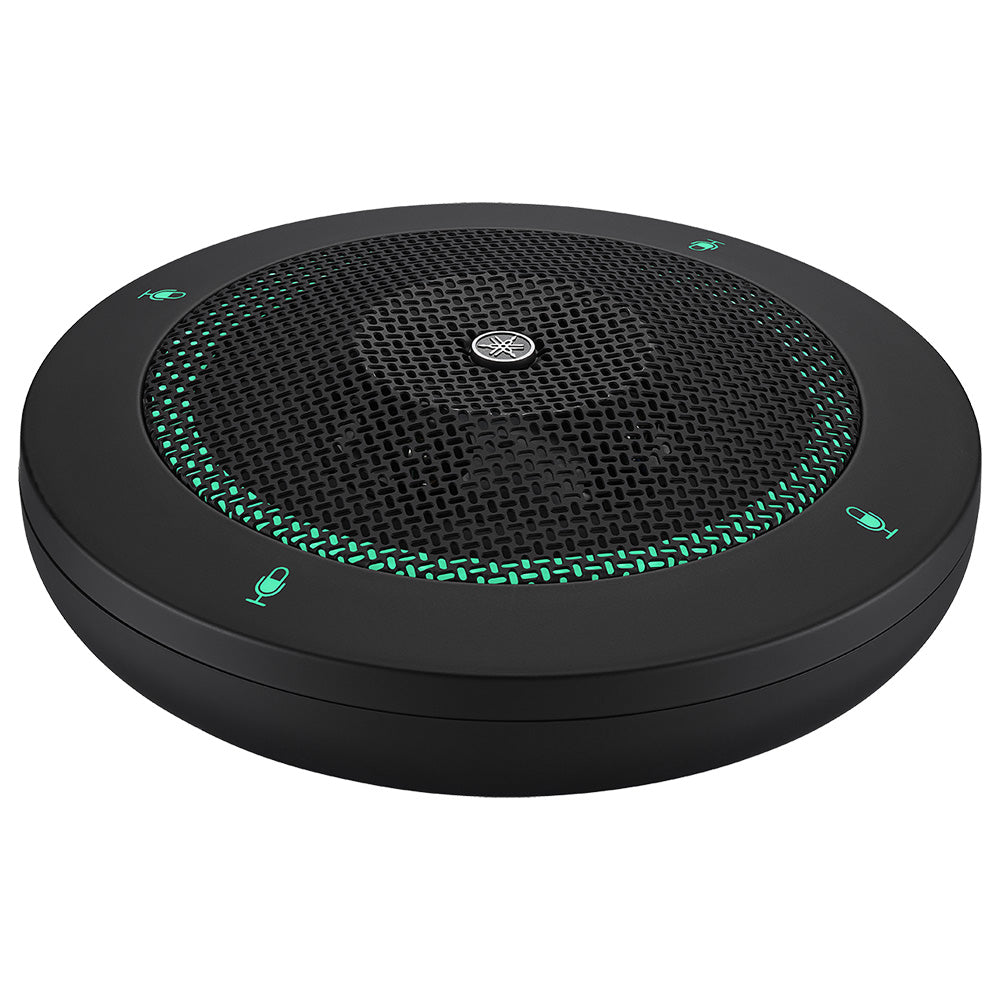

Yamaha RM-TT - Wired Tabletop Conferencing Microphone for ADECIA (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Yamaha RM-TT - Wired Tabletop Conferencing Microphone for ADECIA (Black)
Sale price$655.00
Description
Tabletop array microphone provides a comfortable conference sound environment with no configuration needed.
Features:
- Supports network audio standard, Dante.
- Auto Voice Tracking allows flexibility of table layout in meeting room and position of participants.
- 6 types of microphone directivity to choose from, depending on the number of participants and meeting style.
- Achieves comfortable sound quality by making full use of adaptive echo canceller, auto gain control, noise reduction, and dereverberation.
- When using Auto Voice tracking, RM-CR automatically selects the microphone that is the nearest to talker to pick up voice.
- Dante audio, control reception and PoE power are connected through a single network cable.
- With included mounting adaptor, the microphone can be fixed on the table
| General Specifications | |
| Description | Boundary Microphone |
| Colour | Black, White |
| Dimensions (W x D x H) | 140 mm x 140 mm x 41.5 mm |
| Weight | 310 g |
| Power Requirements | PoE (IEEE 802.3af) |
| Maximum Power Consumption | 4.5 W |
| In Operation Temperature | 0¡C - 40¡C |
| Humidity | 30% - 90% (No condensation) |
| Storage Temperature | -20¡C - 60¡C |
| Humidity | 20% - 90% (No condensation) |
| Indicator | Mute Indicator (Mute/Unmute) Status Indicator (Ring) Network Port Indicator |
| Maximum Device Number with RM-CR | 14 (without VXL1-16P, up to 16) |
| Accessories | Installation Manual, Table-top mounting adapter, 3 x Screw for mounting, 3 x Spacer |
| Network Specifications | |
| Ethernet | Dante, Remote Control, Web UI, PoE |
| Cable Requirements | CAT5e or higher (STP) |
| Audio Specifications | |
| Frequency Response | 160 Hz - 16 kHz (-10 dB) |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 bit |
| Latency (including signal processing) | 46 ms (except for toroidal directivity) 50 ms (for toroidal directivity) |
| Audio I/O | Dante 1 in x 2 out In1=AEC reference signal/Out1=output of beam mix, Out2= output of beam mix (simple processed) |
| Maximum Input Level of SPL (0 dBFS) | 106.8 dB SPL |
| Self Noise | 6.3 dBA SPL |
| SNR (Ref. 94 dB SPL at 1 kHz) | 87.7 dBA |
| Sensitivity | -12.8 dBFS/Pa |
| Dynamic Range | 100.5 dBA |
| Signal Processing | Auto Voice Tracking Selectable Polar Pattern: Cardioid, Hyper Cardioid, Super Cardioid, Omni, Bi-Directional, Troid AEC, NR, Dereverberation, Auto Mixer, AGC, User PEQ, Output Gain |
