DALE SKU # YELL-YT3903

Yellowtec YT3903 - Hush On-Air Signalling Controller

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

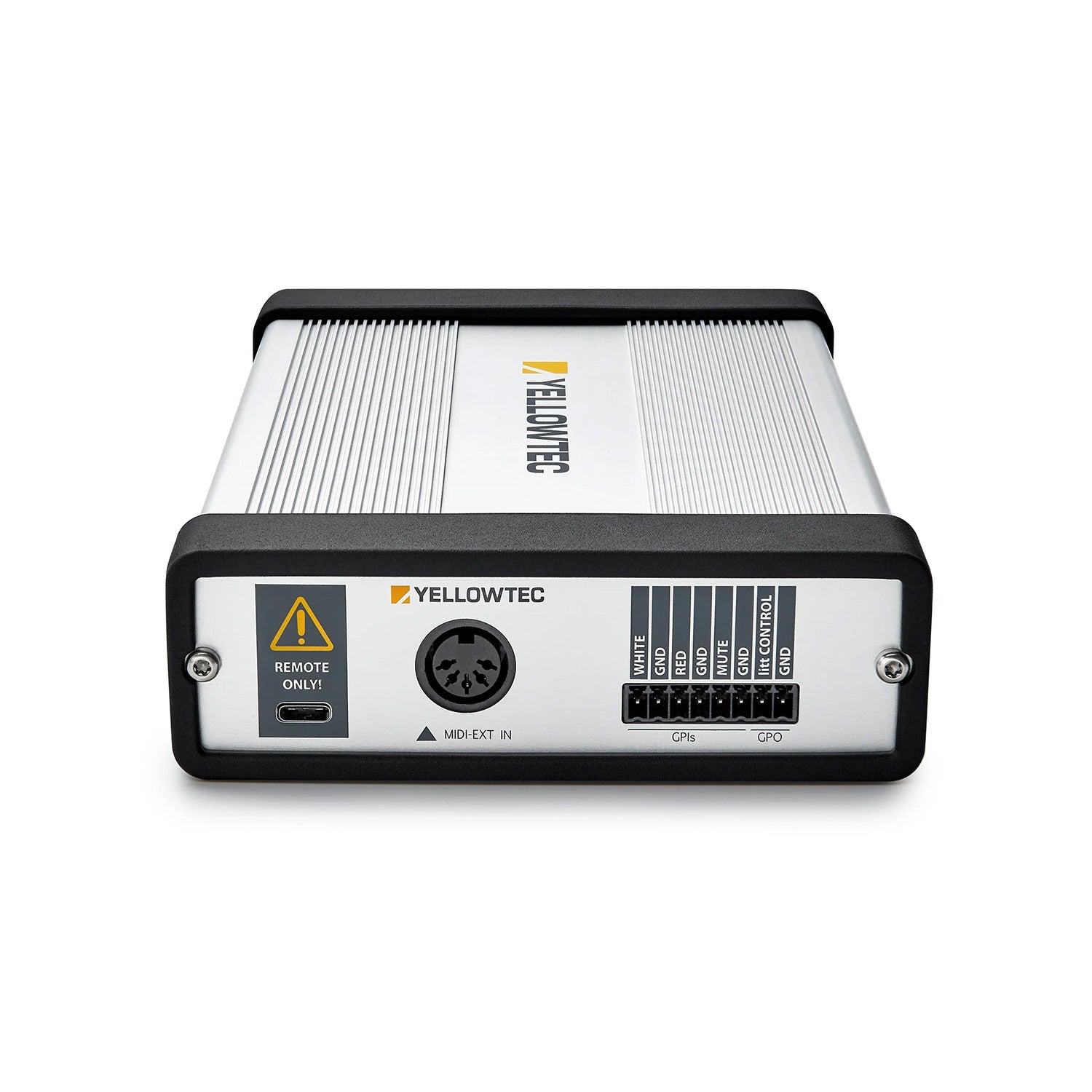

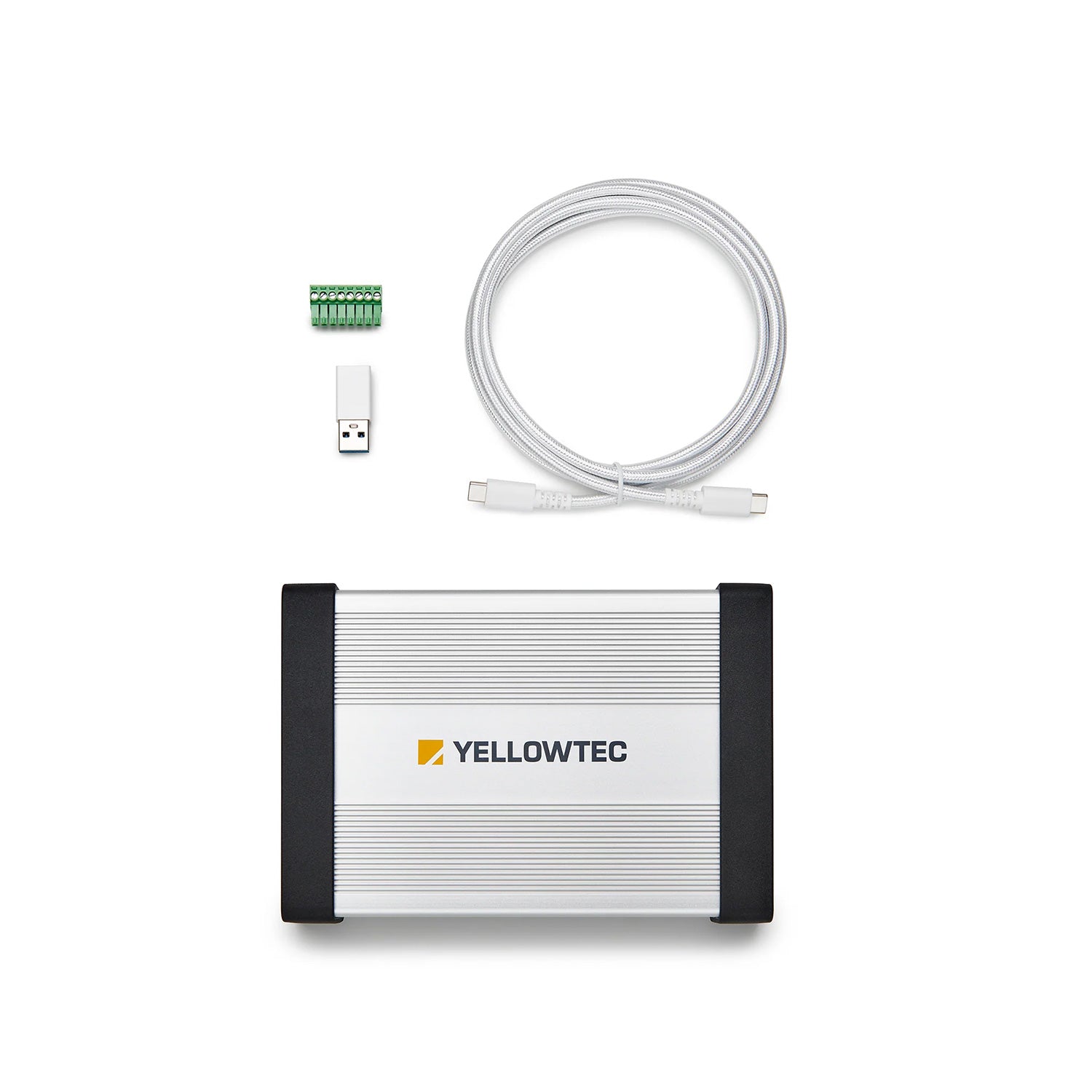

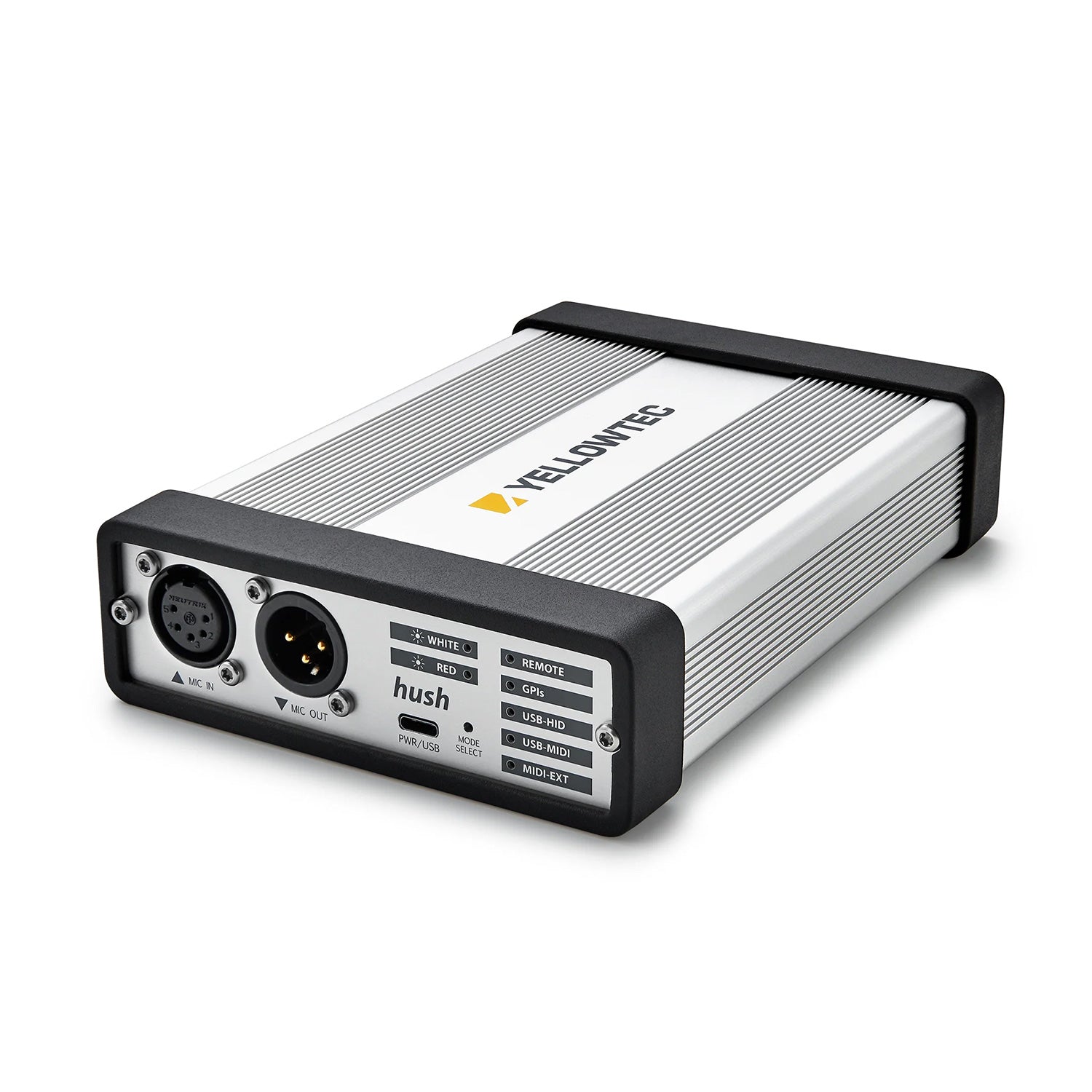

    hush is a convenient controller for your OnAir signaling. It allows for easy control over your OnAir indicator's LED signals. Its plug'n'play concept allows fast handling. Made for m!ka, hush perfectly fits the XLR-5 connector at the bottom end of your m!ka Mic Arm OnAir's cable. Simply plug'n'play! You're instantly in control of your LED OnAir signaling. Make most of the m!ka Mic Arm's dual-color LED indicator with hush. Your mic signal is looped through unprocessed. If you are looking for OnAir control with preamp and mute function, please check out the hush+ OnAir Controller.

    Thanks to five different modes, hush fits nearly any setup. Directly on the device or within the corresponding hush App you can select your preferred mode to control hush. Choose between the hush Remote, GPIs, USB-HID or MIDI (USB / Ext.). No matter your needs, hush supports you in the driver's seat! Find more details about the various modes in the hush Briefing Book.

    Features:

    • Premium device to control your OnAir signaling
    • Allows for control over LED signal
    • Designed to fit Yellowtec's m!ka Mic Arms with OnAir indicator
    • Plug'n'play concept for mic arm's XLR-5 allows for fast handling
    • Optionally also control a color segment of the litt Signaling Device
    • Audio signal is let through unprocessed (no preamp!)
    • Thanks to a great variety of modes, hush fits any setup
    • Control hush via hush Remote, GPIs, USB-HID or MIDI (USB / Ext.)
    Mic In
    Input Impedance mic in looped through
    Max. Input Level n/a
    Gain n/a
    Input Referred Noise n/a
    Subsonic Filter n/a
    Phantom Power n/a
    Line Out
    Output Impedance mic out looped through
    Max. Output Level n/a
    THD+N n/a
    Frequency Range n/a
    USB
    Connector USB-C
    Compatibility ? USB 1.1 - USB 2 (with PSU)
    USB 3 (fully USB-powered)
    Data Rate 12 MB/sec
    Power via USB Voltage: 4.5V ..5.5V
    Current: typically 500mA / 900mA max.
    Red Light Power @5-Pin XLR
    Output Voltage 12V
    Output Current 40mA
    Output Voltage 12V
    Output Current 60mA
    litt Control
    Output Voltage 12V
    Output Current 60mA
    Control Modes
    hush Remote Connector: USB-C
    USB-HID Connector: USB-C
    MIDI-In Current Loop: 10mA@5V
    Data Rate: 31.25 kBaud
    GPI Switch to GND
    GPO Type: Open Collector
    Max. Voltage: +30V
    Max. Current: 1.5A

    hush is a convenient controller for your OnAir signaling. It allows for easy control over your OnAir indicator's LED signals. Its plug'n'play concept allows fast handling. Made for m!ka, hush perfectly fits the XLR-5 connector at the bottom end of your m!ka Mic Arm OnAir's cable. Simply plug'n'play! You're instantly in control of your LED OnAir signaling. Make most of the m!ka Mic Arm's dual-color LED indicator with hush. Your mic signal is looped through unprocessed. If you are looking for OnAir control with preamp and mute function, please check out the hush+ OnAir Controller.

    Thanks to five different modes, hush fits nearly any setup. Directly on the device or within the corresponding hush App you can select your preferred mode to control hush. Choose between the hush Remote, GPIs, USB-HID or MIDI (USB / Ext.). No matter your needs, hush supports you in the driver's seat! Find more details about the various modes in the hush Briefing Book.

    Features:

    • Premium device to control your OnAir signaling
    • Allows for control over LED signal
    • Designed to fit Yellowtec's m!ka Mic Arms with OnAir indicator
    • Plug'n'play concept for mic arm's XLR-5 allows for fast handling
    • Optionally also control a color segment of the litt Signaling Device
    • Audio signal is let through unprocessed (no preamp!)
    • Thanks to a great variety of modes, hush fits any setup
    • Control hush via hush Remote, GPIs, USB-HID or MIDI (USB / Ext.)
    Mic In
    Input Impedance mic in looped through
    Max. Input Level n/a
    Gain n/a
    Input Referred Noise n/a
    Subsonic Filter n/a
    Phantom Power n/a
    Line Out
    Output Impedance mic out looped through
    Max. Output Level n/a
    THD+N n/a
    Frequency Range n/a
    USB
    Connector USB-C
    Compatibility ? USB 1.1 - USB 2 (with PSU)
    USB 3 (fully USB-powered)
    Data Rate 12 MB/sec
    Power via USB Voltage: 4.5V ..5.5V
    Current: typically 500mA / 900mA max.
    Red Light Power @5-Pin XLR
    Output Voltage 12V
    Output Current 40mA
    Output Voltage 12V
    Output Current 60mA
    litt Control
    Output Voltage 12V
    Output Current 60mA
    Control Modes
    hush Remote Connector: USB-C
    USB-HID Connector: USB-C
    MIDI-In Current Loop: 10mA@5V
    Data Rate: 31.25 kBaud
    GPI Switch to GND
    GPO Type: Open Collector
    Max. Voltage: +30V
    Max. Current: 1.5A
