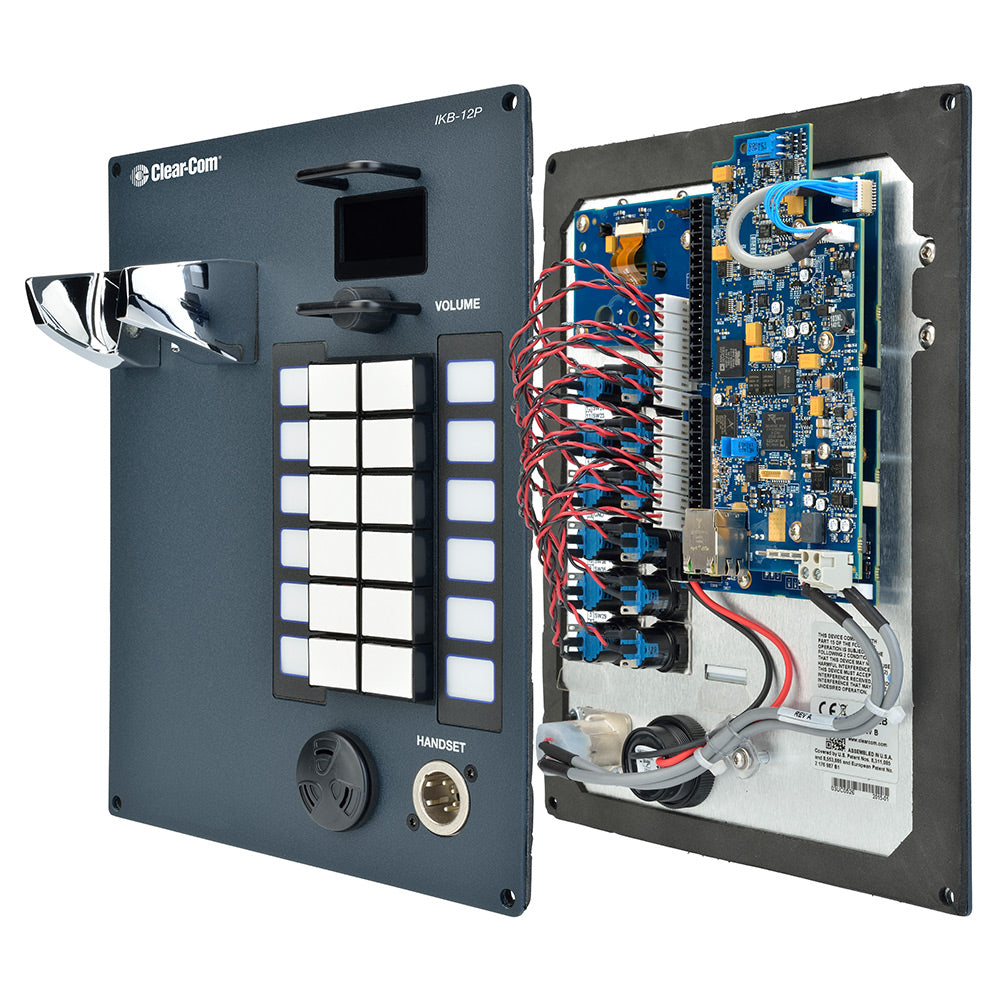

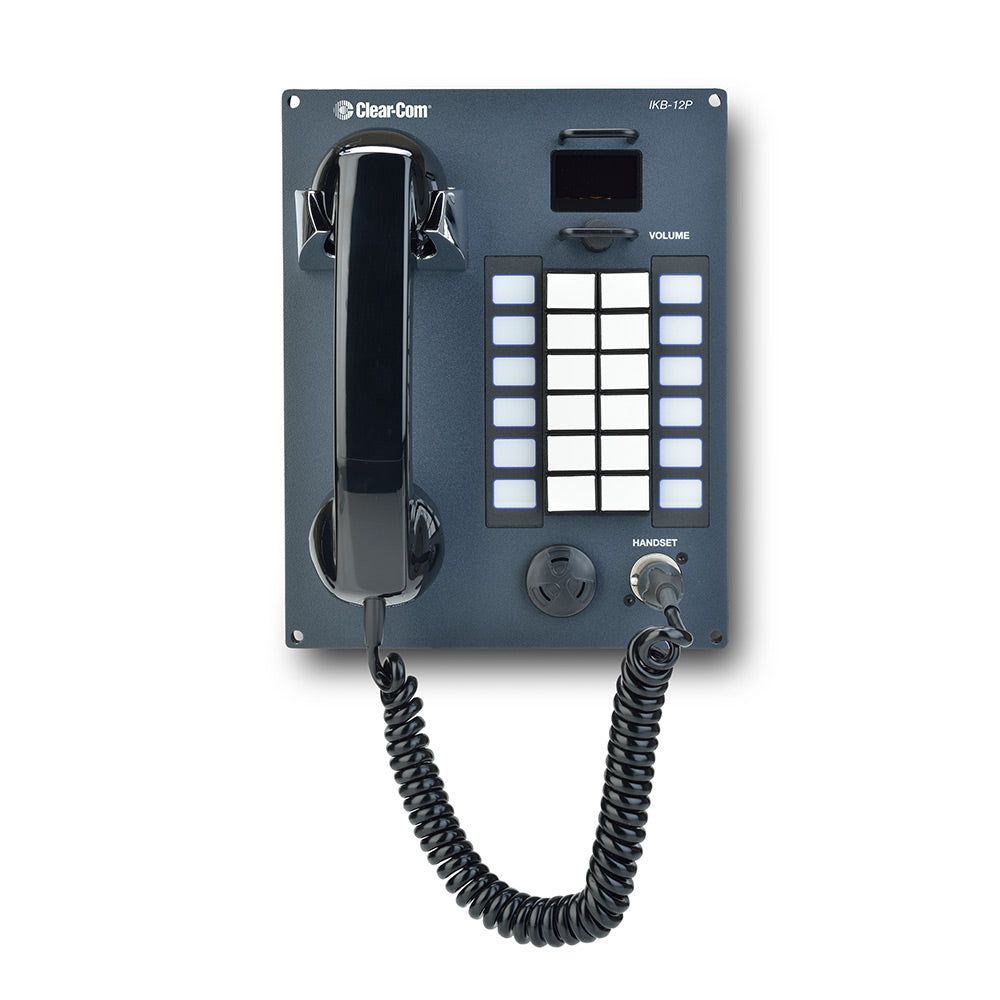

Clear-Com IKB-12P - 12-Button Intercom Station (With Logo)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
IKB-12 and HRI-12 intercom stations are designed to be a part of the HCS Industrial Intercom System providing a high-capacity single channel partyline intercom to intercom stations with point-to-point and point-to-multipoint audible and visual call signalling with caller identification. The stations are flush mount installation on an electrical back box. They include an active handset cradle which detects the handset and places the station into the partyline when taken off hook.
HCS Industrial Intercom
- Single Channel Partyline
- Advanced Call Signals
- Point-To-Point
- Point-To-Multipoint
- Audible Buzzer
- Visual Caller Identification
HMS-4X Main Station
- Networked System Host
- 1 HMS-4X with HLI-ET2 per system
- HCS Firmware Features
- Cold Standby Redundancy
IKB/HRI Intercom Stations
- Up to 64 IKB/HRI Intercom Stations
- Handset
- 12 Buttons for Call Signals
- 28 GPI for Call Signals
- IP65 Environmental Rating (when flush-mounted to a wall or back box, with appropriate perimeter seals)
HCS Configuration / Management
- Easy to use browser configuration
- Fast front panel control / configuration
- Plug-and-go with auto discovery
- Central upgrades from main station
| Connectors | Handset: 4-pin male XLR Ethernet/PoE: RJ-45 |
| Microphone Pre-Amplifier | Handset Mic Impedance: 200 Ohms, Dynamic Mic Limiter Range:>35dB Mic Gain: 60dB, Dynamic Frequency Response: 400Hz _ 8kHz, + 3dB (contoured for intelligibility) Distortion: <0.5% THD @ 1kHz Noise: < -55dBu, Dynamic |
| Earphone Amplifier | Load Impedance:>32 Ohms Output Level: +1 dBu before clipping Sidetone: -6dB (selectable) |
| Earphone Type | Specified for a route from a 4-wire input @0dBu in: Max Gain: 12dB Noise: <-65dBu (@ max gain) Headphone Limiter: -0dBu, Selectable |
| Power | Power Requirements: 5W DC Voltage Range: 30 _ 60V |
| Ethernet | Fast Ethernet Standard: 100 BaseT only, Auto MDIX |
| Environmental | Humidity: 0 _ 95%, relative Temperature: -14ÁF to +131ÁF (-10ÁC to +55ÁC) |
| Dimensions | 8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm) |
| Weight | 27.9 oz (0.79 KG) |
IKB-12 and HRI-12 intercom stations are designed to be a part of the HCS Industrial Intercom System providing a high-capacity single channel partyline intercom to intercom stations with point-to-point and point-to-multipoint audible and visual call signalling with caller identification. The stations are flush mount installation on an electrical back box. They include an active handset cradle which detects the handset and places the station into the partyline when taken off hook.
HCS Industrial Intercom
- Single Channel Partyline
- Advanced Call Signals
- Point-To-Point
- Point-To-Multipoint
- Audible Buzzer
- Visual Caller Identification
HMS-4X Main Station
- Networked System Host
- 1 HMS-4X with HLI-ET2 per system
- HCS Firmware Features
- Cold Standby Redundancy
IKB/HRI Intercom Stations
- Up to 64 IKB/HRI Intercom Stations
- Handset
- 12 Buttons for Call Signals
- 28 GPI for Call Signals
- IP65 Environmental Rating (when flush-mounted to a wall or back box, with appropriate perimeter seals)
HCS Configuration / Management
- Easy to use browser configuration
- Fast front panel control / configuration
- Plug-and-go with auto discovery
- Central upgrades from main station
| Connectors | Handset: 4-pin male XLR Ethernet/PoE: RJ-45 |
| Microphone Pre-Amplifier | Handset Mic Impedance: 200 Ohms, Dynamic Mic Limiter Range:>35dB Mic Gain: 60dB, Dynamic Frequency Response: 400Hz _ 8kHz, + 3dB (contoured for intelligibility) Distortion: <0.5% THD @ 1kHz Noise: < -55dBu, Dynamic |
| Earphone Amplifier | Load Impedance:>32 Ohms Output Level: +1 dBu before clipping Sidetone: -6dB (selectable) |
| Earphone Type | Specified for a route from a 4-wire input @0dBu in: Max Gain: 12dB Noise: <-65dBu (@ max gain) Headphone Limiter: -0dBu, Selectable |
| Power | Power Requirements: 5W DC Voltage Range: 30 _ 60V |
| Ethernet | Fast Ethernet Standard: 100 BaseT only, Auto MDIX |
| Environmental | Humidity: 0 _ 95%, relative Temperature: -14ÁF to +131ÁF (-10ÁC to +55ÁC) |
| Dimensions | 8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm) |
| Weight | 27.9 oz (0.79 KG) |
