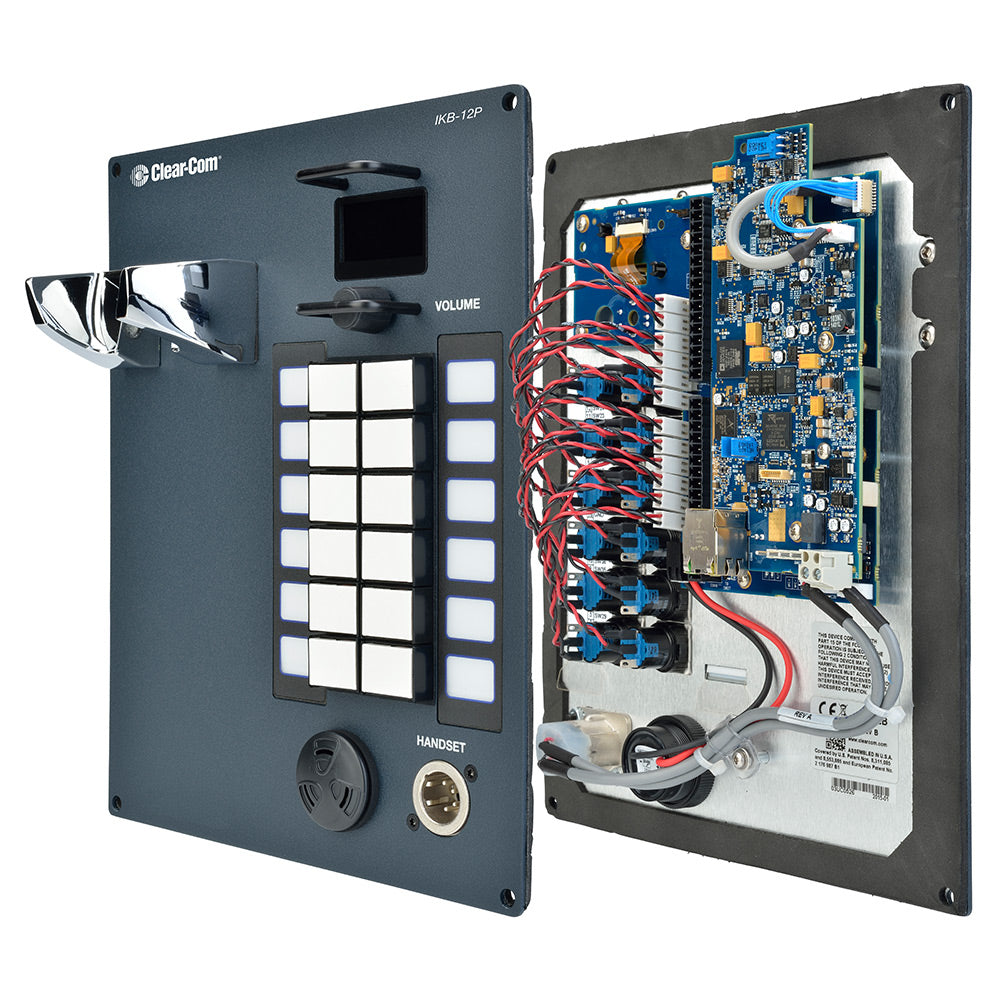

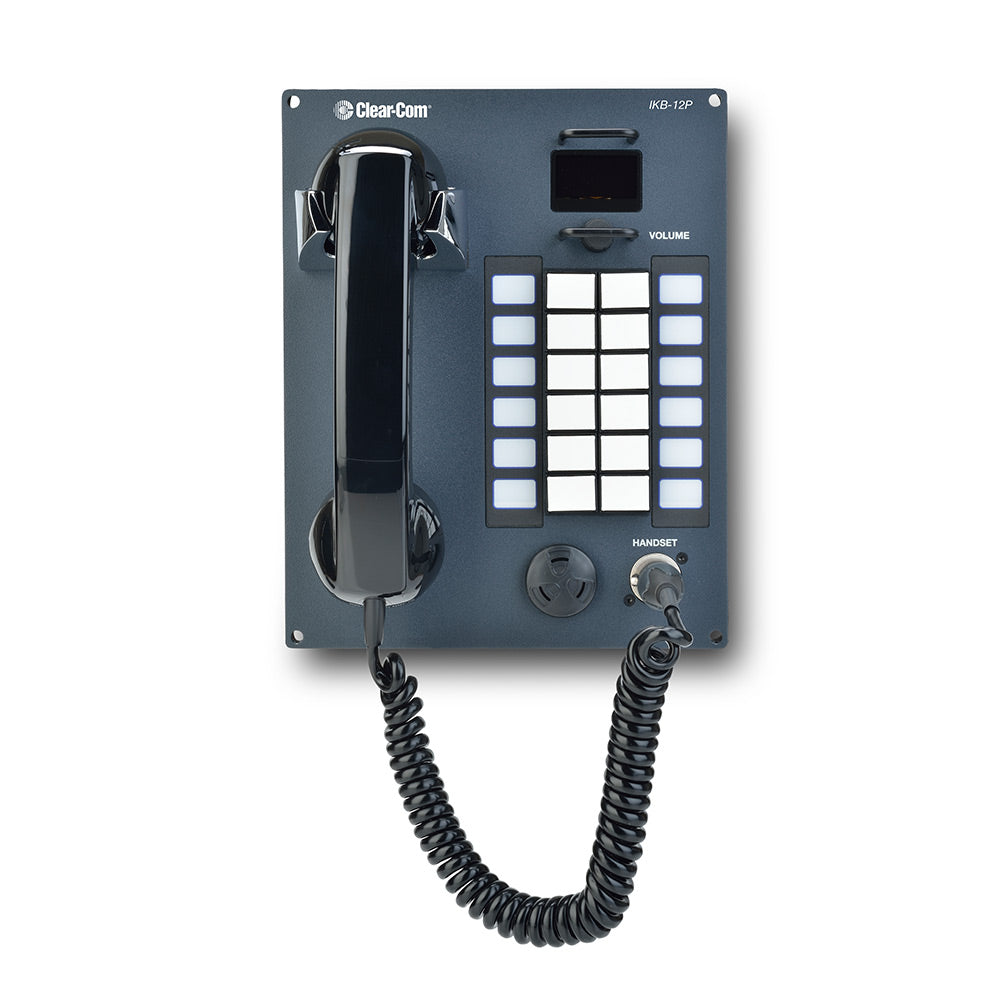

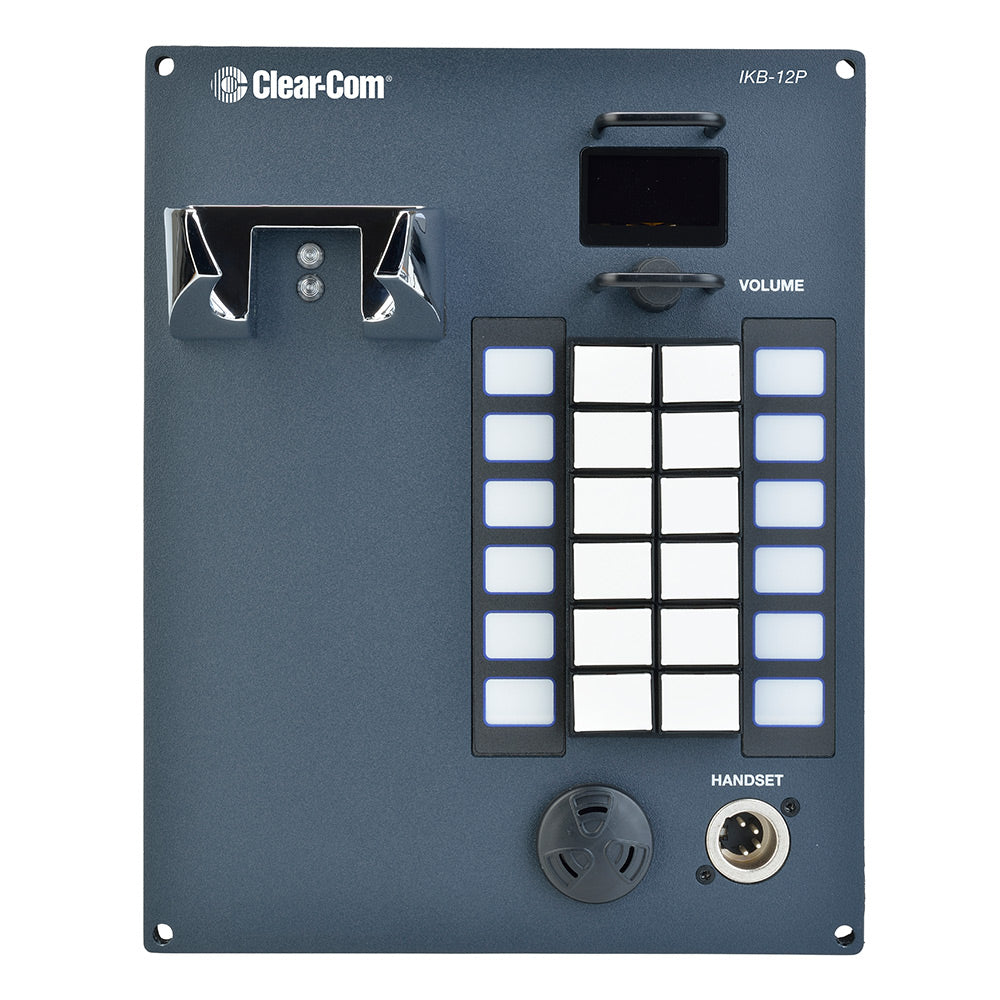

Clear-Com IKB-12P Digital Partyline Industrial Intercom Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IKB-12P is a single-channel digital partyline intercom station with 12 assignable call buttons, a loud alert buzzer and a rotary knob for controlling volume and menu navigation. Used in conjunction with an HMS-4X main station installed with v2.1 software, the IKB-12P can connect up to 64 IKB-12P stations and display the profile assigned to each station.
Features:
- Clear, intelligible digital audio
- Up to 64 Intercom Stations per system
- Configure up to 40 call buttons per station with custom expansion panel
- Plug-and-go installation with hardware discovery
- Audible and visual call signaling
- Browser-based configuration editor
| Connectors | Handset: 4-pin male XLR Ethernet/PoE: RJ-45 |
| Microphone Pre-Amplifier | Handset Mic Impedance: 200 Ohms, Dynamic Mic Limiter Range:>35dB Mic Gain: 60dB, Dynamic Frequency Response: 400Hz Ð 8kHz, + 3dB (contoured for intelligibility) Distortion: <0.5% THD @ 1kHz Noise: < -55dBu, Dynamic |
| Earphone Amplifier | Load Impedance:>32 Ohms Output Level: +1 dBu before clipping Sidetone: -6dB (selectable) |
| Earphone Type | Specified for a route from a 4-wire input @0dBu in: Max Gain: 12dB Noise: <-65dBu (@ max gain) Headphone Limiter: -0dBu, Selectable |
| Power | Power Requirements: 5W DC Voltage Range: 30 Ð 60V |
| Ethernet | Fast Ethernet Standard: 100 BaseT only, Auto MDIX |
| Environmental | Humidity: 0 Ð 95%, relative Temperature: -14¡F to +131¡F (-10¡C to +55¡C) |
| Dimensions | 8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm) |
| Weight | 27.9 oz (0.79 KG) |
The IKB-12P is a single-channel digital partyline intercom station with 12 assignable call buttons, a loud alert buzzer and a rotary knob for controlling volume and menu navigation. Used in conjunction with an HMS-4X main station installed with v2.1 software, the IKB-12P can connect up to 64 IKB-12P stations and display the profile assigned to each station.
Features:
- Clear, intelligible digital audio
- Up to 64 Intercom Stations per system
- Configure up to 40 call buttons per station with custom expansion panel
- Plug-and-go installation with hardware discovery
- Audible and visual call signaling
- Browser-based configuration editor
| Connectors | Handset: 4-pin male XLR Ethernet/PoE: RJ-45 |
| Microphone Pre-Amplifier | Handset Mic Impedance: 200 Ohms, Dynamic Mic Limiter Range:>35dB Mic Gain: 60dB, Dynamic Frequency Response: 400Hz Ð 8kHz, + 3dB (contoured for intelligibility) Distortion: <0.5% THD @ 1kHz Noise: < -55dBu, Dynamic |
| Earphone Amplifier | Load Impedance:>32 Ohms Output Level: +1 dBu before clipping Sidetone: -6dB (selectable) |
| Earphone Type | Specified for a route from a 4-wire input @0dBu in: Max Gain: 12dB Noise: <-65dBu (@ max gain) Headphone Limiter: -0dBu, Selectable |
| Power | Power Requirements: 5W DC Voltage Range: 30 Ð 60V |
| Ethernet | Fast Ethernet Standard: 100 BaseT only, Auto MDIX |
| Environmental | Humidity: 0 Ð 95%, relative Temperature: -14¡F to +131¡F (-10¡C to +55¡C) |
| Dimensions | 8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm) |
| Weight | 27.9 oz (0.79 KG) |
