All You Need For Column Sound.

The award-winning EVOLVE series is globally recognized as the benchmark for performance in column loudspeaker systems.

Available in black or white finishes, each model in the EVOLVE lineup combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability – true professional performance in a super-compact and portable package.

CLEAN, COMPACT DESIGN – BUILT TO BLEND IN
Pure, accurate Electro-Voice audio performance in a sleek new form factor, available in premium black or white finishes. The perfect choice for DJs, mobile entertainers, bands, singer/ songwriters and any venue where highoutput portable sound is needed – no other column system currently available sounds as good, looks as good, or is as easy to use.

PROFESSIONAL PA PERFORMANCE

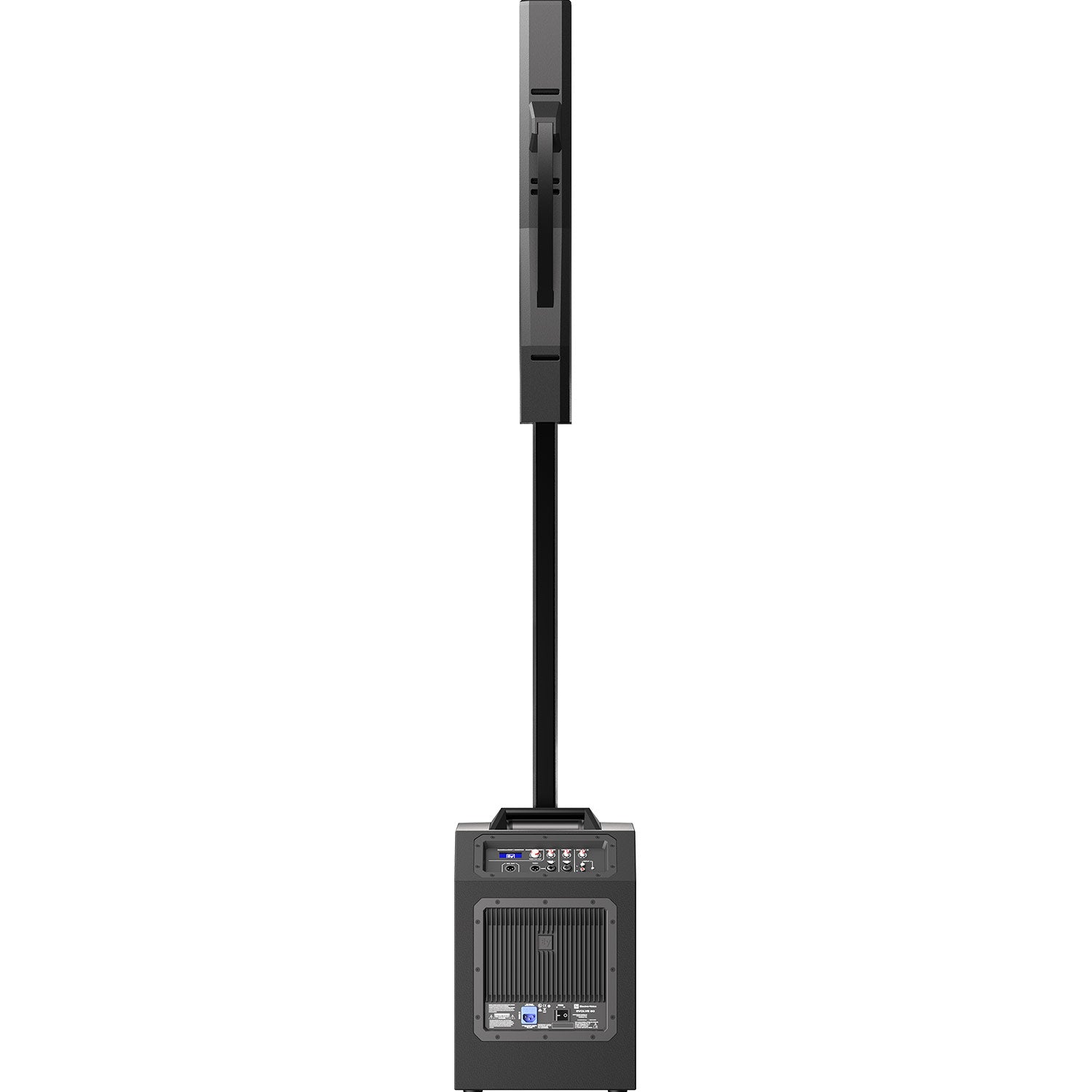

Legendary EV audio quality via eight 3.5" full-range neodymium drivers and a 12" subwoofer, powered by a 3-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plugand-play format.

HIGH-QUALITY BLUETOOTH AUDIO
For convenient streaming of background music or musical accompaniment direct from any mobile device.

WIRELESS CONTROL AND MONITORING
EV QuickSmart Mobile is an essential tool for EVOLVE 50. Control your sound from where you are in real time, not where the knob is! Quickly configure, control and monitor of up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions. Have peace of mind knowing that you are treating your system well during a performance. Requires Android 5.0+ or iOS 10.0+. Compatible with iPhone®, iPad®, and iPod touch®.

QUICKSMART DSP
Best-in-class processing via EV’s signature single-knob user interface with LCD. Angled input panel gives user easy access to make adjustments and connections. Easy operation via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.

SUBWOOFER POLES

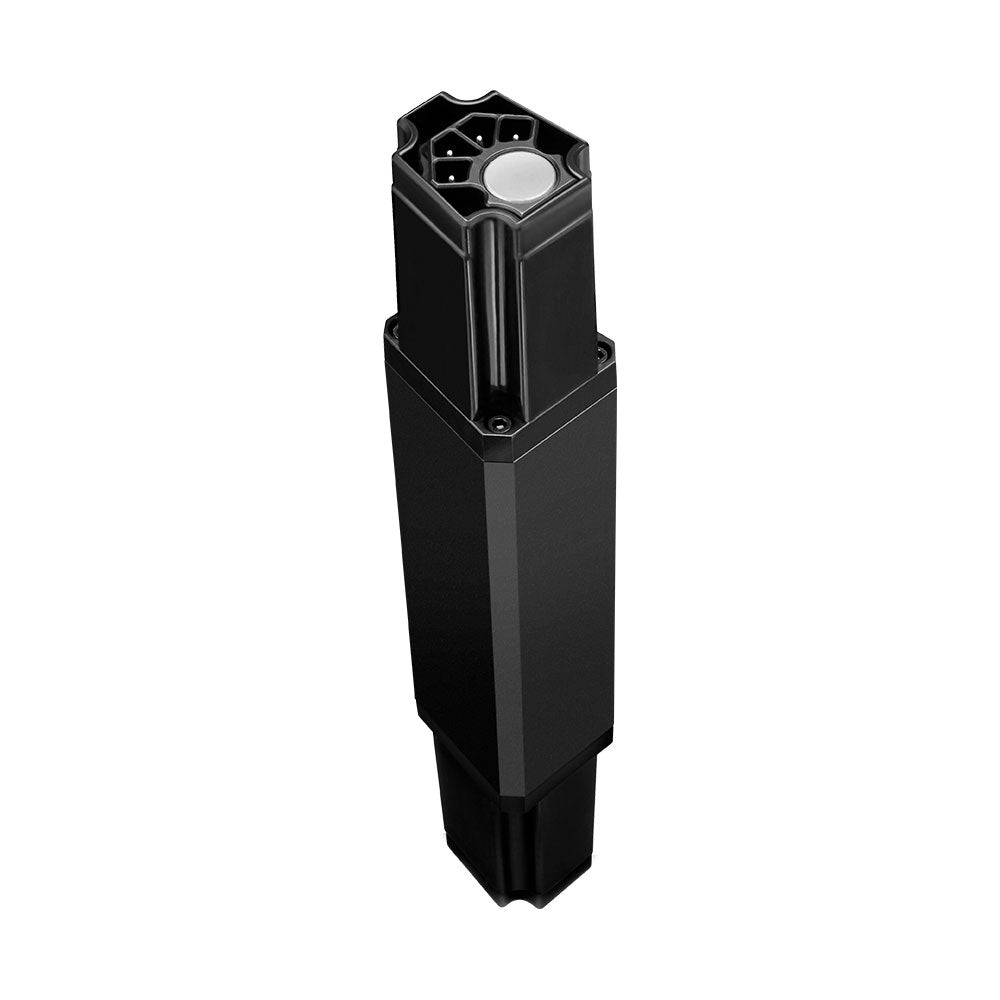

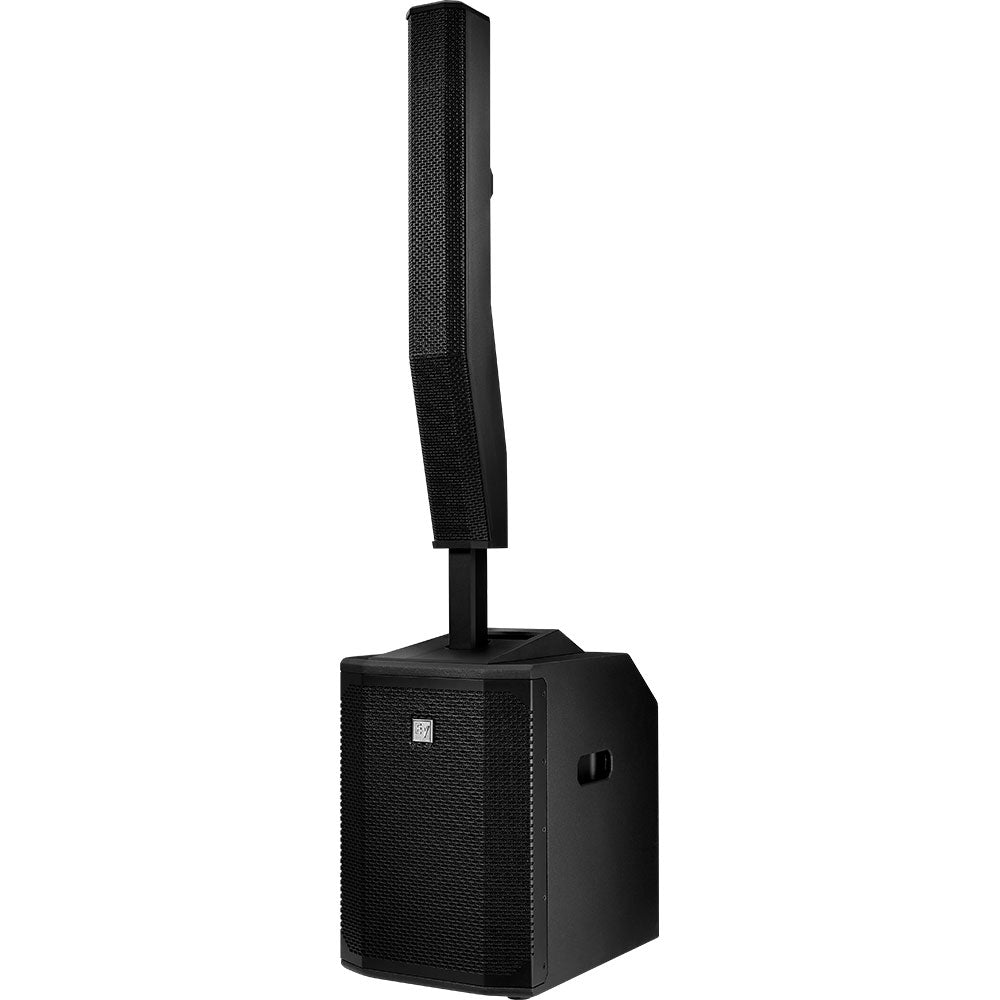

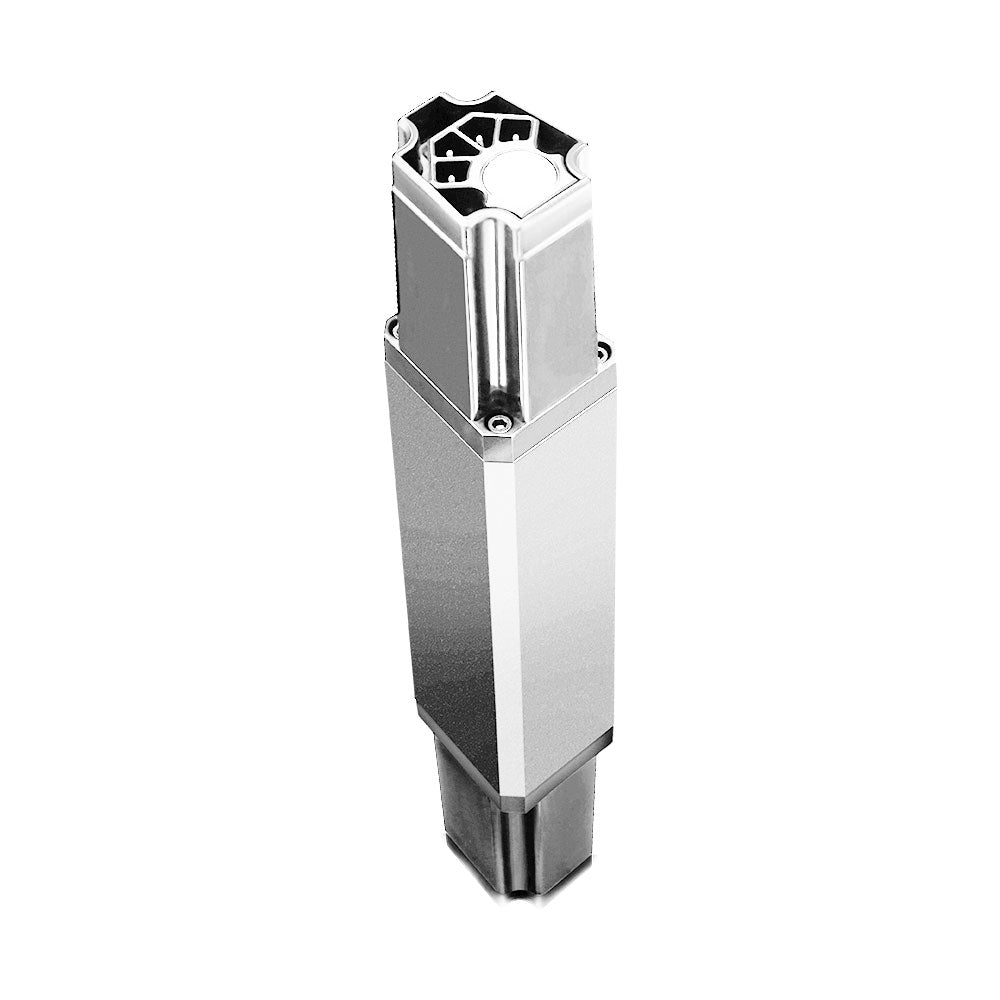

EVOLVE 50 was designed to combine form and function in the most elegantly contoured package possible. Innovations to achieve this goal include a unique symmetrical aluminum sub pole with internal wiring that invisibly routes power and signal between the components. The pole slots neatly into the top of the sub, secured via an integrated magnet. Lift and lower the lightweight speaker array into place on top of the pole using its ergonomic elongated handle. Not only does the cable-free connection make setup a snap, it gives your system a tidy, professional look. A short pole is available as an accessory – ideal for using an EVOLVE 50 system on higher stages or where less throw distance is required.

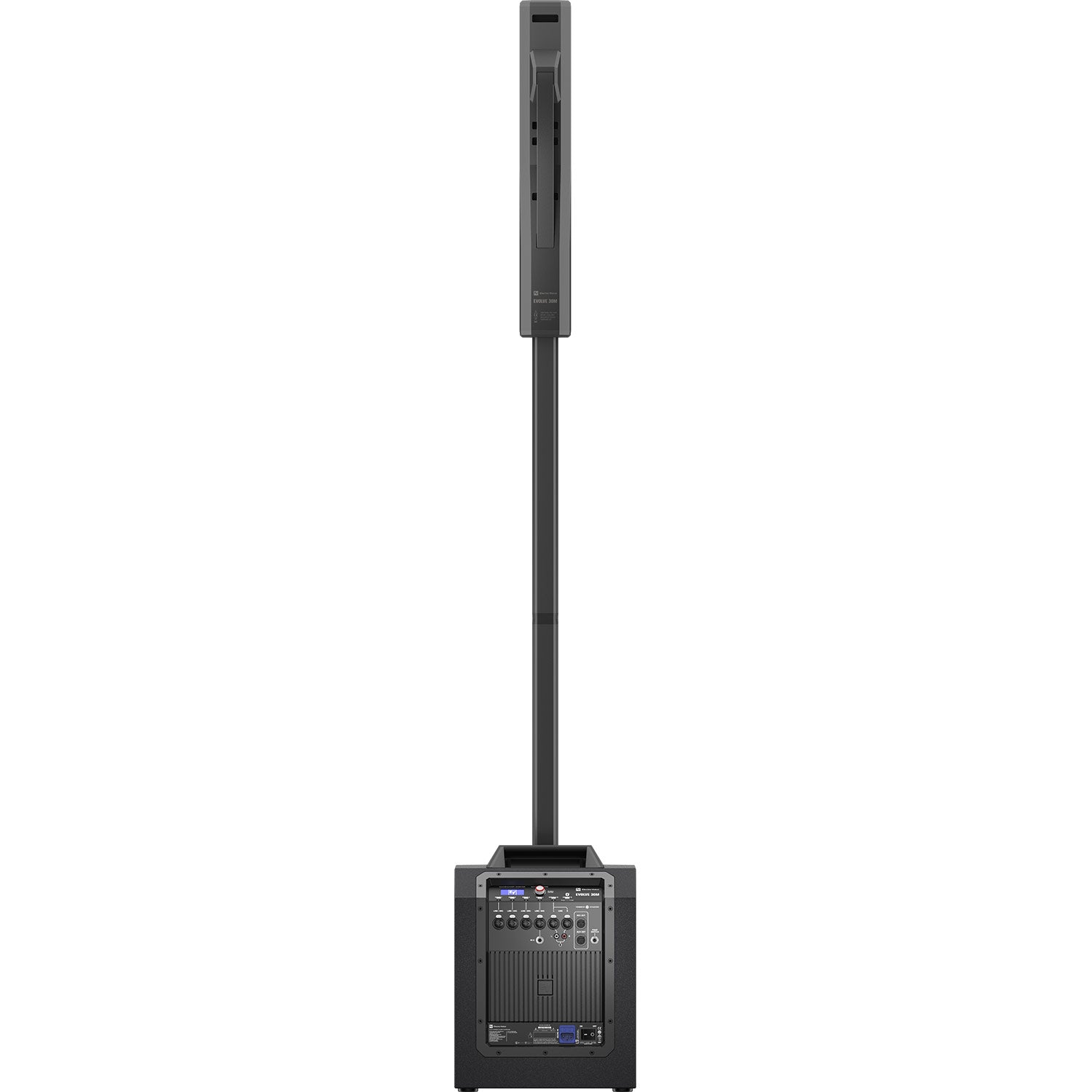

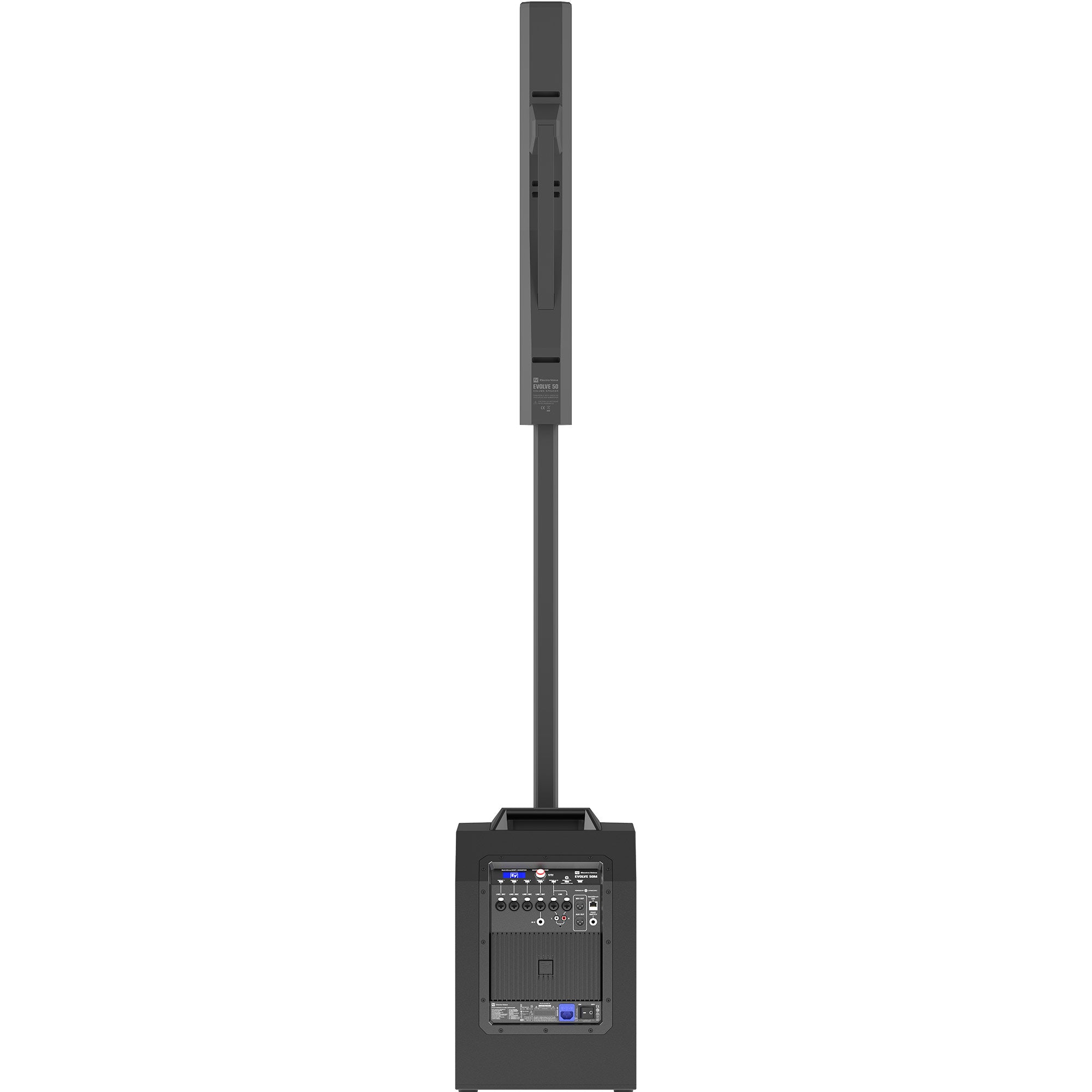

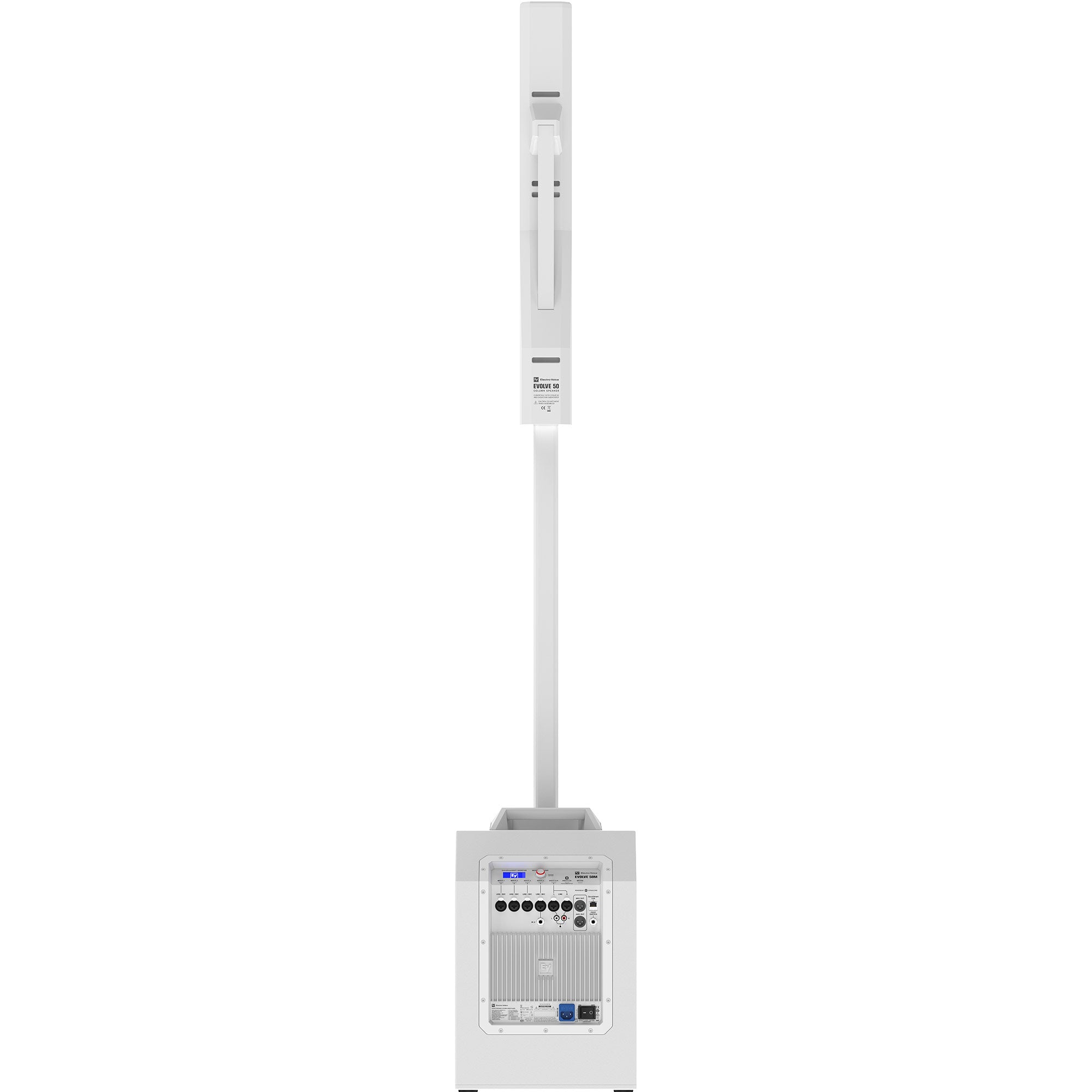

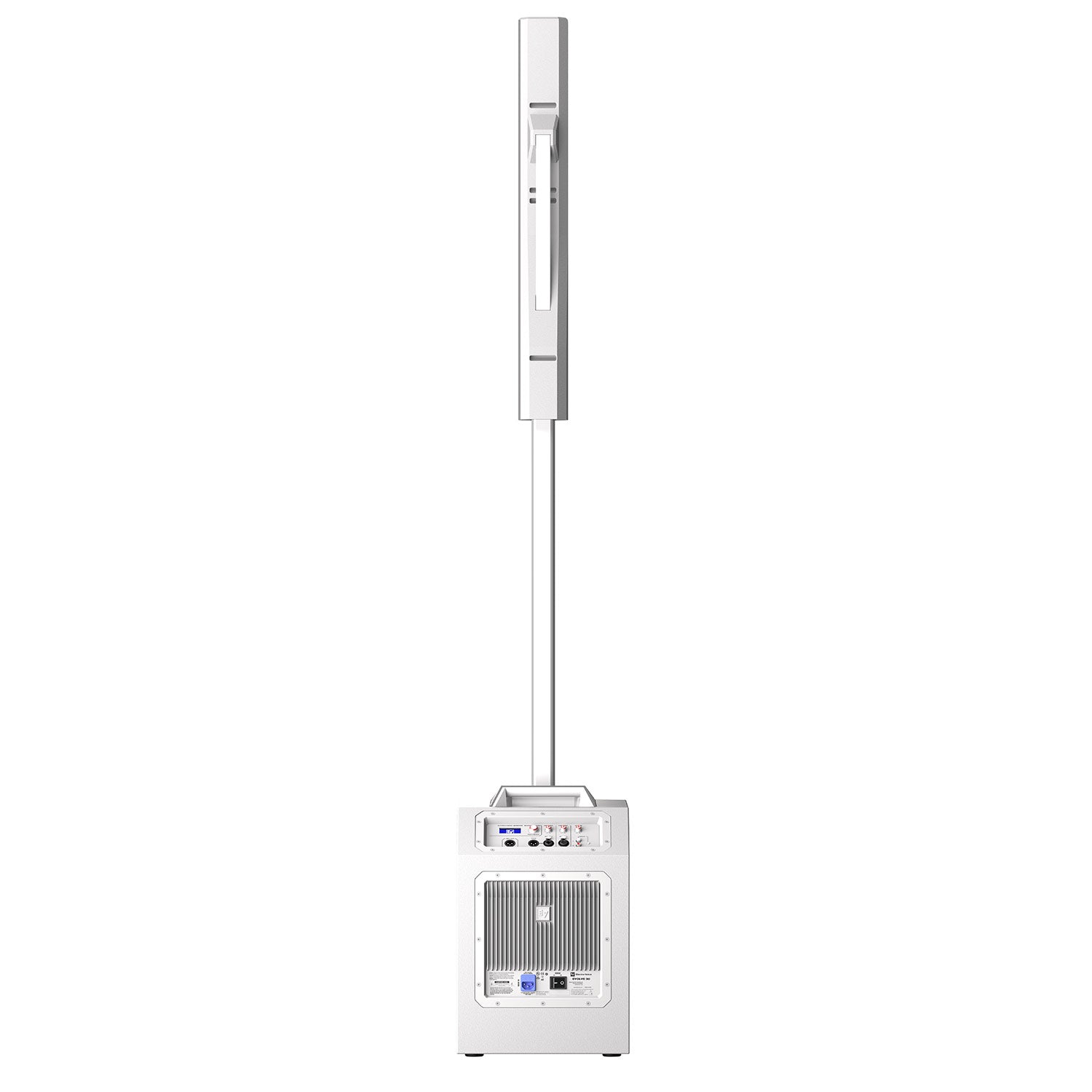

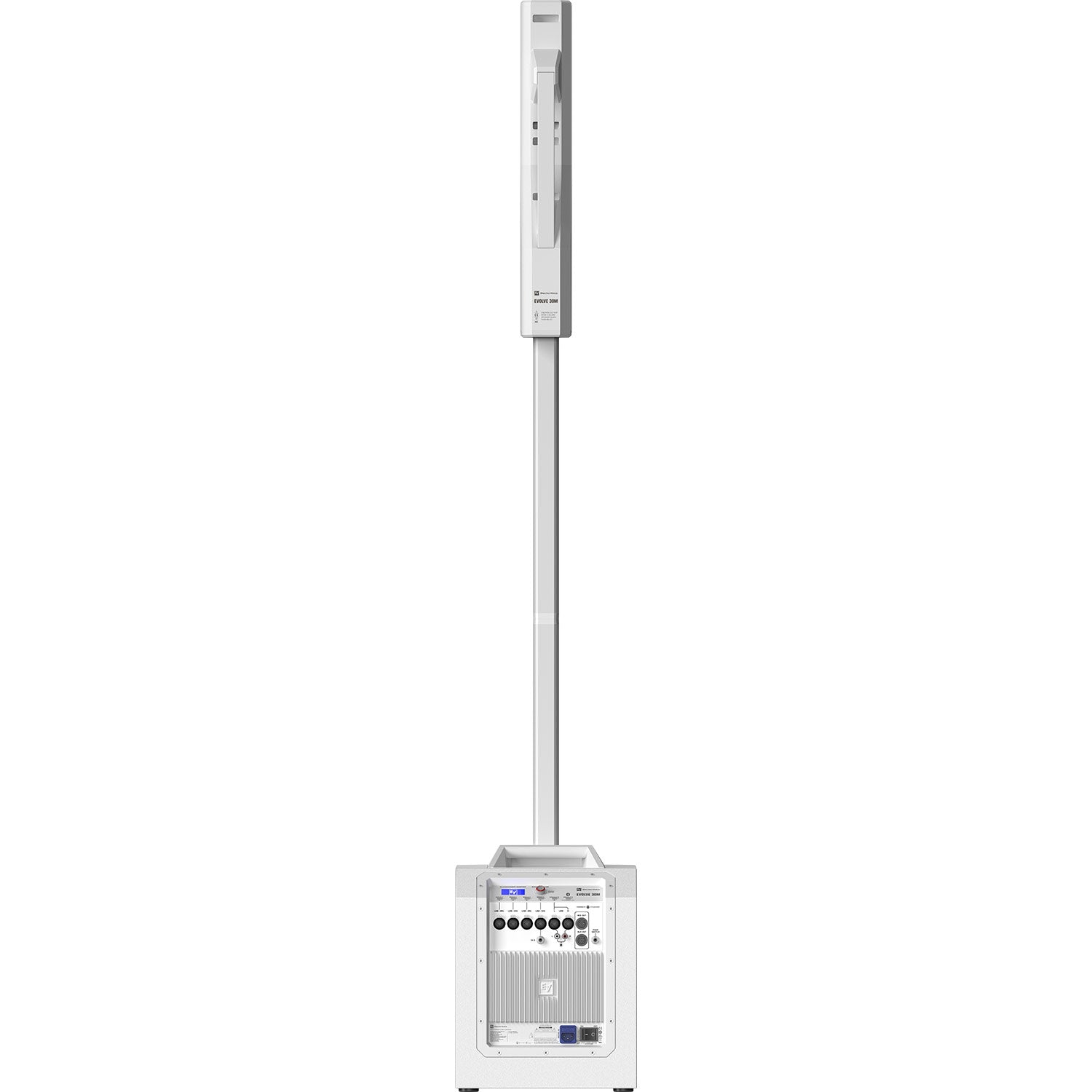

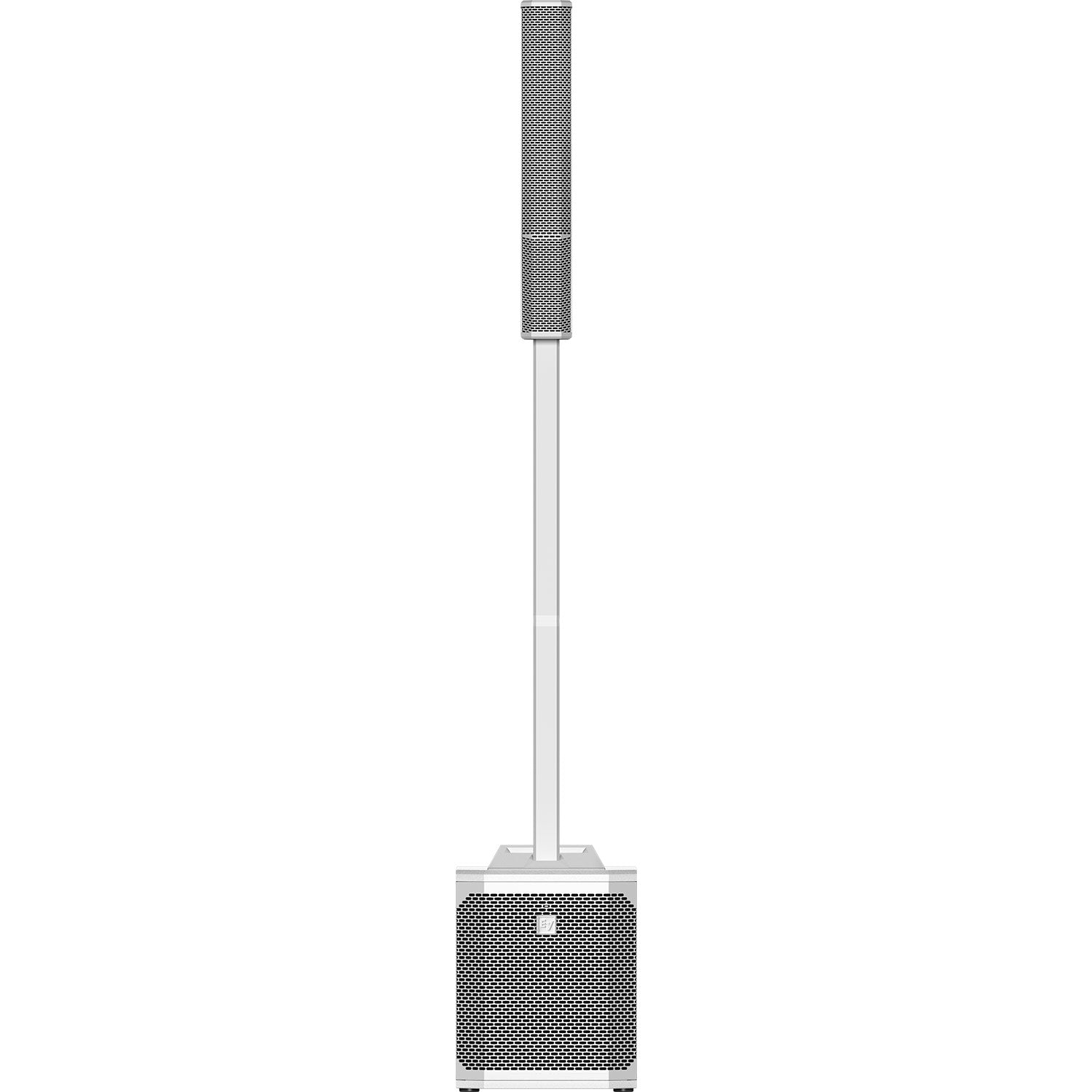

	EVOLVE 30M	EVOLVE 50	EVOLVE 50M
Frequency Response (-3 dB)¹	51 Hz to 20 KHz	43 Hz – 20 kHz	43 Hz - 20 KHz
Frequency Range (-10 dB)¹	45 Hz to 20 kHz	37 Hz – 20 kHz	37 Hz - 20 kHz
Max. SPL/1m (calc)²	123dB	127dB	127dB
Coverage (Nominal -6 dB) H	120°	120°	120°
Coverage (Nominal -6 dB) V	40°	40°	40°
Power Rating	1000W	1000W	1000W
LF Power Handling	500Watts	500Watts	500Watts
HF Power Handling	500Watts	500Watts	500Watts
Crossover Frequency	200Hz	200Hz	200Hz
Connector Type	4x XLR/TRS Combo Jack Line/Mic Input 1x ¼" TRS HI-Z input 2x XLR/TRS Combo Jack for Stereo Line Input 1x Stereo RCA Input 1x 3.5mm Stereo Input 1x Wireless Stereo Bluetooth® Audio Input 1x ¼" Foot Switch Input 1x XLR MIX OUT 1x XLR AUX OUT	2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output	4x XLR/TRS Combo Jack Line/Mic Input 1x ¼" TRS HI-Z input 2x XLR/TRS Combo Jack Stereo Line Input 1x Stereo RCA Input 1x 3.5mm Stereo Input 1x Wireless Stereo Bluetooth® Audio Input 1x ¼" Foot Switch Input 1x XLR MIX OUT 1x XLR AUX OUT 1x RJ45 QuickSmart
Enclosure Material	sub – 15mm plywood, column – poly composite, pole – aluminum	sub – 15mm plywood, column – poly composite, pole – aluminum	sub – 15mm plywood, column – poly composite, pole – aluminum
Grille	Steel with powder coat	Steel with powder coat	Steel with powder coat
Available Color	Black or White	Black or White	Black or White
Height		80.51" (2045mm)	80.51" (2045mm)
Width	13.07" (332mm)	13.58" (345mm)	13.58" (345mm)
Depth	17.01" (432mm)	18.54" (471mm)	18.54" (471mm)
Weight Net	43.87lbs (19.9kg)	57.87lbs (26.25kg)	57.87lbs (26.25kg)
Shipping Weight	53.35lbs (24.2kg)	69lbs (31.3kg)	Sub box: 50.71 lb; 23kg Column box: 18.30 lb; 8.3kg
Power Consumption³	100-240 V AC, 50-60 Hz, 1.5-0.6 A	100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A	100-240 V AC, 50-60 Hz, 1.5-0.6 A
Transducer size	Column array: 6 x 2.8" Neodymium drivers Subwoofer: 1 x 10” Neodymium drivers	Column array: 8 x 3.5" Neodymium drivers Subwoofer: 1 x 12” Neodymium drivers	Column array: 8 x 3.5" Neodymium drivers Subwoofer: 1 x 12” Neodymium drivers
Notes	¹Half-space measurement using live DSP preset. ²Maximum SPL is measured at 1 m using broadband pink noise at maximum output. ³Current rating is ⅛ power.	¹Half-space measurement using live DSP preset. ²Maximum SPL is measured at 1 m using broadband pink noise at maximum output. ³Current rating is ⅛ power.	¹Half-space measurement using live DSP preset. ²Maximum SPL is measured at 1 m using broadband pink noise at maximum output. ³Current rating is ⅛ power.
