Glensound DARK16O - 16 Analogue Outputs From DANTE/ AES67 Networks

  • Dale #:

    GLEN-DARK1616AO
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The DARK16O is a versatile break out box for receiving analogue audio from a network utilising the Dante and AES67 audio over IP (AoIP) protocols. In total there are 16 channels of audio being received from the AoIP network and converted via low noise DACs (Digital to Analogue Converters) to bala... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

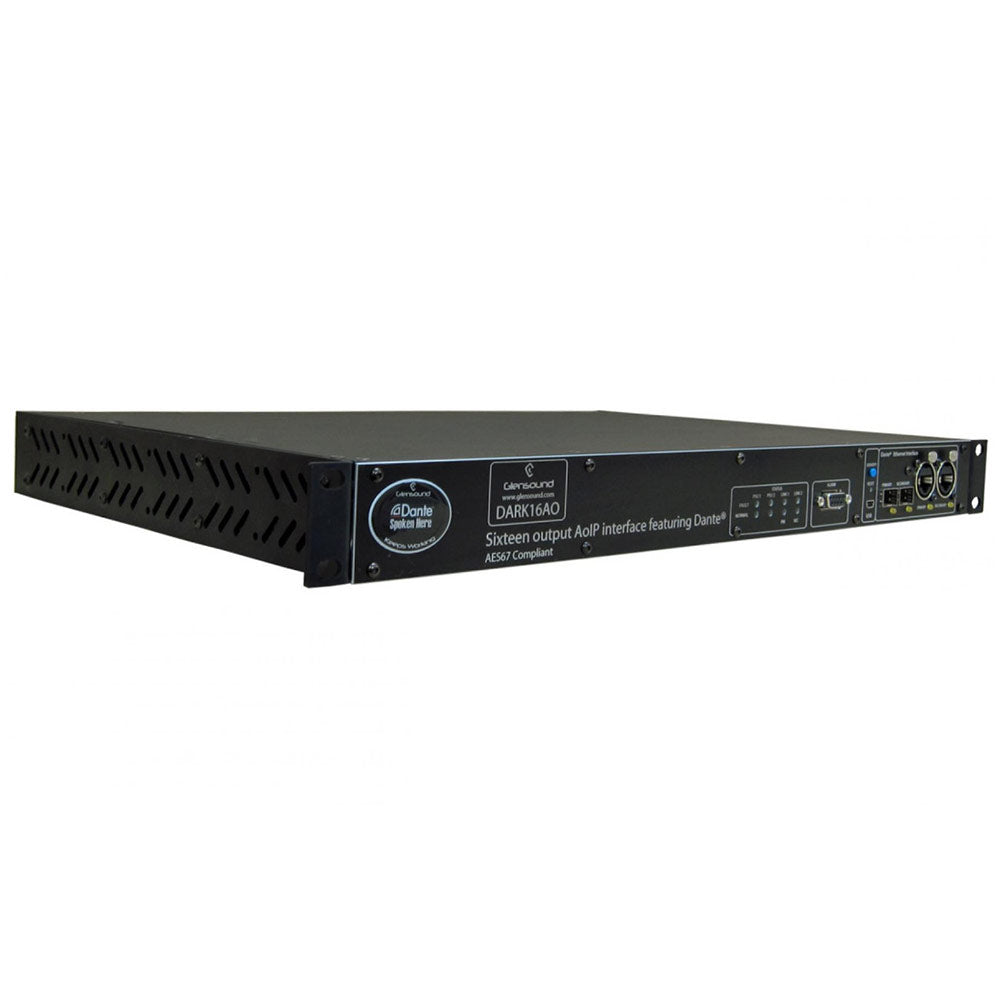

The DARK16O is a versatile break out box for receiving analogue audio from a network utilising the Dante and AES67 audio over IP (AoIP) protocols. In total there are 16 channels of audio being received from the AoIP network and converted via low noise DACs (Digital to Analogue Converters) to balanced analogue outputs.

Features:

  • Network audio interface for Dante/ AES67
  • 16 analogue audio outputs
  • Outputs are on rear panel XLRs
  • Supports up to 192k sampling
  • Low noise DACs
  • Redundant network links (Fibre and Copper)
  • Redundant Mains power supplies
  • 19" 1RU Subrack

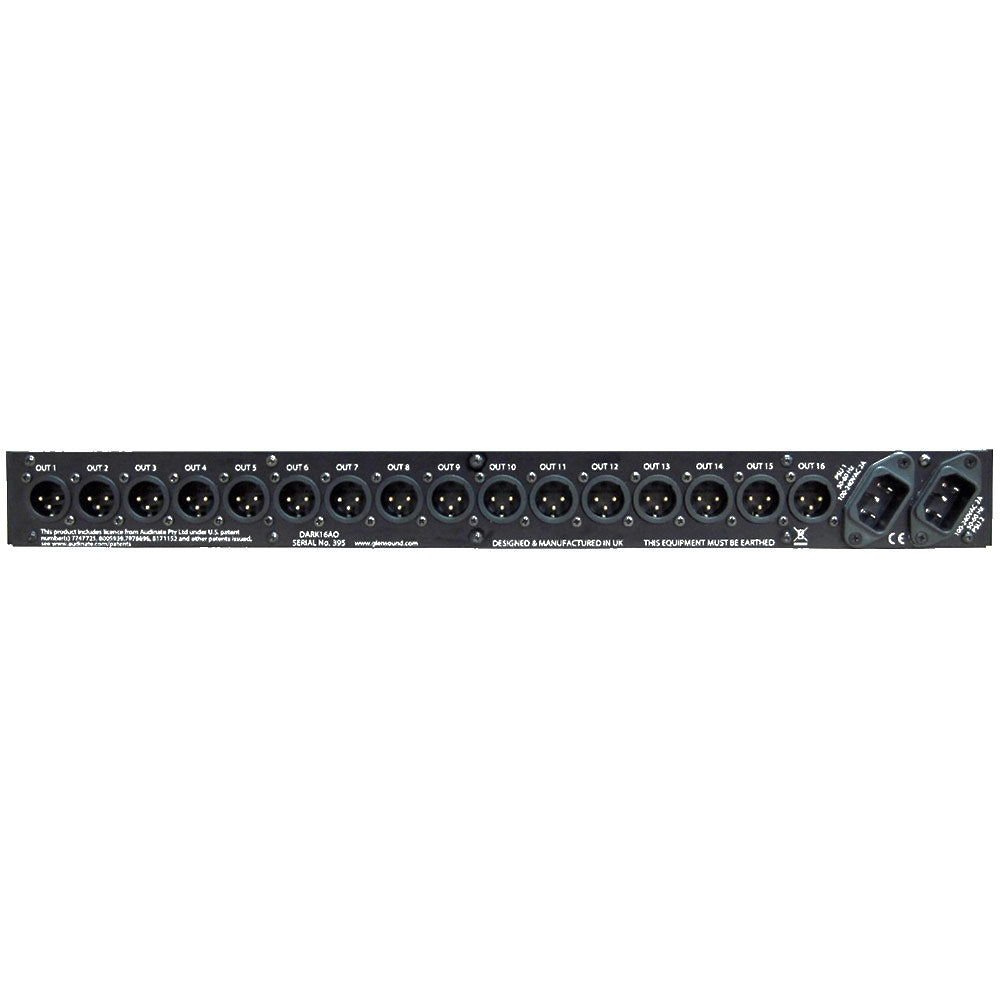

For ease of cabling audio outputs are presented as balanced circuits on Neutrik XLRs.

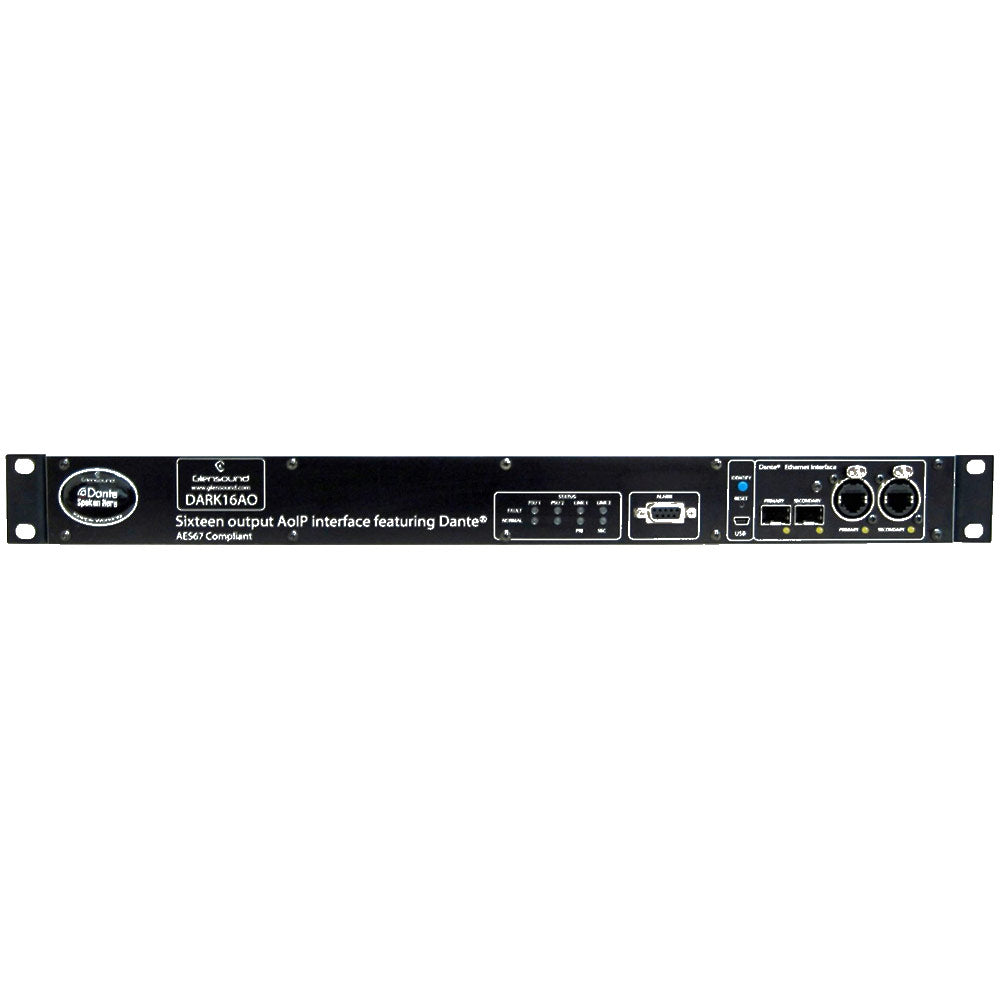

Being designed for resilient broadcast applications the DARK16O features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparent redundant link system which means that if the DARK16O lost its primary link circuit, the secondary link would automatically take over with no loss of audio.

The primary and secondary network interfaces are routed internally via a network switch. It is possible to set this switch to work as a traditional network switch instead of the default redundant mode. This means that there would be just one link to the Dante/ AES67 network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices, once set up, DARK16O units can be directly connected with each other with no external network hardware.

More +

Product Specs

ANALOGUE AUDIO
Frequency Response+/-0.25dB 20Hz to 22kHz
Maximum Output Level+18dBu (+24 option to order)
Full Scale0dBFs = +18dBu (+24dBu option to order)
Output Impedance
Distortion0.0013% @ 100Hz
0.0022%@1kHz
0.00094% @ 10kHz
Reference to +8dBu output
Noise-93dB@line up A weighted RMS
Interchannel Cross Talk>101dB @ lineup with 1kHz Tone
Output TypeElectronically balanced (can be wired unbalanced)
NETWORK INTERFACE
Physical2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots
ProtocolDante & AES67
Audio Sample Rates32 - 192 kS/s
POWER
Connections2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
AC Consumption18 watts@230VAC
Internal Mains Fuse20mm 1A anti surge
PHYSICAL
Audio ConnectorsNeutrik 3 pin XLR Plugs
Alarm Connector9 way D socket
Alarm Typesolid state relay
Size1RU 19” 300mm deep excluding connectors
Nett Weight2.8kg
Shipping CartonRugged export quality cardboard 610x420x130mm LxDxH
Shipping Weight4.3kg
ENVIRONMENTAL
Operating Temperature0 to +50°C (32 to 122°F)
Storage Temperature-20 to +70°C (-4 to 158°F)
Relative Humidity0 to 95% non-condensing
INCLUDED ITEMS
HandbookPhysical A5 (download available)
RJ45 Network Cable1 of 2 metre CAT5 RJ45 plug/ plug cable
Mains Cable1 of 2 metre IEC socket cable (UK & EU only)
