Martin Audio O-Line


Micro-Line Array with Scalable Resolution.

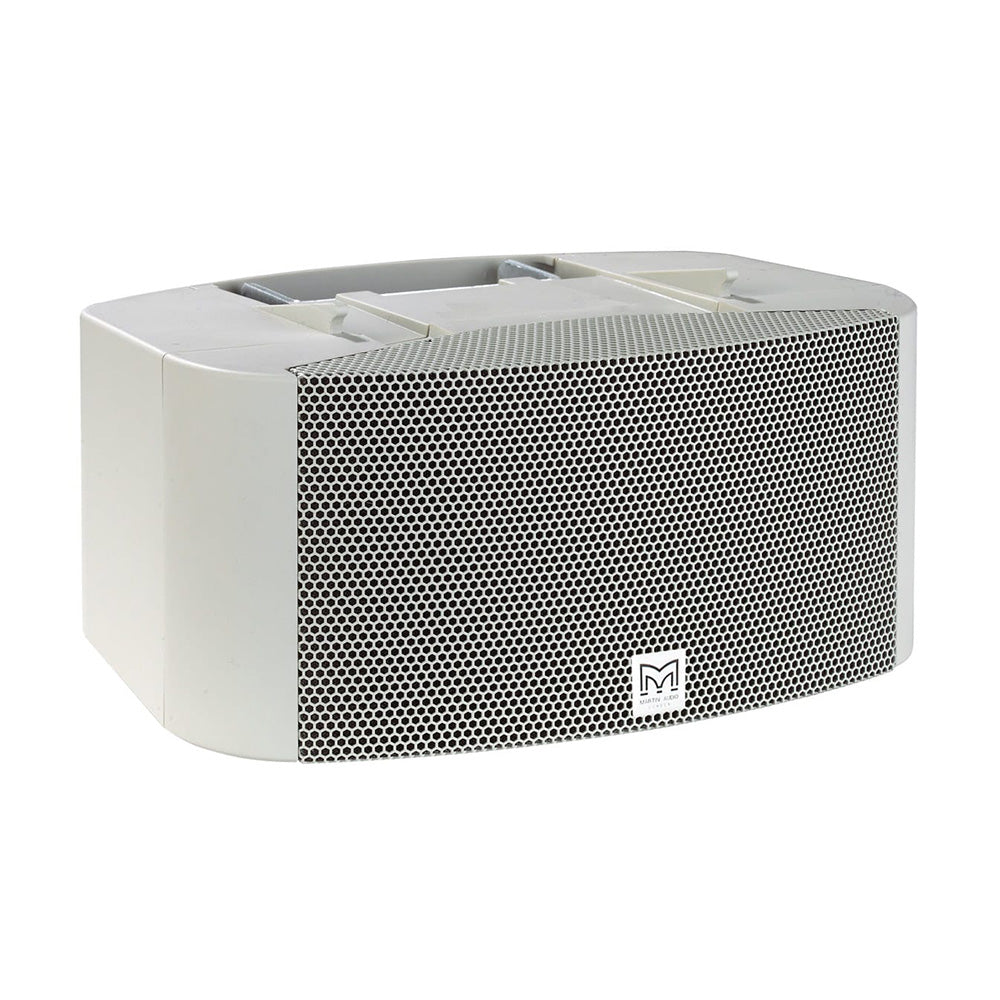

O-Line™ is an award-winning, aesthetically pleasing, modular micro line array designed for a wide variety of architectural applications – from houses of worship to transport terminals. It combines innovative acoustic design with powerful optimisation software to achieve optimum coverage with unprecedented accuracy over a pre-defined area.

Features:

  • Modular micro line array for maximum deployment flexibility
  • Software optimised array configuration for focussed sound energy
  • Additional DSP optimised functionality for increased coverage, consistency and control
  • Sidelobe-free vertical dispersion from the high frequency section
  • Ideal for high-quality music reproduction as well as speech
  • Architecturally sympathetic design for discreet deployment


O-Line by Martin Audio

In its standard set up with uniform amplification, it is the articulation of individual array modules that delivers the consistent sound coverage over a defined area.
The array configuration for a specific area is determined by industry leading optimisation software which makes intelligent judgements about how well the array performs against objective target functions. This enables focused sound energy to be delivered precisely where needed and kept away from reflective surfaces and ceilings — reducing the detrimental influence of the room and increasing clarity and intelligibility in challenging acoustic environments.

Amplification and control can be done either by using an IK81 or the combination of VIA2004 amplifier and a DX4.0 controller.
The iK81 is an advanced eight-channel amplifier which combines very high power density with superb audio performance. It features onboard IIR and FIR filtering to control the amplitude, phase and EQ of each O-Line module individually, with the filter parameters calculated and uploaded by DISPLAY. The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the O-Line.

The VIA2004 is an advanced 4-channel power amplifier which delivers superb audio performance in a lightweight, cost-effective package. DX4.0 is an advanced loudspeaker controller and system matrix with four input and eight output channels. Class-leading sonic performance is achieved by state-of-the-art audio converters and DSP algorithms, with a 96kHz sampling frequency delivering a nominally flat response beyond 40kHz. It features FIR filtering to support O-Line optimisation.

The level of coverage, consistency and control is further refined by the level of resolution of the array in terms of the number of enclosures to amp channels.

The higher the resolution, so too the improvement in coverage and consistency of frequency response and SPLs throughout the venue within a tight window specified by the user.

In the ultimate one enclosure to one amplifier channel mode [One Box Resolution] it is possible to simultaneously optimise the direct field where sound is required, keep the sound away from reflective surfaces and minimise reverberant sound power to an extent not previously possible from a commercially available system of such high sound quality, small size and aesthetic appeal.

Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user-friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

  • Dale #:

    MAAU-DX40DANTE
  • Availability:

    Backordered - Not In Stock
The Martin Audio DX4.0 is an advanced loudspeaker controller and system matrix with four input an...
Contact us

  • Dale #:

    MAAU-DX40
  • Availability:

    Not in Stock - Reserve Yours
The Martin Audio DX4.0 is an advanced loudspeaker controller and system matrix with four input an...
Contact us

  • Dale #:

    MAAU-ASF20021
  • Availability:

    Not in Stock - Reserve Yours
Wall Bracket Kit for 4 x O-Line micro array loudspeakers.
Contact us

  • Dale #:

    MAAU-ASF20022
  • Availability:

    Not in Stock - Reserve Yours

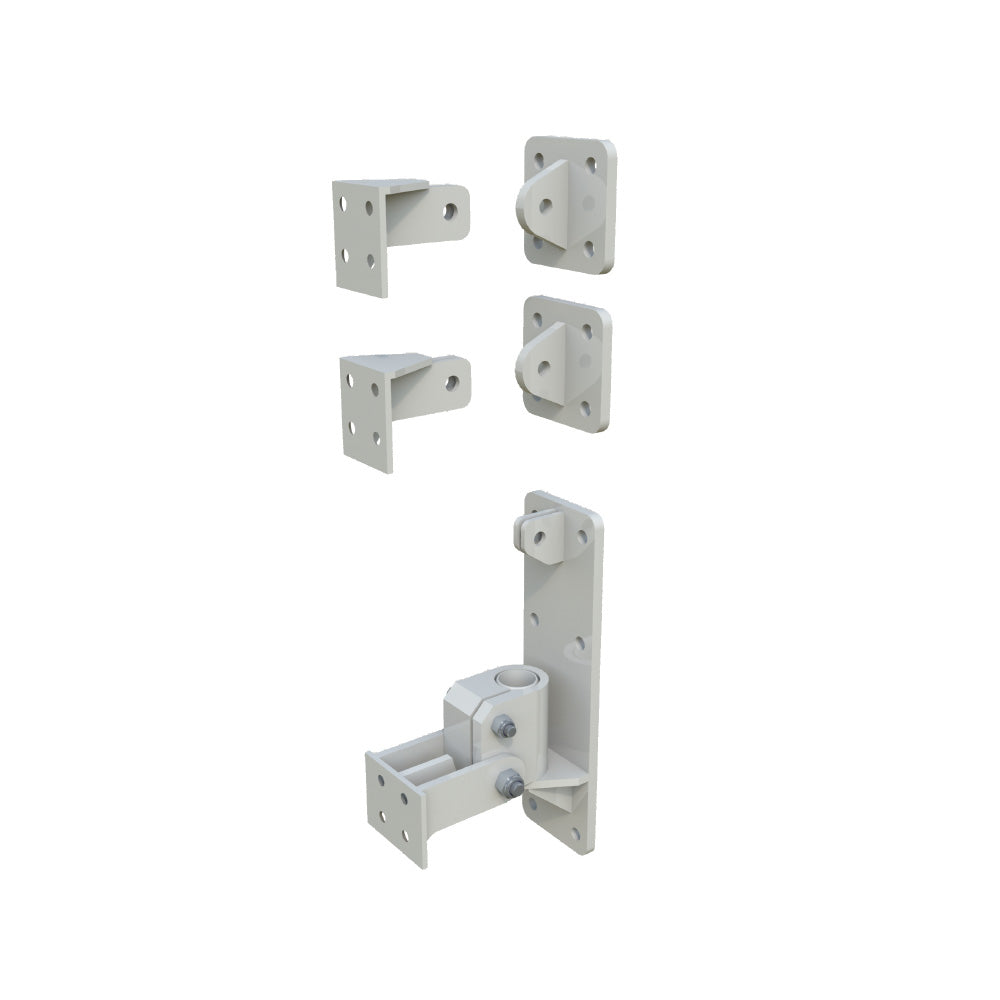

Wall Bracket Kit for 8-16 x O-Line micro array loudspeakers.
Contact us

  • Dale #:

    MAAU-ASF20023
  • Availability:

    Not in Stock - Reserve Yours

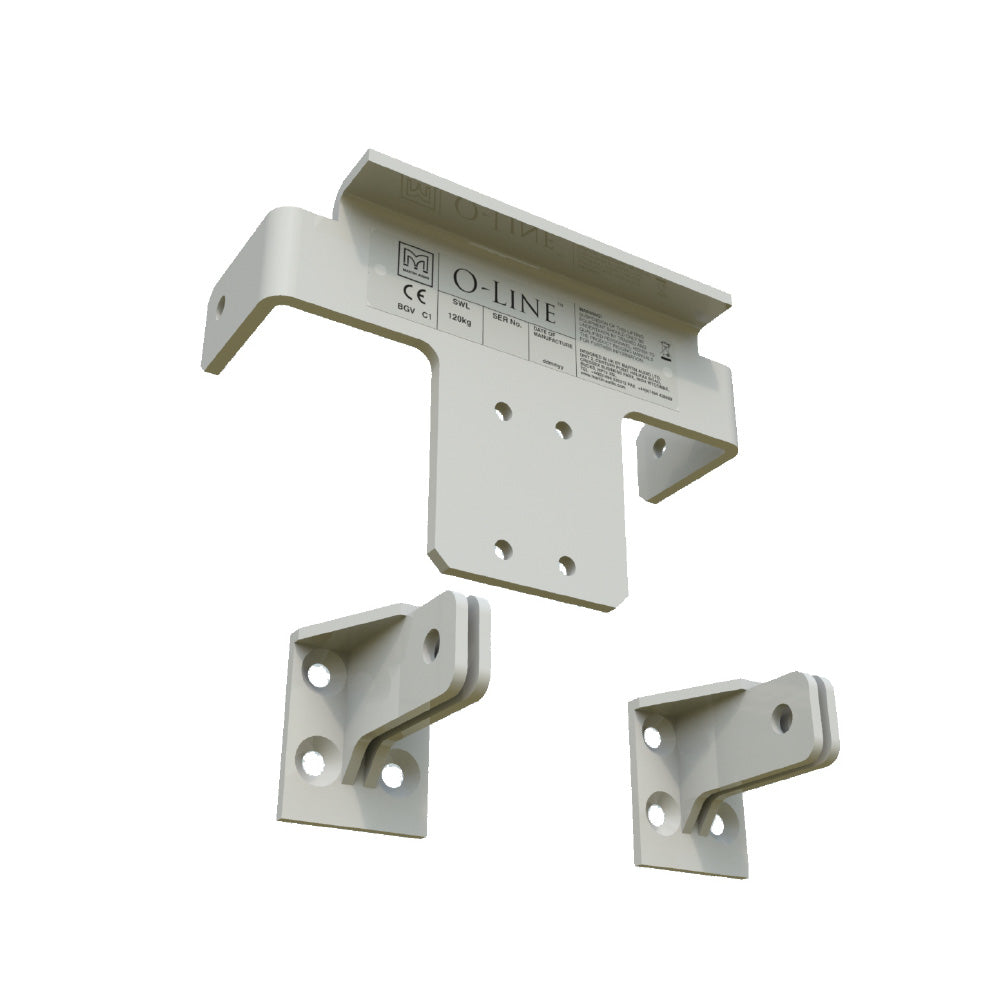

Flying Bracket Kit for the O-Line micro array speaker series.
Contact us

  • Dale #:

    MAAU-COV00001
  • Availability:

    Not in Stock - Reserve Yours
Bottom Plate for the O-Line micro array speaker.
Contact us

  • Dale #:

    MAAU-OLINE4PACK
  • Availability:

    Not in Stock - Reserve Yours

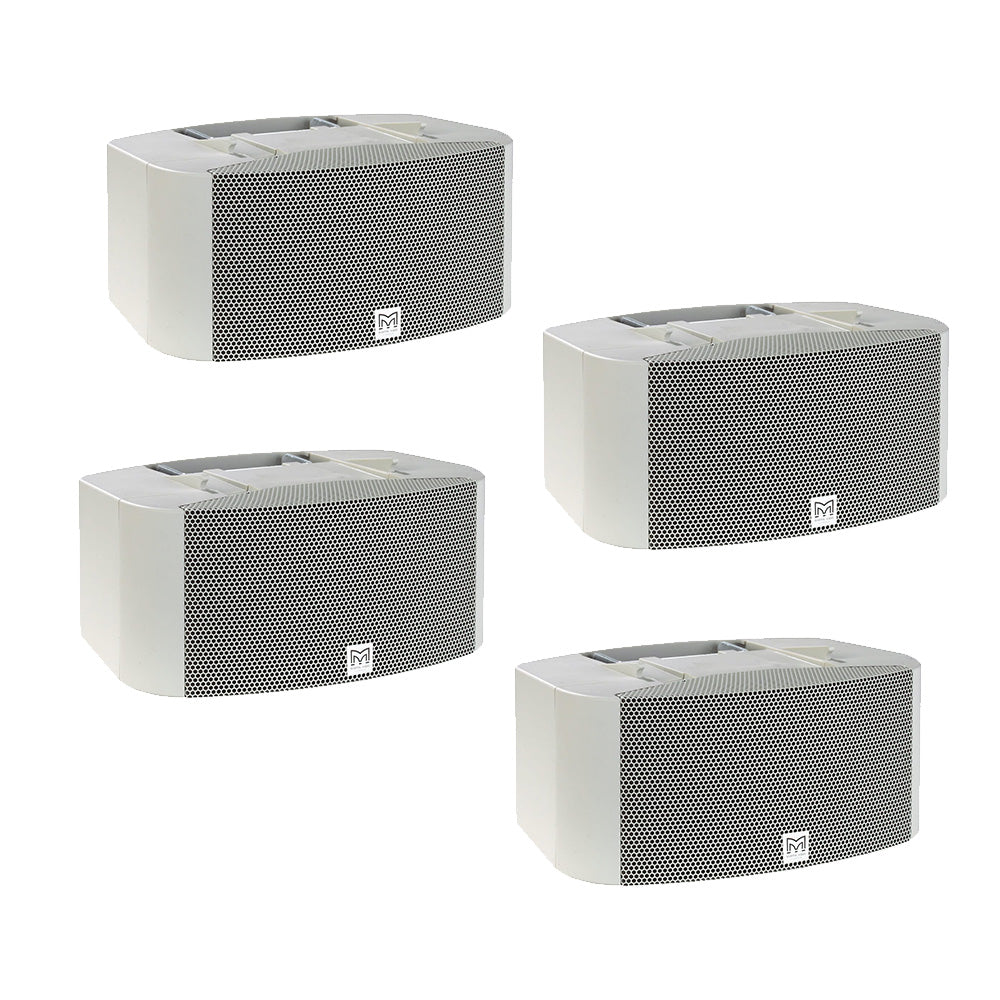

O-Line™ is an award-winning, aesthetically pleasing, modular micro line array designed for a wide...
