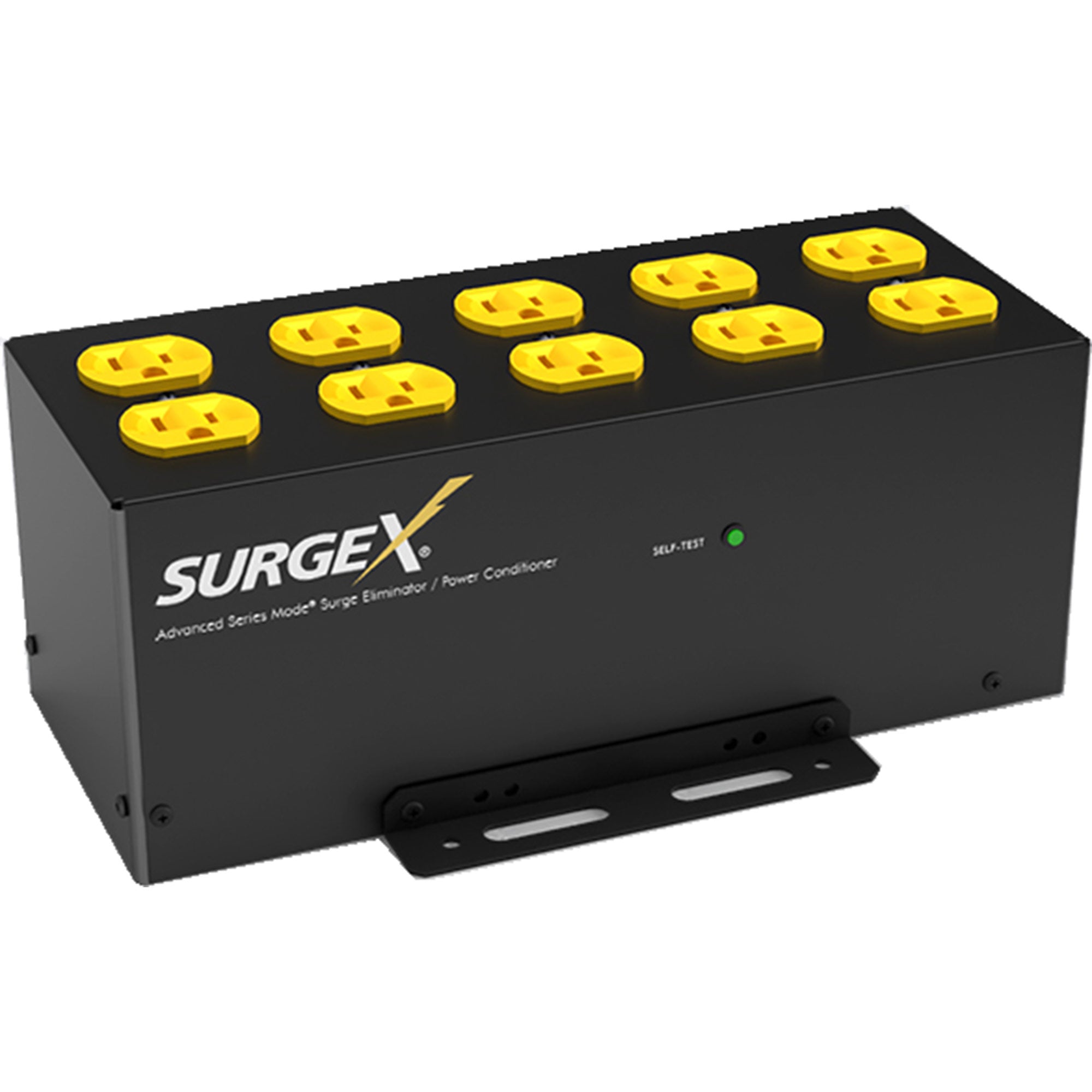

SurgeX SA-1810 Surge Protector and Power Conditioner
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
SurgeX SA-1810 Surge Protector and Power Conditioner
Sale price$948.10
Description
SURGEX SA1810 Surge Protector & Power Conditioner With Advanced Series Mode Surge Protection Impedance Tolerant EMI/RFI Filtering
The unit is rated for 15 amps and features ten industrial grade grounded AC receptacles. When fitted with the optional mounting brackets these standalone units easily mount where you need them. The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances. FEATURES:
- Magnetic shielding steel enclosure
- 6' grounded 3-wire #14 line cord
- 10 grounded AC receptacles
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
| Load Rating | 15 amps @ 120 volts |
| Power Requirement (no load) | 10 watts |
| Surge Let-Through Voltage (6000-volt surge) | 0 volts |
| UL 1449 Adjunct Classification Test Results | 1000 surges, 6000 volts, 3000 amps, B3 pulse |
| Measured suppressed voltage | 170 volts, no failures |
| Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode (50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
| EMI/RFI Filter, Common Mode (50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
| Maximum Applied Surge Voltage | 6000 volts* |
| Maximum Applied Surge Current | Unlimited, due to current limiting* |
| Maximum Applied Surge Energy | Unlimited, due to current limiting* |
| Endurance (C62.41-1991 Category B3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
| Dimensions | 4.0" H x 10.2" W x 4.2" D (10.2 x 25.9 x 10.7 cm) |
| Weight | 8.5 lbs (3.8 kg) |
| Temperature Range | 5¼ to 35¼ C |
| Humidity Range | 5% to 95% R.H., non-condensing |
| Agency Listings | ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
| *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 | |
