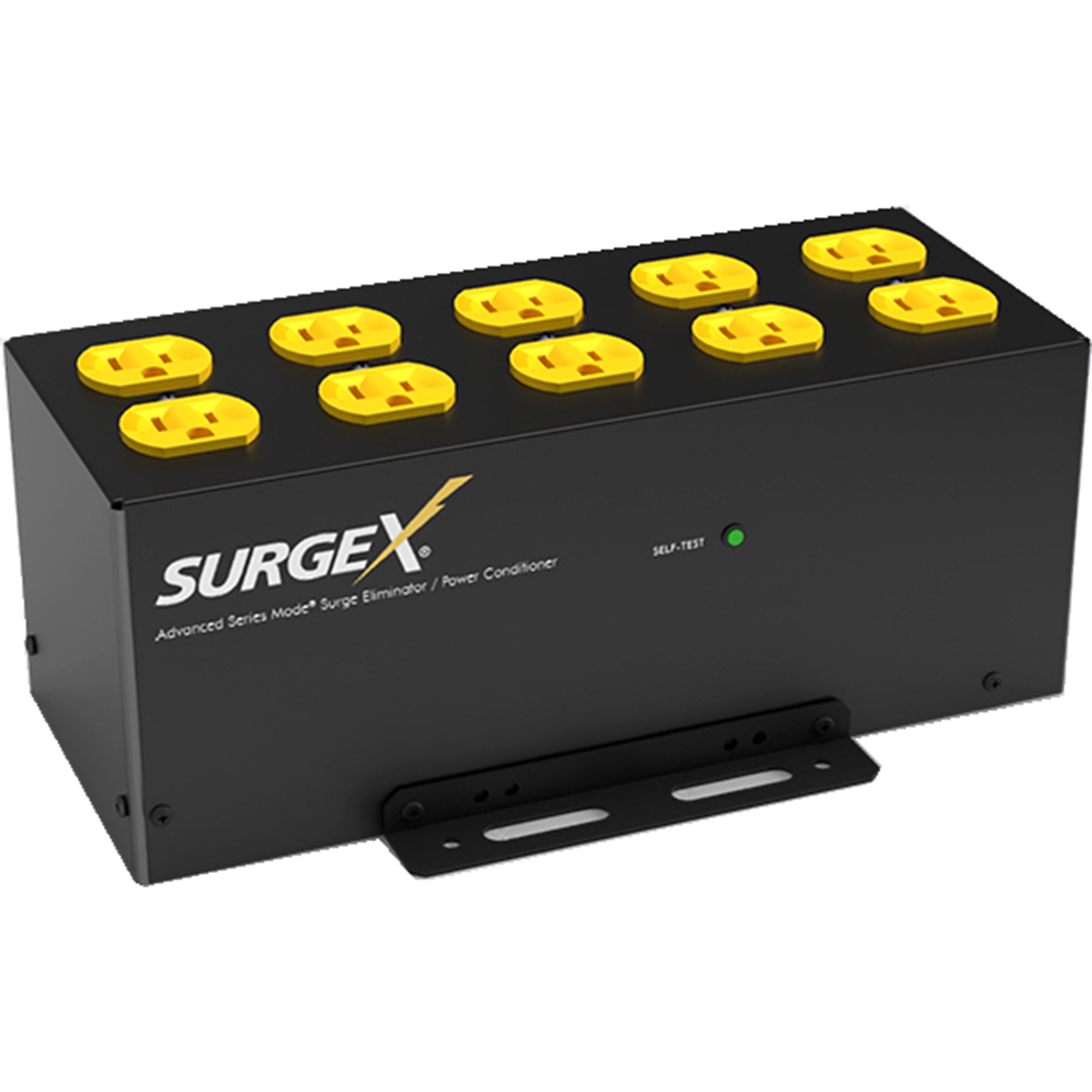

SurgeX SA-1810 Surge Protector and Power Conditioner


  • Dale #:

    SURG-SA1810
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

SURGEX SA1810 Surge Protector & Power Conditioner With Advanced Series Mode Surge Protection Impedance Tolerant EMI/RFI FilteringThe unit is rated for 15 amps and features ten industrial grade grounded AC receptacles. When fitted with the optional mounting brackets these standalone units easi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

SURGEX SA1810 Surge Protector & Power Conditioner With Advanced Series Mode Surge Protection Impedance Tolerant EMI/RFI Filtering

The unit is rated for 15 amps and features ten industrial grade grounded AC receptacles. When fitted with the optional mounting brackets these standalone units easily mount where you need them. The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.

SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.  FEATURES:
  • Magnetic shielding steel enclosure
  • 6' grounded 3-wire #14 line cord
  • 10 grounded AC receptacles
  • Advanced Series Mode surge protection
  • Advanced Impedance Tolerant EMI/RFI filtering
  • Thermal circuit breaker overload protection
  • Self-test circuit with visual indicator
  • 10-year warranty
  • Made in U.S.A.

More +

Product Specs

Load Rating15 amps @ 120 volts
Power Requirement (no load)10 watts
Surge Let-Through Voltage (6000-volt surge)0 volts
UL 1449 Adjunct Classification Test Results1000 surges, 6000 volts, 3000 amps, B3 pulse
Measured suppressed voltage170 volts, no failures
Federal GuidelinesGrade A, Class 1, Mode 1 (CID A-A-55818)
EMI/RFI Filter, Normal Mode (50-ohm load)40 dB @ 100 kHz; 50 dB @ 300 kHz;
50 dB @ 3 MHz; 50 dB @ 30 MHz
EMI/RFI Filter, Common Mode (50-ohm load)18 dB @ 300 kHz; 30 dB @ 1 MHz;
50 dB @ 5 MHz; 50 dB @ 20 MHz
Maximum Applied Surge Voltage6000 volts*
Maximum Applied Surge CurrentUnlimited, due to current limiting*
Maximum Applied Surge EnergyUnlimited, due to current limiting*
Endurance (C62.41-1991 Category B3 pulses)1 kV>500,000; 3 kV>10,000; 6 kV>1000
Dimensions4.0" H x 10.2" W x 4.2" D (10.2 x 25.9 x 10.7 cm)
Weight8.5 lbs (3.8 kg)
Temperature Range5º to 35º C
Humidity Range5% to 95% R.H., non-condensing
Agency Listings

ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000)

*1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41
