DALE SKU # SURG-SA82

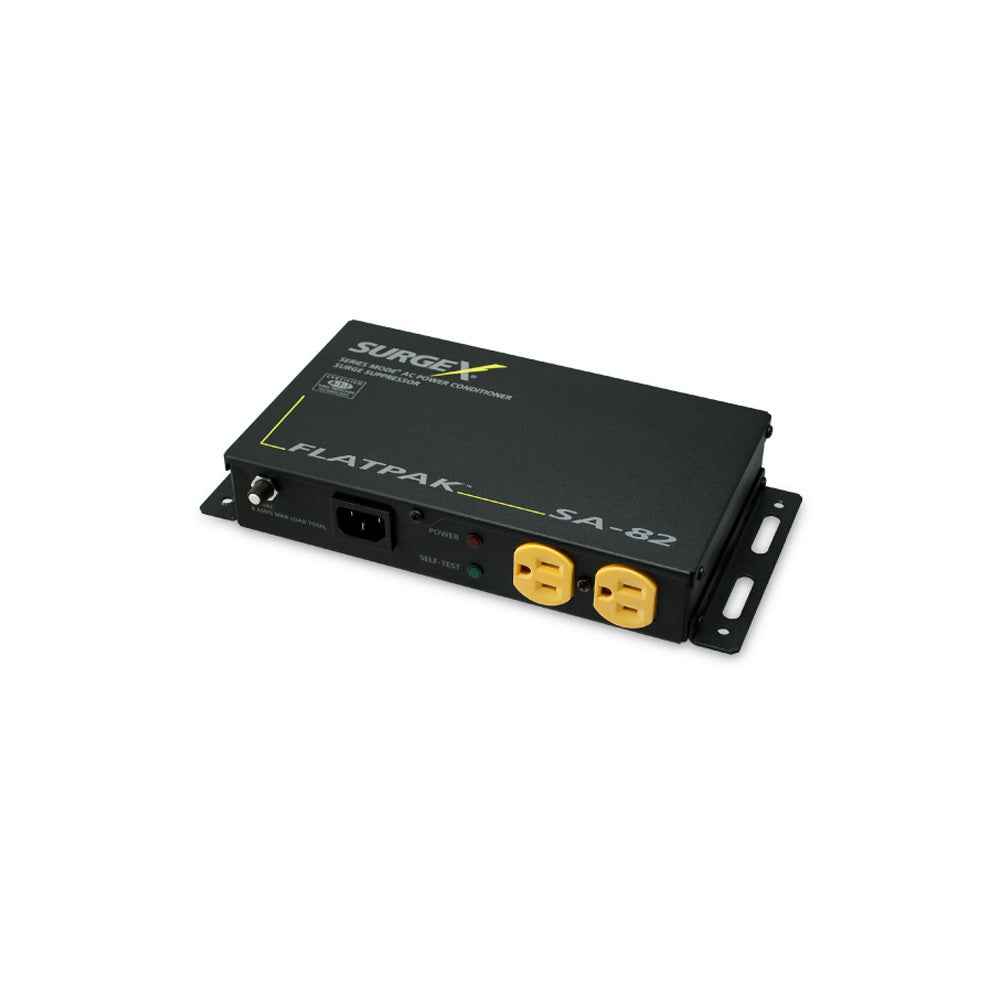

SurgeX SA-82 FlatPak 2-Outlet Power Unit with Series Mode Protection

Sale price$638.40
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SurgeX FlatPak is the ultimate protection innovation for projectors, flat panels, and digital displays. The unit's premium protection and design can easily mount to the back of equipment and integrate with wall/ceiling mounting systems. If you're looking for a compact solution that installs out-of-sight, then the FlatPak is the perfect solution.

    Features:

    • Protects wall/ceiling equipment from power disturbances and catastrophic damage
    • Provides 100% Fail-safe, non-sacrificial protection
    • Eliminates surge energy up to 6,000 Volts/3,000 Amps
    • Ultra compact < 5 lbs design can easily be integrated with wall/ceiling mounting systems
    • Features SurgeX Series Mode surge elimination technology, Impedance Tolerant EMI/RFI Filtering, and Over Voltage Shutdown (with Auto Reset)
    • Improves audio and video performance
    • Axess Ready model offers Remote IP control capabilities
    • Includes detachable IEC power cord and mounting brackets
    • A-1-1 Certified

    Featuring Series Mode surge elimination technology, the SurgeX FlatPak provides premium protection for systems that rely on audio and video performance. Unlike common protection solutions, our patented protection technology is non-sacrificial and eliminates surge energy up to 6,000 Volts, without producing harmful side effects such as ground contamination or common-mode disturbances that can degrade the performance of AV systems. With SurgeX, your connected equipment will be protected from destructive spikes, surges, and inductive transients that can cause disruptions and catastrophic damage.

    Load Rating

    8 amps @ 120 volts

    Power Requirement (no load)

    10 watts

    UL 1449 AdjunctÊ
    Classification Test Results

    1000 surges, 6000 volts,Ê
    3000 amps, B3 pulse;

    Federal Guidelines

    Grade A, Class 1, Mode 1Ê
    (CID A-A-55818)

    Maximum Applied SurgeÊ
    Pulse Joule Rating

    Unlimited, due to current limiting
    (8 x 20 _s)

    EMI/RFI Filter, Normal ModeÊ
    (50-ohm load)

    40 dB @ 100 kHz; 50 dB @ 300 kHz;
    50 dB @ 3 MHz; 50 dB @ 30 MHz

    EMI/RFI Filter, Common ModeÊ
    (50-ohm load)

    18 dB @ 300 kHz; 30 dB @ 1 MHz;
    50 dB @ 5 MHz; 50 dB @ 20 MHz

    Maximum Applied Pulse Voltage

    6000 volts*

    Maximum Applied Pulse Current

    Unlimited, due to current limiting*

    Endurance

    IEEE C62.41-1991 Category B3 (C1)

    Pulses

    1 kv>500,000; 3 kv>10,000; 6 kv>1000

    Overvoltage Shutdown

    145 volts (resume at 135 volts)

    Dimensions

    1.75" H x 5.31" W x 9.06" D

    Weight

    3.4 lbs

    Temperature Range

    5¼ to 35¼ C

    Humidity Range

    5% to 95% R.H., non-condensing

    Agency Listings

    ETL and cETL certified to (UL 1449;
    CSA C22.2 No.8-M1986, R2000)
    UL 1283
