Description

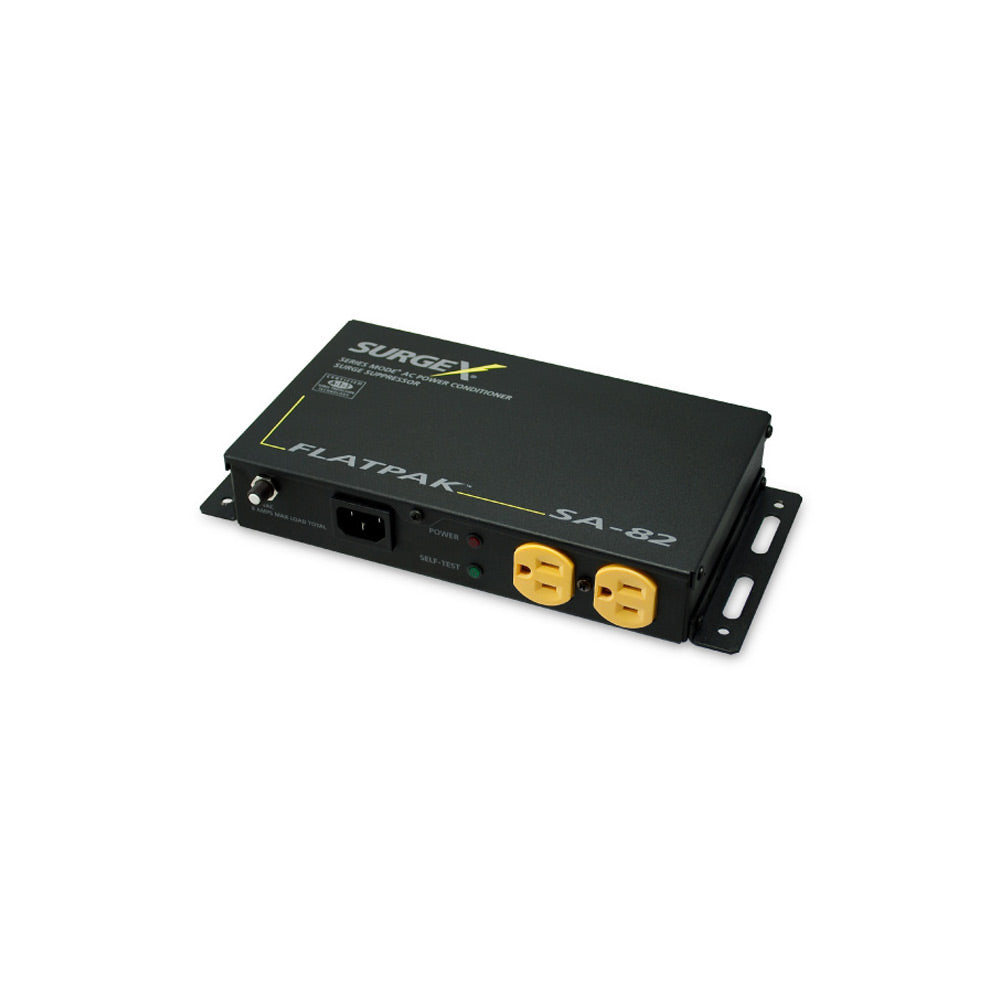

The SurgeX FlatPak is the ultimate protection innovation for projectors, flat panels, and digital displays. The unit's premium protection and design can easily mount to the back of equipment and integrate with wall/ceiling mounting systems. If you're looking for a compact solution that installs out-of-sight, then the FlatPak is the perfect solution.
Features:
- Protects wall/ceiling equipment from power disturbances and catastrophic damage
- Provides 100% Fail-safe, non-sacrificial protection
- Eliminates surge energy up to 6,000 Volts/3,000 Amps
- Ultra compact < 5 lbs design can easily be integrated with wall/ceiling mounting systems
- Features SurgeX Series Mode surge elimination technology, Impedance Tolerant EMI/RFI Filtering, and Over Voltage Shutdown (with Auto Reset)
- Improves audio and video performance
- Axess Ready model offers Remote IP control capabilities
- Includes detachable IEC power cord and mounting brackets
- A-1-1 Certified
Featuring Series Mode surge elimination technology, the SurgeX FlatPak provides premium protection for systems that rely on audio and video performance. Unlike common protection solutions, our patented protection technology is non-sacrificial and eliminates surge energy up to 6,000 Volts, without producing harmful side effects such as ground contamination or common-mode disturbances that can degrade the performance of AV systems. With SurgeX, your connected equipment will be protected from destructive spikes, surges, and inductive transients that can cause disruptions and catastrophic damage.
Load Rating |
8 amps @ 120 volts |
Power Requirement (no load) |
10 watts |
UL 1449 AdjunctÊ |
1000 surges, 6000 volts,Ê |
Federal Guidelines |
Grade A, Class 1, Mode 1Ê |
Maximum Applied SurgeÊ |
Unlimited, due to current limiting |
EMI/RFI Filter, Normal ModeÊ |
40 dB @ 100 kHz; 50 dB @ 300 kHz; |
EMI/RFI Filter, Common ModeÊ |
18 dB @ 300 kHz; 30 dB @ 1 MHz; |
Maximum Applied Pulse Voltage |
6000 volts* |
Maximum Applied Pulse Current |
Unlimited, due to current limiting* |
Endurance |
IEEE C62.41-1991 Category B3 (C1) |
Pulses |
1 kv>500,000; 3 kv>10,000; 6 kv>1000 |
Overvoltage Shutdown |
145 volts (resume at 135 volts) |
Dimensions |
1.75" H x 5.31" W x 9.06" D |
Weight |
3.4 lbs |
Temperature Range |
5¼ to 35¼ C |
Humidity Range |
5% to 95% R.H., non-condensing |
Agency Listings |
ETL and cETL certified to (UL 1449; |
