DALE SKU # 360S-TSS1080PTIMEDELAY

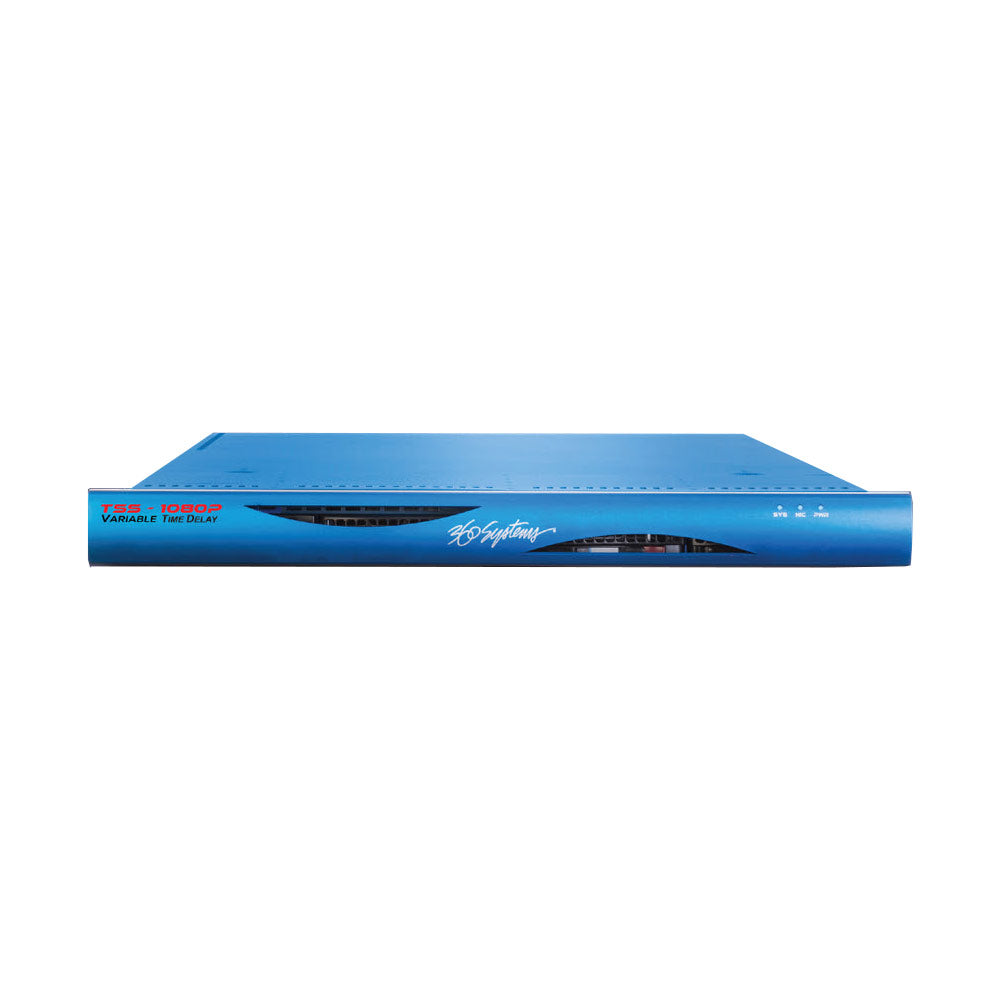

360 Systems TSS-1080p Variable Time Delay

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The new TSS-1080p Variable Time Delay can alter the delay time on-the-fly, providing users an excellent method of controlling the high quality 1080p video delay feed. Delay Presets and traditional jog/shuttle allow you to play any portion of the delayed program from 30 seconds to a day or more.

    Features:

    • HDSDI, SDSDI compatibility up to 1080p
    • Configurable for 29.97/59.94 or 25/50 fps operation
    • Frame accurate delay from 30 sec. to 24 hrs.
    • Closed caption / VANC data support
    • High quality 10 bit video and 24 bit audio support
    • Up to 16 channels of embedded audio
    • Intuitive graphical interface
    • Simple controls for setting delay times
    • Standard transport controls
    • Remote Workstation control
    • RAID 5 protected storage
    • Space saving 1U chassis design
    • Redundant cooling and power
    • Live feed monitor and delayed outputs
    • Dependable Linux® based OS

    A high quality 1080p Video Delay solution is born.
    The TSS-1080p Variable Time Delay incorporates the ability to delay a 1080p broadcast from 30 seconds up to 24 hours. Just as in the TSS-2470II, the amount of delay time can be adjusted on-the-fly without loss of any currently recorded time. The applications for being able to reliably and frame accurately delay a 1080p video stream range from live competitive gaming events to theatrical production.

    The TSS-1080p maintains the high quality 1080p image by using H.264 compression at 100Mbps to reproduce the delayed feed with exceptional quality. As with all 360 Systems servers, high reliability is achieved by using sever grade components, RAID 5 storage, redundant power and cooling and a space saving 1U chassis.

    Maintaining a simple user interface makes adjusting and readjusting the amount of delay time easy. Establish an initial delay time in the primary delay window, then utilizing any of the four preset buttons or transport controls, change the delay as needed. This methodology provides users with a simple way to initiate different amounts of delay time without the need for manual recording and rebroadcasting. The input feed is automatically delayed the set amount of time without any further user inputs required.

    Like the TSS-2470II, the TSS-1080p still supports all broadcast formats - 720p, 1080i, 1080p and NTSC/PAL at frame rates of 29.97/59.94 or 25/50 Hz. Because the TSS-2470II transports high-value program content, it employs a four-drive, RAID 5 disk array for enhanced reliability. Drives and power supplies are hot swappable allowing the system to continue running without downtime. With its 1U form factor, power consumption is low, and forced-air cooling extends component life and reliability.

    Should the the TSS-1080p system need to be controlled from a remote location, the included Remote Workstation software application can be used to connect to the server GUI or the optional GPIO triggers may be implemented. Other features include high-quality 10 bit video with up to 16 channels of embedded audio and support for closed captions and other VANC data. A live feed monitor output and frame accurate delay from 30 seconds to 24 hours or more, round out an excellent standard feature set.

    PRIMARY VIDEO
    Channels1, selectable HD or SD, with outputs for delayed program and monitor (input pass-thru)
    Video InputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Video Monitor OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Delayed Video OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Video Format1080p at 59.94 or 50 Hz; 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
    Ancillary DataPasses, records and reproduces all VANC lines in HD formats.
    Video GenlockBlack burst, tri-level, HD-BNC Connector
    Video EncodingHD AVC100, SD MPEG-2
    Output Sync ReferenceGenlock or fail-over to Video Input
    Drift, long termZero frames
    VIDEO MONITOR OUTPUT
    E-E Input MonitorHD-SDI, SD-SDI
    ANCILLARY DATA
    Closed CaptionsHD Ð 608/708 in VANC; SD Ð Line 21 VBI
    AUDIO
    Embedded Audio16 channels Ð SMPTE 299M
    Sampling Frequency48 kHz
    STORAGE
    Disk Storage System4 server-grade SATA drives in RAID-5 array
    Maximum Delay Time> 24 hours HD (> 76 hours SD) Drive size options available extend to multi day delays
    Delay AdjustmentVia GUI in HH:MM:SS:FF to one-frame precision. Non-volatile
    Drive ReplacementFront access
    USER CONTROLS
    System ControlGraphical User Interface (GUI)
    Remote ControlRemote Workstation for PC
    GPIO12 GPI and 12 GPO
    Control DevicesKeyboard and mouse (supplied), VGA video monitor (not supplied)
    Time Delay SettingHH:MM:SS:FF on GUI Minimum delay 30 seconds.
    Unit shutdownAccessible with momentary switch through front panel or GUI
    DIAGNOSTIC
    Fault MonitoringFront Panel LEDs: power, system, network
    Error LogDiagnostic data downloadable through Ethernet connection
    MISCELLANEOUS
    Mechanical1U Rack mount: 13/4Ó x 19Ó x 25.63Ó [45 x 483 x 651 mm].
    Weight: 26 lb [12 Kg]
    PowerDual Redundant, 100-250V Ð 50/60 Hz. 750W, rear panel plug-in
    CoolingForced air; multiple fans
    Software UpgradesUSB
    Operating SystemLinux¨
    Country of OriginMade in U.S.A.
    Specifications and availability are subject to change without notice.

    The new TSS-1080p Variable Time Delay can alter the delay time on-the-fly, providing users an excellent method of controlling the high quality 1080p video delay feed. Delay Presets and traditional jog/shuttle allow you to play any portion of the delayed program from 30 seconds to a day or more.

    Features:

    • HDSDI, SDSDI compatibility up to 1080p
    • Configurable for 29.97/59.94 or 25/50 fps operation
    • Frame accurate delay from 30 sec. to 24 hrs.
    • Closed caption / VANC data support
    • High quality 10 bit video and 24 bit audio support
    • Up to 16 channels of embedded audio
    • Intuitive graphical interface
    • Simple controls for setting delay times
    • Standard transport controls
    • Remote Workstation control
    • RAID 5 protected storage
    • Space saving 1U chassis design
    • Redundant cooling and power
    • Live feed monitor and delayed outputs
    • Dependable Linux® based OS

    A high quality 1080p Video Delay solution is born.
    The TSS-1080p Variable Time Delay incorporates the ability to delay a 1080p broadcast from 30 seconds up to 24 hours. Just as in the TSS-2470II, the amount of delay time can be adjusted on-the-fly without loss of any currently recorded time. The applications for being able to reliably and frame accurately delay a 1080p video stream range from live competitive gaming events to theatrical production.

    The TSS-1080p maintains the high quality 1080p image by using H.264 compression at 100Mbps to reproduce the delayed feed with exceptional quality. As with all 360 Systems servers, high reliability is achieved by using sever grade components, RAID 5 storage, redundant power and cooling and a space saving 1U chassis.

    Maintaining a simple user interface makes adjusting and readjusting the amount of delay time easy. Establish an initial delay time in the primary delay window, then utilizing any of the four preset buttons or transport controls, change the delay as needed. This methodology provides users with a simple way to initiate different amounts of delay time without the need for manual recording and rebroadcasting. The input feed is automatically delayed the set amount of time without any further user inputs required.

    Like the TSS-2470II, the TSS-1080p still supports all broadcast formats - 720p, 1080i, 1080p and NTSC/PAL at frame rates of 29.97/59.94 or 25/50 Hz. Because the TSS-2470II transports high-value program content, it employs a four-drive, RAID 5 disk array for enhanced reliability. Drives and power supplies are hot swappable allowing the system to continue running without downtime. With its 1U form factor, power consumption is low, and forced-air cooling extends component life and reliability.

    Should the the TSS-1080p system need to be controlled from a remote location, the included Remote Workstation software application can be used to connect to the server GUI or the optional GPIO triggers may be implemented. Other features include high-quality 10 bit video with up to 16 channels of embedded audio and support for closed captions and other VANC data. A live feed monitor output and frame accurate delay from 30 seconds to 24 hours or more, round out an excellent standard feature set.

    PRIMARY VIDEO
    Channels1, selectable HD or SD, with outputs for delayed program and monitor (input pass-thru)
    Video InputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Video Monitor OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Delayed Video OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M) HD-BNC Connector
    Video Format1080p at 59.94 or 50 Hz; 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
    Ancillary DataPasses, records and reproduces all VANC lines in HD formats.
    Video GenlockBlack burst, tri-level, HD-BNC Connector
    Video EncodingHD AVC100, SD MPEG-2
    Output Sync ReferenceGenlock or fail-over to Video Input
    Drift, long termZero frames
    VIDEO MONITOR OUTPUT
    E-E Input MonitorHD-SDI, SD-SDI
    ANCILLARY DATA
    Closed CaptionsHD Ð 608/708 in VANC; SD Ð Line 21 VBI
    AUDIO
    Embedded Audio16 channels Ð SMPTE 299M
    Sampling Frequency48 kHz
    STORAGE
    Disk Storage System4 server-grade SATA drives in RAID-5 array
    Maximum Delay Time> 24 hours HD (> 76 hours SD) Drive size options available extend to multi day delays
    Delay AdjustmentVia GUI in HH:MM:SS:FF to one-frame precision. Non-volatile
    Drive ReplacementFront access
    USER CONTROLS
    System ControlGraphical User Interface (GUI)
    Remote ControlRemote Workstation for PC
    GPIO12 GPI and 12 GPO
    Control DevicesKeyboard and mouse (supplied), VGA video monitor (not supplied)
    Time Delay SettingHH:MM:SS:FF on GUI Minimum delay 30 seconds.
    Unit shutdownAccessible with momentary switch through front panel or GUI
    DIAGNOSTIC
    Fault MonitoringFront Panel LEDs: power, system, network
    Error LogDiagnostic data downloadable through Ethernet connection
    MISCELLANEOUS
    Mechanical1U Rack mount: 13/4Ó x 19Ó x 25.63Ó [45 x 483 x 651 mm].
    Weight: 26 lb [12 Kg]
    PowerDual Redundant, 100-250V Ð 50/60 Hz. 750W, rear panel plug-in
    CoolingForced air; multiple fans
    Software UpgradesUSB
    Operating SystemLinux¨
    Country of OriginMade in U.S.A.
    Specifications and availability are subject to change without notice.
