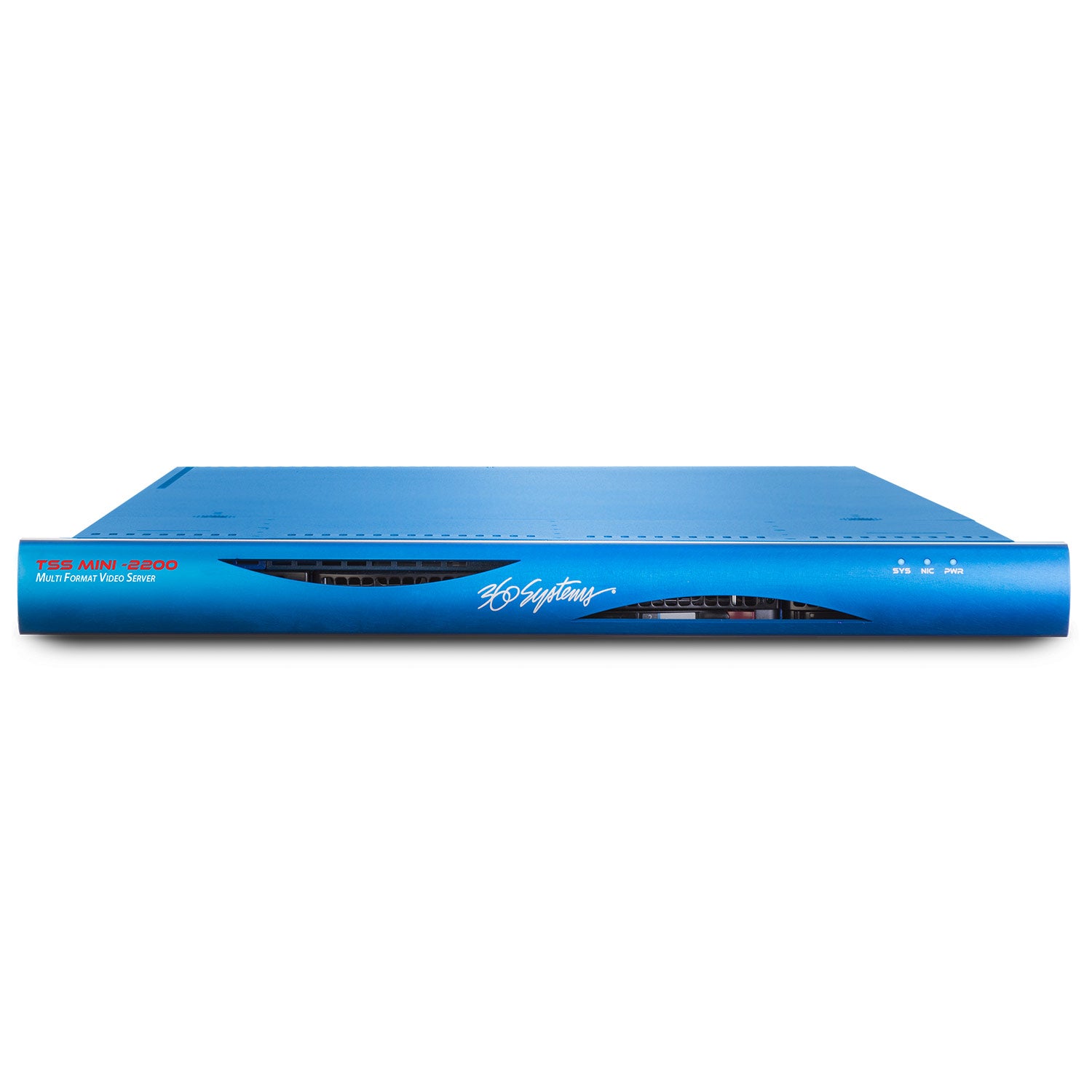

360 Systems TSS-2200 - 2 Channel HD / SD Server 4TB Storage
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
2 Channel SD & HD Compact, up to 8TB of Storage The Reliable, Multi Format Video Server. The TSS - 2100 offers a single bi-directional channel and a single playout channel while the TSS - 2200 allows both channels to be either record or playout.
Features
- 2 Channels, 2 Record or Playout - TSS - 2200
- 1U, Short Chassis Form Factor
- 16 Channels Embedded Audio
- H.264 and MPEG2 Encoding / Decoding
- Automatic Up/Down/Cross Conversion of HD or SD content
- Remote Control From PC's via Ethernet
- Redundant Power / Cooling
360 Systems' constantly strives to produce smaller and more affordable video servers without sacrificing quality or reliability. The new TSS class of server furthers this goal. With a shorter 1U chassis, the TSS fits in more confined spaces and its lower cost makes it the budget conscious model. All of this is accomplished on the same great platform as the larger TSS servers.
- Flexibility, Reliability, Simplicity¦ at an affordable price.
Video
- Record and play in 720p, 1080i or SD on any channel
- Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
- Independently configure each output to broadcast in 720p, 1080i or SD
- Perform jog and shuttle for rapid movement within a clip
- Smooth slow motion playout
- 16 channels of embedded audio per video channel
- Configurable for 29.97/59.94 or 25/50
- High quality 10 bit video and 24 bit audio support
Reliability
- Redundant cooling and power
- Redundant RAID 5 storage
- Linux based operating system
Connectivity
- HD-SDI, SD-SDI compatibility
- Gigabit Ethernet
- Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
- Independent GPI inputs and outputs (12 each) for external triggering or control
Software
- Automatic conversion plays SD and HD files back-to-back
- Local software GUI
- Remote control from a PC
- Record & playlisting
TSS Applications
- Budget conscious broadcasters
- requiring multiple channels
- Broadcast trucks
- Backup systems
- Public broadcasting
- Government meetings
- Education
- Stadiums
- Record and store
- Video insertion
- Production
| VIDEO | |
| Video Input | 1 Channel (2 Channels with upgrade to 2200) |
| Video Outputs | 2ÊChannels |
| Simultaneous video streams | 2 (1 record 1 playout, 2 playout or (2 record on TSS Ð 2200 only) |
| HD Input/Output | HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) |
| Video Format | 1080i at 29.97 or 25 Hz; 720p atÊ59.94 or 50 fps; 525/60 NTSC; 625/50 PAL |
| Encoding Format | H.264 or MPEG2 |
| HS/SD Scaling | Up, Down, and Cross Conversion of Any File Format to Selected Output |
| Jog/Shuttle | Zero to 128X, forward/reverse |
| Slow Motion Play with audio | Zero toÊ+/-Ê2X, forward/reverse |
| Frame Accuracy | Frame accurate play, pause and stop |
| Genlock Input | Blackburst or tri-level |
| ANCILLARY DATA | |
| Ancillary Data | HD Ð 608/708 in VANC; SD Ð Line 21 VBI |
| AUDIO INPUTS / OUTPUTS (per video channel) | |
| SDI Embedded Audio | 16 channels |
| STORAGE | |
| Disk Storage System | SATA array, four Ð 1 or 2 Terabyte drives, RAID 5 controller |
| Total Capacity | 8 Terabytes (4 Terabytes standard model) |
| Drive Replacement | Hot Swappable |
| CONNECTIVITY | |
| Networking | Gigabit Ethernet |
| Serial Control | VDCP or Odetics protocols, 9-pin on CXP-5 module (optional). |
| GPI Control | 12 Inputs, Outputs, Programmable on CXP-5 module (optional) |
| MISCELLANEOUS | |
| Fault Monitoring LEDs | Front Panel LEDs, power, system, network |
| Fault Monitoring Output | GPI output, open collector |
| Software Updates | USB |
| Power Supply | Dual Redundant, 100-250V Ð 50/60 Hz. 400W, rear panel plug-in |
| Cooling | Redundant fans |
| Chassis | 1-RU x 19Ó Rack, Weight: approx 45 lb. (22 kg) |
| EXPANSION MODULES | |
| CXP-5 | Serial and GPI control module. 1 RU (optional) |
Specifications and availability are subject to change without notice.
