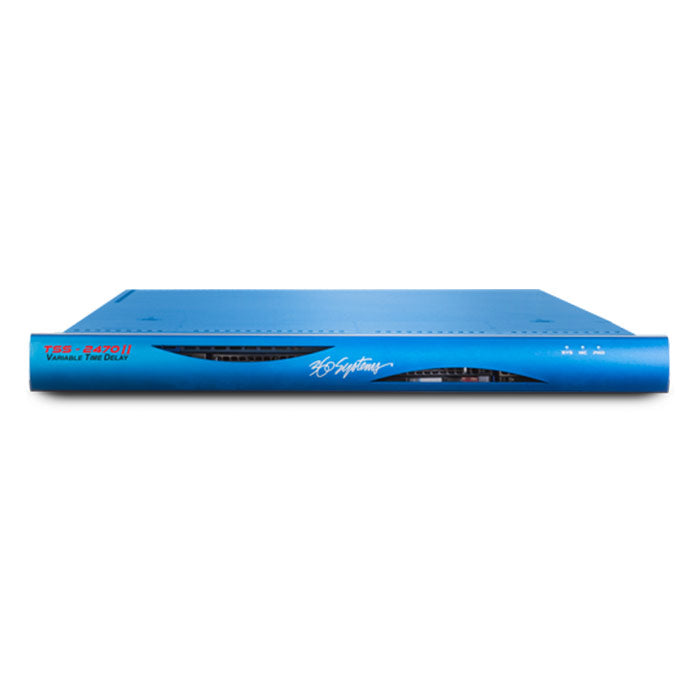

360 Systems TSS-2470 II - Single Channel HD Or SD Time Delay Server



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:360S-TSS2470II

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Call for Price

Shipping Charges Apply
  • The new TSS-2470II Time Delay can alter the delay time on-the-fly, handling simple time zone shifting, “mountain minute” style commercial insertion or disaster recovery operations. Delay Presets and traditional jog/shuttle allow you to play any portion of the delayed program from 30 seconds to a day or more.

    The TSS-2470II is 360 Systems’ latest model of Broadcast Time Delay, bringing the ability to adjust the delay setting on-the-fly without loss of any currently recorded time. This gives it the flexibility to handle applications for Mountain Minute commercial insertion, schedule alterations and disaster recovery as well as simple set-and-forget time zone shifting.

    Overview:

    • Single channel variable delay server.
    • Delays from 30 seconds to 24 hours or more
    • Locate and Play anywhere in the delayed video
    • Play, pause, jog, shuttle to any point within the recorded time
    • HD-SDI or SD-SDI I/O
    • Control from anywhere with the included Remote Workstation software
    • GPIO controls
    • 16 channels of embedded audio
    • Encodes VANC data such as Closed Captions (608 or 708) and AFD
    • RAID 5 protection of content
    • Single-frame time adjustment
    • Small 1U form factor
    • Server grade components, Linux OS

    The TSS-2470II offers the same basic features and built in reliability as the standard TSS-2470. With HD and SD compatibility, frame accurate delay, RAID 5 storage, redundant power and cooling and a space saving 1U chassis, the TSS-2470 maintains the quality and reliability customers expect from 360 Systems.

    The simple user interface makes adjusting and readjusting the delay time easy. Establish an initial delay time in the primary delay window, then utilizing any of the four preset buttons or transport controls, change the delay as needed. Time zone differences can be easily compensated for without the need for manual recording and rebroadcasting. Simply enter the desired delay time and click run or reset the delay time without having to restart the delay. The input feed is automatically delayed the set amount of time without any further user inputs required.

    The TSS-2470II supports all broadcast formats – 720p, 1080i and NTSC/PAL at frame rates of 29.97/59.94 or 25/50 Hz. Because the TSS-2470II transports high-value program content, it employs a four-drive, RAID 5 disk array for enhanced reliability. Drives and power supplies are hot swappable allowing the system to continue running without downtime. With its 1U form factor, power consumption is low, and forced-air cooling extends component life and reliability.

    The TSS-2470II can also be controlled remotely with our Remote Workstation software or with the use of GPIO triggers. Other features include high-quality 10 bit video with up to 16 channels of embedded audio and support for closed captions and other VANC data. A live feed monitor output and frame accurate delay from 30 seconds to 24 hours or more, round out an excellent standard feature set.

    Features:

    • HDSDI, SDSDI compatibility
    • Configurable for 29.97/59.94 or 25/50 fps operation
    • Frame accurate delay from 30 sec. to 24 hrs.
    • Closed caption / VANC data support
    • High quality 10 bit video and 24 bit audio support
    • Up to 16 channels of embedded audio
    • Intuitive graphical interface
    • Simple controls for setting delay times
    • Standard transport controls
    • Remote Workstation control
    • RAID 5 protected storage
    • Space saving 1U chassis design
    • Redundant cooling and power
    • Live feed monitor and delayed outputs
    • Dependable Linux® based OS
  • PRIMARY VIDEO
         Channels1, selectable HD or  SD, with outputs for delayed program and monitor (input pass-thru)
         Video InputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M)  HD-BNC Connector
         Video Monitor OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M)  HD-BNC Connector
         Delayed Video OutputHD-SDI, SMPTE 292M, or SD-SDI (SMPTE 259M)  HD-BNC Connector
         Video Format1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
         Ancillary DataPasses, records and reproduces all VANC lines in HD formats.
         Video GenlockBlack burst, tri-level, HD-BNC Connector
         Video EncodingHD AVC100, SD MPEG-2
         Output Sync ReferenceGenlock or fail-over to Video Input
         Drift, long termZero frames
    VIDEO MONITOR OUTPUT
         E-E Input MonitorHD-SDI, SD-SDI
    ANCILLARY DATA
         Closed CaptionsHD – 608/708 in VANC; SD – Line 21 VBI
    AUDIO
         Embedded Audio16 channels – SMPTE 299M
         Sampling Frequency48 kHz
    STORAGE
         Disk Storage System4 server-grade SATA drives in RAID-5 array
         Maximum Delay Time> 24 hours HD (> 76 hours SD) Drive size options available extend to multi day delays
         Delay AdjustmentVia GUI in HH:MM:SS:FF to one-frame precision. Non-volatile
         Drive ReplacementFront access
    USER CONTROLS
         System ControlGraphical User Interface (GUI)
         Remote ControlRemote Workstation for PC
         GPIO12 GPI and 12 GPO
         Control DevicesKeyboard and mouse (supplied), VGA video monitor (not supplied)
         Time Delay SettingHH:MM:SS:FF on GUI        Minimum delay 30 seconds.
         Unit shutdownAccessible with momentary switch through front panel or GUI
    DIAGNOSTIC
         Fault MonitoringFront Panel LEDs: power, system, network
         Error LogDiagnostic data downloadable through Ethernet connection
    MISCELLANEOUS
         Mechanical1U Rack mount: 13/4" x 19” x 22” [45 x 483 x 559 mm]. Weight: 26 lb [12 Kg]
         Power100-240 V, 50/60 Hz, 400 W, redundant power supply
         CoolingForced air; multiple fans
         Software UpgradesUSB Flash Memory
         Operating SystemLinux®
         Country of OriginMade in U.S.A.

    Specifications and availability are subject to change without notice.
