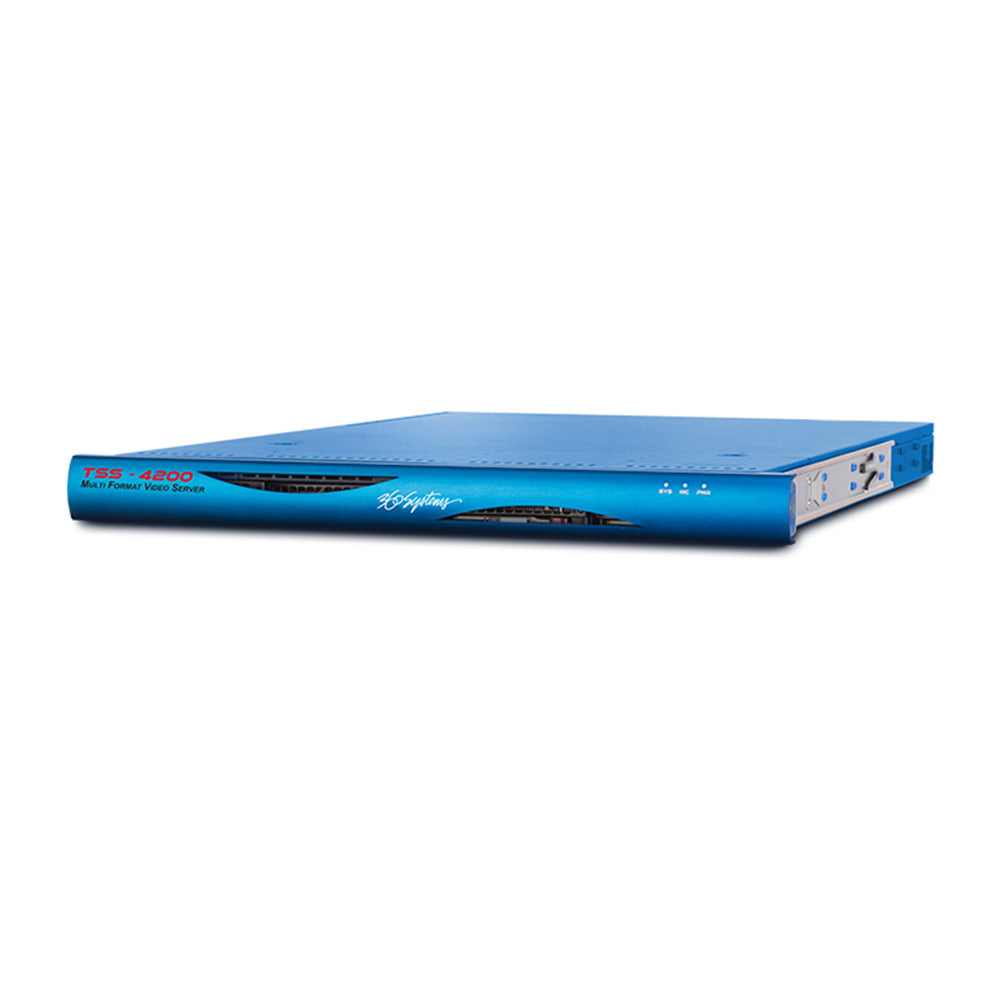

360 Systems TSS-4200 - 4 Channel HD / SD Server, 4TB Storage


Special Trade-Up Offer!
Trade-Up any old legacy server for a NEW IP Ready 360 Systems TSS Series with great savings until December 31st, 2018!.
Contact us now for more details
.

Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:360S-TSS4200

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Call for Price

Shipping Charges Apply
  • The TSS-4200 delivers 2 bi-directional channels and 2 playout channels at an even lower cost per channel.

    Features

    • 4 Playout Channels
    • 16 Channels Embedded Audio
    • H.264 and MPEG2 Encoding / Decoding
    • Automatic Up/Down/Cross Conversion of HD or SD content
    • Remote Control From PC’s via Ethernet
    • Redundant Power / Cooling
    • 1U Form Factor

    360 Systems’ constantly strives to produce products that provide more for less. Customers have asked for multi channel recording for years and the TSS-4400 delivers this without sacrificing features. With high channels counts in a small 1U chassis, the TSS-4400 is an affordable choice.

    - Flexibility, Reliability, Simplicity… at an affordable price.

    Video

    • Record and play in 720p, 1080i or SD on any channel
    • Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
    • Independently configure each output to broadcast in 720p, 1080i or SD
    • Perform jog and shuttle for rapid movement within a clip
    • Smooth slow motion playout
    • 16 channels of embedded audio per video channel
    • Configurable for 29.97/59.94 or 25/50
    • High quality 10 bit video and 24 bit audio support

    Reliability

    • Redundant cooling and power
    • Redundant RAID 5 storage
    • Linux based operating system

    Connectivity

    • HD-SDI, SD-SDI compatibility
    • Gigabit Ethernet
    • Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
    • Independent GPI inputs and outputs (12 each) for external triggering or control

    Software

    • Automatic conversion plays SD and HD files back-to-back
    • Local software GUI
    • Remote control from a PC
    • Record & playlisting

    TSS Applications

    • Budget conscious broadcasters requiring multiple channels
    • Broadcast trucks
    • Backup systems
    • Public broadcasting
    • Government meetings
    • Education
    • Stadiums
    • Record and store
    • Video insertion
    • Production
  • VIDEO
         Video Input4 Channels (2 Channels on 4200)
         Video Outputs4 Channels
         Simultaneous video streams4 total in any configuration of record or playout. (For the TSS-4200, 2 record and 2 playout,1 record and 3 playout or 4 playout)
         HD Input/OutputHD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
         Video Format1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
         Encoding FormatH.264 or MPEG2
         HS/SD ScalingUp, Down, and Cross Conversion of Any File Format to Selected Output
         Jog/ShuttleZero to 128X, forward/reverse
         Slow Motion Play with audioZero to +/- 2X, forward/reverse
         Frame AccuracyFrame accurate play, pause and stop
         Genlock InputBlackburst or tri-level
    ANCILLARY DATA
         Ancillary DataHD – 608/708 in VANC; SD – Line 21 VBI
    AUDIO INPUTS / OUTPUTS (per video channel)
         SDI Embedded Audio16 channels
    STORAGE
         Disk Storage SystemSATA array, four – 1 or 2 Terabyte drives, Hardware RAID 5 controller
         Total Capacity8 Terabytes (4 Terabytes standard model)
         Drive ReplacementHot Swappable, removable from behind front panel
    CONNECTIVITY
         NetworkingGigabit Ethernet
         Serial ControlVDCP or Odetics protocols, 9-pin on CXP-5 module (optional).
         GPI Control12 Inputs, Outputs, Programmable on CXP-5 module (optional)
    MISCELLANEOUS
         Fault Monitoring LEDsFront Panel LEDs, power, system, network
         Fault Monitoring OutputGPI output, open collector
         Software UpdatesUSB
         Power SupplyDual Redundant, 100-250V – 50/60 Hz. 750W, rear panel plug-in
         CoolingRedundant fans
         Chassis1-RU x 19” Rack, Weight:  approx 45 lb. (22 kg)
    EXPANSION MODULES
         CXP-5Serial and GPI control module. 1 RU (optional)

    Specifications and availability are subject to change without notice.
