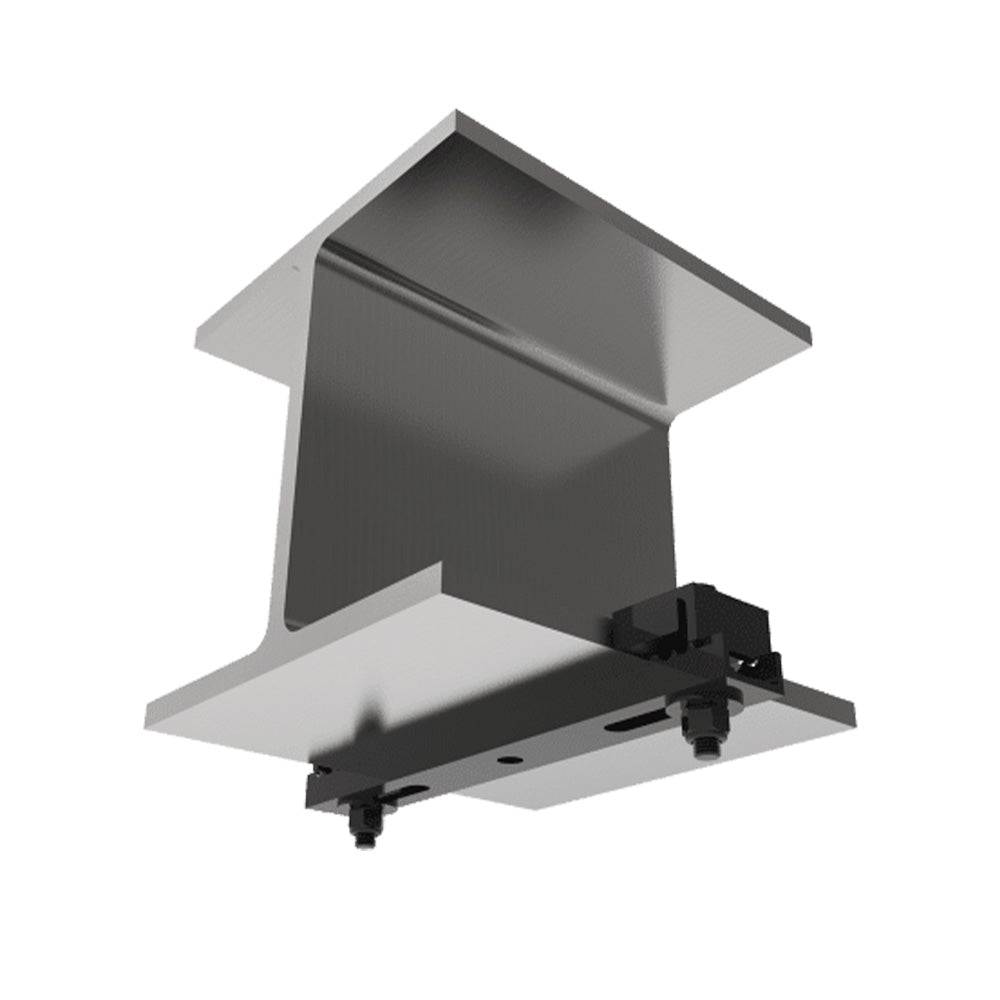

Adaptive Technologies BC7-12-0 - Speaker Rigging Channel Beam Clamp (7-12" Threaded Open Hang Point)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Standard, pre-engineered beam clamps anchor to a building's beam structure and offer a safe and predictable method for suspending objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam's flange and provides a centrally located mounting hole for use with many types of connections, including all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.
Use the BC7-12 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7" and 12" (178-305mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features:
- Center hole for 5/8" diameter threaded rod.
- Center hole for 1/2" and 1-1/2" dia. pipe adapters
- Provides safe load-rated suspension
- Clamps securely to beam flange widths from 7" - 12"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | 1600 lb / 726 kg for Steel I-Beams For Vertical Loading Only |
| Weight | 8.8 lb / 4 kg |
| Contents | 1 pc 7"-12" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 2 ea. 3/8", 1/4" and 1/8" Spacers |
Standard, pre-engineered beam clamps anchor to a building's beam structure and offer a safe and predictable method for suspending objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam's flange and provides a centrally located mounting hole for use with many types of connections, including all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.
Use the BC7-12 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7" and 12" (178-305mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features:
- Center hole for 5/8" diameter threaded rod.
- Center hole for 1/2" and 1-1/2" dia. pipe adapters
- Provides safe load-rated suspension
- Clamps securely to beam flange widths from 7" - 12"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | 1600 lb / 726 kg for Steel I-Beams For Vertical Loading Only |
| Weight | 8.8 lb / 4 kg |
| Contents | 1 pc 7"-12" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 2 ea. 3/8", 1/4" and 1/8" Spacers |
