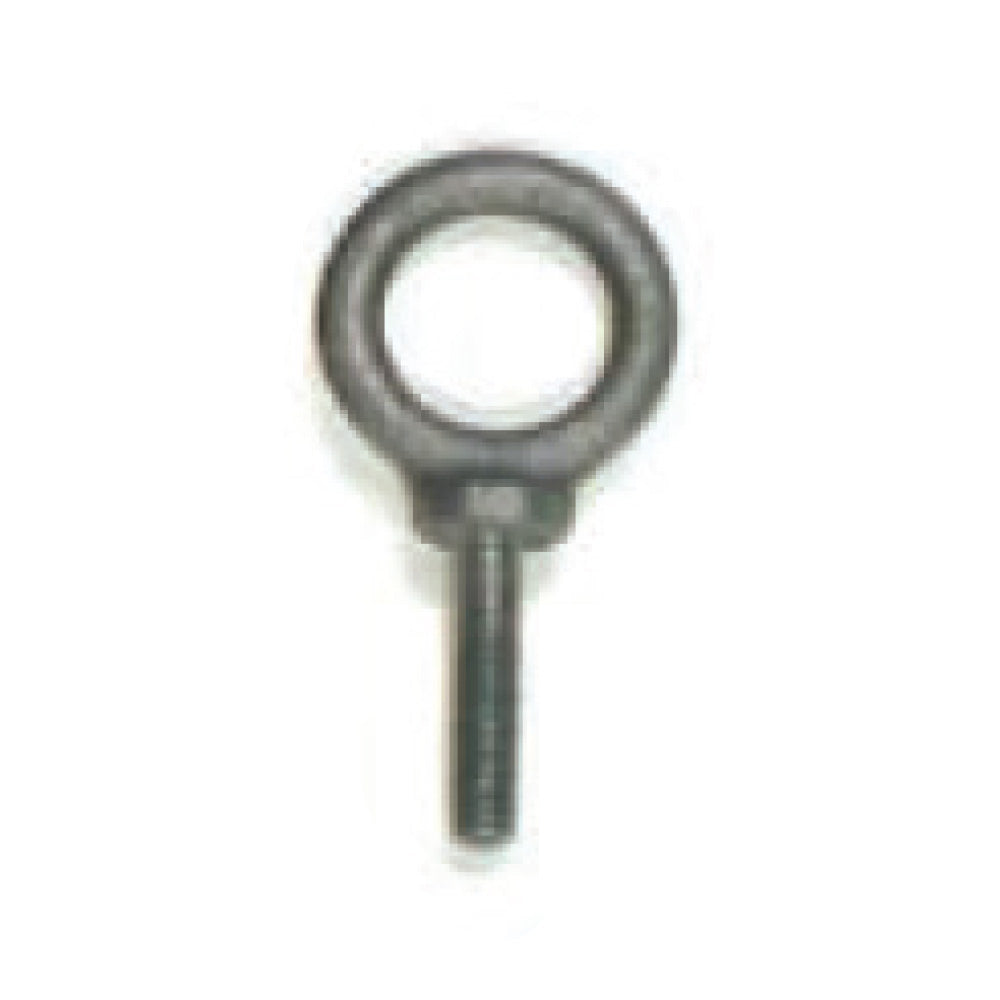

Adaptive Technologies EB-375-2-S - Drop Forged Speaker Rigging Eyebolt (3/18-16 Threaded / Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating values are calculated with a 5:1 safety (design) factor. To calculate the approximate ultimate failure load, multiply the indicated working load limit (WLL) by five. Dimensions are approximate and will vary slightly between manufacturing runs. Color options include bright zinc plate or black zinc plate.
| Part Number | EB-375-2-S |
| Color | Zinc |
| Thread | 3/8-16 |
| End Dimension | 3/8" |
| Outer Diameter | 1.50" |
| Inner Diameter | 1.50" |
| Total Eyebolt Length | 2" |
| Inner Eyebolt Length | .9375" |
| Threaded Rod Length | 3.25" |
| Working Load Limit (0 Degrees) | 1400 lb/636 kg |
| Working Load Limit (45 Degrees) | 350 lb/175 kg |
| Working Load Limit (90 Degrees) | 280 lb/127 kg |
Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating values are calculated with a 5:1 safety (design) factor. To calculate the approximate ultimate failure load, multiply the indicated working load limit (WLL) by five. Dimensions are approximate and will vary slightly between manufacturing runs. Color options include bright zinc plate or black zinc plate.
| Part Number | EB-375-2-S |
| Color | Zinc |
| Thread | 3/8-16 |
| End Dimension | 3/8" |
| Outer Diameter | 1.50" |
| Inner Diameter | 1.50" |
| Total Eyebolt Length | 2" |
| Inner Eyebolt Length | .9375" |
| Threaded Rod Length | 3.25" |
| Working Load Limit (0 Degrees) | 1400 lb/636 kg |
| Working Load Limit (45 Degrees) | 350 lb/175 kg |
| Working Load Limit (90 Degrees) | 280 lb/127 kg |
