DALE SKU # AKG-6500H00200

AKG CS3 TROLLEY - Conferencing System with Travel Case

Sale price$2,950.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

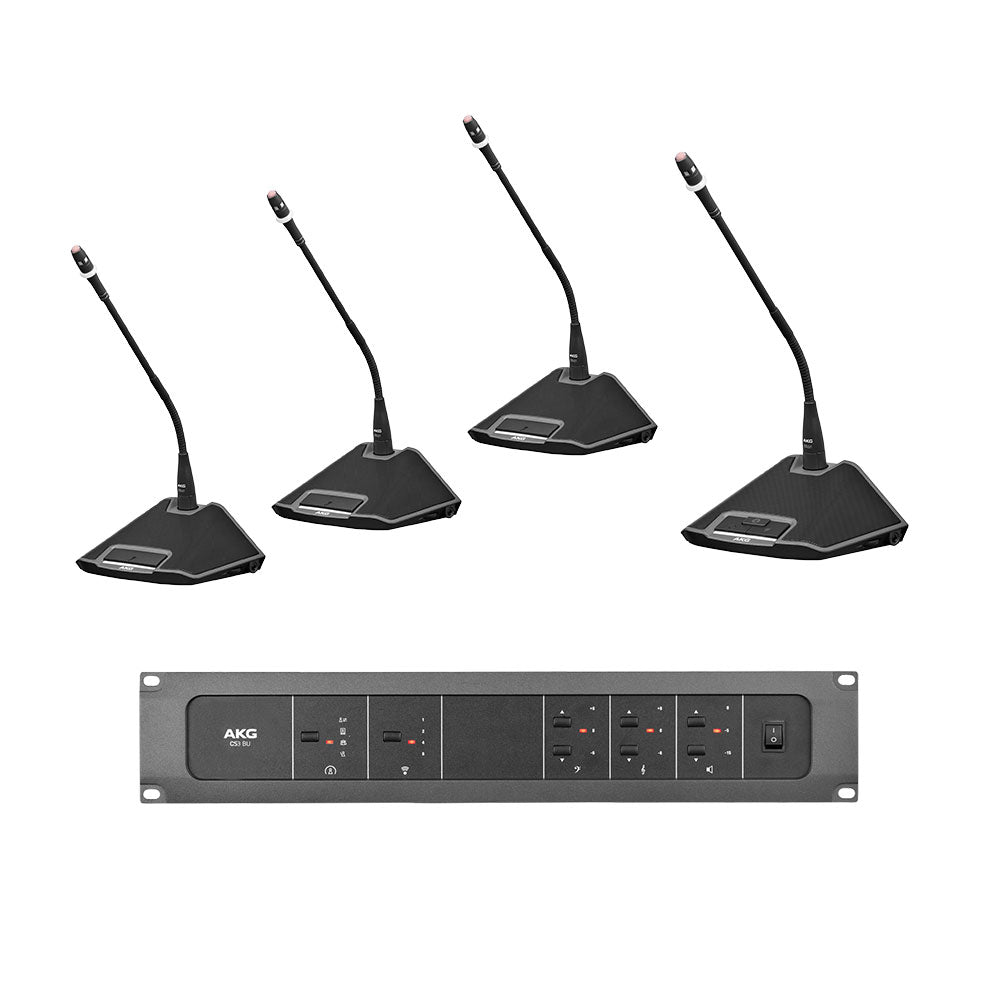

    Transportable system includes a complete system in a carry-on luggage case.

    The CS3 System is a modular and flexible conference system for small and medium size applications. Its reliable components can be easily set up, wired and expanded. One CS3 base unit can support 60 microphones. The base unit connects to all relevant devices like PA, recording, external audio sources and camera control systems. Different operating modes enable automatic or controlled conferences, even without PC remote. The CS3 microphone station comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30cm (12in) long gooseneck and the 50cm (20in) long CS521. The CS3 combines easiness in setup and use with professional AKG audio quality. The rugged and elegant design fits in any venue.

    Bundle Contents:

    • 1 x CS3 BU Base Unit
    • 1 x CS3 CU 30 Chairman Unit
    • 3 x CS3 DU 30 Delegate Units
    • 4 x CS 321 Gooseneck Microphones
    • 4 x Microphone Cables
    • 4 x Power Cords
    • 1 x Trolley Case

    System Features:

    • Versatile for all small to mid size meetings
    • Plug and Play
    • Easy Setup even for non trained people
    • Intuitive User Interface
    • Concentrate on the real things
    • Modular
    • Easy expandable and adaptable
    CS3BU
    Power Supply SMPS 100_240V (50Hz / 60Hz) 3A
    Static Consumption 13W
    Nominal Power Consumption 320W
    Output Power ²90W / 24V each way
    Mode Balanced / Unbalanced
    Frequency Response 50Hz ~ 20kHz
    S/N >80dB
    Harmonic Distortion <0.5%
    Harmonic Distortion at Overload <1%
    Crosstalk Attenuation (1kHz) >50dB
    Dimension 482L x 281W x 88.4H (mm)
    Weight About 5.2kg
    Operating Temperature 0¡C to 40 ¡C at 95% relative humidity (noncondensing)
    CS3CU/DU
    Power Supply DC24V Supplied by the Base Unit
    Power Consumption 3W
    Loudspeaker Power 2W
    SNR >80dB
    Frequency Response 50Hz ~ 20kHz
    Intercommunication DIN 8_pole
    Headphone Output 9dBu, 8_32ohm, 3.5mm
    Crosstalk Attenuation >80dB
    Harmonic Distortion <0.1%
    Dimension 170L x 143W x 63H (mm)
    Weight About 1kg
    Operating Temperature 0¡C to 40 ¡C at 95% relative humidity (noncondensing)

    Transportable system includes a complete system in a carry-on luggage case.

    The CS3 System is a modular and flexible conference system for small and medium size applications. Its reliable components can be easily set up, wired and expanded. One CS3 base unit can support 60 microphones. The base unit connects to all relevant devices like PA, recording, external audio sources and camera control systems. Different operating modes enable automatic or controlled conferences, even without PC remote. The CS3 microphone station comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30cm (12in) long gooseneck and the 50cm (20in) long CS521. The CS3 combines easiness in setup and use with professional AKG audio quality. The rugged and elegant design fits in any venue.

    Bundle Contents:

    • 1 x CS3 BU Base Unit
    • 1 x CS3 CU 30 Chairman Unit
    • 3 x CS3 DU 30 Delegate Units
    • 4 x CS 321 Gooseneck Microphones
    • 4 x Microphone Cables
    • 4 x Power Cords
    • 1 x Trolley Case

    System Features:

    • Versatile for all small to mid size meetings
    • Plug and Play
    • Easy Setup even for non trained people
    • Intuitive User Interface
    • Concentrate on the real things
    • Modular
    • Easy expandable and adaptable
    CS3BU
    Power Supply SMPS 100_240V (50Hz / 60Hz) 3A
    Static Consumption 13W
    Nominal Power Consumption 320W
    Output Power ²90W / 24V each way
    Mode Balanced / Unbalanced
    Frequency Response 50Hz ~ 20kHz
    S/N >80dB
    Harmonic Distortion <0.5%
    Harmonic Distortion at Overload <1%
    Crosstalk Attenuation (1kHz) >50dB
    Dimension 482L x 281W x 88.4H (mm)
    Weight About 5.2kg
    Operating Temperature 0¡C to 40 ¡C at 95% relative humidity (noncondensing)
    CS3CU/DU
    Power Supply DC24V Supplied by the Base Unit
    Power Consumption 3W
    Loudspeaker Power 2W
    SNR >80dB
    Frequency Response 50Hz ~ 20kHz
    Intercommunication DIN 8_pole
    Headphone Output 9dBu, 8_32ohm, 3.5mm
    Crosstalk Attenuation >80dB
    Harmonic Distortion <0.1%
    Dimension 170L x 143W x 63H (mm)
    Weight About 1kg
    Operating Temperature 0¡C to 40 ¡C at 95% relative humidity (noncondensing)
