Description

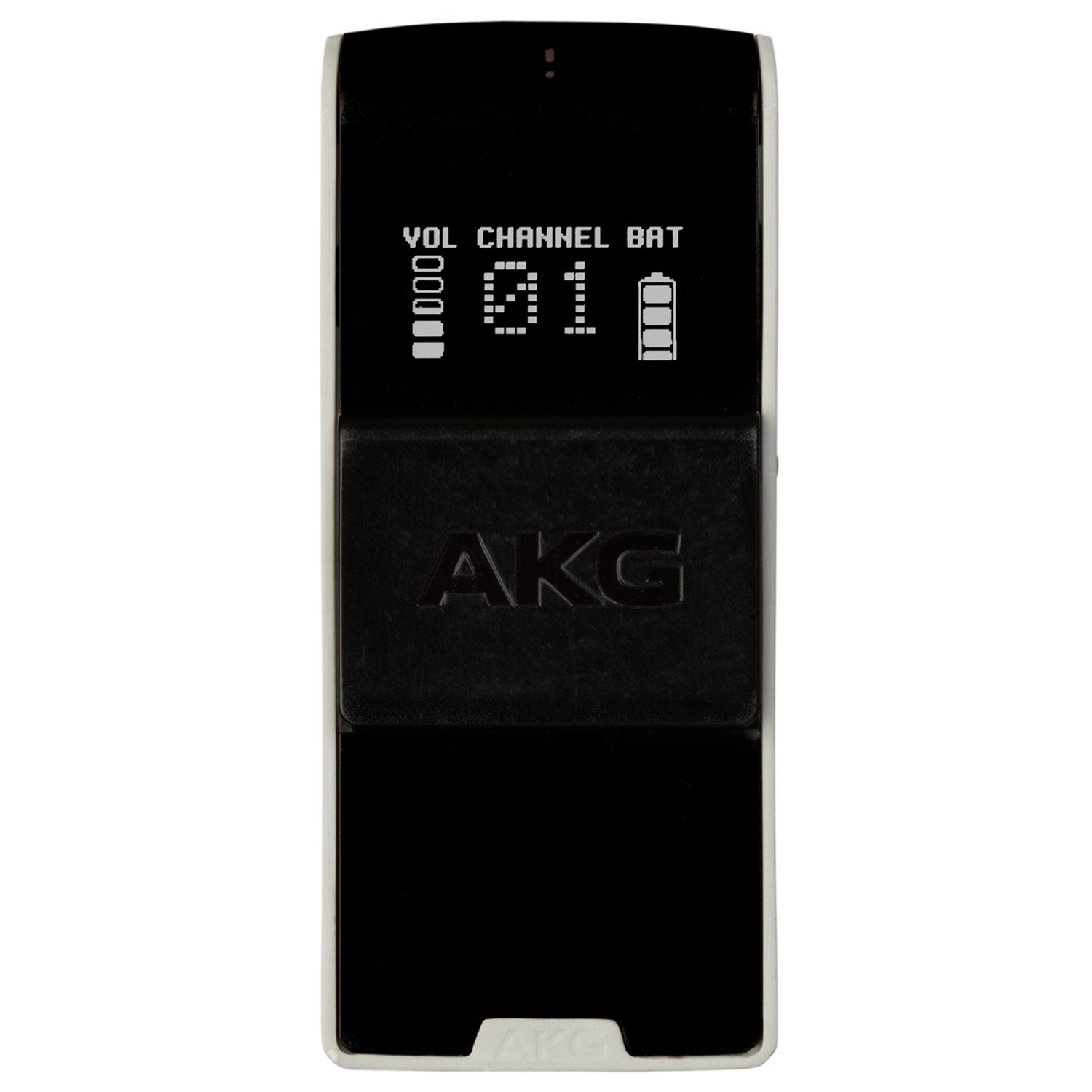

The CSX IRR10 is a reference conferencing infrared receiver that supports up to ten language channels. A large OLED display clearly shows all required information for output volume, channel number and battery status.

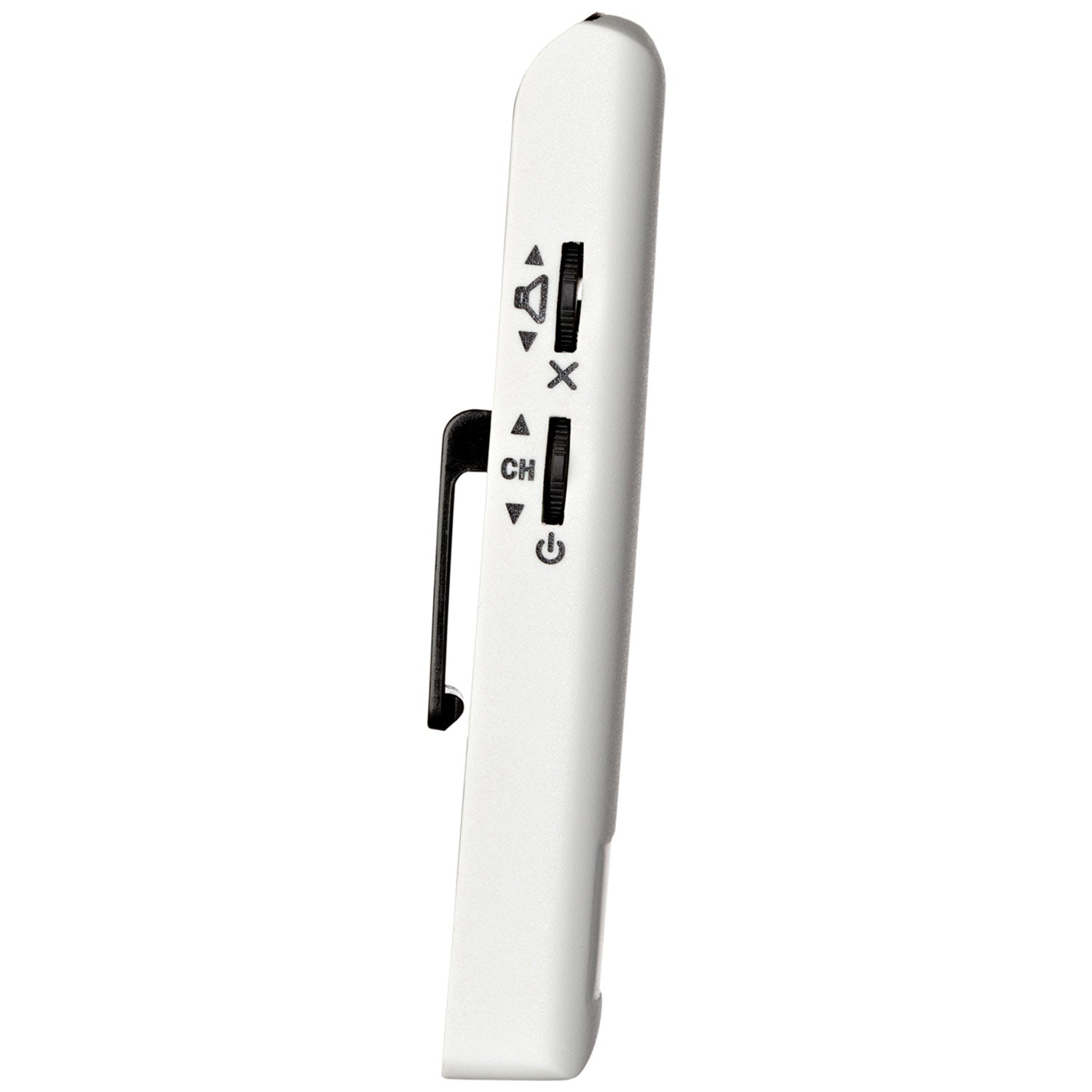

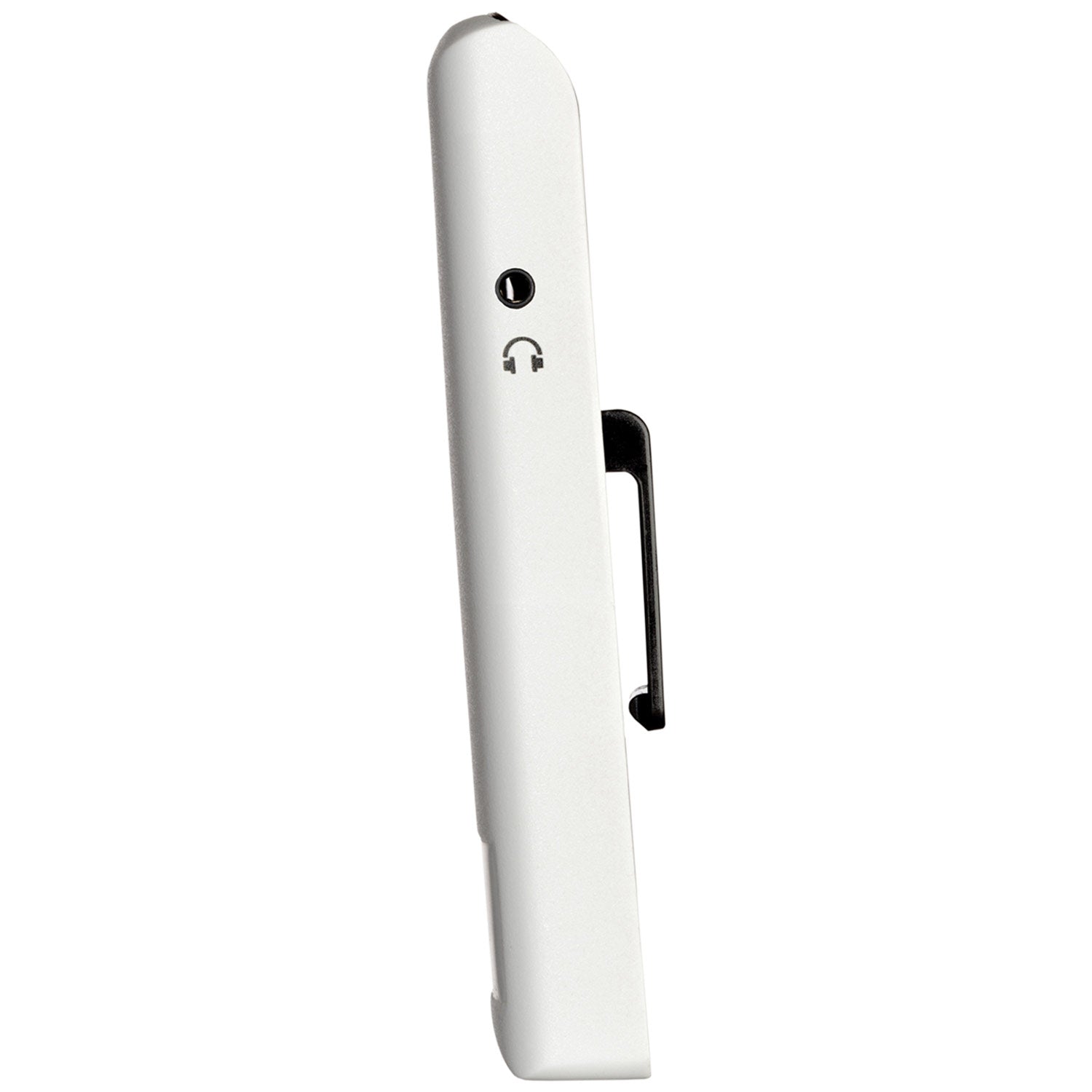

With 2 jog dial selectors (1) one can select the requested channel and adjust the output level to the headphones. A standard 3,5mm stereo jack plug (2) enables the use of any kind of headphones. To charge the 2700mAh NiMh rechargeable batteries (up to 20 hours operation time) a charging/storage case (3) for 50 units is available. For single units a standard USB charger (4) can be used.
Features:
-
Digital Transmission using PPM modulation
Prevents fluorescent-light interference for effective audio and radiation quality control -
For CS5 or as standalone system
Works with all types of analogue inputs -
Receives up to ten different languages
For multilingual conference applications -
Up to 20 hours operation with only 2x AA standard rechargeable batteries
Low operation cost and energy technology -
Integrated clip on front panel
For tight fit in the pocket of a shirt -
Charging via any USB charger for single units or via the charging case for 50 units
For quick and easy, space saving and intelligent charging
Number of languages | 10 |
Reception angle | 140 |
Dimensions | Width 57 mm Height 132 mm Depth 23 mm |
Net Weight | 140 g |
Body | plastic |
Finish | matte black/white |
Battery type | HR 6 AA (NiHM) rechargeable battery |
Number of batteries | 2 |
Operating time | 20 h |
The CSX IRR10 is a reference conferencing infrared receiver that supports up to ten language channels. A large OLED display clearly shows all required information for output volume, channel number and battery status.
With 2 jog dial selectors (1) one can select the requested channel and adjust the output level to the headphones. A standard 3,5mm stereo jack plug (2) enables the use of any kind of headphones. To charge the 2700mAh NiMh rechargeable batteries (up to 20 hours operation time) a charging/storage case (3) for 50 units is available. For single units a standard USB charger (4) can be used.
Features:
-
Digital Transmission using PPM modulation
Prevents fluorescent-light interference for effective audio and radiation quality control -
For CS5 or as standalone system
Works with all types of analogue inputs -
Receives up to ten different languages
For multilingual conference applications -
Up to 20 hours operation with only 2x AA standard rechargeable batteries
Low operation cost and energy technology -
Integrated clip on front panel
For tight fit in the pocket of a shirt -
Charging via any USB charger for single units or via the charging case for 50 units
For quick and easy, space saving and intelligent charging
Number of languages | 10 |
Reception angle | 140 |
Dimensions | Width 57 mm Height 132 mm Depth 23 mm |
Net Weight | 140 g |
Body | plastic |
Finish | matte black/white |
Battery type | HR 6 AA (NiHM) rechargeable battery |
Number of batteries | 2 |
Operating time | 20 h |
