Description

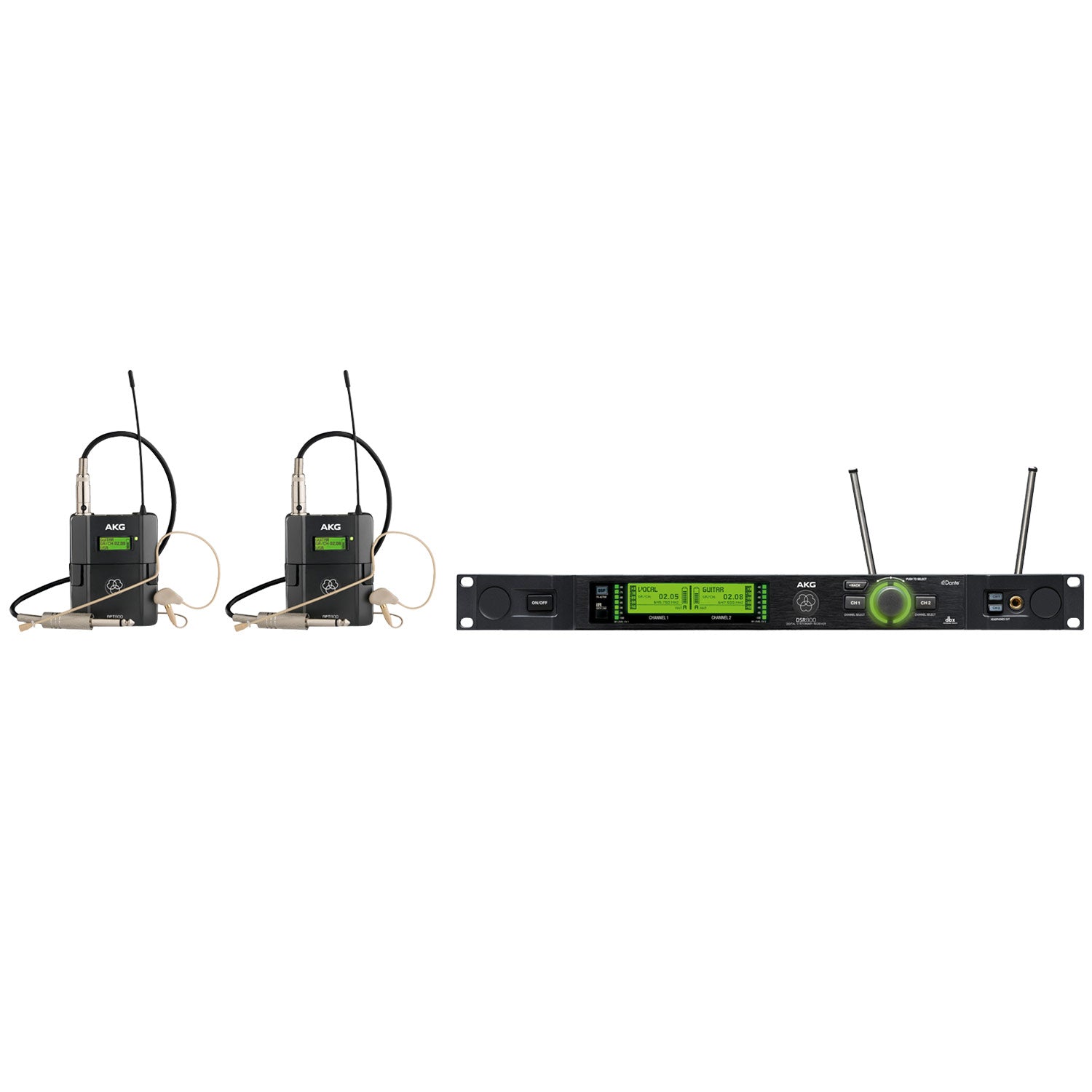

The DMS800 Performer Set is a reference digital wireless system available for Band1.

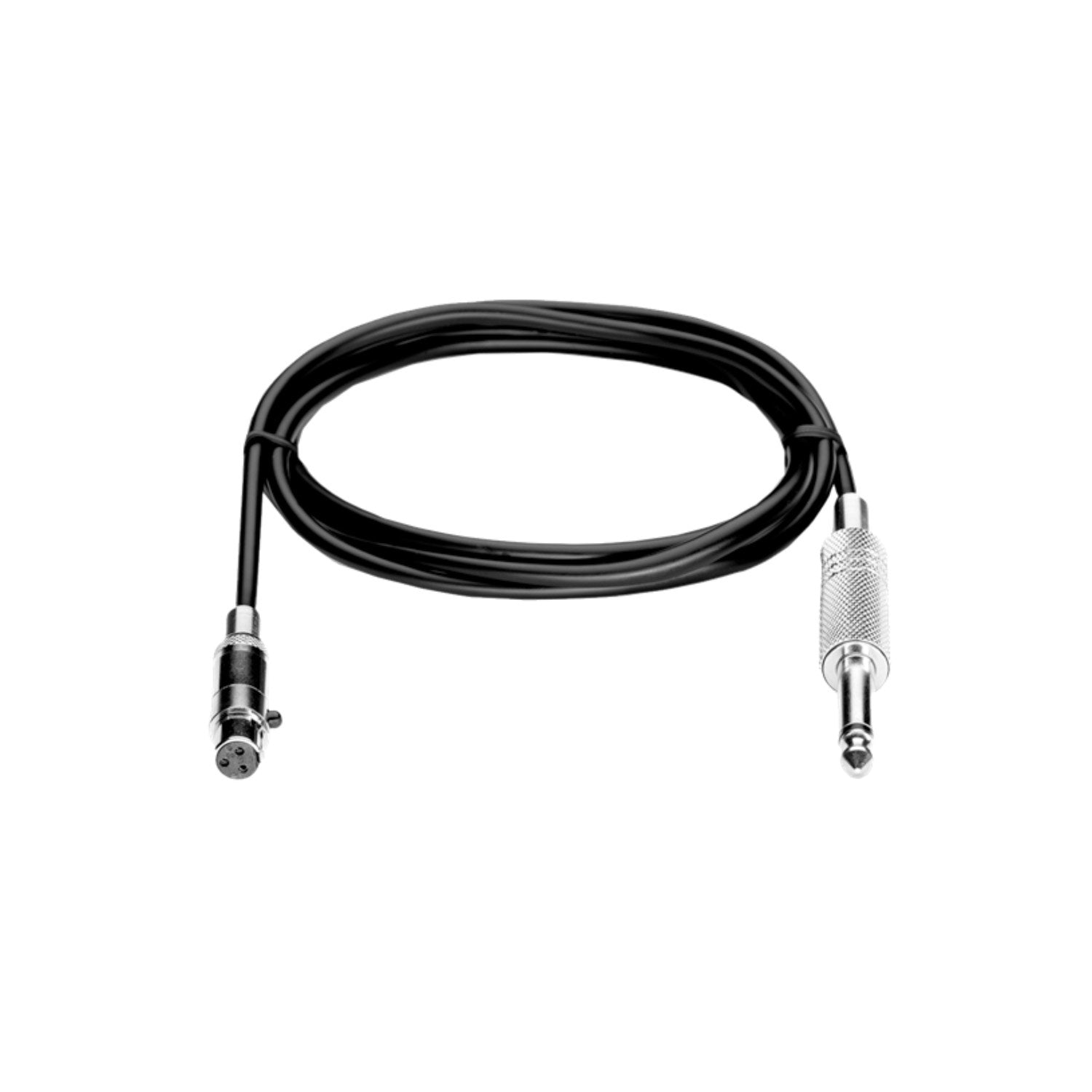

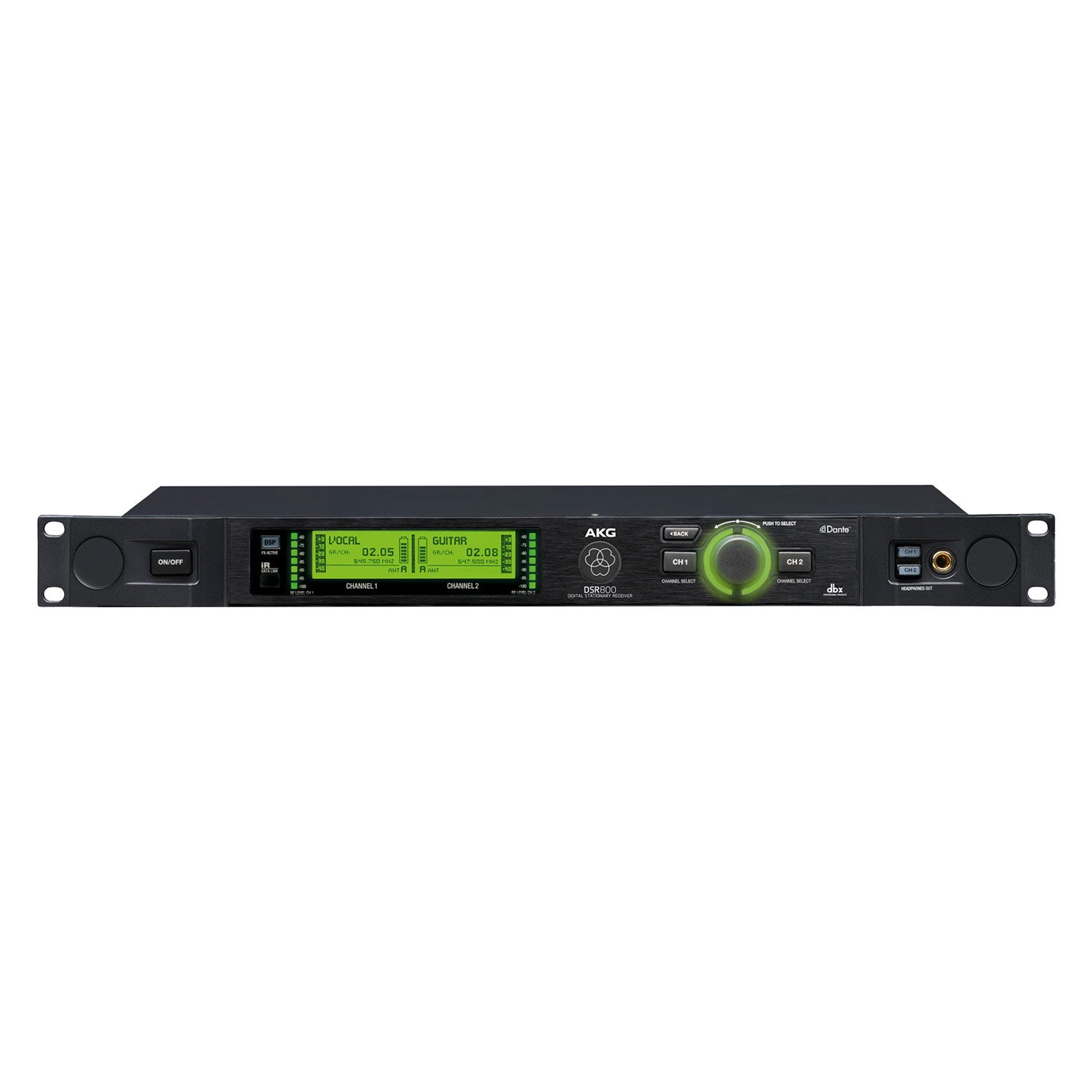

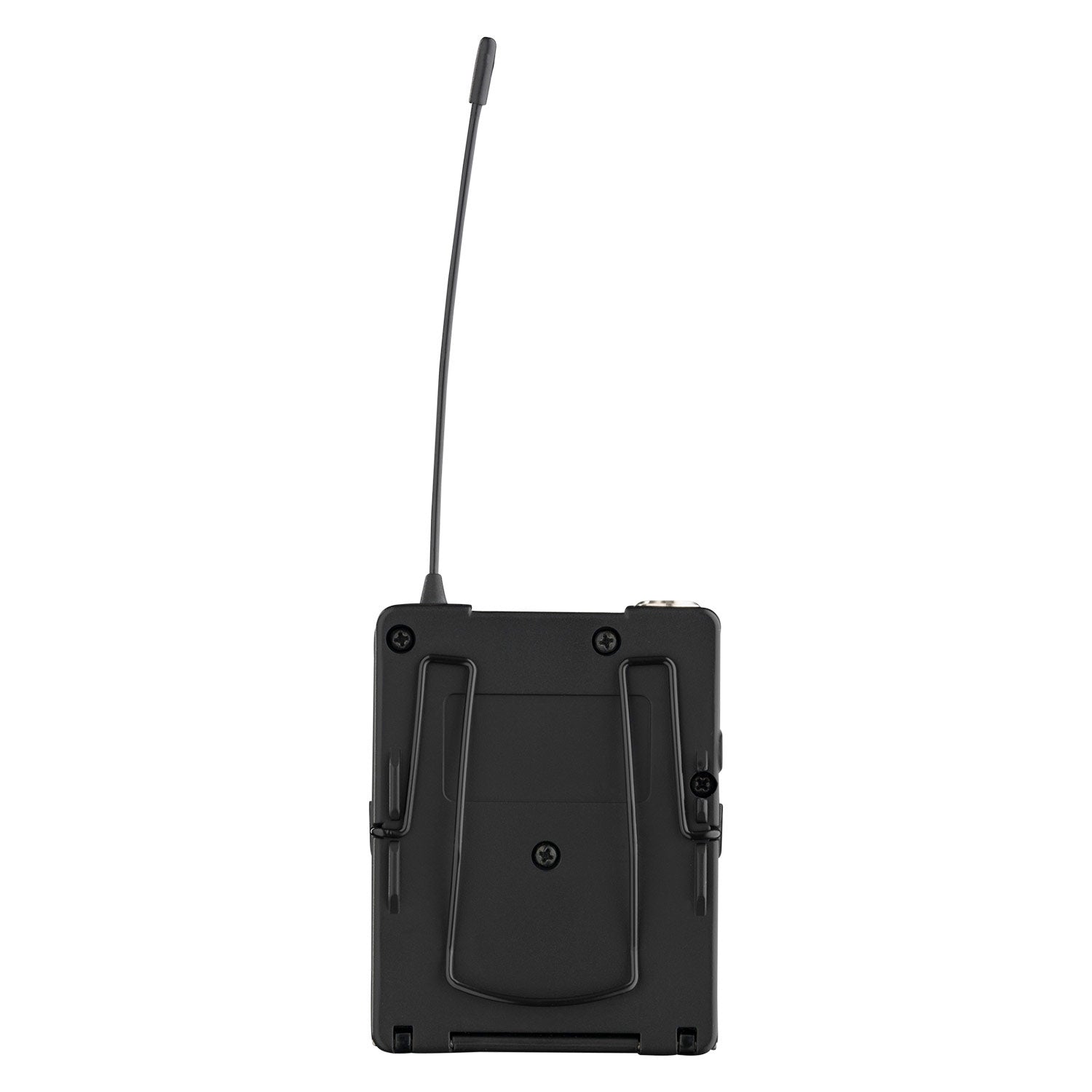

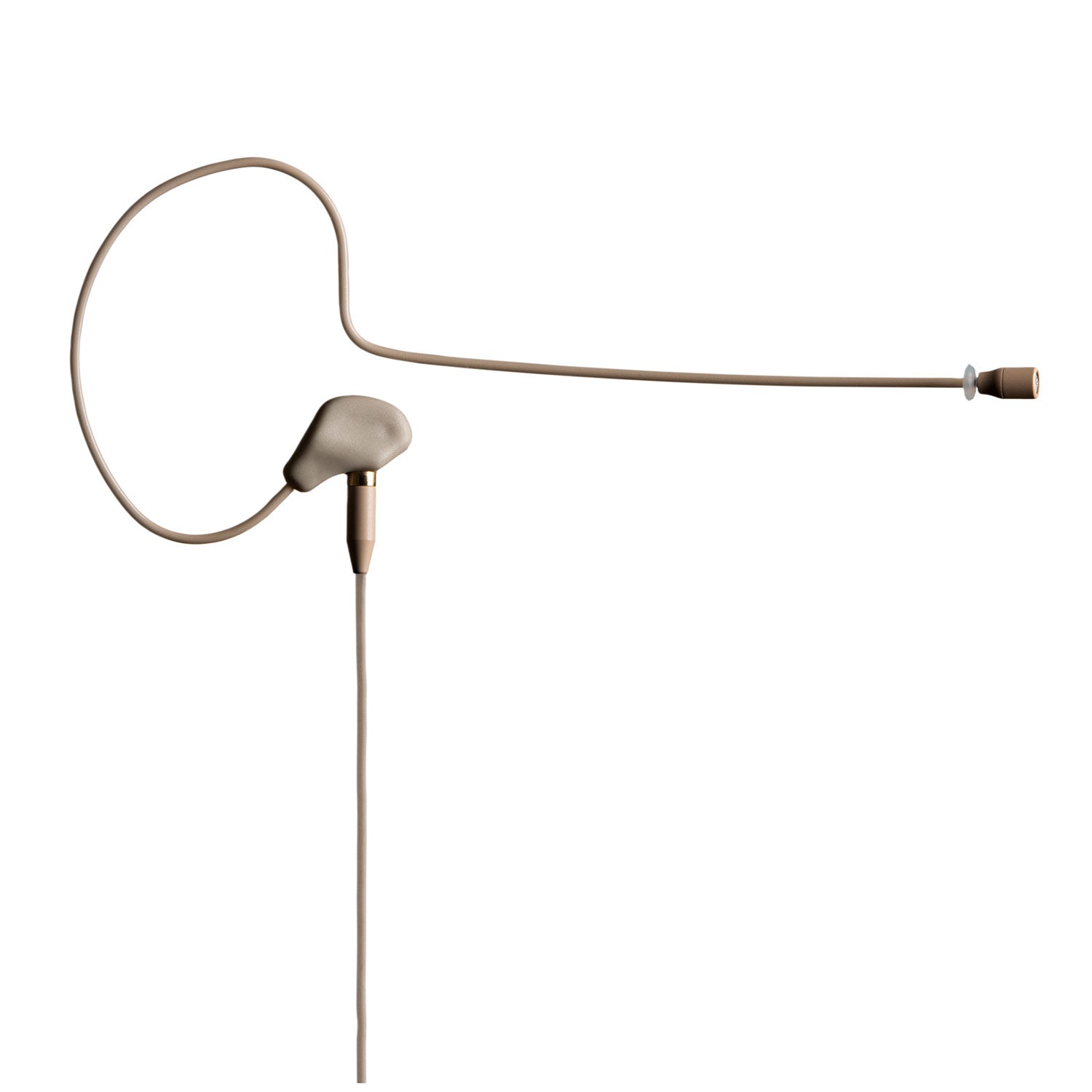

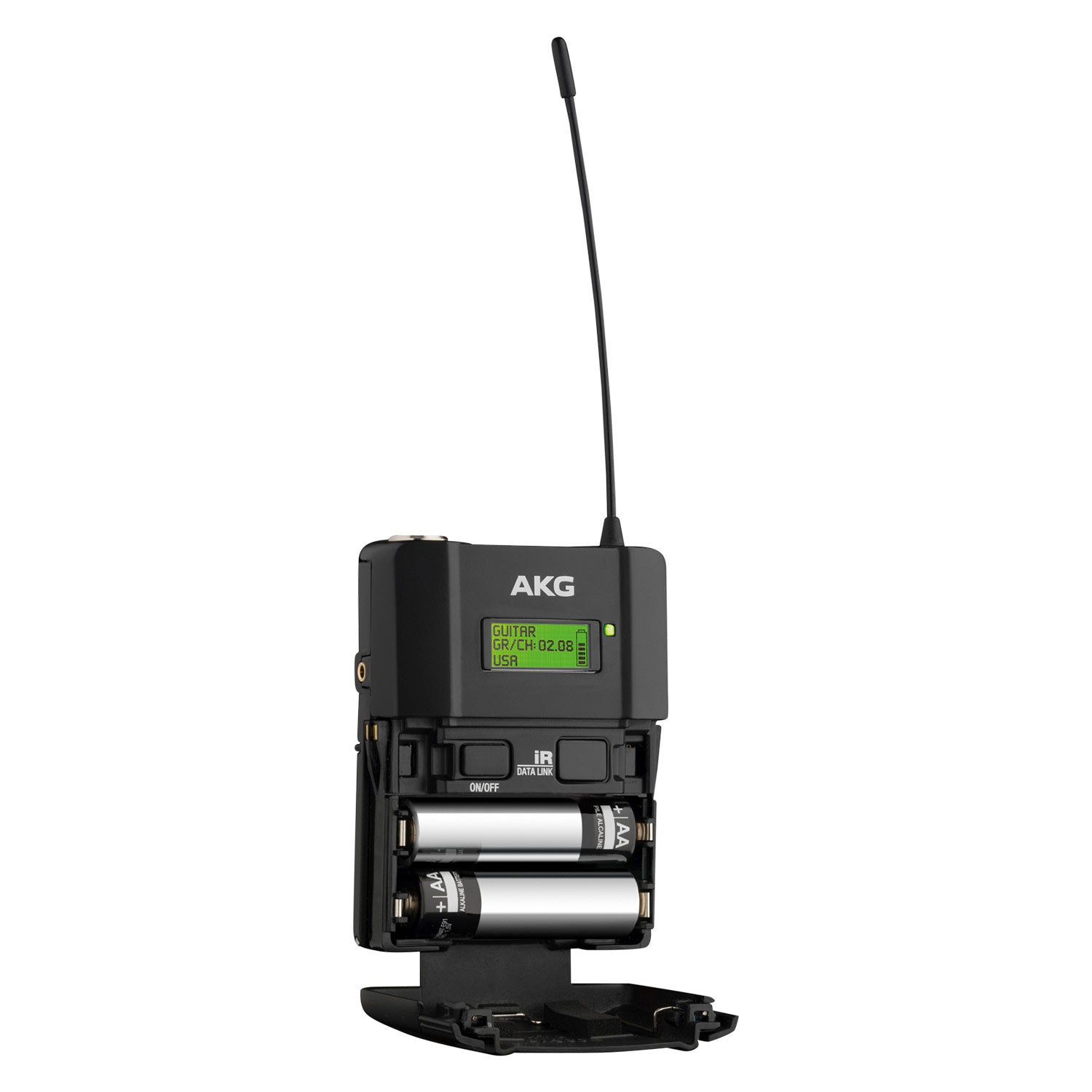

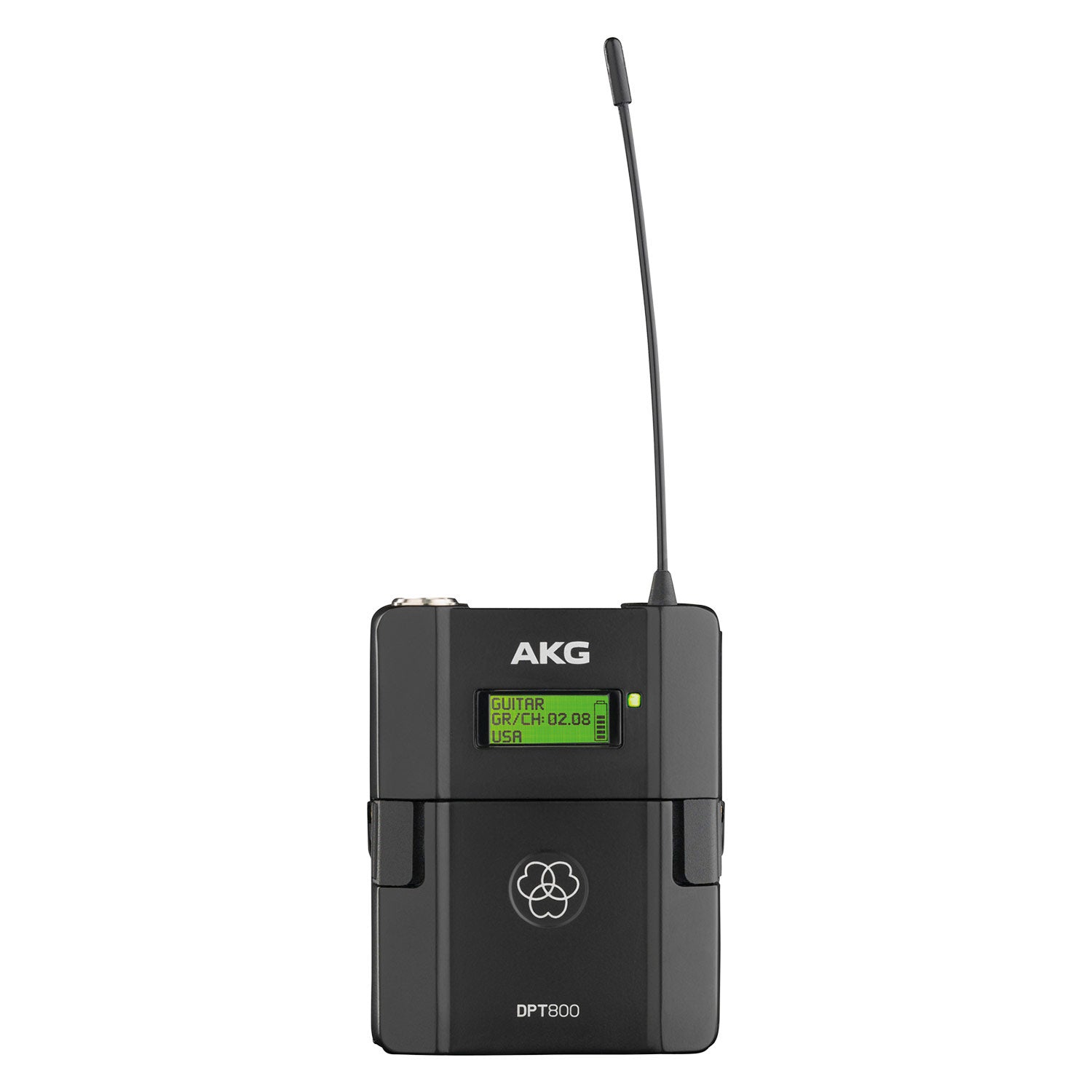

The set includes the DSR800 reference two-channel digital wireless receiver, a pair of DPT800 body pack transmitters, and two C111 LP ear hook microphones. The DSR800 receiver provides an ultra-wide bandwidth of up to 112MHz for reliable and versatile operation, while the DPT800 body pack transmitters offer selectable radio output power of 10 - 50mW and the convenience of remote programming via infrared data transmission from the DSR800. The set's two C111 LP lightweight ear hook microphones combine a comfortable and secure fit with robustness and reliability. Completing the package is the MKG L instrument cable for use with the DPT800 transmitter.
The DMS800 Performer Set is only available in the US.
Features:
- Rock-Solid Reception
112 MHz ultrawide frequency range for worldwide touring in frequency-crowded environments - Secure
512-bit encryption provides state-of-the-art protection for sensitive audio information - Selection of Microphone Heads Available
D5 WL1, D7 WL1, C5 WL1, C7 WL1 and C636 WL1 microphone heads are available to accommodate the full range of styles and applications - Analog and Digital Audio Outputs

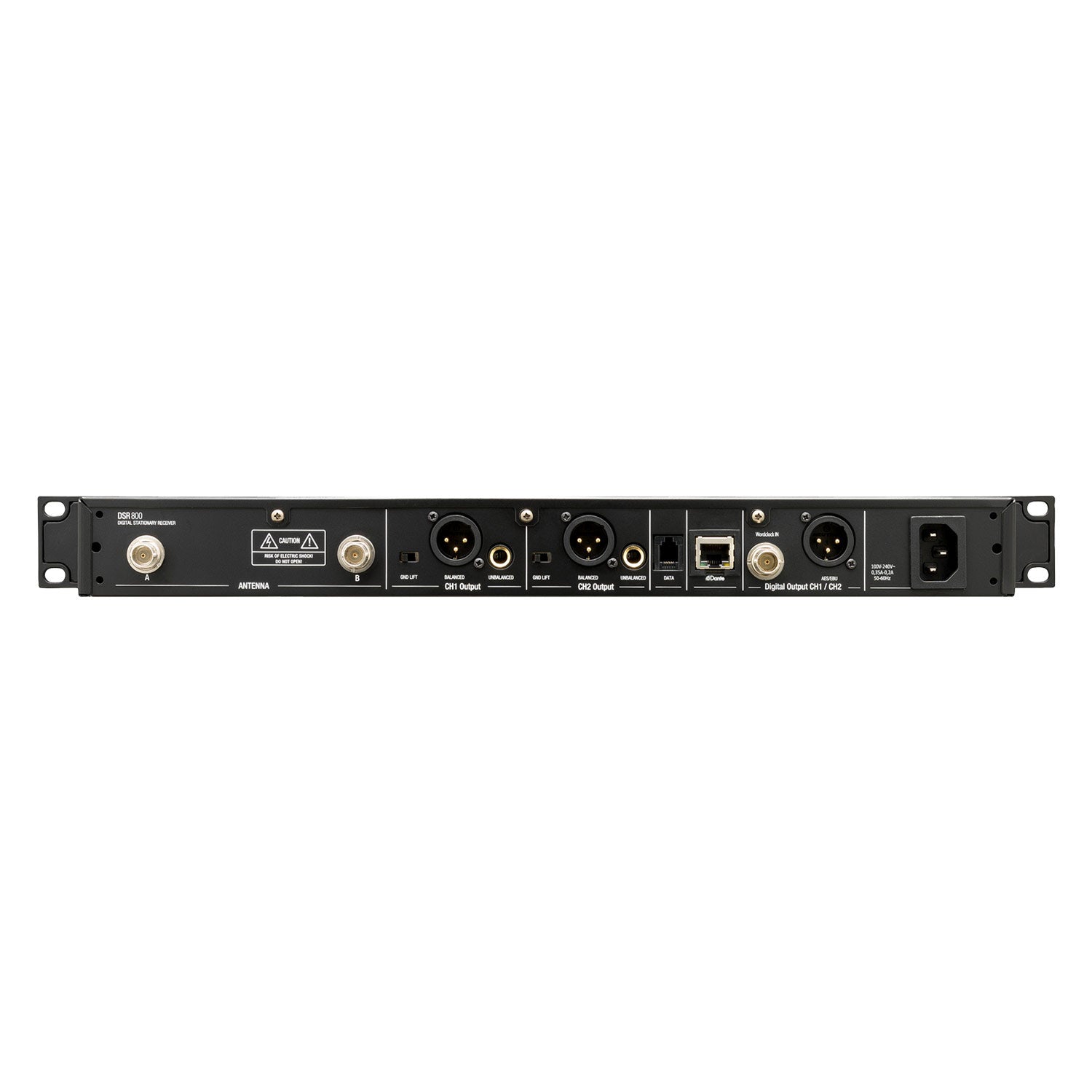

2 x balanced XLR, 2 x unbalanced 1/4" jack connectors, AES/EBU output and DANTE/AES67 output - Low Noise and Distortion
Digital wireless audio transmission eliminates any distortion and significant noise level
What's Included:
- 1 x DSR800 Receiver
- 2 x DPT800 Body-Pack Transmitter
- 2 x MKG L Instrument Cable
- 2 x C111 LP Ear Hook Microphones
- 4 x AA Size Batteries
Frequency bands | 1 Global (complete): 550-1 Ð 662.9 |
Switching bandwidth | Max. 112 MHz (depending on frequency band) |
Diversity system | Digital diversity |
Radio output power | 10 to 20 mW (depending on frequency band) |
Audio bandwidth | 25 Ð 20,000 Hz (± 3dB) |
Frequency selection | Selectable frequency in 25 kHz steps |
Switchable RF power | Yes |
Modulation | Digital FSK |
Radio range (line of sight) | 100 m (depending on antenna system) |
Encryption | 512 bit |
The DMS800 Performer Set is a reference digital wireless system available for Band1.
The set includes the DSR800 reference two-channel digital wireless receiver, a pair of DPT800 body pack transmitters, and two C111 LP ear hook microphones. The DSR800 receiver provides an ultra-wide bandwidth of up to 112MHz for reliable and versatile operation, while the DPT800 body pack transmitters offer selectable radio output power of 10 - 50mW and the convenience of remote programming via infrared data transmission from the DSR800. The set's two C111 LP lightweight ear hook microphones combine a comfortable and secure fit with robustness and reliability. Completing the package is the MKG L instrument cable for use with the DPT800 transmitter.
The DMS800 Performer Set is only available in the US.
Features:
- Rock-Solid Reception
112 MHz ultrawide frequency range for worldwide touring in frequency-crowded environments - Secure
512-bit encryption provides state-of-the-art protection for sensitive audio information - Selection of Microphone Heads Available
D5 WL1, D7 WL1, C5 WL1, C7 WL1 and C636 WL1 microphone heads are available to accommodate the full range of styles and applications - Analog and Digital Audio Outputs
2 x balanced XLR, 2 x unbalanced 1/4" jack connectors, AES/EBU output and DANTE/AES67 output - Low Noise and Distortion
Digital wireless audio transmission eliminates any distortion and significant noise level
What's Included:
- 1 x DSR800 Receiver
- 2 x DPT800 Body-Pack Transmitter
- 2 x MKG L Instrument Cable
- 2 x C111 LP Ear Hook Microphones
- 4 x AA Size Batteries
Frequency bands | 1 Global (complete): 550-1 Ð 662.9 |
Switching bandwidth | Max. 112 MHz (depending on frequency band) |
Diversity system | Digital diversity |
Radio output power | 10 to 20 mW (depending on frequency band) |
Audio bandwidth | 25 Ð 20,000 Hz (± 3dB) |
Frequency selection | Selectable frequency in 25 kHz steps |
Switchable RF power | Yes |
Modulation | Digital FSK |
Radio range (line of sight) | 100 m (depending on antenna system) |
Encryption | 512 bit |
