Description

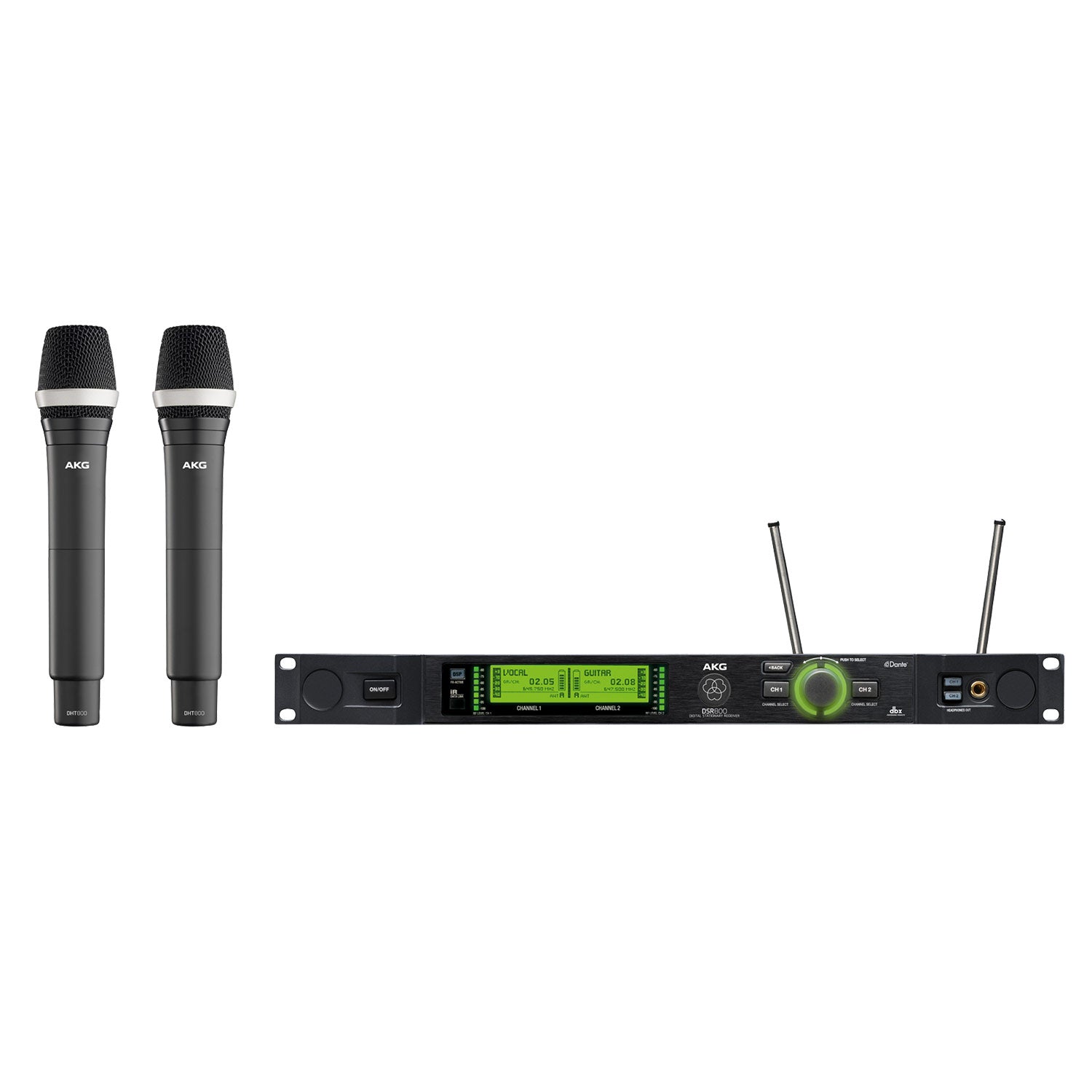

The DMS800 Vocal Set D5 is a reference digital wireless system available for Band1.

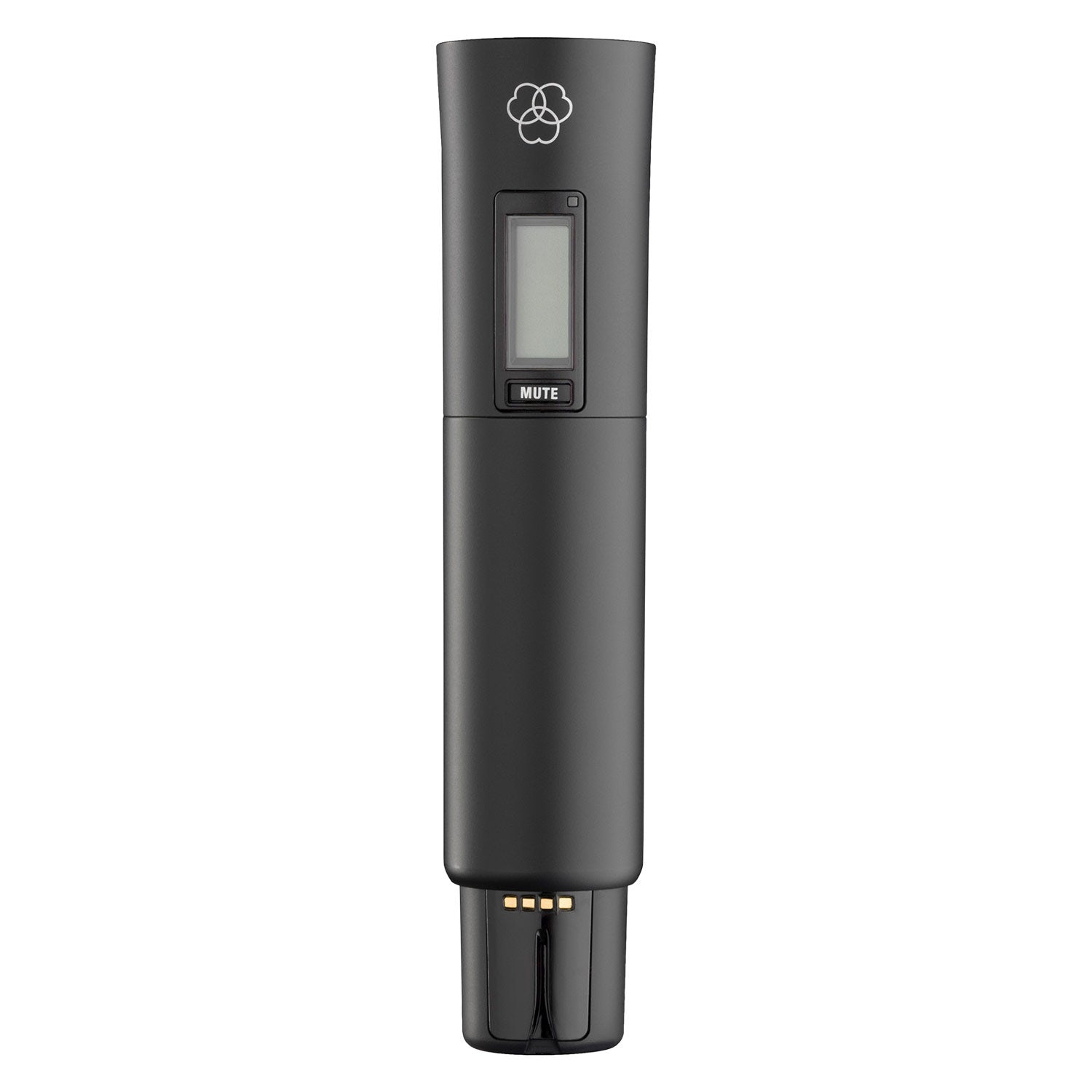

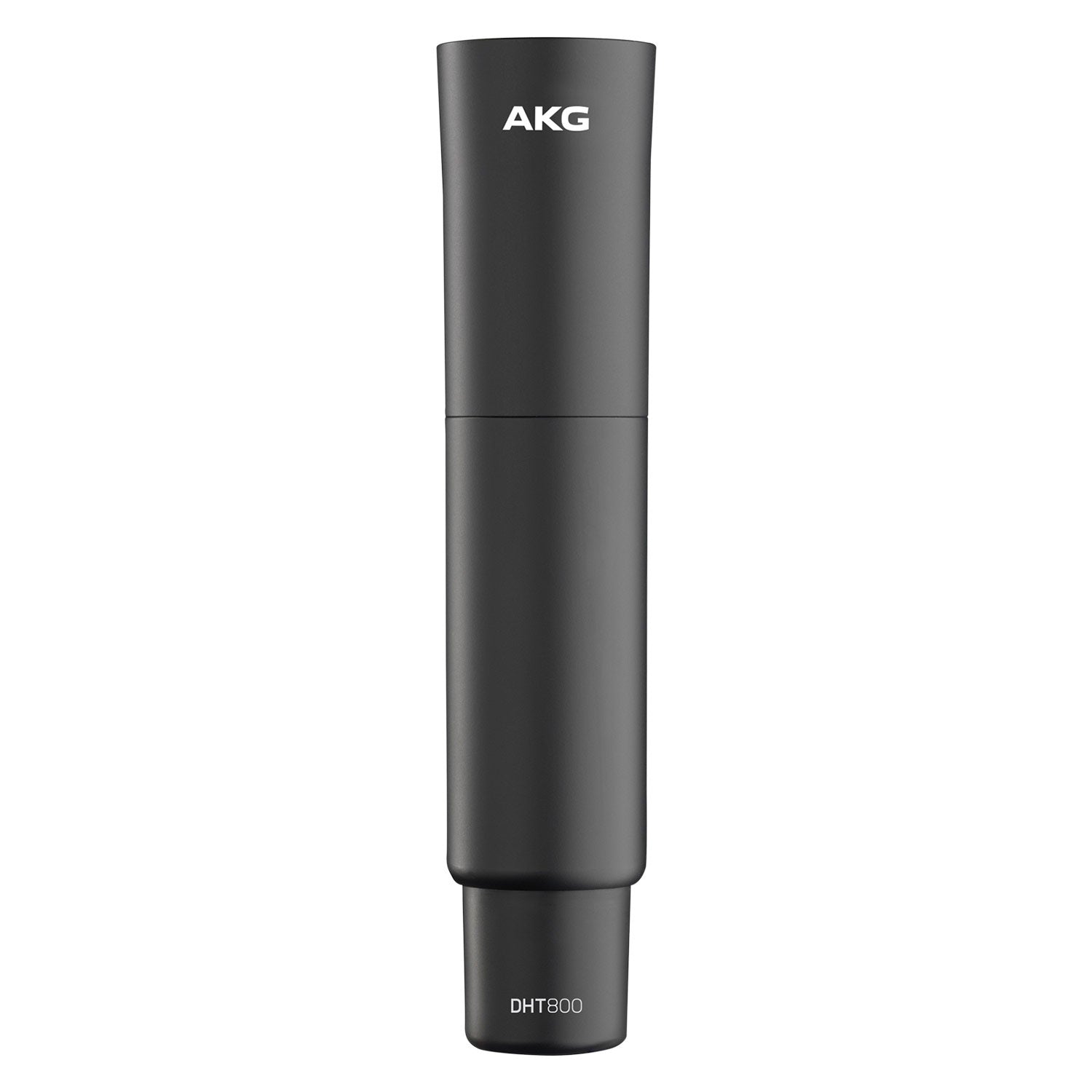

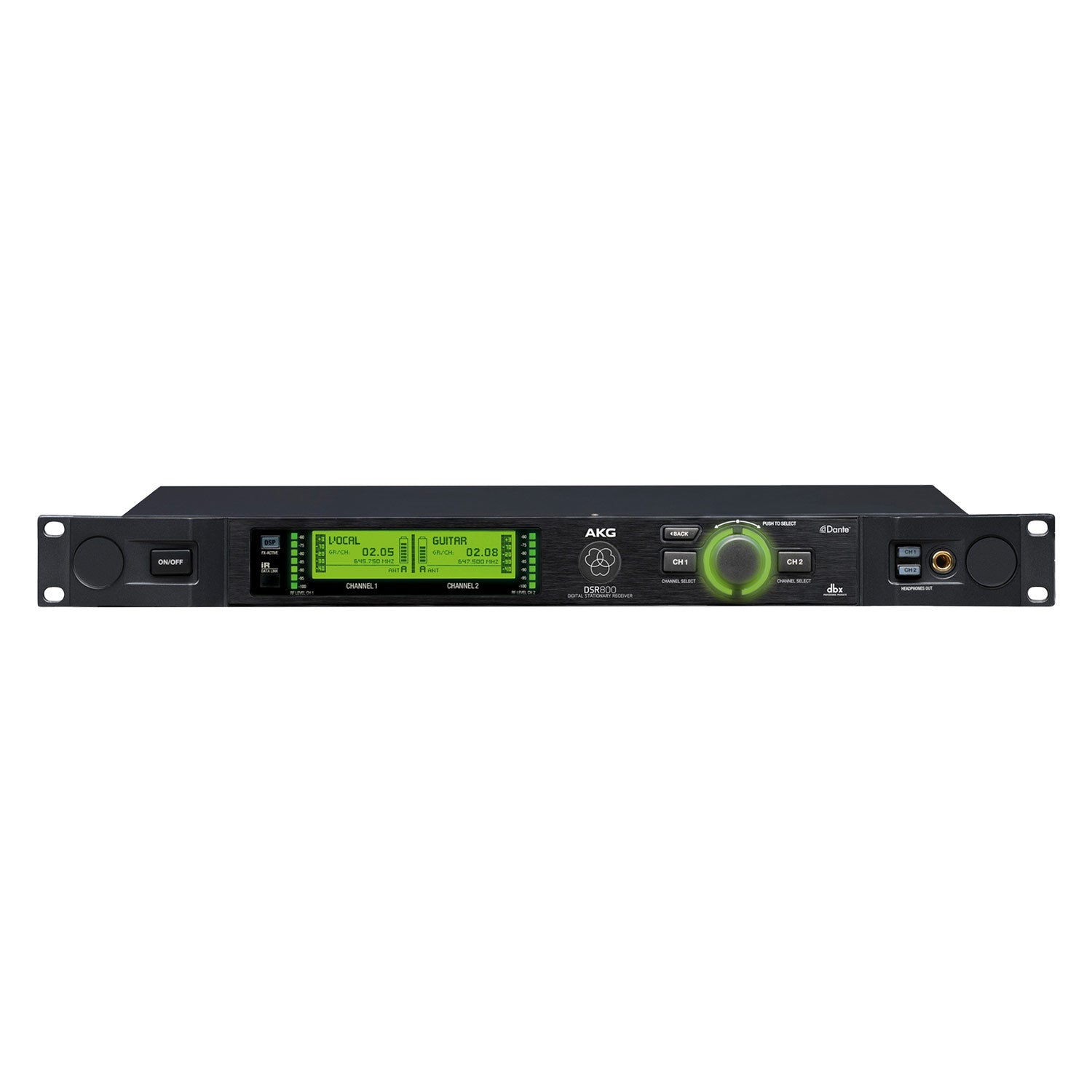

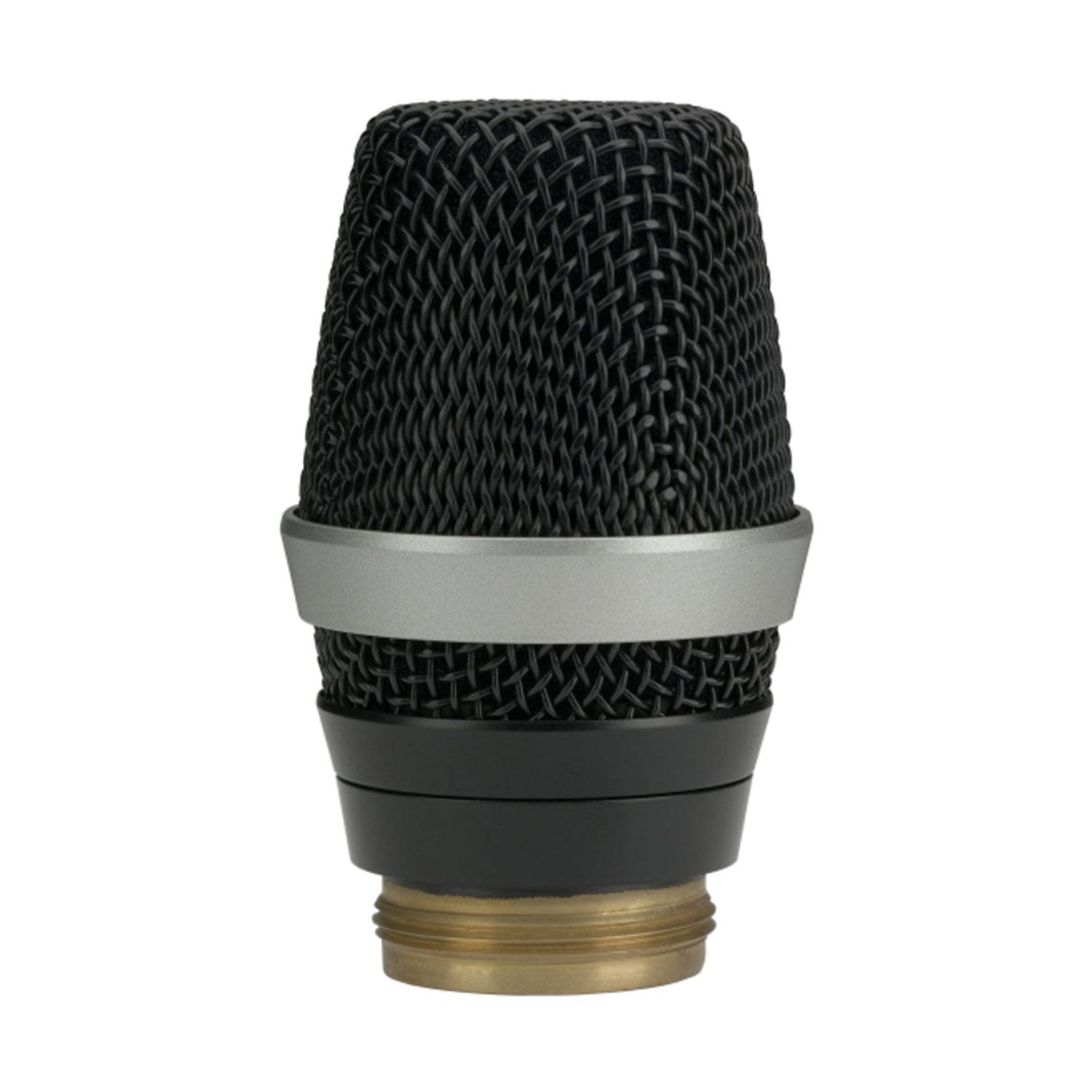

The set includes the DSR800 reference two-channel digital wireless receiver, a pair of DHT800 wireless handheld transmitters, and two D5 WL1 microphone heads. The DSR800 receiver provides an ultra-wide bandwidth of up to 112MHz for reliable and versatile operation, while the DHT800 transmitters deliver durability, easy handling and dependability. The set's two D5 WL1 dynamic microphone heads provide powerful, crisp sound to cut through every mix or deliver on even the noisiest stage. Rounding out the set is a pair of stand adapters for the DHT800 transmitters.
The DMS800 Vocal Set D5 is only available in the US.
Features:
- Rock-Solid Reception
112 MHz ultrawide frequency range for worldwide touring in frequency-crowded environments - Secure
512-bit encryption provides state-of-the-art protection for sensitive audio information - Selection of Microphone Heads Available
D5 WL1, D7 WL1, C5 WL1, C7 WL1 and C636 WL1 microphone heads are available to accommodate the full range of styles and applications - Analog and Digital Audio Outputs

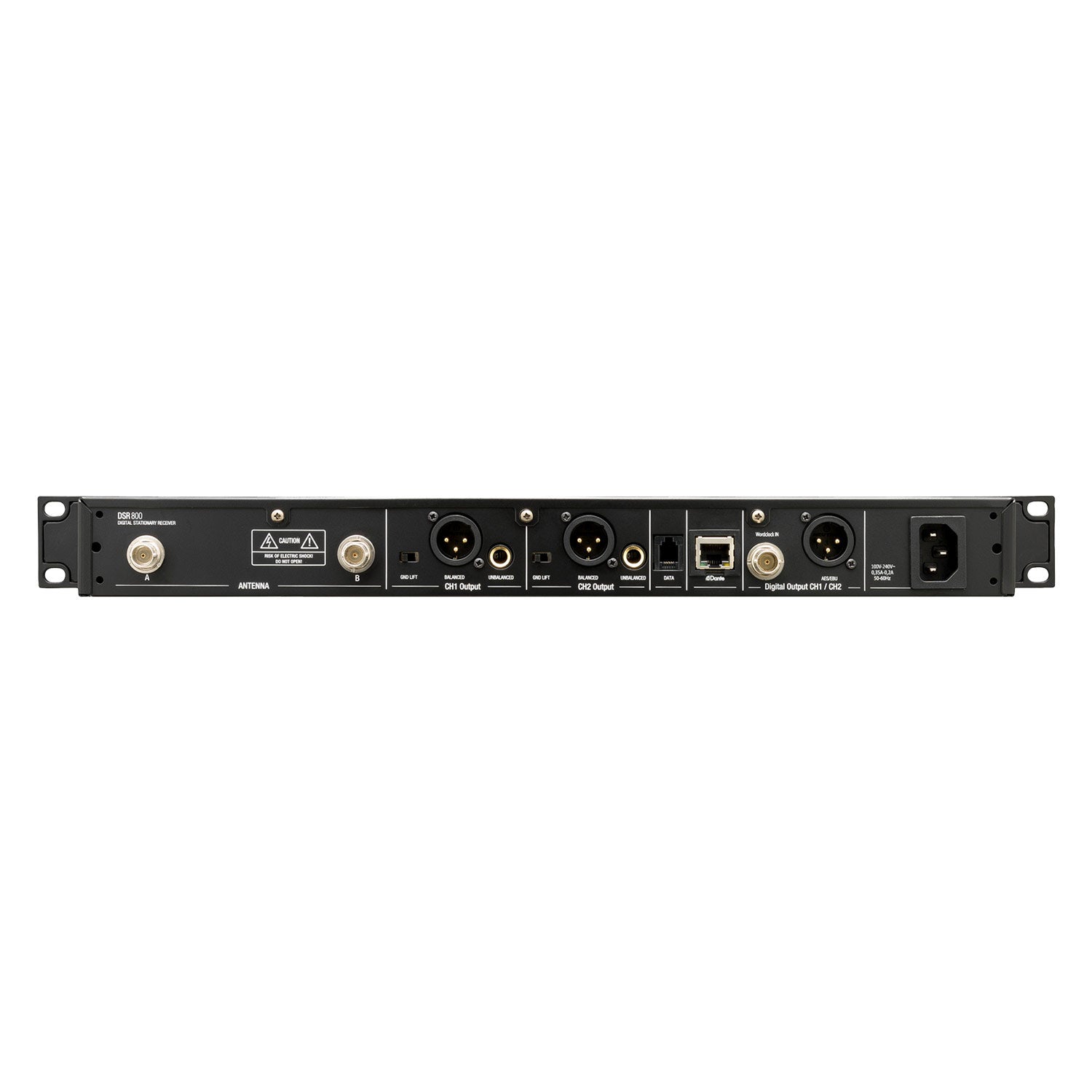

2 x balanced XLR, 2 x unbalanced 1/4" jack connectors, AES/EBU output and DANTE/AES67 output - Low Noise and Distortion
Digital wireless audio transmission eliminates any distortion and significant noise level
What's Included:
- 1 x DSR800 Receiver
- 2 x DHT800 Handheld Transmitters
- 2 x D5 WL1 Microphone Heads
- 4 x AA Size Batteries

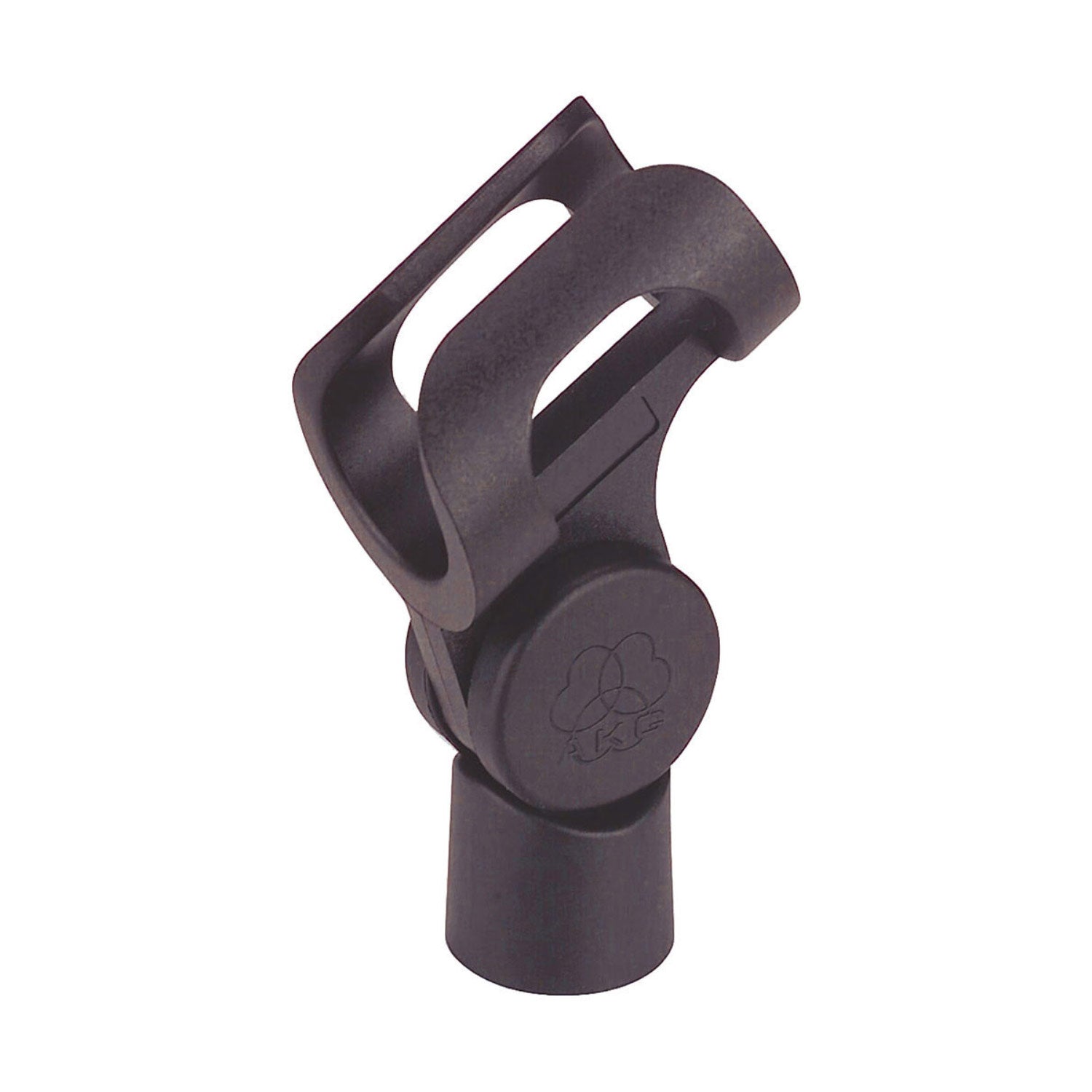

- 2 x SA63 Stand Adapters
Frequency bands | 1 Global (complete): 550-1 Ð 662.9 |
Switching bandwidth | Max. 112 MHz (depending on frequency band) |
Diversity system | Digital diversity |
Radio output power | 10 to 20 mW (depending on frequency band) |
Audio bandwidth | 25 Ð 20,000 Hz (± 3dB) |
Frequency selection | Selectable frequency in 25 kHz steps |
Switchable RF power | Yes |
Modulation | Digital FSK |
Radio range (line of sight) | 100 m (depending on antenna system) |
Encryption | 512 bit |
The DMS800 Vocal Set D5 is a reference digital wireless system available for Band1.
The set includes the DSR800 reference two-channel digital wireless receiver, a pair of DHT800 wireless handheld transmitters, and two D5 WL1 microphone heads. The DSR800 receiver provides an ultra-wide bandwidth of up to 112MHz for reliable and versatile operation, while the DHT800 transmitters deliver durability, easy handling and dependability. The set's two D5 WL1 dynamic microphone heads provide powerful, crisp sound to cut through every mix or deliver on even the noisiest stage. Rounding out the set is a pair of stand adapters for the DHT800 transmitters.
The DMS800 Vocal Set D5 is only available in the US.
Features:
- Rock-Solid Reception
112 MHz ultrawide frequency range for worldwide touring in frequency-crowded environments - Secure
512-bit encryption provides state-of-the-art protection for sensitive audio information - Selection of Microphone Heads Available
D5 WL1, D7 WL1, C5 WL1, C7 WL1 and C636 WL1 microphone heads are available to accommodate the full range of styles and applications - Analog and Digital Audio Outputs
2 x balanced XLR, 2 x unbalanced 1/4" jack connectors, AES/EBU output and DANTE/AES67 output - Low Noise and Distortion
Digital wireless audio transmission eliminates any distortion and significant noise level
What's Included:
- 1 x DSR800 Receiver
- 2 x DHT800 Handheld Transmitters
- 2 x D5 WL1 Microphone Heads
- 4 x AA Size Batteries
- 2 x SA63 Stand Adapters
Frequency bands | 1 Global (complete): 550-1 Ð 662.9 |
Switching bandwidth | Max. 112 MHz (depending on frequency band) |
Diversity system | Digital diversity |
Radio output power | 10 to 20 mW (depending on frequency band) |
Audio bandwidth | 25 Ð 20,000 Hz (± 3dB) |
Frequency selection | Selectable frequency in 25 kHz steps |
Switchable RF power | Yes |
Modulation | Digital FSK |
Radio range (line of sight) | 100 m (depending on antenna system) |
Encryption | 512 bit |
