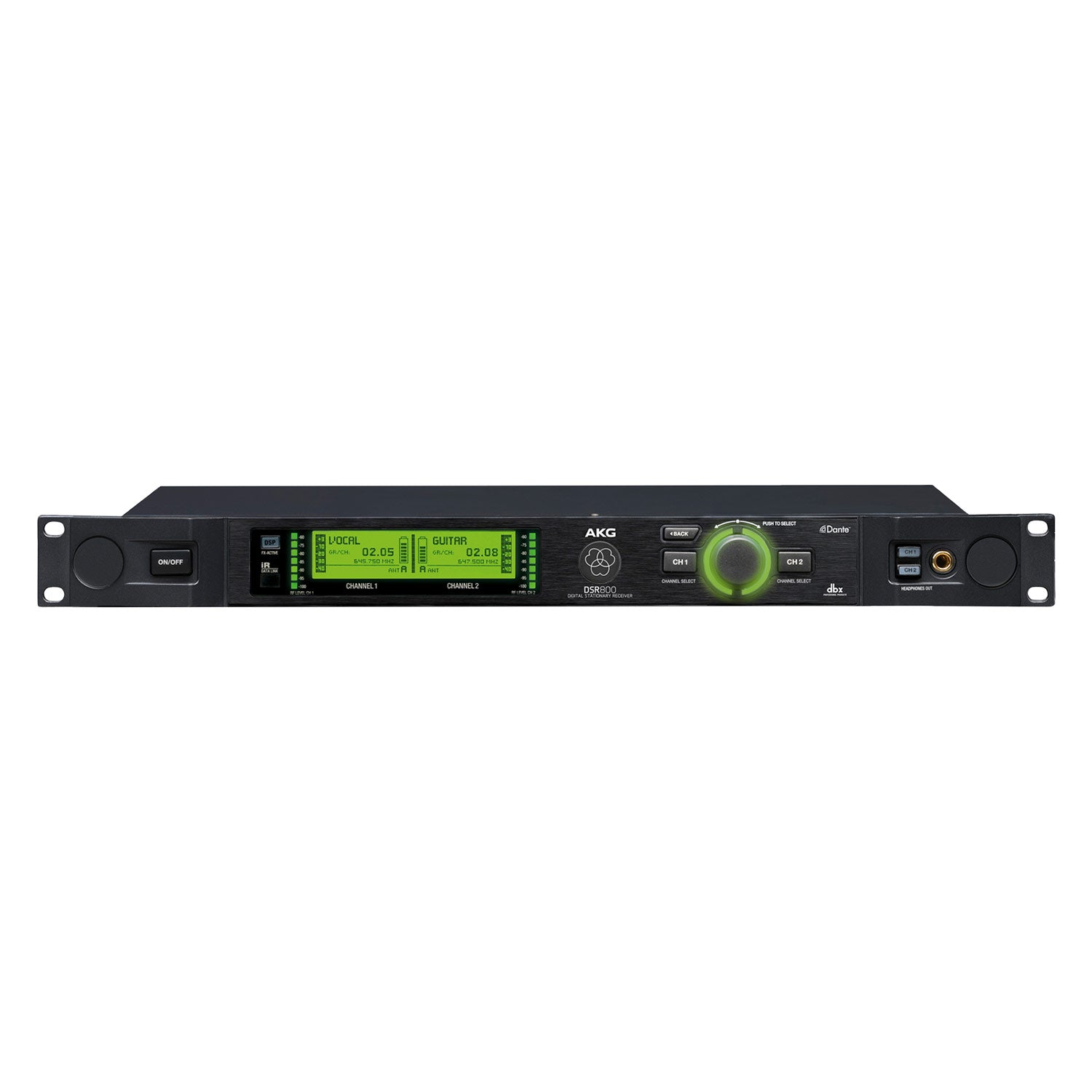

AKG DSR800 - Reference Digital Wireless Receiver for DMS800 Systems (Band 1 / 548-698 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals.
For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.
| Power Supply | 100 - 240 V AC, 50 - 60 Hz, 0.4 A |
| Racksize | Full Racksize (19) |
| Rackheight | 1 RU |
| Carrier frequency range (country-dependent) | Band 1 = 548.1 Ð 697.9 MHz |
| Switching bandwidth | ² 150 MHz (country-dependent) |
| Channels | 2 (dual receiver) |
| Sensitivity | 10 dBµV / -97 dBm |
| Image frequency and spurious attenuation | ³ 95 dB |
| Receiver design | Super-Heterodyne |
| Diversity system | Digital True Diversity |
| Antenna inputs | 2 x 50 ½ BNC sockets |
| Bass roll off | 2nd order shelving filter, selectable betw. 10Ð300Hz |
| Equalizer | 3-band (amplification or padding of the lows, mids and highs) |
| Compressor | dbx¨ |
| Limiter | dbx¨ |
| Transmitter battery indicator | 7_segments |
| PC interface | Ethernet via HUB4000 Q (optional) Ethernet via Danteª (100 Mbit/s) Software HiQnet Audio Architect |
| Dimensions | Length 480 mm Height 45 mm Width 230 mm |
| Net Weight | 2380 g |
| Audio Output | 2 x analog XLR symmetrical 2 x analog 6.3 mm jack, unbalanced 1 x digital AES-EBU XLR (48 kHz) with BNC Wordclock input 1 x digital Danteª (Ethernet) (48 kHz) |
| Audio output level | XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un_balanced typ. +8 dBu |
The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals.
For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.
| Power Supply | 100 - 240 V AC, 50 - 60 Hz, 0.4 A |
| Racksize | Full Racksize (19) |
| Rackheight | 1 RU |
| Carrier frequency range (country-dependent) | Band 1 = 548.1 Ð 697.9 MHz |
| Switching bandwidth | ² 150 MHz (country-dependent) |
| Channels | 2 (dual receiver) |
| Sensitivity | 10 dBµV / -97 dBm |
| Image frequency and spurious attenuation | ³ 95 dB |
| Receiver design | Super-Heterodyne |
| Diversity system | Digital True Diversity |
| Antenna inputs | 2 x 50 ½ BNC sockets |
| Bass roll off | 2nd order shelving filter, selectable betw. 10Ð300Hz |
| Equalizer | 3-band (amplification or padding of the lows, mids and highs) |
| Compressor | dbx¨ |
| Limiter | dbx¨ |
| Transmitter battery indicator | 7_segments |
| PC interface | Ethernet via HUB4000 Q (optional) Ethernet via Danteª (100 Mbit/s) Software HiQnet Audio Architect |
| Dimensions | Length 480 mm Height 45 mm Width 230 mm |
| Net Weight | 2380 g |
| Audio Output | 2 x analog XLR symmetrical 2 x analog 6.3 mm jack, unbalanced 1 x digital AES-EBU XLR (48 kHz) with BNC Wordclock input 1 x digital Danteª (Ethernet) (48 kHz) |
| Audio output level | XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un_balanced typ. +8 dBu |
