AKG P820 TUBE Perception Series High-Performance Tube Condenser Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

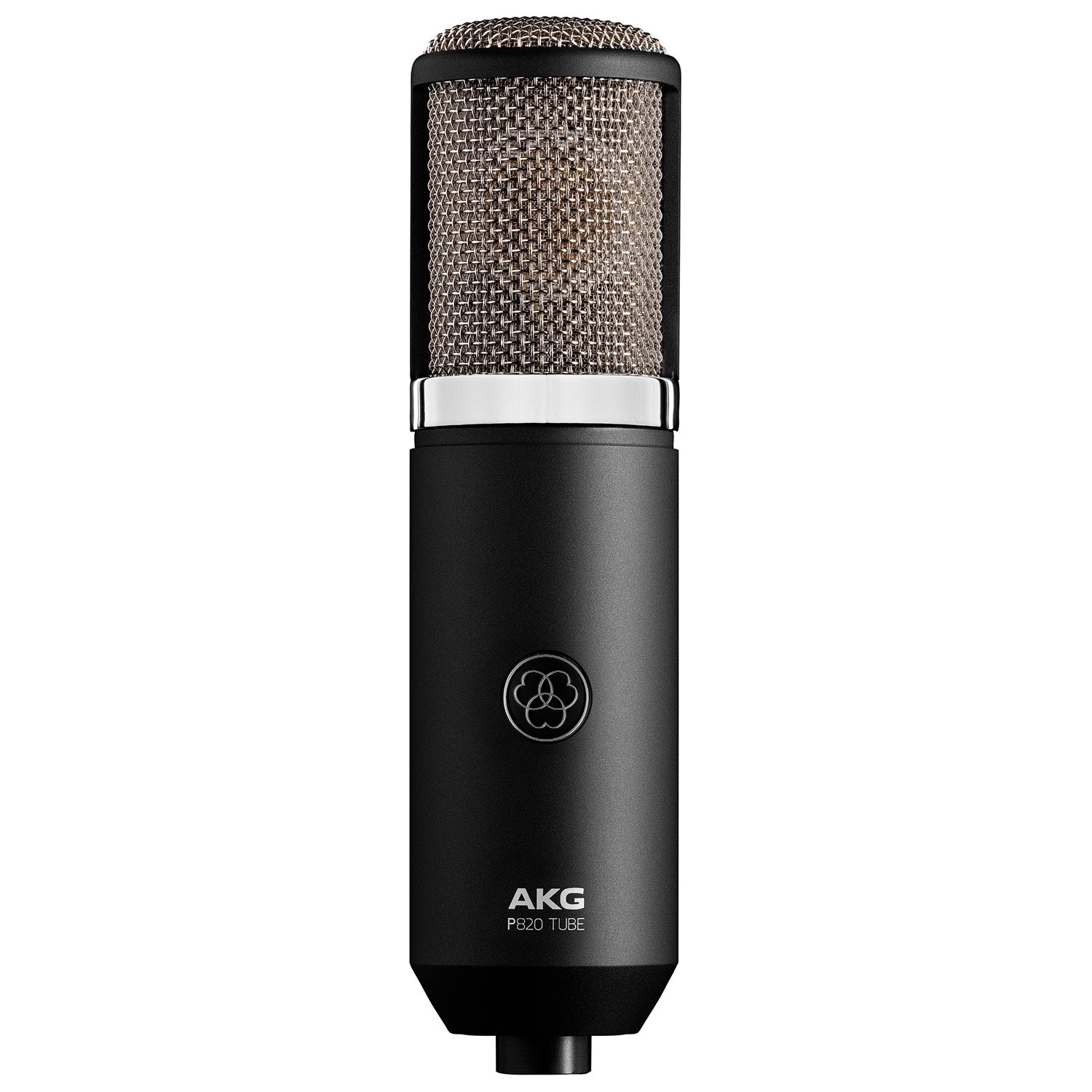

The P820 Tube high-performance multipattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
Features:

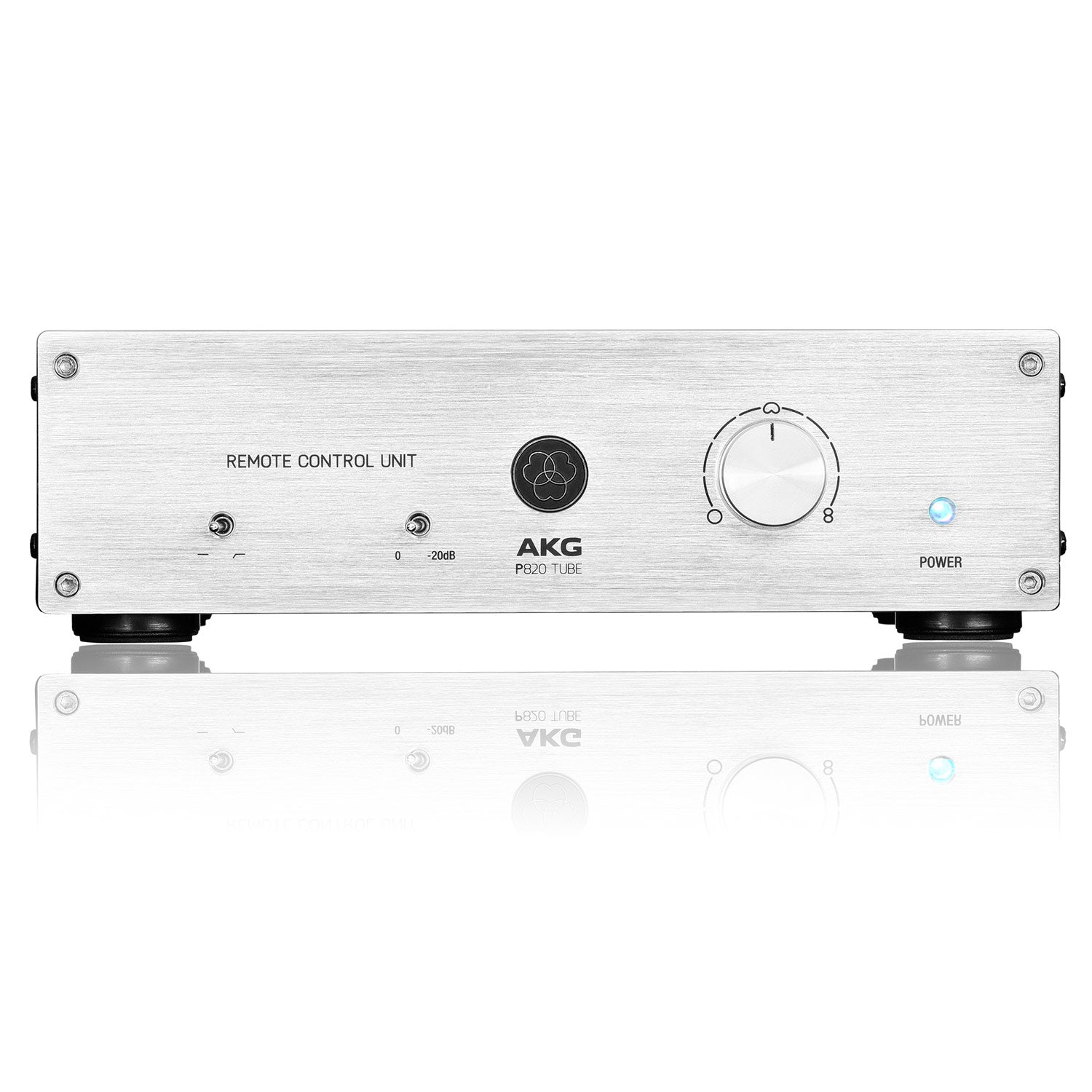

- Elegant remote control allows choice of nine different polar patterns
- Switchable bass-cut filter eliminates rumble or footfall noise
- Switchable attenuation pad for high SPL applications up to 155 dB SPL
| Capsule | 1Ó dual capsule condenser |
| Polar Pattern | 9 selectable polar patterns (selectable on remote control unit) |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity (Cardioid) | 20 mV/Pa (-34 dBV) |
| Max. SPL for 0.5 % THD | 135/155 dB (0/-20 dB pad) |
| Equivalent Noise Level To IEC 60286-4 | 16 dB (A) |
| Signal To Noise | 78 dB (A) re 1Pa |
| Preattenuation Pad | -20 dB (selectable on remote control unit) |
| Bass Cut Filter | 80 Hz, 12 dB/octave (selectable on remote control unit) |
| Electrical Impedance | ² 200 ohms |
| Recommended Load Impedance | ³ 1000 ohms |
| Microphone to remote control unit | dedicated 7-pin male XLR |
| Audio output connector | 3-pin XLR (pin 2 hot) |
| Temperature Range | -10 ¡C to +60 ¡C (14 ¡F - 140 ¡F) |
| Diameter | 54 mm (2.13 in.) |
| Length | 212 mm (8.3 in.) |
| Net Weight (Mic Only) | 765 g (27 oz.) |
| Shipping Weight | 5340 g (188.4 oz.) |
| Box Dimensions (L x W x H) | 41 x 34 x 15 cm (16 x 13.4 x 6 in) |
| Powering | 210-240 VAC or 110-120 VAC (selectable) |
| Primary fuse | 125 mA / 250 V slow-blow |
| Included Accessories | 1 x Spider Shock Mount 1 x Mic / Power Cable For US/EU/UK 1 x Metal Carrying Case |
The P820 Tube high-performance multipattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
Features:
- Elegant remote control allows choice of nine different polar patterns
- Switchable bass-cut filter eliminates rumble or footfall noise
- Switchable attenuation pad for high SPL applications up to 155 dB SPL
| Capsule | 1Ó dual capsule condenser |
| Polar Pattern | 9 selectable polar patterns (selectable on remote control unit) |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity (Cardioid) | 20 mV/Pa (-34 dBV) |
| Max. SPL for 0.5 % THD | 135/155 dB (0/-20 dB pad) |
| Equivalent Noise Level To IEC 60286-4 | 16 dB (A) |
| Signal To Noise | 78 dB (A) re 1Pa |
| Preattenuation Pad | -20 dB (selectable on remote control unit) |
| Bass Cut Filter | 80 Hz, 12 dB/octave (selectable on remote control unit) |
| Electrical Impedance | ² 200 ohms |
| Recommended Load Impedance | ³ 1000 ohms |
| Microphone to remote control unit | dedicated 7-pin male XLR |
| Audio output connector | 3-pin XLR (pin 2 hot) |
| Temperature Range | -10 ¡C to +60 ¡C (14 ¡F - 140 ¡F) |
| Diameter | 54 mm (2.13 in.) |
| Length | 212 mm (8.3 in.) |
| Net Weight (Mic Only) | 765 g (27 oz.) |
| Shipping Weight | 5340 g (188.4 oz.) |
| Box Dimensions (L x W x H) | 41 x 34 x 15 cm (16 x 13.4 x 6 in) |
| Powering | 210-240 VAC or 110-120 VAC (selectable) |
| Primary fuse | 125 mA / 250 V slow-blow |
| Included Accessories | 1 x Spider Shock Mount 1 x Mic / Power Cable For US/EU/UK 1 x Metal Carrying Case |
