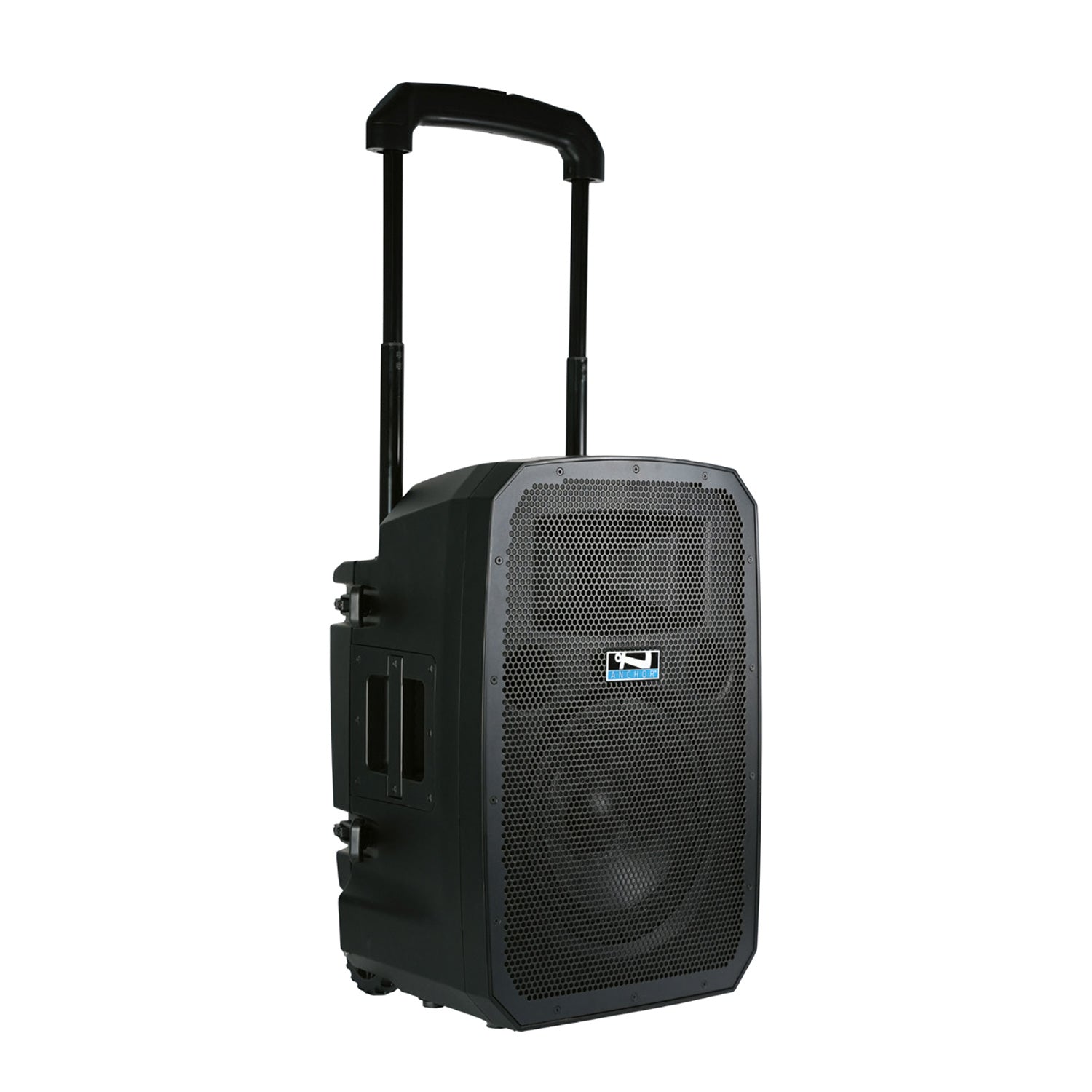

Anchor Audio Liberty 3 Link - Battery-Powered Portable PA System with Quad AnchorLink Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Liberty 3 Link systems are built for wireless microphones. Link models include:
- Anchor Audio professional sound system with a 6-4-2 Warranty
- Rechargeable lithium-ion battery with 7+ hours of playtime and superior power management
- Bluetooth enabled so you can stream directly to your speaker
- USB port to charge your phone
- Two universal wired mic inputs
- AnchorLink 3 technology to link up to 2 or 4 wireless microphones
Liberty 3: Amazing Sound Built 4 Ways.
Whether you need several systems that connect with each other, systems that let you link wireless microphones, or a stand-alone system to drag outdoors on an adventure, we have it. Liberty 3 systems include the features that you want, in a configuration that will last, and that's easy to use.
Liberty General Features:
- Anchor Audio's Series 3 technology
- Reaches crowds up to 1,500+ and easily covers outdoor PA applications 90' wide x 175' long (e.g. 25% of a Football field or two tennis courts)
- Long-range Bluetooth audio streaming (Class 1 )
- Dual AnchorPower high capacity 10A built-in rechargeable Lithium batteries deliver 7+ hours playtime on a single charge
- Add external PowerPack to extend playtime by 50%, optionalÊ EXTPP
- Link up to two or four wireless mics with AnchorLink 3 technology
- AnchorLink 3 is available on Hub and Link models
- Connect additional units cable-free with AnchorFlex technology
- AnchorFlex is available on Hub and Connect models
| Weight | 45.6 lbs |
| Dimensions: (Height x Width x Depth) (with telescoping handle down) |
24" x 16" x 16" |
| Coverage | * area: approximately 90' x 175' * crowd size: approximately 1500 |
| Drivers | One 10" neodymium woofer One ceramic compression driver |
| Rated Power Output | 300 watts |
| Max SPL @ Rated Power | 126 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 3.5A |
| Charger/Power Inlet | PC-2 |
| Battery | Two 10V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each Full recharge: ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorAir Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| AnchorAir Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Inputs | * One unbalanced 1/4" * One 3.5 mm stereo |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
Liberty 3 Link systems are built for wireless microphones. Link models include:
- Anchor Audio professional sound system with a 6-4-2 Warranty
- Rechargeable lithium-ion battery with 7+ hours of playtime and superior power management
- Bluetooth enabled so you can stream directly to your speaker
- USB port to charge your phone
- Two universal wired mic inputs
- AnchorLink 3 technology to link up to 2 or 4 wireless microphones
Liberty 3: Amazing Sound Built 4 Ways.
Whether you need several systems that connect with each other, systems that let you link wireless microphones, or a stand-alone system to drag outdoors on an adventure, we have it. Liberty 3 systems include the features that you want, in a configuration that will last, and that's easy to use.
Liberty General Features:
- Anchor Audio's Series 3 technology
- Reaches crowds up to 1,500+ and easily covers outdoor PA applications 90' wide x 175' long (e.g. 25% of a Football field or two tennis courts)
- Long-range Bluetooth audio streaming (Class 1 )
- Dual AnchorPower high capacity 10A built-in rechargeable Lithium batteries deliver 7+ hours playtime on a single charge
- Add external PowerPack to extend playtime by 50%, optionalÊ EXTPP
- Link up to two or four wireless mics with AnchorLink 3 technology
- AnchorLink 3 is available on Hub and Link models
- Connect additional units cable-free with AnchorFlex technology
- AnchorFlex is available on Hub and Connect models
| Weight | 45.6 lbs |
| Dimensions: (Height x Width x Depth) (with telescoping handle down) |
24" x 16" x 16" |
| Coverage | * area: approximately 90' x 175' * crowd size: approximately 1500 |
| Drivers | One 10" neodymium woofer One ceramic compression driver |
| Rated Power Output | 300 watts |
| Max SPL @ Rated Power | 126 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 3.5A |
| Charger/Power Inlet | PC-2 |
| Battery | Two 10V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each Full recharge: ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorAir Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| AnchorAir Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Inputs | * One unbalanced 1/4" * One 3.5 mm stereo |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
