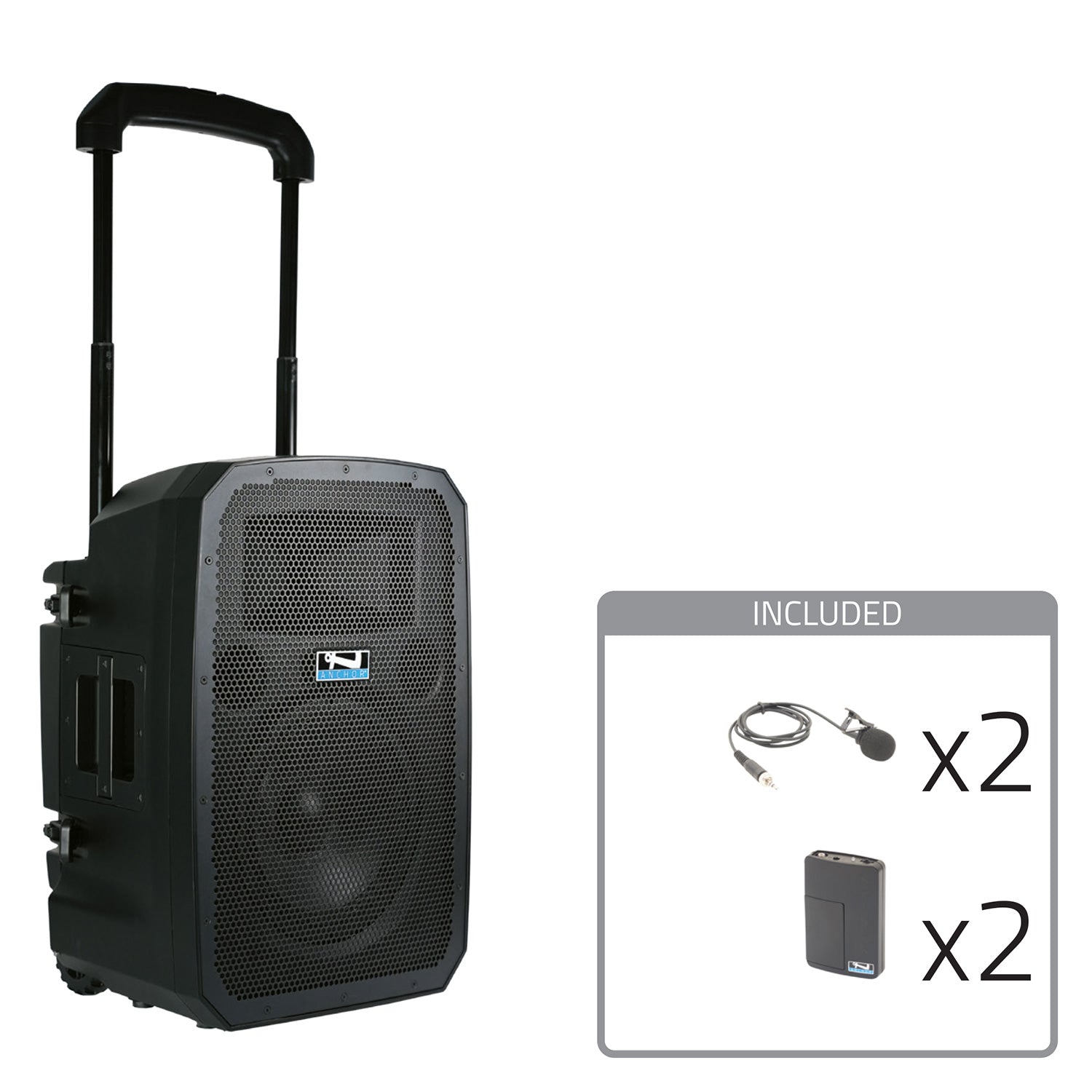

Anchor Audio Liberty 3 Link - Portable PA Package with 2x Wireless Lapel Microphones
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Liberty 3, AnchorLINK, and two wireless belt pack transmitters with lapel microphones. Models Included: LIB3-U2, QTY. 2 WB-LINK + QTY. 2 LM-LINK.
Liberty 3 Link systems are built for wireless microphones. Link models include:
- Anchor Audio professional sound system with a 6-4-2 Warranty
- Rechargeable lithium-ion battery with 7+ hours of playtime and superior power management
- Bluetooth enabled so you can stream directly to your speaker
- USB port to charge your phone
- Two universal wired mic inputs
- AnchorLink 3 technology to link up to 2 or 4 wireless microphones
Liberty 3: Amazing Sound Built 4 Ways.
Whether you need several systems that connect with each other, systems that let you link wireless microphones, or a stand-alone system to drag outdoors on an adventure, we have it. Liberty 3 systems include the features that you want, in a configuration that will last, and that's easy to use.
Liberty General Features:
- Anchor Audio's Series 3 technology
- Reaches crowds up to 1,500+ and easily covers outdoor PA applications 90' wide x 175' long (e.g. 25% of a Football field or two tennis courts)
- Long-range Bluetooth audio streaming (Class 1 )
- Dual AnchorPower high capacity 10A built-in rechargeable Lithium batteries deliver 7+ hours playtime on a single charge
- Add external PowerPack to extend playtime by 50%, optionalÊ EXTPP
- Link up to two or four wireless mics with AnchorLink 3 technology
- AnchorLink 3 is available on Hub and Link models
- Connect additional units cable-free with AnchorFlex technology
- AnchorFlex is available on Hub and Connect models
| Weight | 45.6 lbs |
| Dimensions: (Height x Width x Depth) (with telescoping handle down) |
24" x 16" x 16" |
| Coverage | * area: approximately 90' x 175' * crowd size: approximately 1500 |
| Drivers | One 10" neodymium woofer One ceramic compression driver |
| Rated Power Output | 300 watts |
| Max SPL @ Rated Power | 126 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 3.5A |
| Charger/Power Inlet | PC-2 |
| Battery | Two 10V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each Full recharge: ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorAir Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| AnchorAir Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Inputs | * One unbalanced 1/4" * One 3.5 mm stereo |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
Liberty 3, AnchorLINK, and two wireless belt pack transmitters with lapel microphones. Models Included: LIB3-U2, QTY. 2 WB-LINK + QTY. 2 LM-LINK.
Liberty 3 Link systems are built for wireless microphones. Link models include:
- Anchor Audio professional sound system with a 6-4-2 Warranty
- Rechargeable lithium-ion battery with 7+ hours of playtime and superior power management
- Bluetooth enabled so you can stream directly to your speaker
- USB port to charge your phone
- Two universal wired mic inputs
- AnchorLink 3 technology to link up to 2 or 4 wireless microphones
Liberty 3: Amazing Sound Built 4 Ways.
Whether you need several systems that connect with each other, systems that let you link wireless microphones, or a stand-alone system to drag outdoors on an adventure, we have it. Liberty 3 systems include the features that you want, in a configuration that will last, and that's easy to use.
Liberty General Features:
- Anchor Audio's Series 3 technology
- Reaches crowds up to 1,500+ and easily covers outdoor PA applications 90' wide x 175' long (e.g. 25% of a Football field or two tennis courts)
- Long-range Bluetooth audio streaming (Class 1 )
- Dual AnchorPower high capacity 10A built-in rechargeable Lithium batteries deliver 7+ hours playtime on a single charge
- Add external PowerPack to extend playtime by 50%, optionalÊ EXTPP
- Link up to two or four wireless mics with AnchorLink 3 technology
- AnchorLink 3 is available on Hub and Link models
- Connect additional units cable-free with AnchorFlex technology
- AnchorFlex is available on Hub and Connect models
| Weight | 45.6 lbs |
| Dimensions: (Height x Width x Depth) (with telescoping handle down) |
24" x 16" x 16" |
| Coverage | * area: approximately 90' x 175' * crowd size: approximately 1500 |
| Drivers | One 10" neodymium woofer One ceramic compression driver |
| Rated Power Output | 300 watts |
| Max SPL @ Rated Power | 126 dB @ 1 meter |
| Frequency Response | 100 Hz ~ 15 kHz ± 3dB |
| AC Power Reqs | 100~240 VAC, 50/60 Hz, 3.5A |
| Charger/Power Inlet | PC-2 |
| Battery | Two 10V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each Full recharge: ~ 7 hours |
| AnchorLink Wireless Frequency | 1920~1930 MHz USA/CAN 1880~1900 MHz Europe |
| AnchorLink Wireless Range | 300'+ line of sight |
| AnchorAir Frequency Range | 902~928 MHz USA/CAN 606~614MHz Europe |
| AnchorAir Wireless Range | 300'+ line of sight |
| Microphone Inputs | * Lo-Z, balanced, XLR / 1/4" * 34 V DC condenser mic (phantom) power * Hi-Z (10 k_), unbalanced, 1/4" phone |
| Line Inputs | * One unbalanced 1/4" * One 3.5 mm stereo |
| Line Output (post fader) | Isolated, 600_ One 1/4" phone |
| Speaker Out | 4-pole Neutrik Speakon¬ jack |
