Description

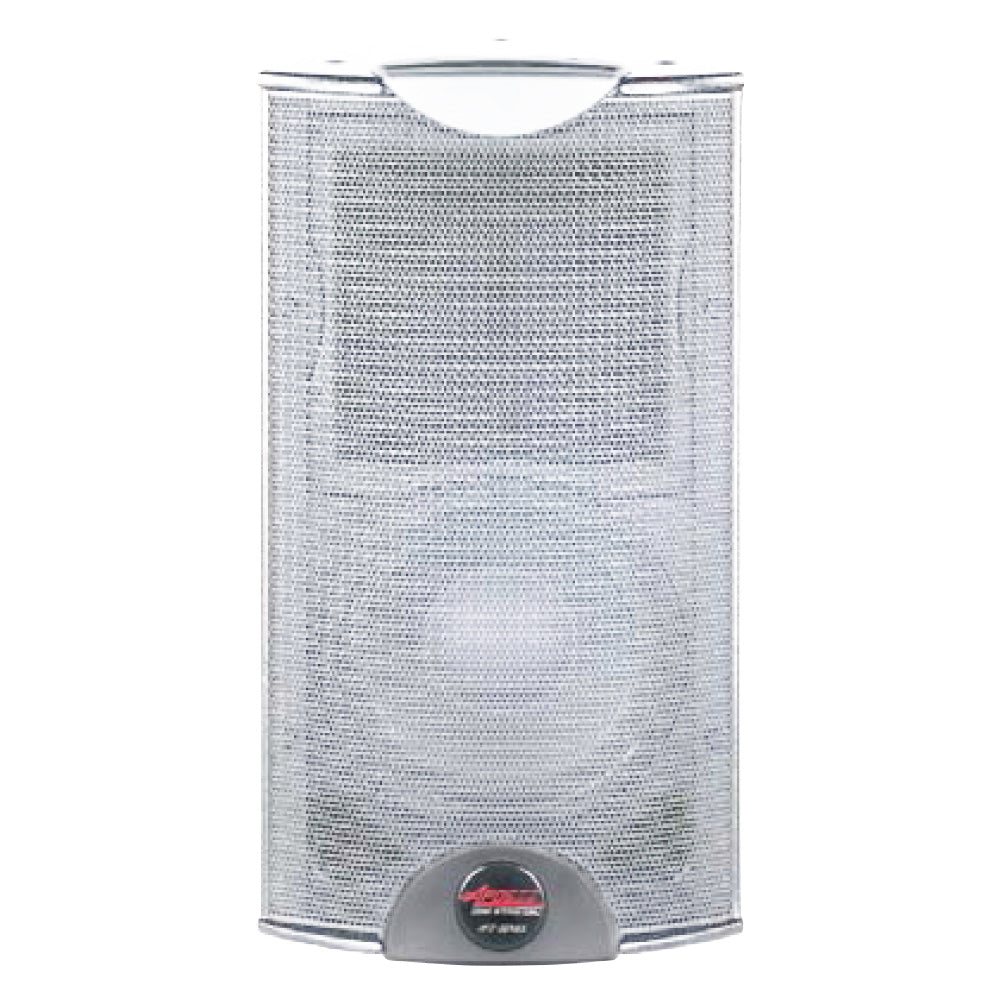

The compact size of the AFI-3, combined with a subwoofer, makes a full-range background or foreground music system that can handle high-level music in a variety of applications.
The Apogee Fixed Installation Speakers (AFI-Series) feature high power output, a distinctive modern appearance, versatile rigging, and the characteristic low distortion response that makes Apogee products unique.
The AFI series is a "processor optional" series, allowing the installer to decide if and what type of processing they wish to employ.
The use of an AFI processing card affords the installer not only the protection of adjustable limiting circuits, but electronically enhances the acoustic performance of the AFI product for which it was designed. This affords the installer a fast, low cost, and accurate system set-up, leaving only room equalization as needed.
Driver Complement | |
Low Frequency | One Apogee 10"(254mm) permanent magnet conetype driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters |
High Frequency | One Apogee 1.75" (45mm) voice coil, 1" (25mm) exit horn-loaded compression driver treated with Ferrofluid |
Input Connectors | Barrier strip, screw type #8 |
Compatible Processors | AFI Main Frame Controller Chassis (using AFI-3 Module) or DLC24 |
Handles | Two handles Ð one top, one bottom Ð designed as an integral part of the enclosure (no moving parts) |
Grille | Highly durable, quality finish on perforated steel (aluminum on SX version) |
Rigging Hardware | Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread |
Finish | Textured high-strength black or white epoxy paint; other colors optional |
Enclosure Type | 30¡ trapezoidal, optimally-vented bass |
Cabinet Construction | Multi-ply hardwood with stainless steel fasteners |
Options/Accessories | ¥ AFI Controller Processor or DLC24 Digital Processor ¥ SX weather treatment for use in limited exposure enclosures ¥ Assorted rigging components |
Format | Passive/Two-way |
Dispersion | 90¡ x V: 45¡ (rotatable) |
Frequency Response (1m on axis) | 61 Hz to 20 kHz ± 3 dB |
Max. SPL (@1m) | 123 dB cont./129 dB peak |
PTML (peak transient mechanical limit) | 137 dB |
Sensitivity (1W @ 1m) | 98 dB SPL/100 Hz to 4 kHZ |
Nominal Impedance | 8 ohms |
Max. Power Handling | 300W cont./1200W peak |
Dimensions | front: 13.5"(343mm) W x 25.5"(648mm) H rear: 8.2"(207mm) W x 25.5"(648mm) H depth: 12.1"(307mm) |
Weight | 45 lb. (21 kg) |
