ART MX225 Dual Source 5 Channel Zone Distribution Mixer


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:ART-MX225

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)

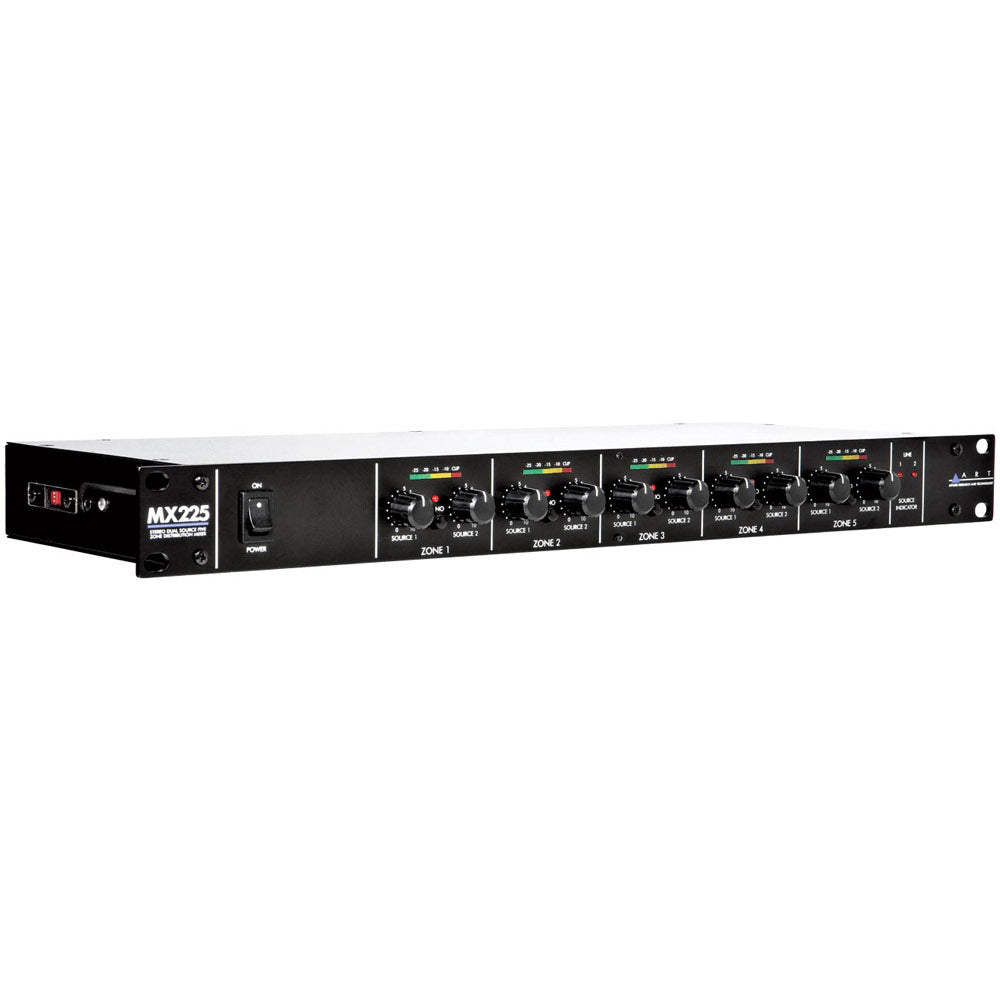

  • The MX225 is designed for remote volume control of multiple amplifiers or powered speakers in a distributed audio system. Two stereo sources are available to each of five output zones. Each source input pair handles separate left and right balanced line level signals. Each output zone features independent level control from inputs 1 and 2, stereo/mono selector with mono indicator, LED level metering, and left and right balanced line level zone outputs. All audio connections are balanced XLR. The built in power supply and single high 19" rack mount format allows for easy installation and reliable operation.


    • Left and right balanced Source 1 and 2 Inputs, accepts stereo or mono signal sources
    • Source 1 and 2 input channels are internally routed to all five Zone channels
    • Five Zone channels each feature Source 1 and 2 level controls and left and right balanced output XLR connectors
    • Stereo/Mono selector on each zone sums left and right into Mono mode when engaged
    • Mono indicator LED on each zone channel indicates that mono has been selected
    • Five LED level metering (-25, -20, -15, -10, Clip) on each zone channel indicate signal activity for each zone
    • Source 1 and 2 indicator LEDs show you when signal is present in each source channel

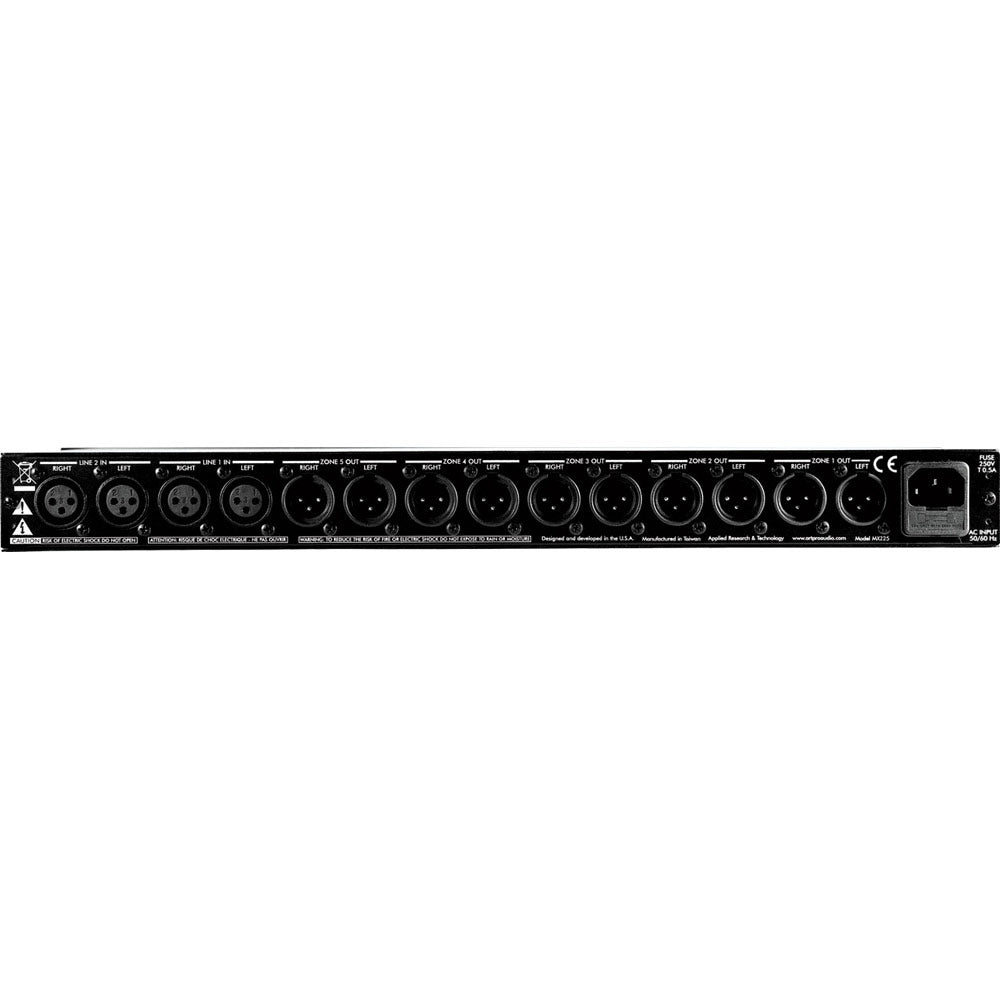

  • Input ConnectionsXLR-F balanced (x4)
    Output ConnectionsXLR-M balanced (x10)
    Input Impedance47k Ohms
    Output Impedance200 Ohms
    Maximum Input Level+20dBu
    Maximum Output Level+24dBu balanced
    Maximum Gain+6DB
    Signal to Noise Ratio> 90dB typical
    THD.05% Typical
    Power RequirementsUSA - 105 to 125 VAC / 50-60Hz, 15 Watts typical
    Dimensions1.75"H x 19"W x 7.25.0"D (44.5mm x 483mm x 184mm)
    Weight5.34 lbs (2.42 kg)
