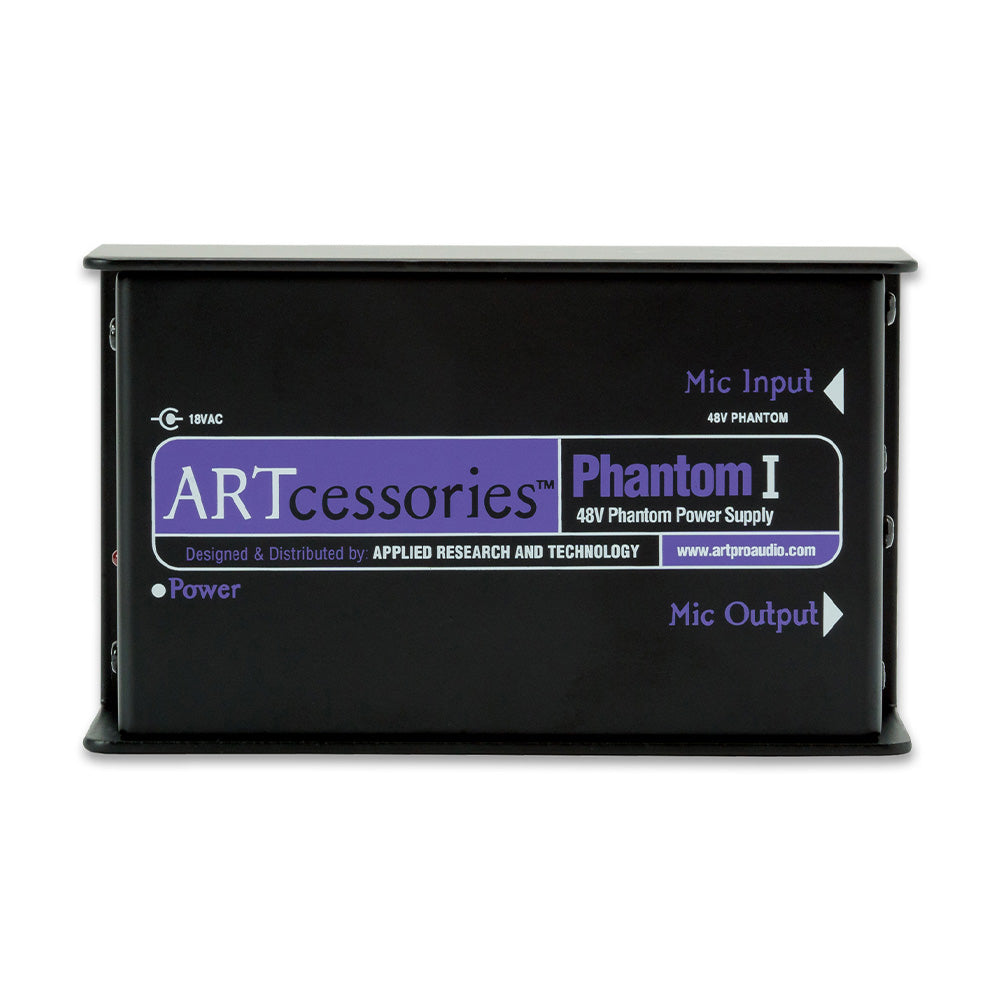

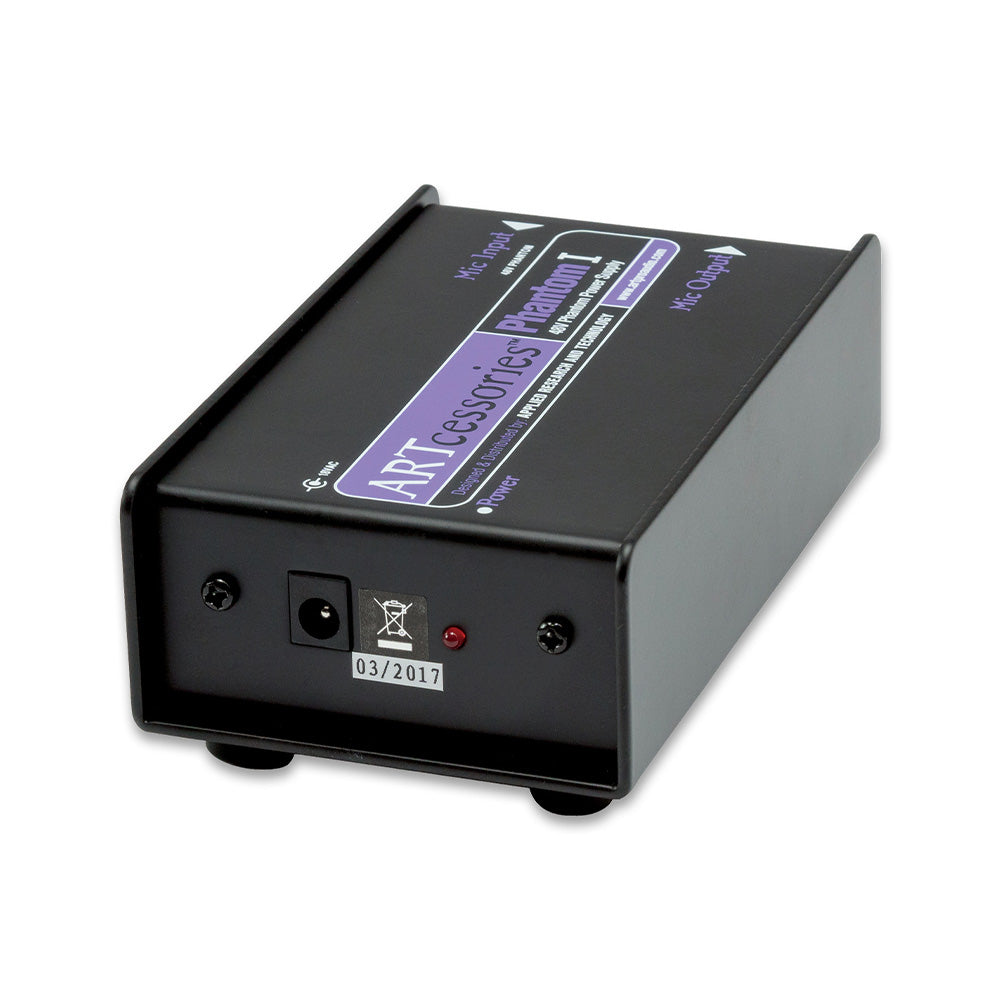

ART Phantom I - Single-Channel 48V Phantom Power Supply

  • Dale #:

    ART-PHANTOM1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be “more is better... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be “more is better.”

For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The Phantom I is a great choice for the above needs.

More +

Product Specs

Input Connections XLR female
Output Connections XLR male
Frequency Response 10Hz – 25kHz
Output Phantom Power 48V DC +/- 2V
Output Noise -115 dBV
Current Drain 14mA
Power 18V DC (Adapter included)
Dimensions 5.25×2.75×1.75 inches (130mm x 74mm x 45mm)
Weight 1.3 lbs (315g)

More +
