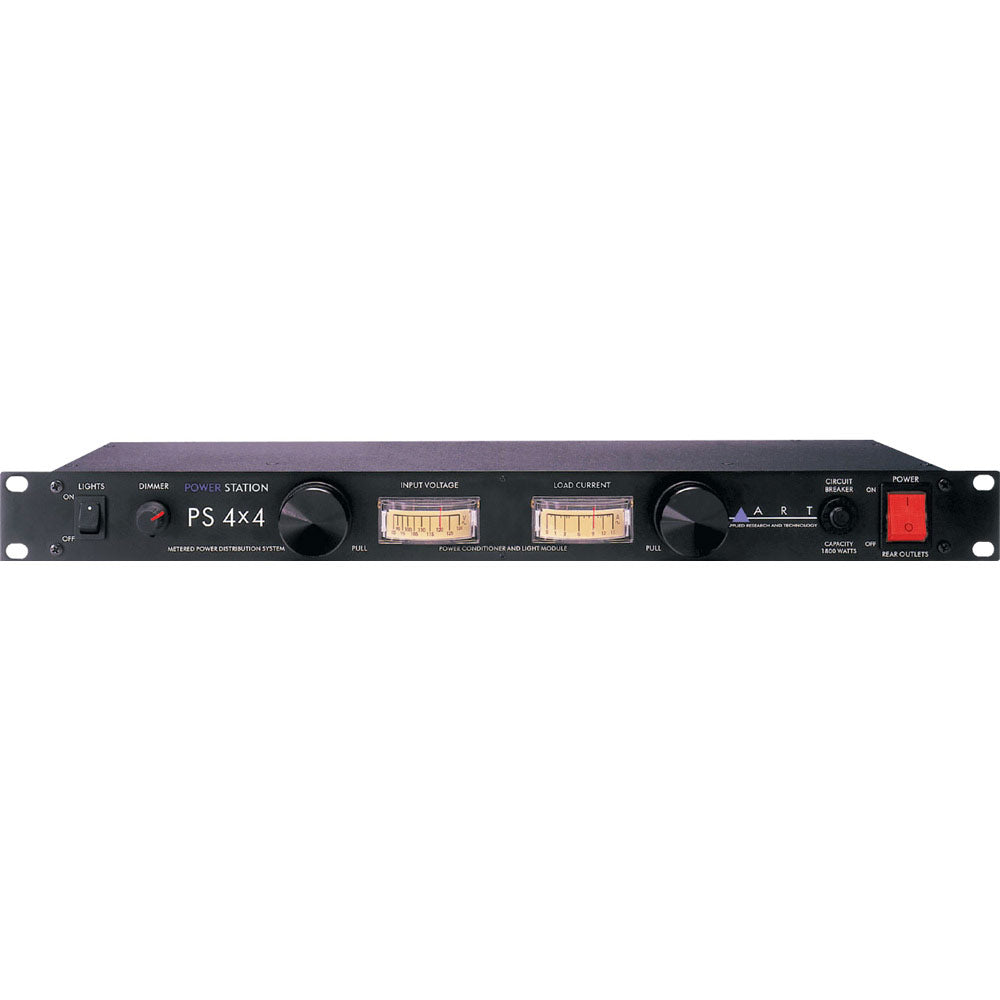

ART PS 4X4 Dual Metered Power Distribution System


  • Dale #:

    ART-PS4X4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The PS 4x4 features a backlit linear meter to monitor input voltage, which gives the user a familiar analog style readout when monitoring voltage from a power source. The PS 4x4 has a backlit linear Ammeter showing Load Current in amperes. This additional meter gives an analog "real-world" look a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PS 4x4 features a backlit linear meter to monitor input voltage, which gives the user a familiar analog style readout when monitoring voltage from a power source. The PS 4x4 has a backlit linear Ammeter showing Load Current in amperes. This additional meter gives an analog "real-world" look at how much power you are using ...hence the term "power station". While the associated voltmeter stays relatively stable and varies slightly with line voltage and house wiring, the ammeter varies much more, as power is consumed. For example, if the unit is in a rack with digital equipment and preamps, it may not vary a lot (even if you had 8 200 watt network computers hooked up, it would show if all are up and running). However, if it is in a rack with one or more power amps, the meter's indicator may be bouncing all around - and providing a great indication of output.

Features

  • Front-Mounted Circuit Breaker Reset Switch
  • Surge & Spike Protection
  • EMI & RFI Filtering
  • Unique “4X” Distribution on the Back- Four of the Eight Rear Switched Outputs are wider for Wall Wart Devices
  • Total Power Capacity of 1800 watts
  • Rugged All-Steel Chassis Occupies 1u Rack Space
  • 2 Front Shock-Mounted Light Posts
  • Backlit Linear Meter to Monitor Input Voltage
  • Separate On/Off Light Switch
  • Adjustable Dimmer Dial
  • Backlit Ammeter to Monitor Load Current

The PS 4x4 also features ART's "4x4" distribution on the back of the unit -- four of the eight rear outputs are 1.25 inches apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from. Built into the PS 4x4 is a surge and spike protection system, designed to protect powered equipment from harmful electric surges and spikes. The unit also has RFI and EMI filtering, a 15 amp breaker, and a total power capacity of 1800 watts. The PS 4x4 also features a front-located on/off power switch (which lights up when turned on), and a front-mounted circuit breaker reset switch. The rugged, all-steel chassis occupies 1U rack spaces and is intended for installation into standard 19" equipment racks.

Applications for the PS 4x4 include: Live Sound Systems/PA, Permanent or Fixed Installations, Church, Club and Practice PA Systems, DJ Sound Systems, Home and Project Recording Systems, and Monitor Systems. The PS 4x4 features a one-year warranty.

More +

Product Specs

Ammeter MeteringCurrent, Linear Metered
Circuit Breaker15 Amp; Front Location
ConstructionAll-Steel Chassis
FilteringEMI & RFI
Light Pipes2 Front Pull-Out, Shock Mounted
Power Capacity1800 Watts
Power OutletsEight Rear Outlets
Power SwitchFront Location - On/Off
Power Switch IlluminationYes - In "On" Position
Protection CircuitSurge & Spike Protection
Voltage MeteringInput Voltage, Linear Metered
Dimensions1U Rack Mountable

More +
