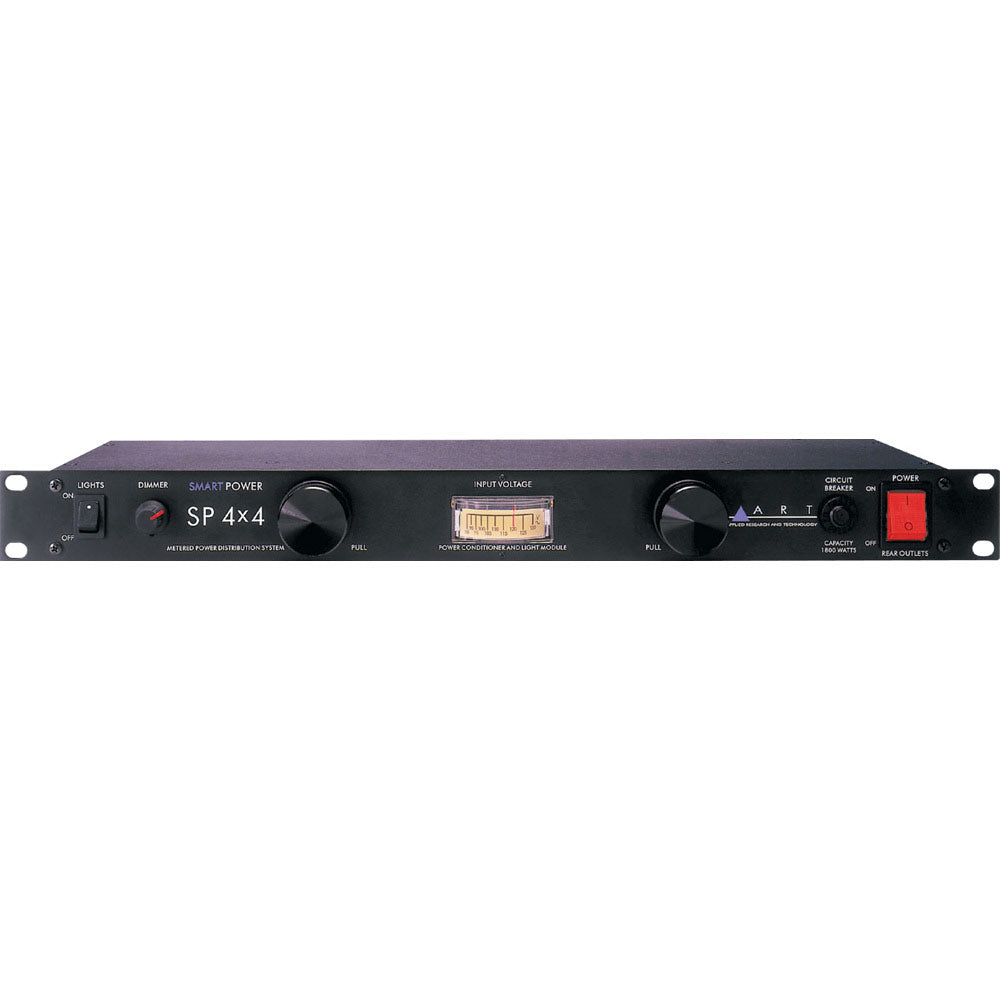

ART SP 4X4 Rackmount Metered Power Distribution System



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:ART-SP4X4

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The SP 4x4 features a backlit linear meter to monitor input voltage, which gives the user a familiar analog style readout when monitoring voltage from a power source. The SP 4x4 also features ART's "4x4" distribution on the back of the unit -- four of the eight rear outputs are 1.25 inches apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from. Built into the SP 4x4 is a surge and spike protection system, designed to protect powered equipment from harmful electric surges and spikes.

    Features

    • Front-Mounted Circuit Breaker Reset Switch
    • Surge & Spike Protection
    • EMI & RFI Filtering
    • Unique “4X” Distribution on the Back- Four of the Eight Rear Switched Outputs are wider for Wall Wart Devices
    • Total Power Capacity of 1800 watts
    • Rugged All-Steel Chassis Occupies 1u Rack Space
    • 2 Front Shock-Mounted Light Posts
    • Backlit Linear Meter to Monitor Input Voltage
    • Separate On/Off Light Switch
    • Adjustable Dimmer Dial
    • Backlit Ammeter to Monitor Load Current

    The unit also has RFI and EMI filtering, a 15 amp breaker, and a total power capacity of 1800 watts. The SP 4x4 also features a front-located on/off power switch (which lights up when turned on), and a front-mounted circuit breaker reset switch. The rugged, all-steel chassis occupies 1U rack spaces and is intended for installation into standard 19" equipment racks.

    Applications for the SP 4x4 include Live Sound Systems/PA, Permanent or Fixed Installations, Church, Club and Practice PA Systems, DJ Sound Systems, Home and Project Recording Systems, and Monitor Systems. The SP 4x4 features a one-year warranty.

  • Circuit Breaker15 Amp; Front Location
    ConstructionAll-Steel Chassis
    FilteringEMI & RFI
    Light Pipes2 Front Pull-Out, Shock Mounted
    Power Capacity1800 Watts
    Power OutletsEight Rear Outlets
    Power SwitchFront Location - On/Off
    Power Switch IlluminationYes - In "On" Position
    Protection CircuitSurge & Spike Protection
    Voltage MeteringLinear Metered
    Dimensions1U Rack Mountable
