AtlasIED A-RCA - RCA or 3.5mm Audio Input for Atmosphere System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

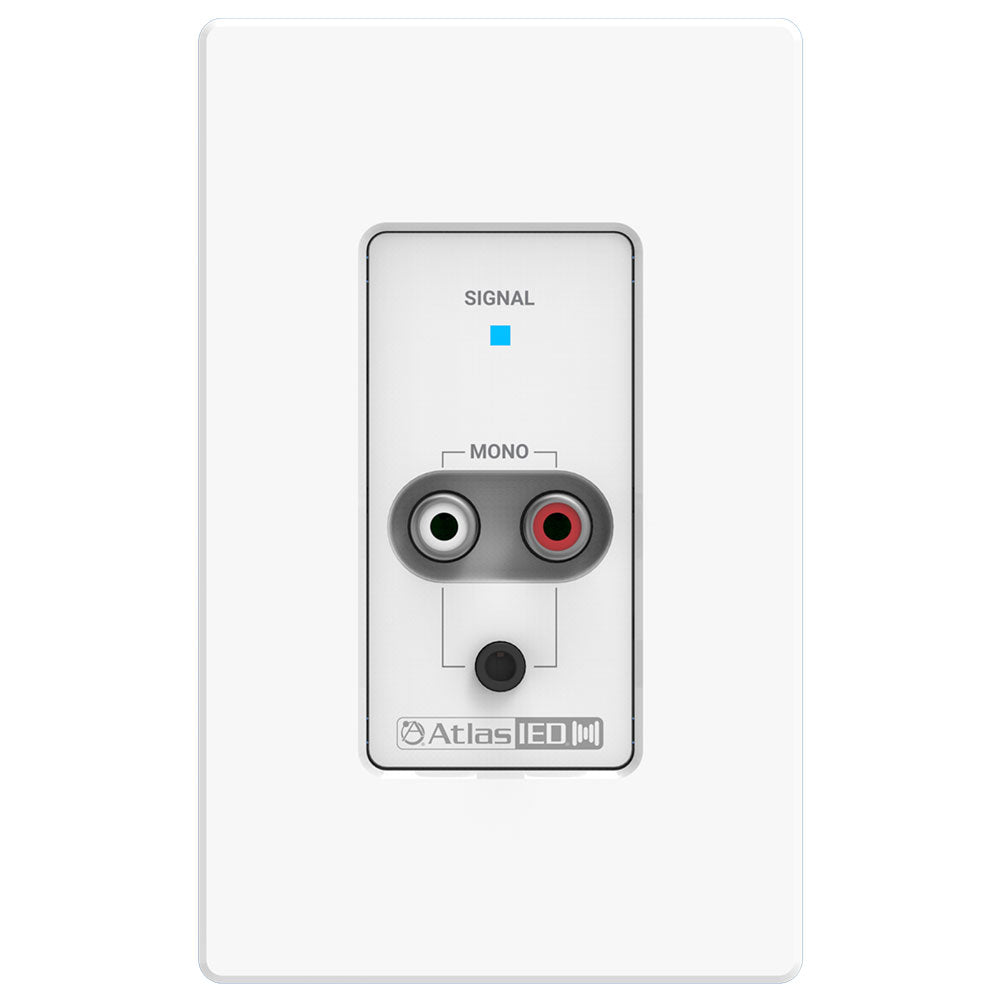

The Atmosphere A-RCA is a remote RCA/3.5mm audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board RCA inputs. The AZM will automatically detect the A-RCA and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo inputs are summed to a mono signal before being sent to the AZM.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features:
- Mono summed RCA pair
- 3.5mm mono summed input
- Digital audio return to host processor
- Works with premium oversized RCA connectors
- Signal presence indicator
| Right Channel Color | Red |
| Left Channel Color | White |
| Sensitivity | -10dBV (Same as AZM) |
| Maximum Input Voltage | +8dBu |
| Type | Mono-summed Pair |
| Indicator | Green = Signal Presence, Red = Clip, Blue = Locate |
| Dimensions | 1.78" x 4.2" x 1.5" |
| Minimum Box Depth | 2.25" |
The Atmosphere A-RCA is a remote RCA/3.5mm audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board RCA inputs. The AZM will automatically detect the A-RCA and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo inputs are summed to a mono signal before being sent to the AZM.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features:
- Mono summed RCA pair
- 3.5mm mono summed input
- Digital audio return to host processor
- Works with premium oversized RCA connectors
- Signal presence indicator
| Right Channel Color | Red |
| Left Channel Color | White |
| Sensitivity | -10dBV (Same as AZM) |
| Maximum Input Voltage | +8dBu |
| Type | Mono-summed Pair |
| Indicator | Green = Signal Presence, Red = Clip, Blue = Locate |
| Dimensions | 1.78" x 4.2" x 1.5" |
| Minimum Box Depth | 2.25" |
