AtlasIED A-XLR - Remote XLR Input for Atmosphere System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

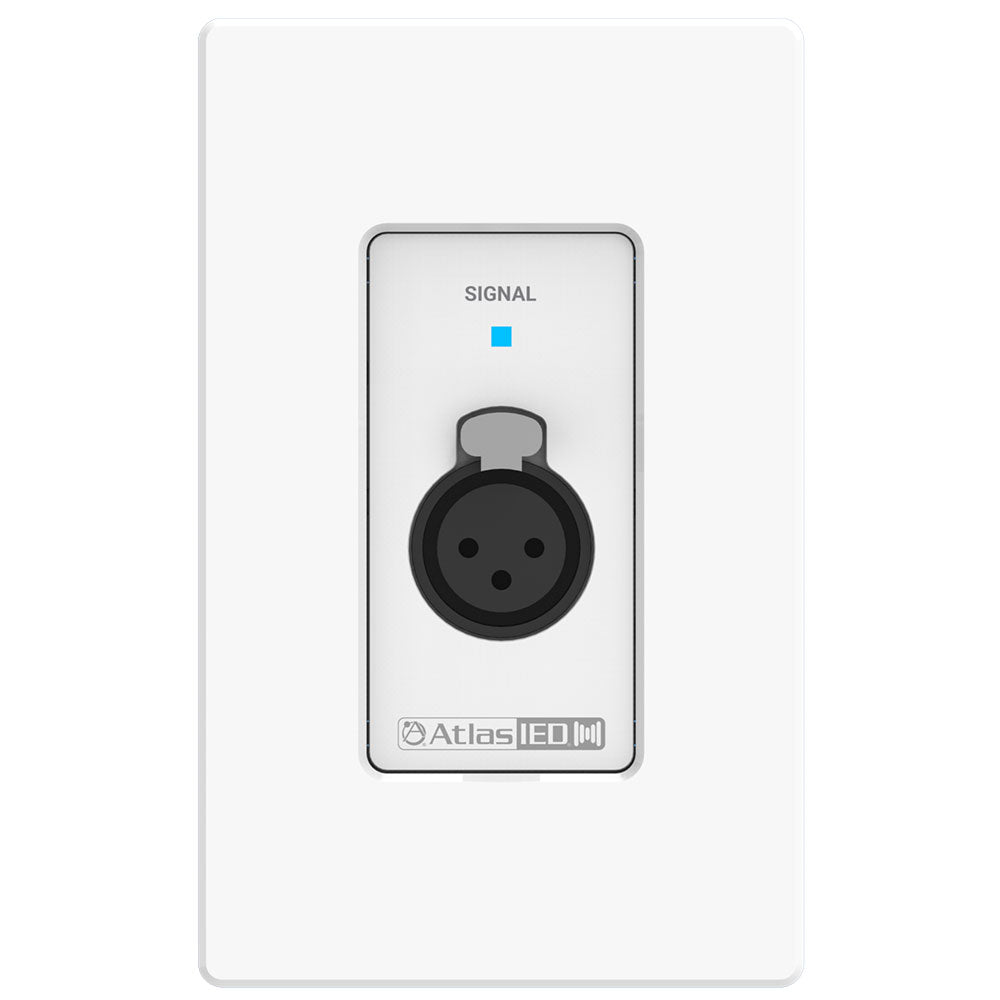

The Atmosphere A-XLR is a remote XLR audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input .
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features:
- +48V phantom power (software configurable)
- Digital audio return to host processor
- Signal presence indicator
- Neutrik brand™ connector with latch
| Sensitivity | +4dBu (Same as AZM Balanced Inputs) |
| Connector Type | XLR (Female) |
| Retaining Clip | Yes |
| Phantom Power Voltage | +48VDC 10mA |
| Accepts Unbalanced Inputs | Yes |
| Input Gain | 0 - 60dB |
| Maximum Voltage Input | +2-dBu |
| Input Impedance | 3.4k ½ |
| EIN | 117dBu at 150 ½, 20kHz BW |
| CMRR | Typically 50dB at 1kHz |
| Indicator | Green = Signal Presence, Red = Clip, Blue = Locate |
| Dimensions | 1.78" x 4.2" x 2.1" |
| Minimum Box Depth | 2.25" |
