Attero Tech by QSC unD6IO-BT - Dante Wall Plate Audio Interface with Bluetooth
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

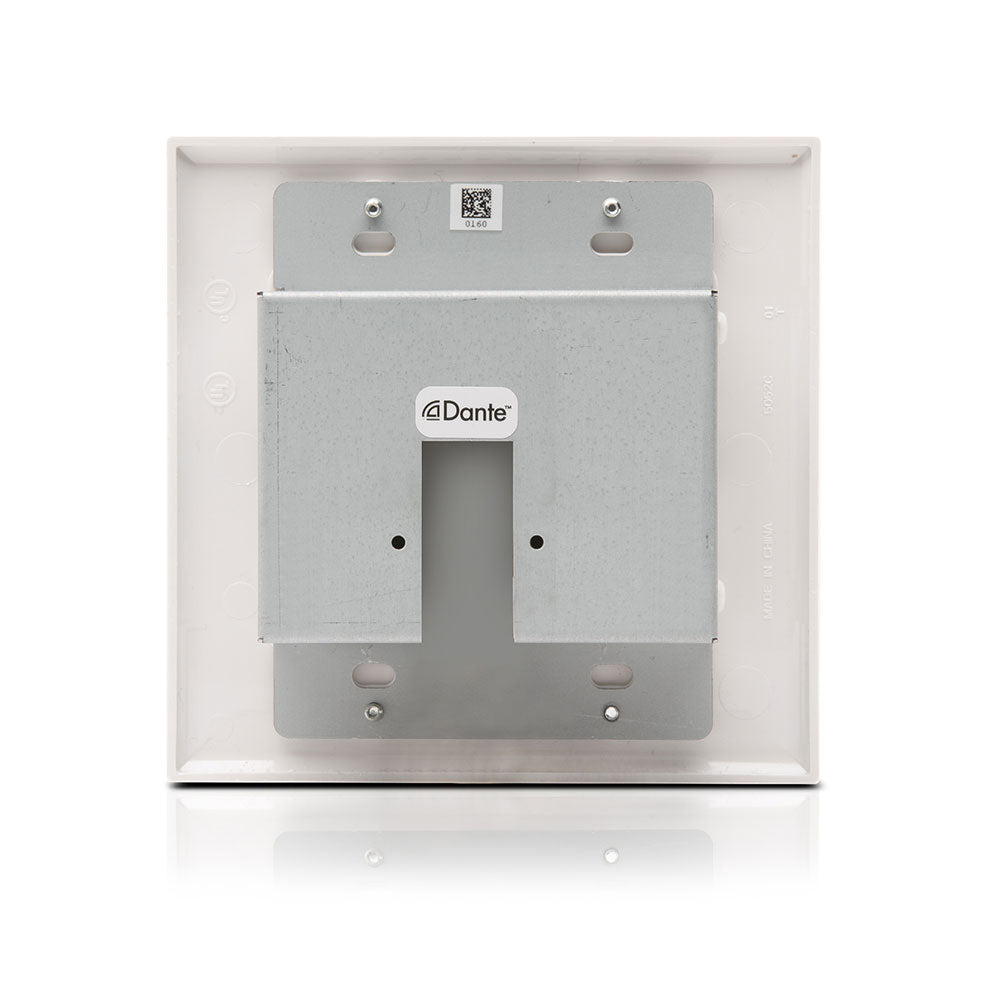

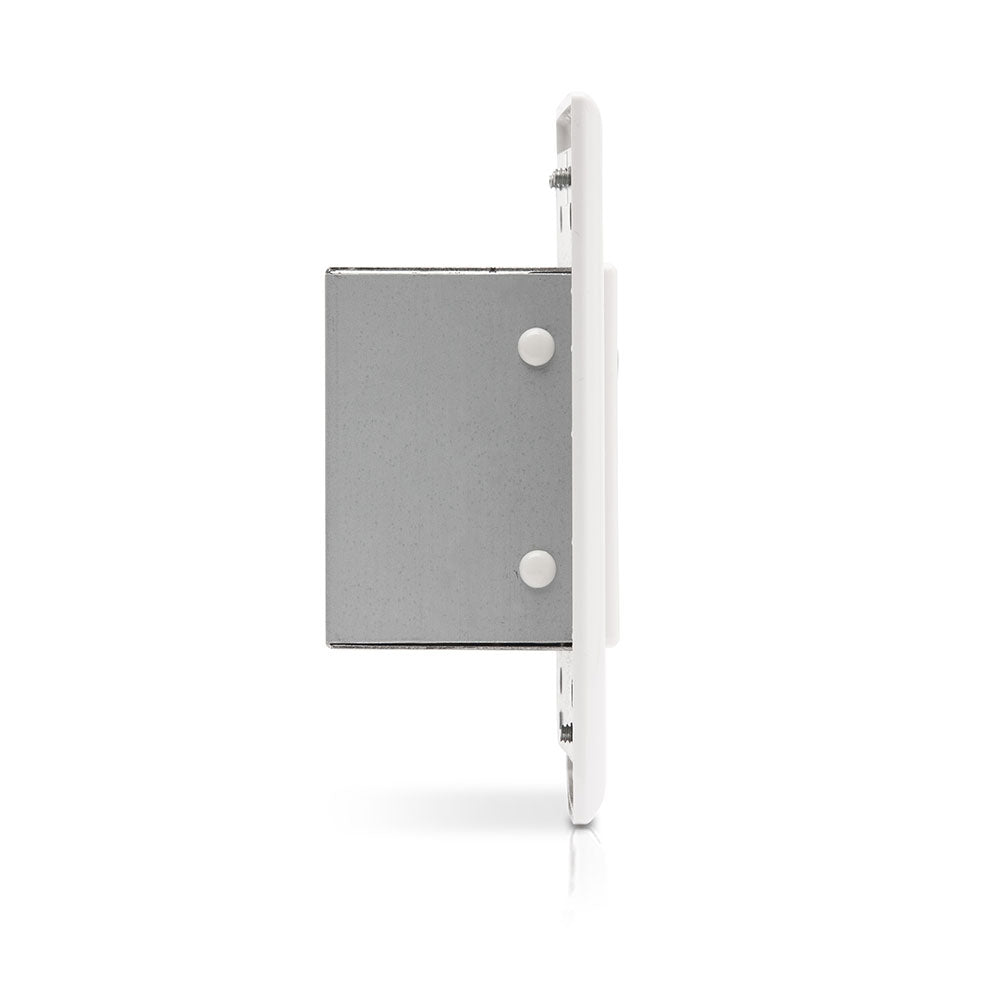

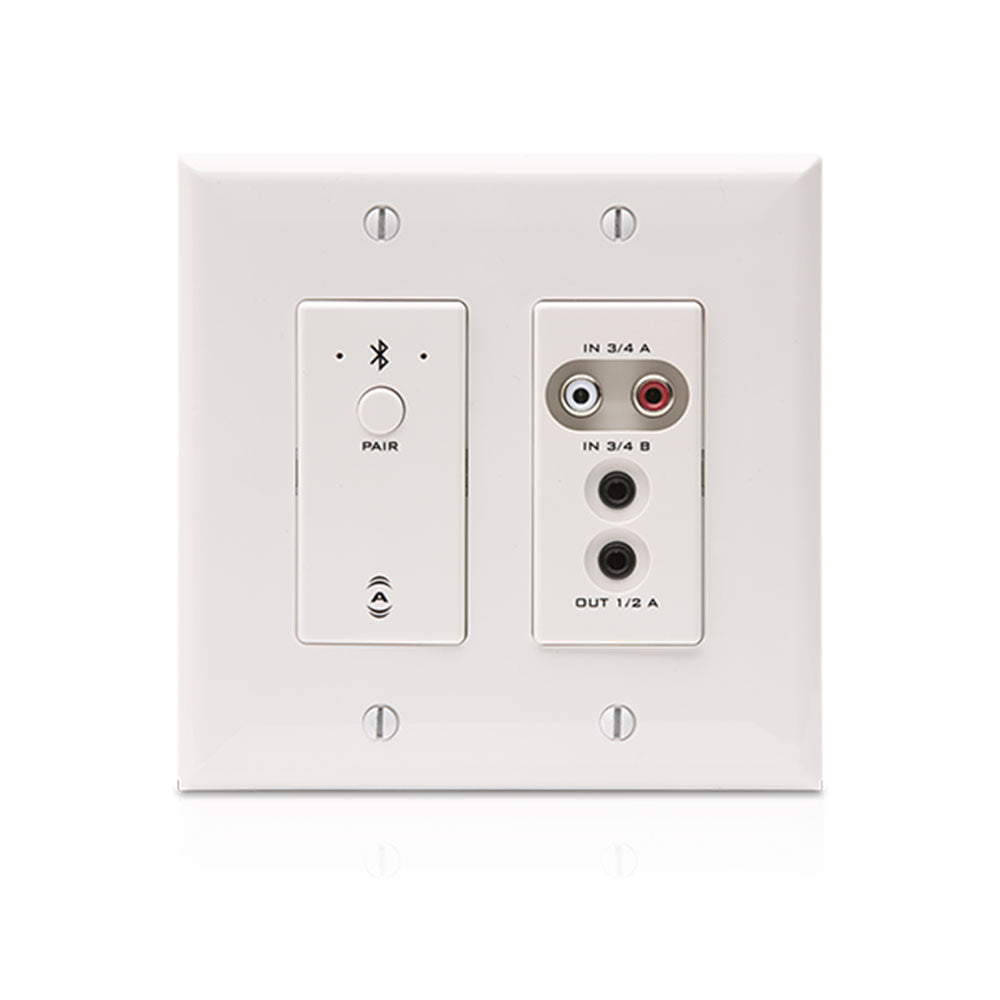

The Attero Tech by QSC unD6IO-BT Dante/AES67 audio interface with Bluetooth® is a cost-effective, multi-IO wall plate. The unD6IO-BT features stereo Bluetooth wireless audio input connectivity along with (2) RCA line level inputs and a 3.5 mm TRS line level input. A 3.5 mm TRS line level output on the front is also included. The unD6IO-BT is designed to fit into most dual-gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The wall plate’s unique mix of consumer-style wired and wireless connectivity allows easy connection to a wide variety of user devices on a Dante or AES67 network, eliminating the possibility of ground loop issues or other audio problems commonly found in consumer devices.
Features:
- Bluetooth media streaming: The unD6IO-BT wall plate is compatible with most smartphones, Apple iPads, and Android tablets, providing Bluetooth media streaming and call bridging for a wide variety of commercial applications. Additionally, a Q-SYS control plugin allows for control and monitoring of the unD6IO-BT via native Q-SYS touch screen controller.
- Bluetooth call bridging: Provides simple bridging of far-end meeting participants for on-the-fly meeting productivity and backup conference connectivity.
- Q-SYS Ecosystem integration: A Q-SYS control plugin is available for the unD6IO-BT in Q-SYS Designer Asset Manager, which enables control and monitoring via native Q-SYS touch screen controllers.
- Out of the box: In addition to Bluetooth media streaming, the unD6IO-BT also features a two RCA line level inputs, one 3.5 mm line level input and one 3.5 mm line level output – providing connectivity flexibility for any application type. The input configuration can be modified within Q-SYS or Attero Tech unIFY Control Panel software.
| Bluetooth¨Êprofile | A2DP - Stereo audio is streamed from a Bluetooth¨Êdevice and onto the Dante network. HFP (Hands Free Profile) - duplex pairing to a cell phone for call bridging |
| Bluetooth¨Êrange | 10 m (30 ft) minimum. Typical range is 15 - 23 m (50 - 75 ft) |
| RCA and 3.5 mm input | RF filtered line level, input source software selectable |
| Maximum input levels (3.5 mm / RCA): | +12 dBu |
| Output volume range | 0 dB to -60 dB in 1 dB steps, "software selectable" |
| 3.5 mm output | RF filtered line level |
| Maximum output level (3.5 mm) | +12 dBu |
| Product dimensions (H _ W _ D) | 3.54 x 4.2 x 1.88 inches (89.91 x 106.68 x 47.752 mm) |
| Shipping dimensions (H _ W _ D) | 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm) |
| Shipping weight | 1.0 lb (0.45 kg) |
The Attero Tech by QSC unD6IO-BT Dante/AES67 audio interface with Bluetooth® is a cost-effective, multi-IO wall plate. The unD6IO-BT features stereo Bluetooth wireless audio input connectivity along with (2) RCA line level inputs and a 3.5 mm TRS line level input. A 3.5 mm TRS line level output on the front is also included. The unD6IO-BT is designed to fit into most dual-gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The wall plate’s unique mix of consumer-style wired and wireless connectivity allows easy connection to a wide variety of user devices on a Dante or AES67 network, eliminating the possibility of ground loop issues or other audio problems commonly found in consumer devices.
Features:
- Bluetooth media streaming: The unD6IO-BT wall plate is compatible with most smartphones, Apple iPads, and Android tablets, providing Bluetooth media streaming and call bridging for a wide variety of commercial applications. Additionally, a Q-SYS control plugin allows for control and monitoring of the unD6IO-BT via native Q-SYS touch screen controller.
- Bluetooth call bridging: Provides simple bridging of far-end meeting participants for on-the-fly meeting productivity and backup conference connectivity.
- Q-SYS Ecosystem integration: A Q-SYS control plugin is available for the unD6IO-BT in Q-SYS Designer Asset Manager, which enables control and monitoring via native Q-SYS touch screen controllers.
- Out of the box: In addition to Bluetooth media streaming, the unD6IO-BT also features a two RCA line level inputs, one 3.5 mm line level input and one 3.5 mm line level output – providing connectivity flexibility for any application type. The input configuration can be modified within Q-SYS or Attero Tech unIFY Control Panel software.
| Bluetooth¨Êprofile | A2DP - Stereo audio is streamed from a Bluetooth¨Êdevice and onto the Dante network. HFP (Hands Free Profile) - duplex pairing to a cell phone for call bridging |
| Bluetooth¨Êrange | 10 m (30 ft) minimum. Typical range is 15 - 23 m (50 - 75 ft) |
| RCA and 3.5 mm input | RF filtered line level, input source software selectable |
| Maximum input levels (3.5 mm / RCA): | +12 dBu |
| Output volume range | 0 dB to -60 dB in 1 dB steps, "software selectable" |
| 3.5 mm output | RF filtered line level |
| Maximum output level (3.5 mm) | +12 dBu |
| Product dimensions (H _ W _ D) | 3.54 x 4.2 x 1.88 inches (89.91 x 106.68 x 47.752 mm) |
| Shipping dimensions (H _ W _ D) | 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm) |
| Shipping weight | 1.0 lb (0.45 kg) |
