Audix ADX-20i Miniature Instrument Microphone - includes TA3F Termination and Shockmount

  • Dale #:

    AUDX-ADX20I
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Designed, assembled, and tested by Audix in the USA, the ADX-20i is a miniaturized condenser microphone used for professional stage and studio applications. The ADX-20i is known for its clarity, excellent transient response, resistance to feedback, SPL handling and ease of operation; and is prima... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed, assembled, and tested by Audix in the USA, the ADX-20i is a miniaturized condenser microphone used for professional stage and studio applications. The ADX-20i is known for its clarity, excellent transient response, resistance to feedback, SPL handling and ease of operation; and is primarily used for miking saxophone and other brass instruments. The ADX-20i is characterized with a uniformly controlled cardioid polar pattern. This provides excellent isolation and feedback control on stage, and natural sound reproduction at very close distances. Features:

  • Small, lightweight, low profile
  • Natural, accurate sound reproduction
  • High SPL handling
  • Includes mount for the bell of saxophone, trumpet
  • Available for wireless and wired applications

The ADX20i is characterized with a uniformly controlled cardioid polar pattern. This provides excellent isolation and feedback control on stage, and natural sound reproduction at very close distances.

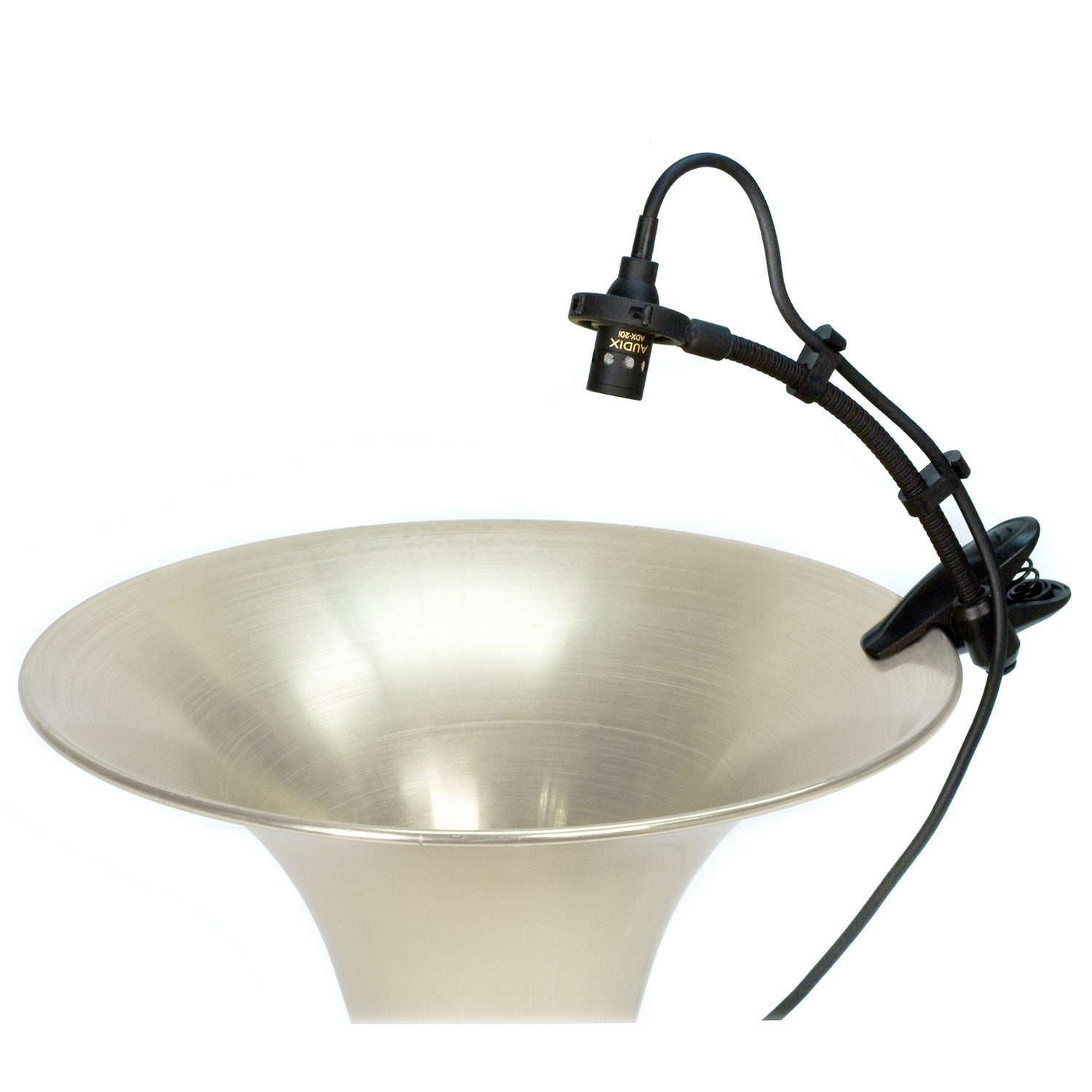

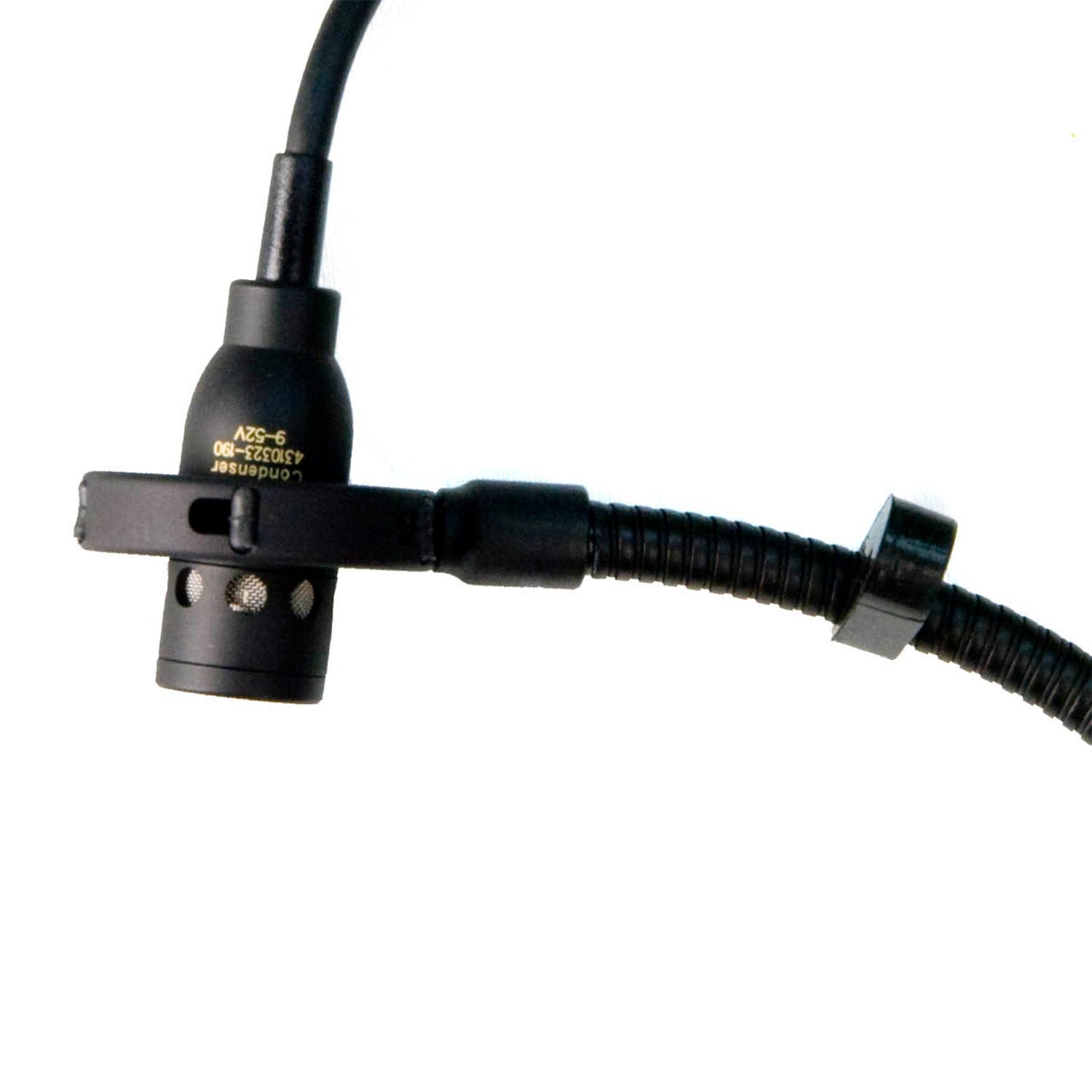

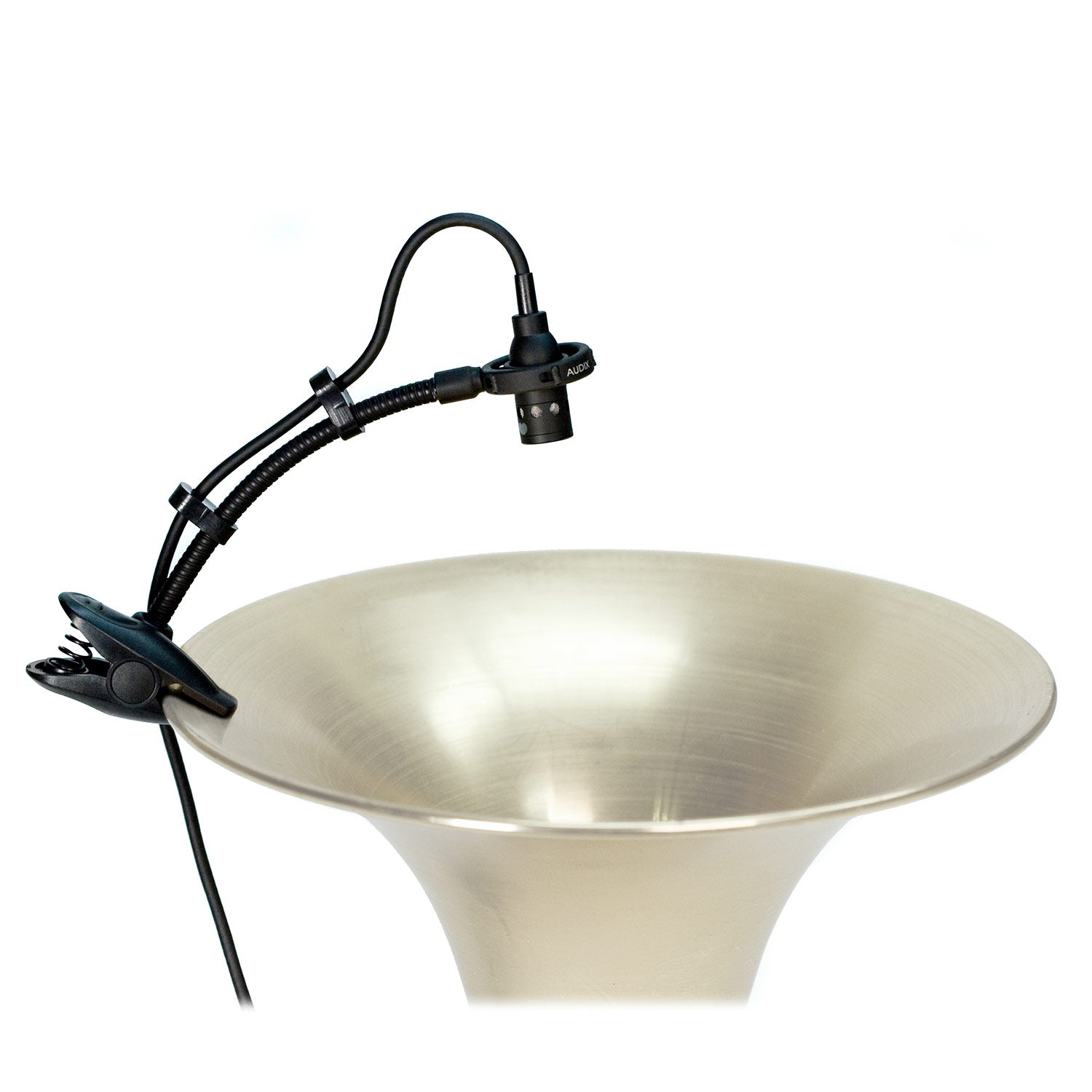

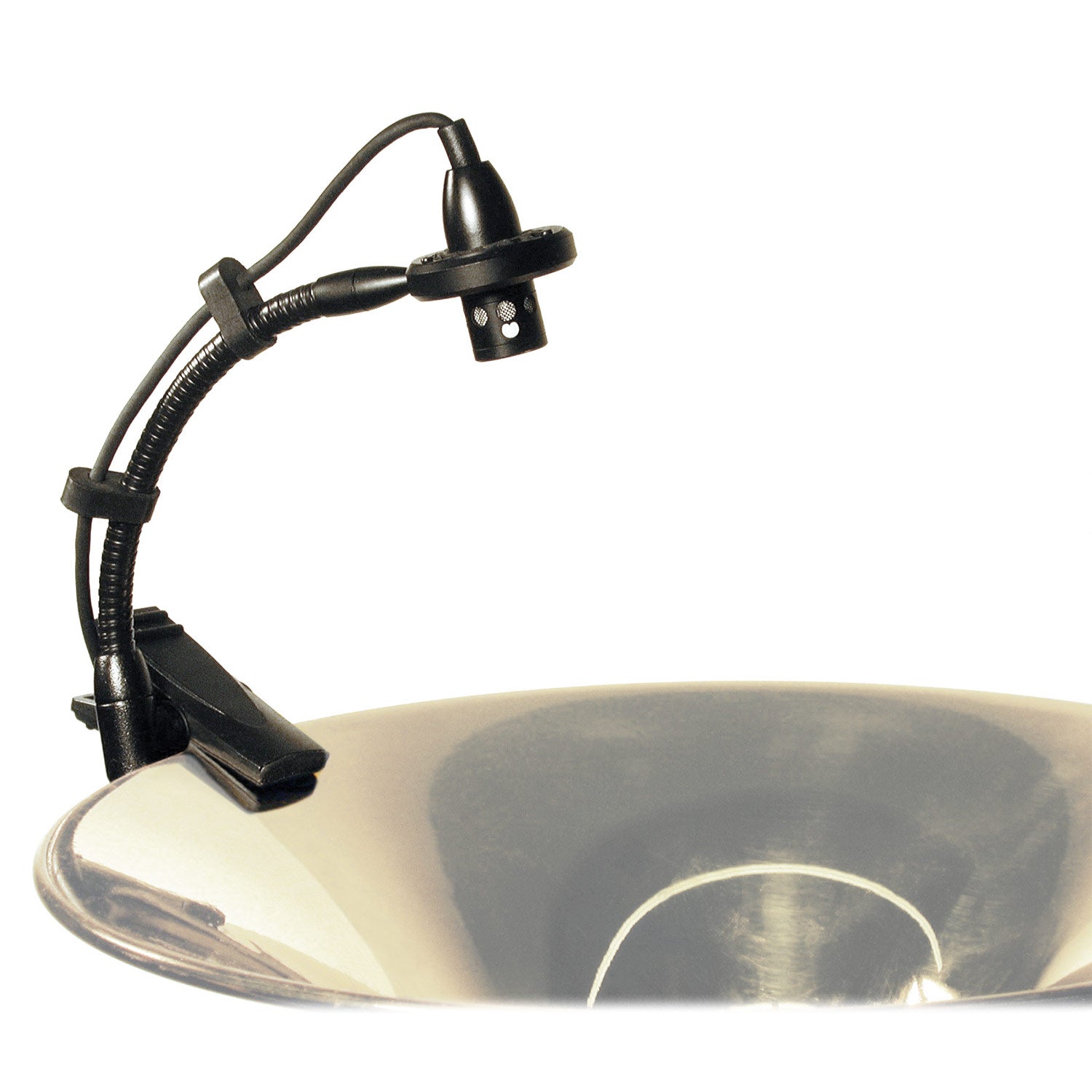

With a smooth and accurate response over a frequency range of 40 Hz - 20 kHz, the ADX20i is lightweight, compact and simple to use. Housed in an aluminum ring and isolated by means of a rubber shock mount system, the ADX20i comes with the gooseneck clip with spring tension clip (MC- 20i) for easy mounting to the bell of an instrument. A number of optional accessories are available which allows for the ADX20i to be used on a mic stand for a wider variety of applications.

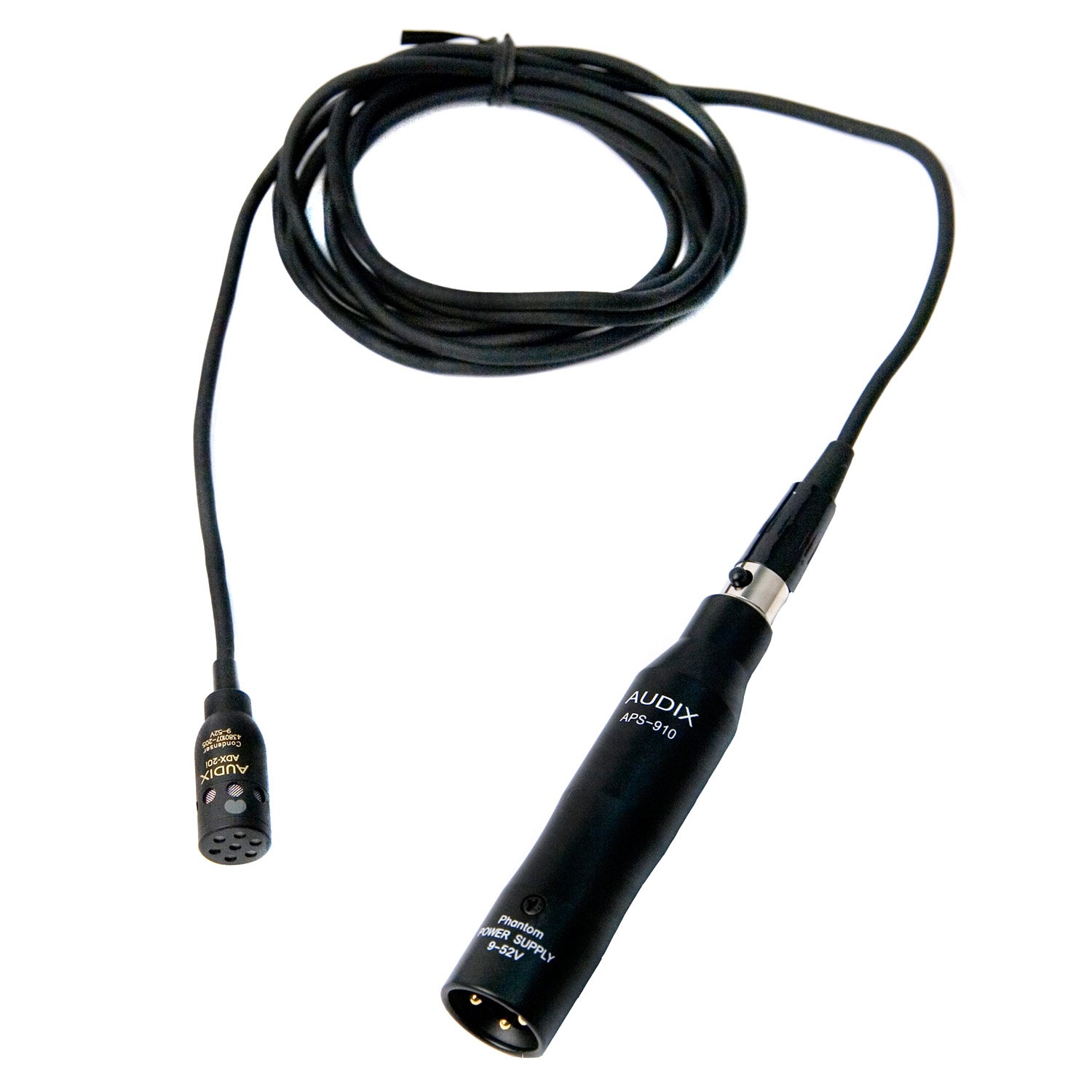

The ADX20i is designed for use with the Audix RAD360 wireless system. The ADX20i-P is designed for use with a microphone cable. The ADX20i-P operates on phantom voltage of 9-52 Volts and is supplied with a phantom power adapter (APS-910), 6’ integrated mic cable, gooseneck clip (MC-20i) and carrying pouch.

More +

Product Specs

Transducer TypePre-Polarized Condenser
Frequency Response40 Hz - 20 kHz
Polar PatternCardioid
Output Impedance250 ohms
Sensitivity5.8 mV - Pa @ 1K
Signal/Noise Ratio (A-weighted)65 dB
Equivalent Noise Level (A-weighted)29 dB
Maximum SPL @ .5% THD135 dB
Power Requirements9 - 52 Volts
PolarityPin 2 positive
Housing - FinishBrass - Black E-Coat
Weight1.7 oz
Length1.14 inches
