Audix AP41 HT7 Headset Wireless System (B Band / 554-586 MHz / Beige)

  • Dale #:

    AUDX-AP41HT7BGB
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

A professional diversity wireless system featuring the HT7 single ear miniaturized headworn condenser microphone. The HT7 is a professional single ear headworn condenser microphone designed for stage, presentation and broadcast applications. With a miniaturized element of only 3mm, the HT7 is the... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A professional diversity wireless system featuring the HT7 single ear miniaturized headworn condenser microphone. The HT7 is a professional single ear headworn condenser microphone designed for stage, presentation and broadcast applications. With a miniaturized element of only 3mm, the HT7 is the smallest microphone in the Audix line up. The omnidirectional HT7 features a comfortable ear piece that can be worn around the left or right ear and a durable adjustable length boom arm.

Features:

R41 Diversity Receiver

  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

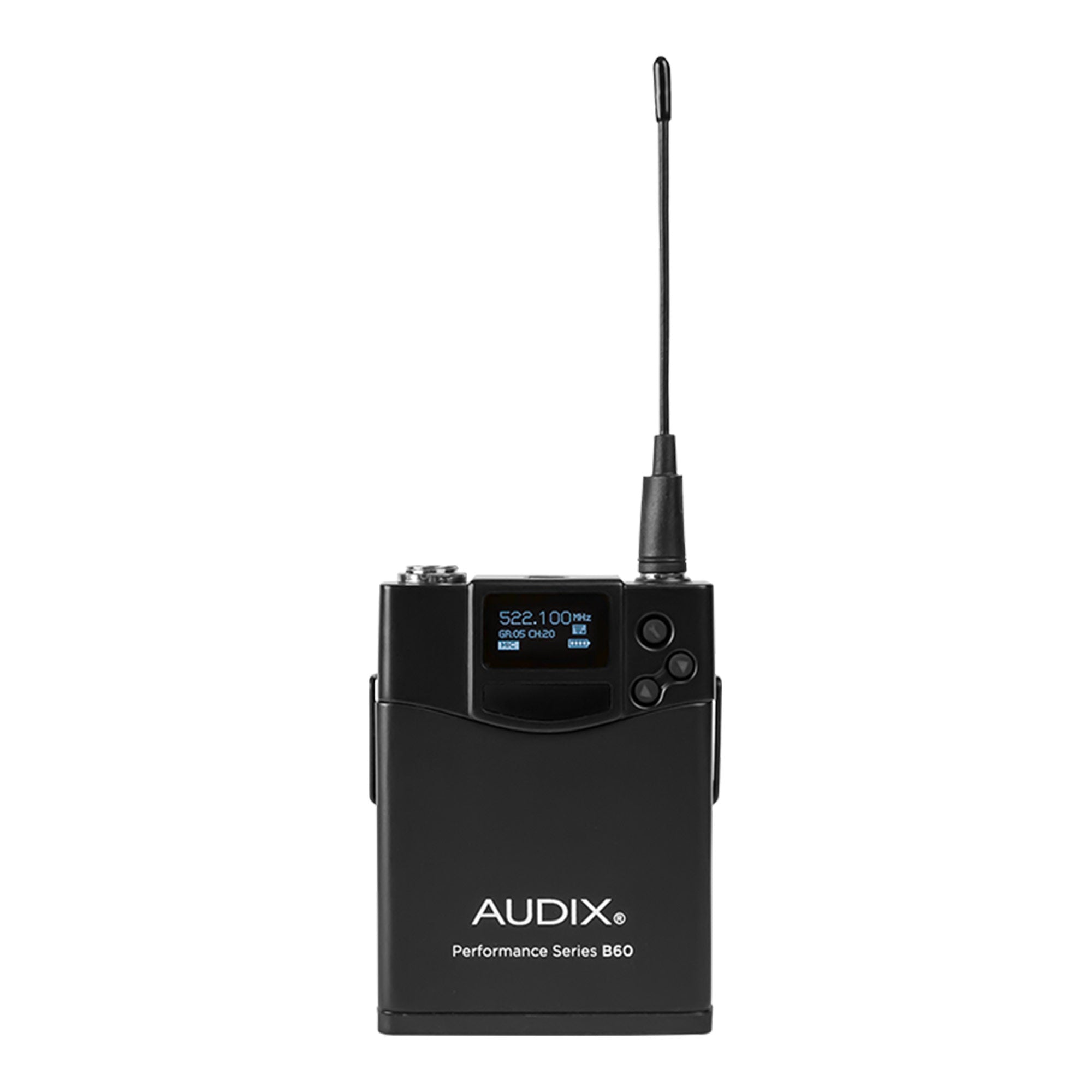

B60 Bodypack Transmitter

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 10 Hour run time - AA batteries

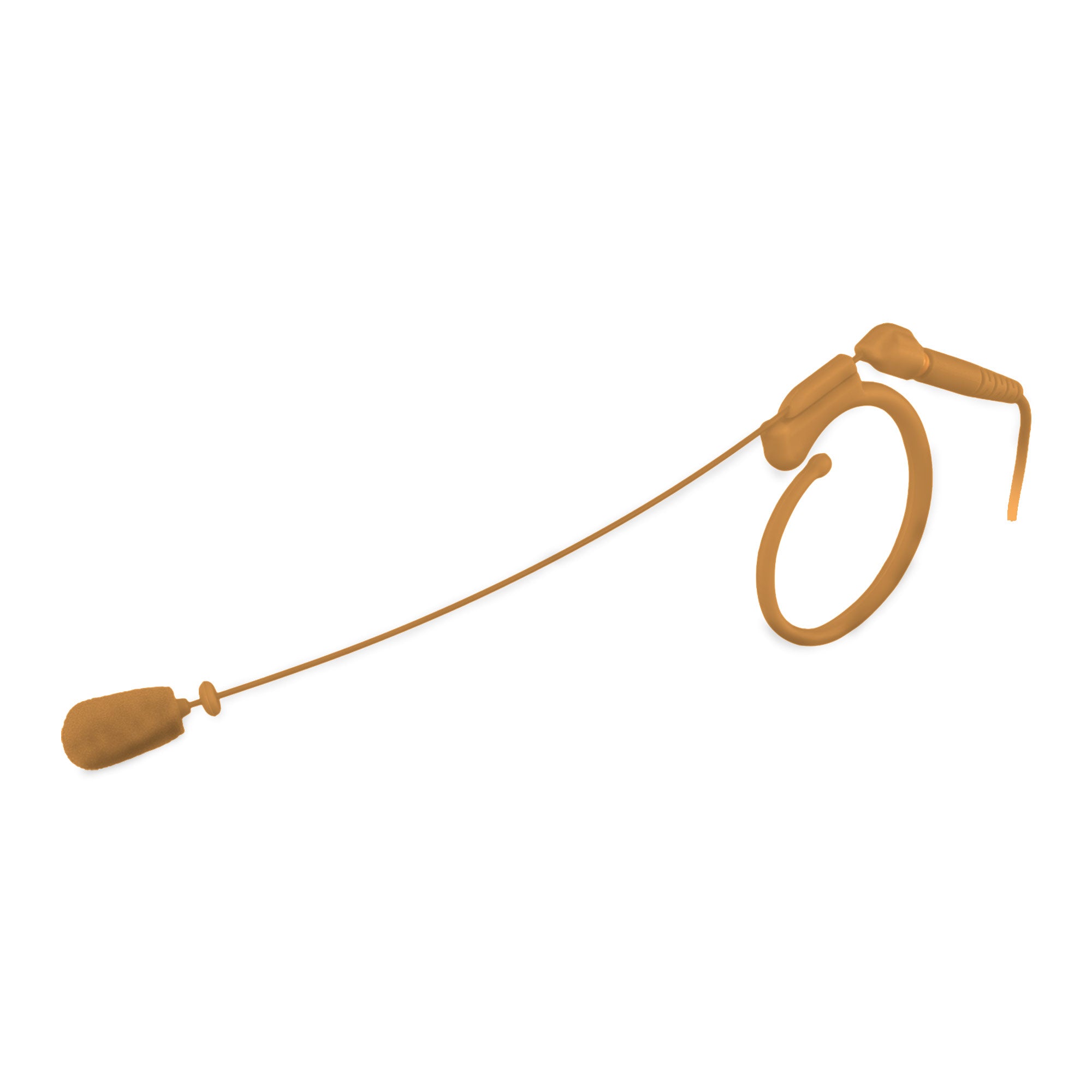

HT7 Headworn Condenser Microphone

  • Hands free, headworn vocal microphone, available in Black or Beige

Available Frequency Bands

  • A = 522 MHz - 554 MHz
  • B = 554 MHz - 586 MHz

More +

Product Specs

R41 Receiver
Frequency Range A Band: 522 MHz – 554 MHz
B Band: 554 MHz - 586 MHz
Bandwidth 32 MHz
Compatible Systems 8 Compatible system operation
Switchable Frequencies 106 Preset frequencies
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Single tuner, diversity
Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors 1/4", XLR
Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range 300', (91 M)
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions 205 mm (W) x 206 mm (D) x 44 mm (H)
Net Weight 1.92 lbs. / 870 g
B60 Bodypack
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 dB, -6 dB, -12 dB
Input Connector 3 pin mini-XLR
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 10 hours
Input Impedance Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D)
Net Weight 3.0 oz / 85 g (without battery)
