Audix AP41 L10 Lavalier Wireless System (B Band / 554-586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

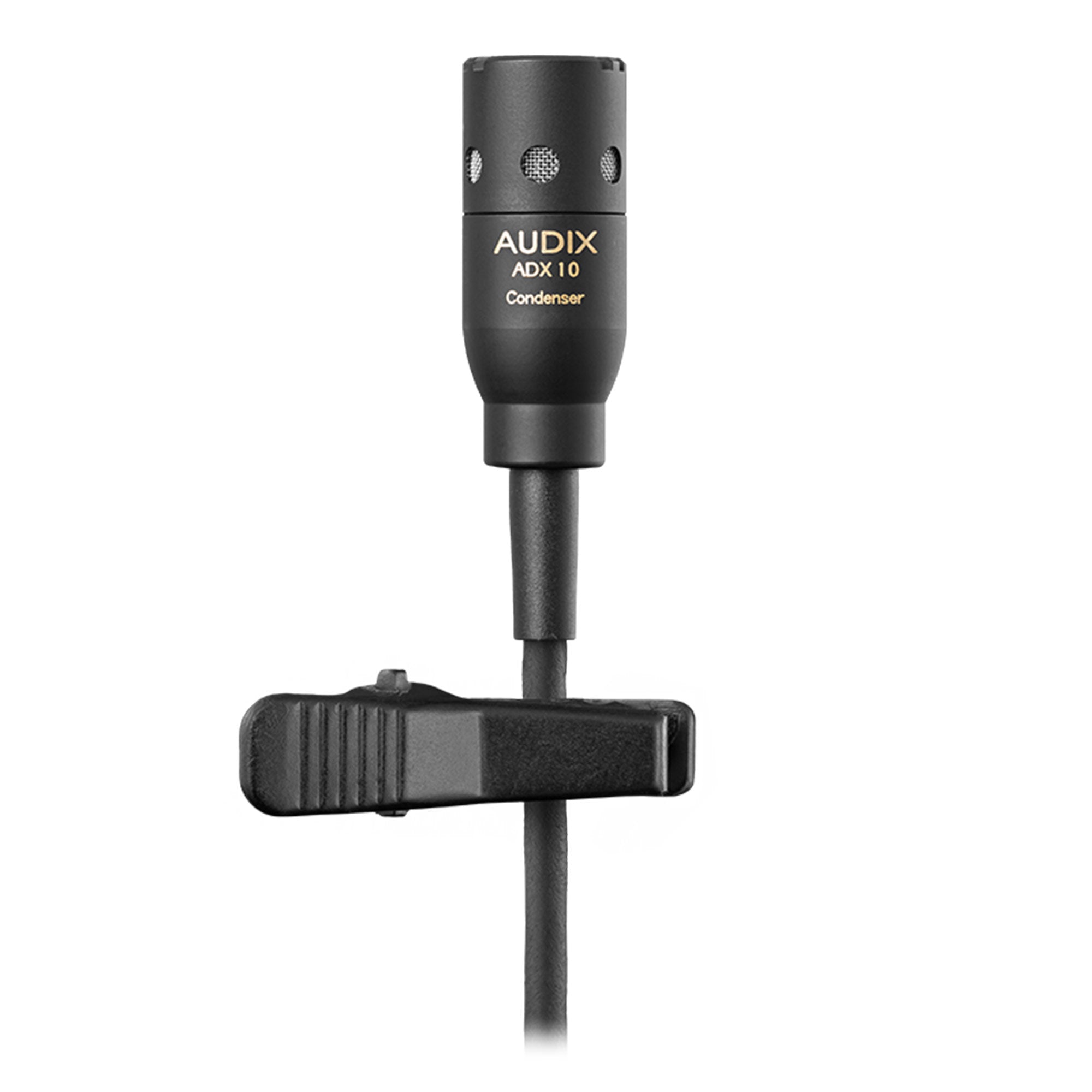

A value packed bodypack diversity wireless system featuring the ADX10 cardioid miniature condenser microphone. The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.
Features:
R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

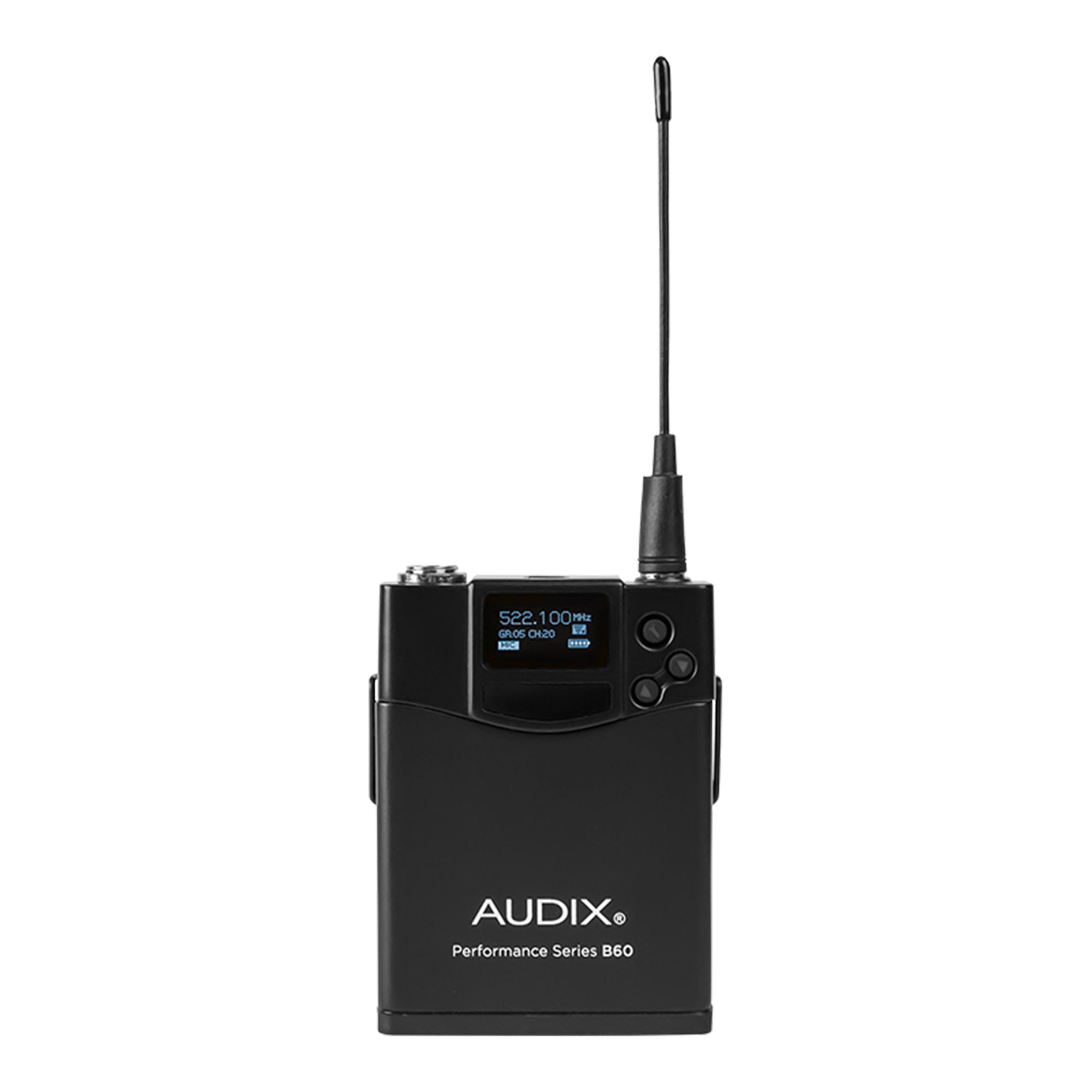

B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R41 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 205 mm (W) x 206 mm (D) x 44 mm (H) |
| Net Weight | 1.92 lbs. / 870 g |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
