Audix AP41 OM2-L10 Combo Wireless System (A Band/522-554 MHz)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:AUDX-AP41OM2L10A

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)

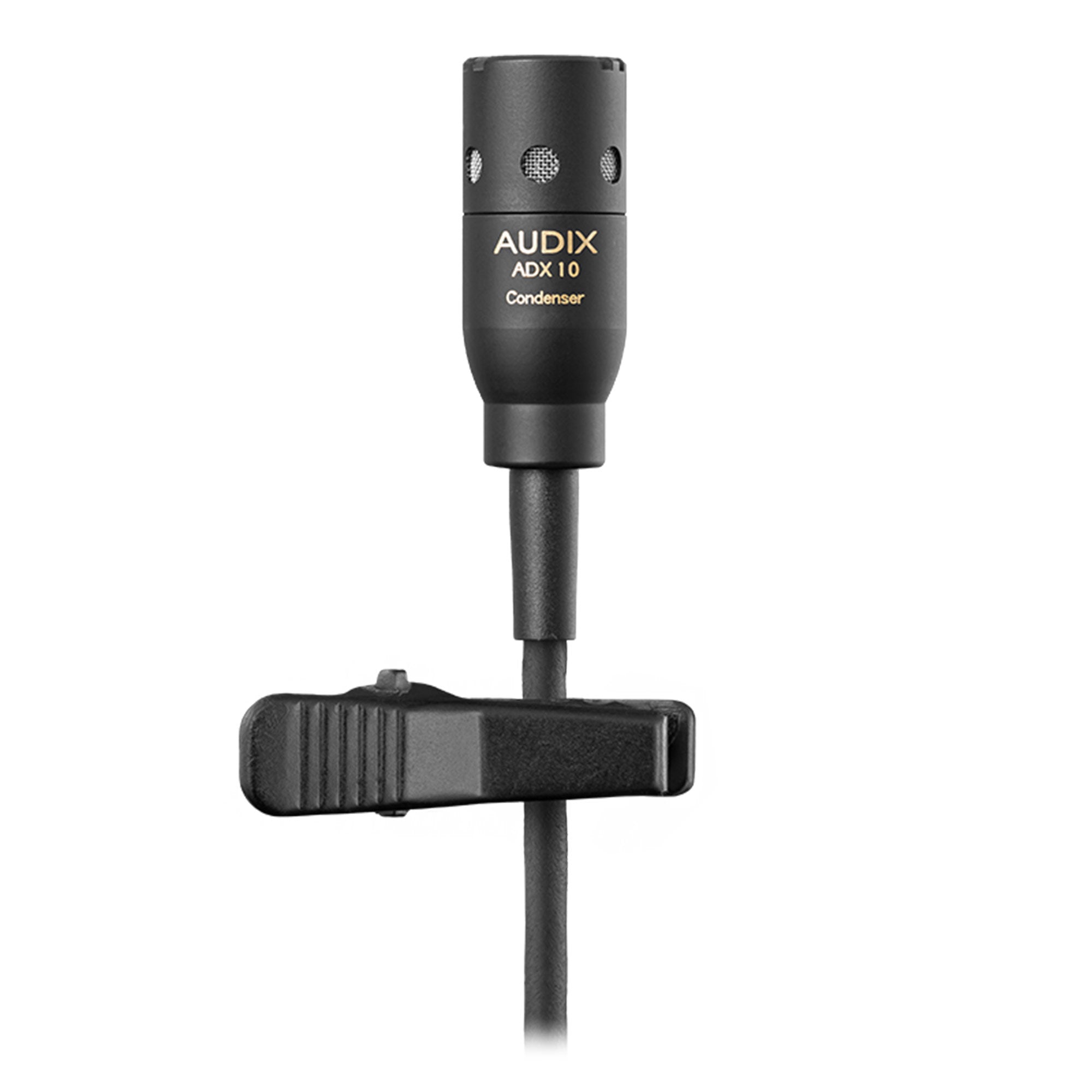

  • A combination system that allows for the flexibility of using either the OM2 handheld transmitter or the bodypack system with the ADX10 cardioid lavalier microphone. This package is designed for rental companies, hotels, presentation events, education and applications where only one transmitter would be required at a time. (Please note: it is not possible use both transmitters simultaneously-see the AP42 C210, a combo pack where both transmitters can be used at the same time.)

    Features:

    R42 Two Channel Diversity Receiver

    • 32 MHz Wide spectrum tuning receiver
    • 106 Pre-coordinated frequencies
    • One-touch auto scan searches for clear channel
    • One-touch sync links transmitter to receiver via infrared beam

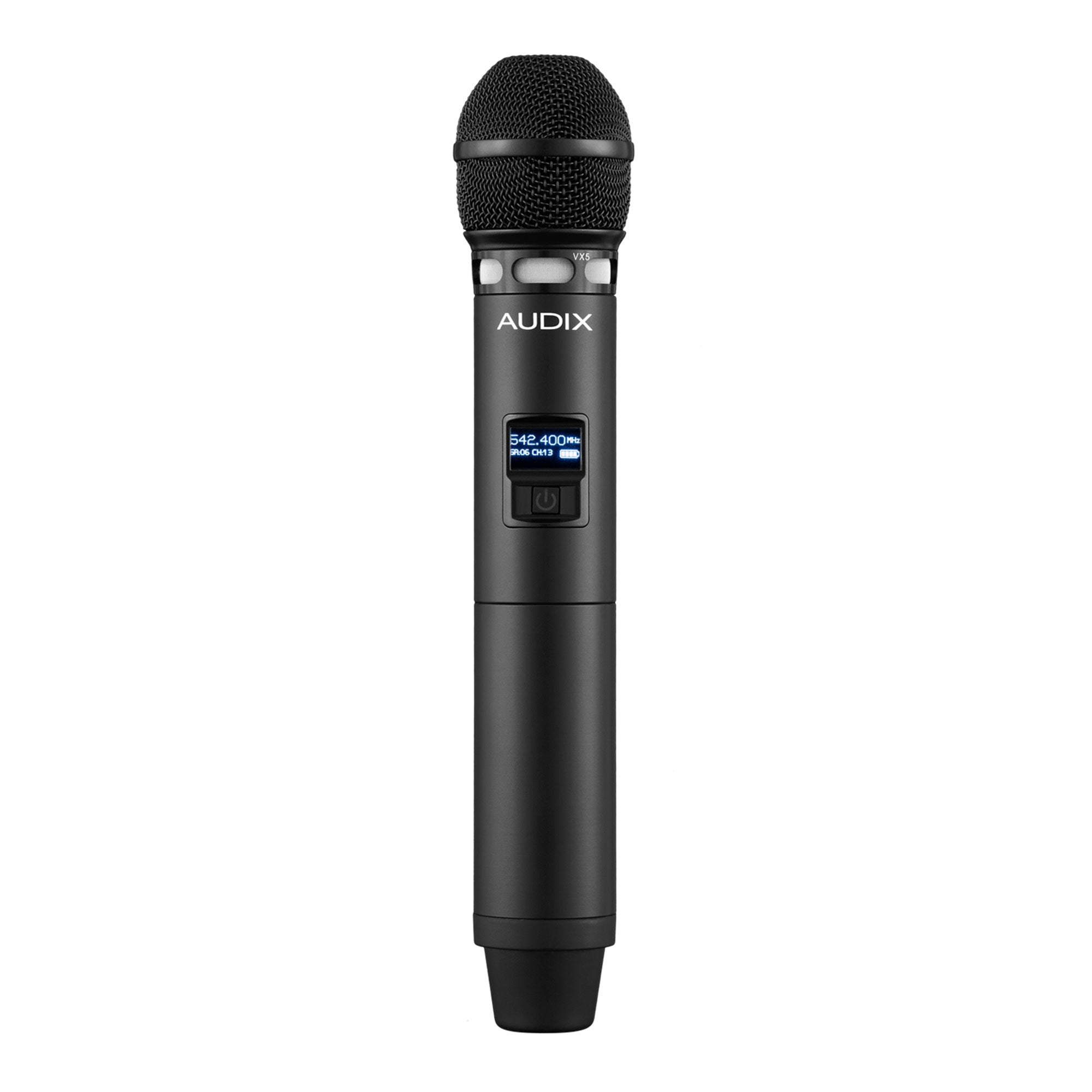

    H60 OM2 Handheld Transmitter

    • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
    • Durable metal housing
    • 10 Hour run time - AA batteries

    B60 Bodypack Transmitter

    • 64 MHz Wide spectrum transmitter
    • Durable metal housing
    • 10 Hour run time - AA batteries

    Available Frequency Bands

    • A = 522 MHz - 554 MHz
    • B = 554 MHz - 586 MHz
  • R42 Receiver
    Frequency Range A Band: 522 MHz – 554 MHz
    B Band: 554 MHz - 586 MHz
    Bandwidth 32 MHz
    Compatible Systems 8 Compatible system operation
    Switchable Frequencies 106 Preset frequencies
    Frequency Response 45 Hz – 18 kHz
    Compander System 2:1
    Pilot Tone 32 kHz
    Receiving System Single tuner, diversity
    Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
    Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
    Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
    Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
    Output Connectors 1/4", XLR
    Audio Level Adjust Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)
    Range 300', (91 M)
    Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
    Dimensions 406 mm (W) x 209 mm (D) x 44 mm (H)
    Net Weight 4.4 lbs. / 2.0 kg

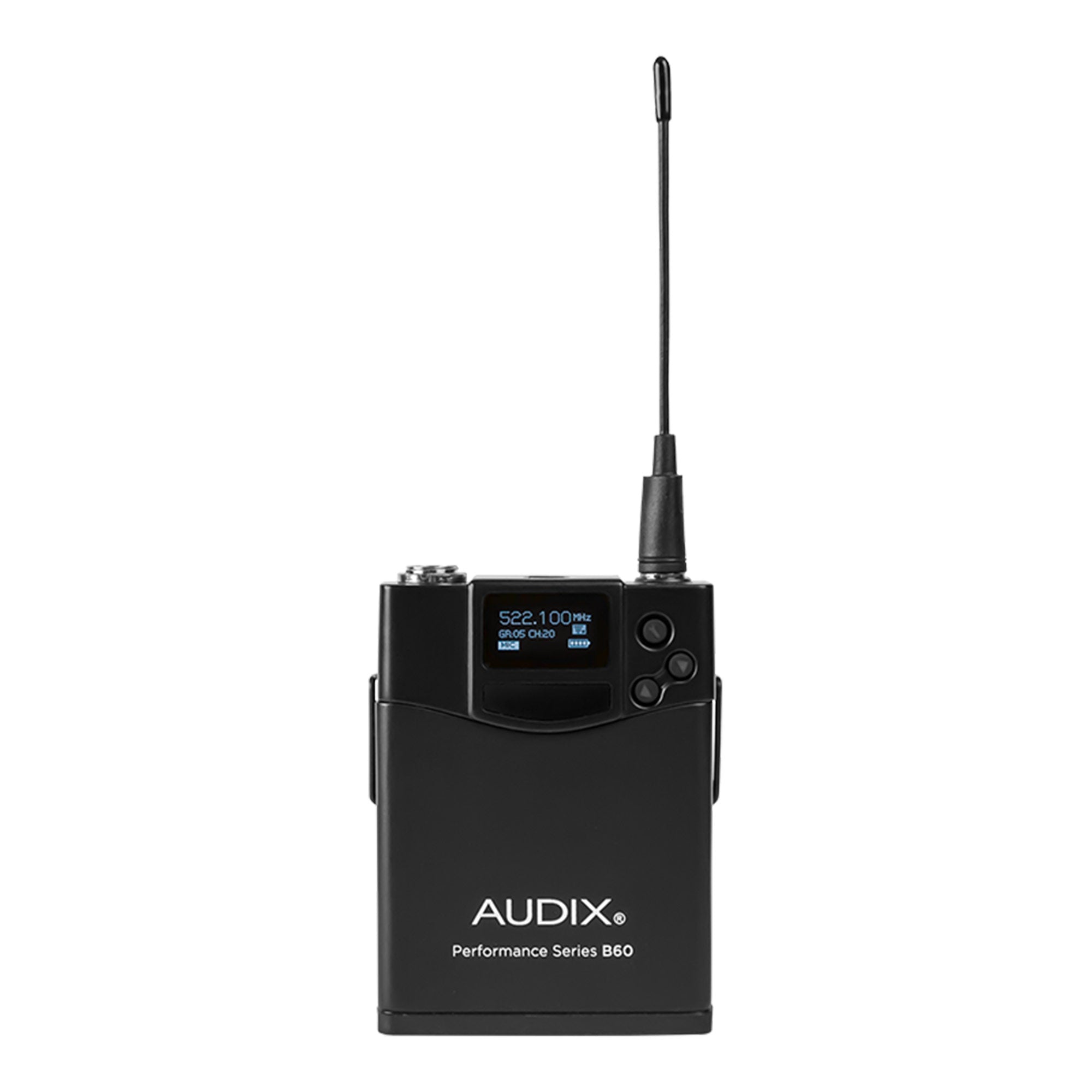

    B60 Bodypack
    RF Power Output 10 mW, 40 mW
    Frequency Bandwidth 64 MHz
    Gain Controls 0 dB, -6 dB, -12 dB
    Input Connector 3 pin mini-XLR
    Batteries Included 2 AA 1.5 V
    Current Consumption 110 mA typical
    Battery Life 10 hours
    Input Impedance Mic: 10 kohm, Line: 1 Mohm
    Max Sound Pressure Level 128 dB to140 dB (depending on mic)
    Dimensions 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D)
    Net Weight 3.0 oz / 85 g (without battery)
    H60 Handheld Transmitter
    RF Power Output 10 mW, 40 mW
    Frequency Bandwidth 64 MHz
    Gain Controls 0 dB, -6 dB, -12 dB
    Batteries Included 2 AA 1.5 V
    Current Consumption 110 mA typical
    Battery Life 10 hours
    Max Sound Pressure Level >140 dB (depending on capsule)
    Dimensions 2.1” diameter body, 10.43” (L),
    53 mm diameter body, 265 mm (L)
    Net Weight 11.0 oz / 312 g (without battery)
