Audix AP41 SAX Wind Instrument Wireless System (A Band / 522-554 MHz)

  • Dale #:

    AUDX-AP41SAXA
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

A professional diversity wireless system featuring the ADX20i clip on cardioid condenser for sax, trumpet and brass instruments. Designed for stage, broadcast and recording, the ADX20i handles high sound pressure levels and provides natural sound reproduction at very close distances. The lightwei... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

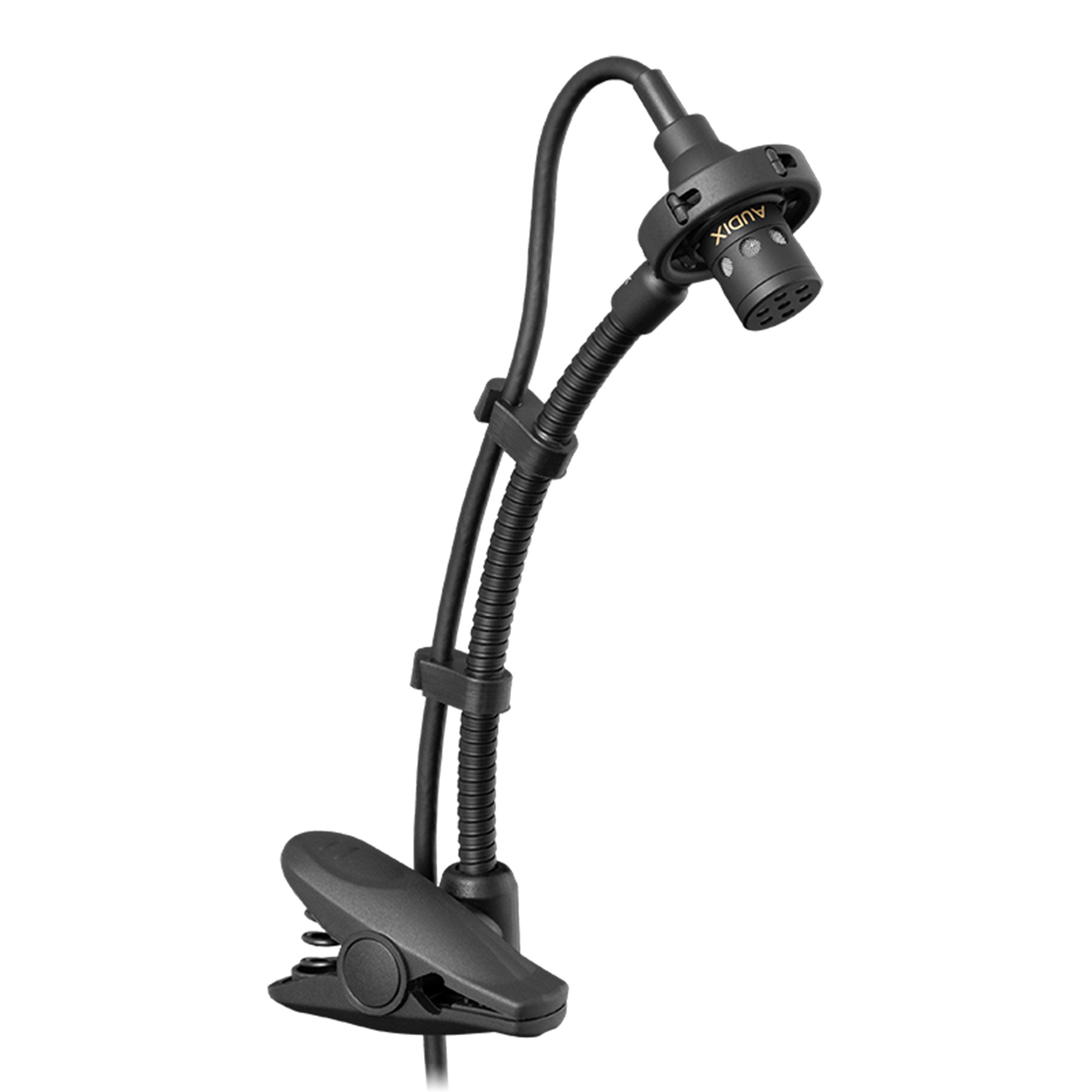

A professional diversity wireless system featuring the ADX20i clip on cardioid condenser for sax, trumpet and brass instruments. Designed for stage, broadcast and recording, the ADX20i handles high sound pressure levels and provides natural sound reproduction at very close distances. The lightweight, compact and easy to use ADX20i features a shock mounted clip to help reduce noise and vibration. The spring tension clip makes for easy mounting on the bell of an instrument, and a flexible gooseneck allows for precise positioning.

Features:

R41 Diversity Receiver

  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

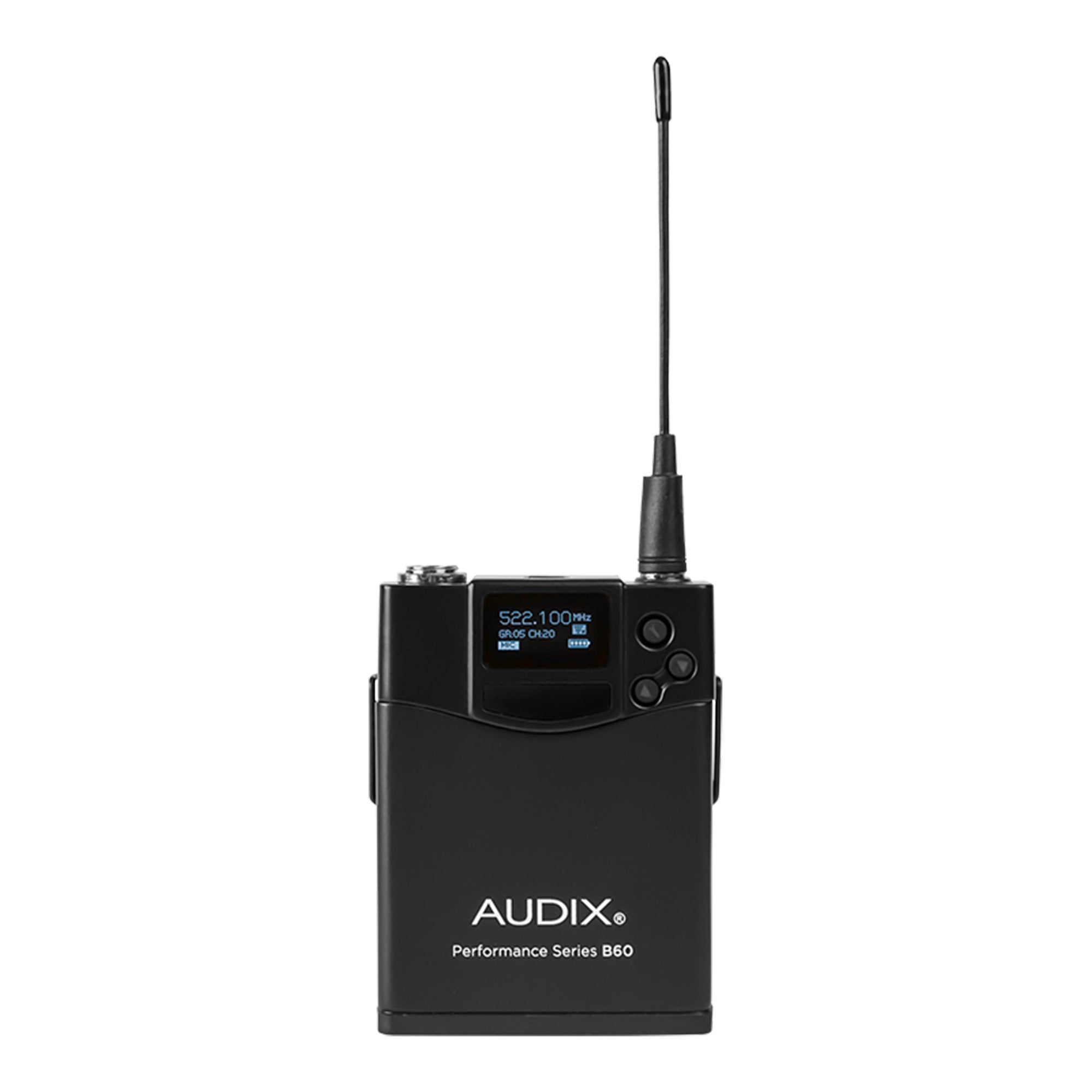

B60 Bodypack Transmitter

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 10 Hour run time - AA batteries
  • ADX20i Clip on Condenser Microphone

Available Frequency Bands

  • A = 522 MHz - 554 MHz
  • B = 554 MHz - 586 MHz

More +

Product Specs

R41 Receiver
Frequency Range A Band: 522 MHz – 554 MHz
B Band: 554 MHz - 586 MHz
Bandwidth 32 MHz
Compatible Systems 8 Compatible system operation
Switchable Frequencies 106 Preset frequencies
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Single tuner, diversity
Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors 1/4", XLR
Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range 300', (91 M)
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions 205 mm (W) x 206 mm (D) x 44 mm (H)
Net Weight 1.92 lbs. / 870 g
B60 Bodypack
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 dB, -6 dB, -12 dB
Input Connector 3 pin mini-XLR
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 10 hours
Input Impedance Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D)
Net Weight 3.0 oz / 85 g (without battery)
"

More +
