Audix AP41 SAX Wind Instrument Wireless System (B Band / 554-586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

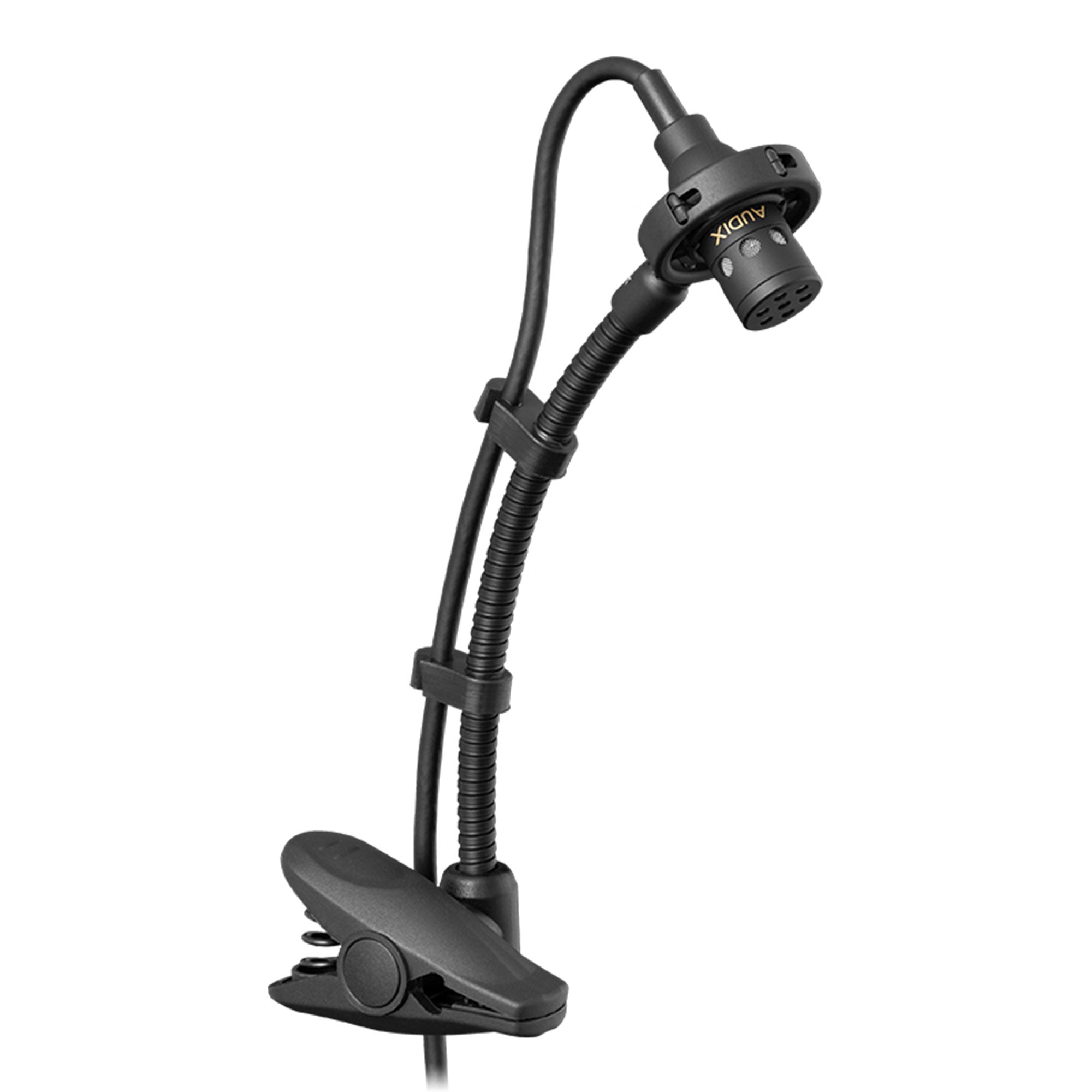

A professional diversity wireless system featuring the ADX20i clip on cardioid condenser for sax, trumpet and brass instruments. Designed for stage, broadcast and recording, the ADX20i handles high sound pressure levels and provides natural sound reproduction at very close distances. The lightweight, compact and easy to use ADX20i features a shock mounted clip to help reduce noise and vibration. The spring tension clip makes for easy mounting on the bell of an instrument, and a flexible gooseneck allows for precise positioning.
Features:
R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

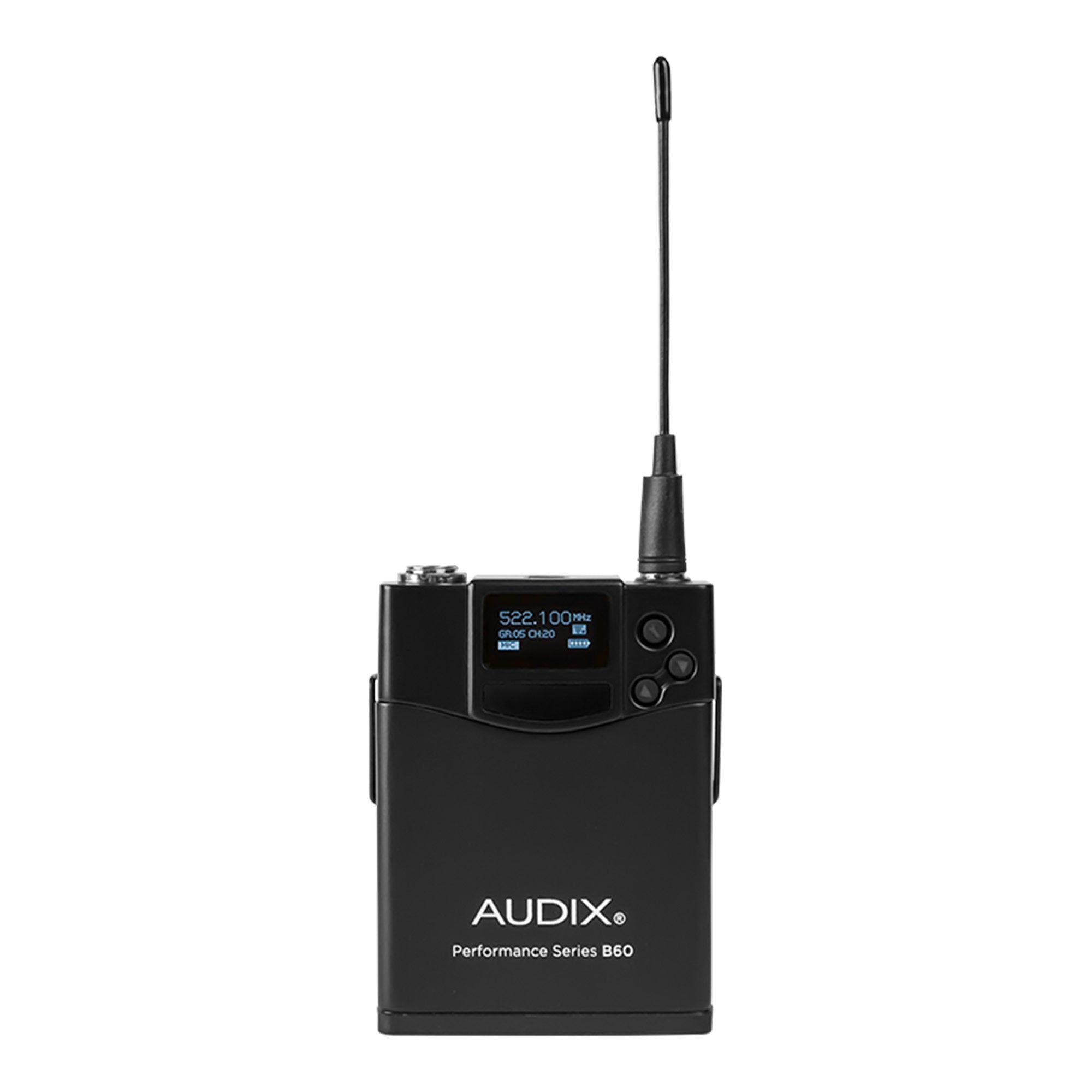

B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 10 Hour run time - AA batteries
- ADX20i Clip on Condenser Microphone
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R41 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 205 mm (W) x 206 mm (D) x 44 mm (H) |
| Net Weight | 1.92 lbs. / 870 g |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
A professional diversity wireless system featuring the ADX20i clip on cardioid condenser for sax, trumpet and brass instruments. Designed for stage, broadcast and recording, the ADX20i handles high sound pressure levels and provides natural sound reproduction at very close distances. The lightweight, compact and easy to use ADX20i features a shock mounted clip to help reduce noise and vibration. The spring tension clip makes for easy mounting on the bell of an instrument, and a flexible gooseneck allows for precise positioning.
