Audix AP41 VX5 Handheld Wireless System (A Band/522-554 MHz)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:AUDX-AP41VX5A

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • A highly detailed handheld diversity wireless system featuring the Audix VX5. The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 has a smooth and detailed frequency response, resistance to feedback and handles very high SPLs without distortion.

    Features:

    R41 Diversity Receiver

    • 32 MHz Wide spectrum receiver
    • 106 Pre-coordinated frequencies for quick, easy and reliable set up
    • One-touch auto scan searches for clear channel
    • One-touch sync links transmitter to receiver via infrared beam

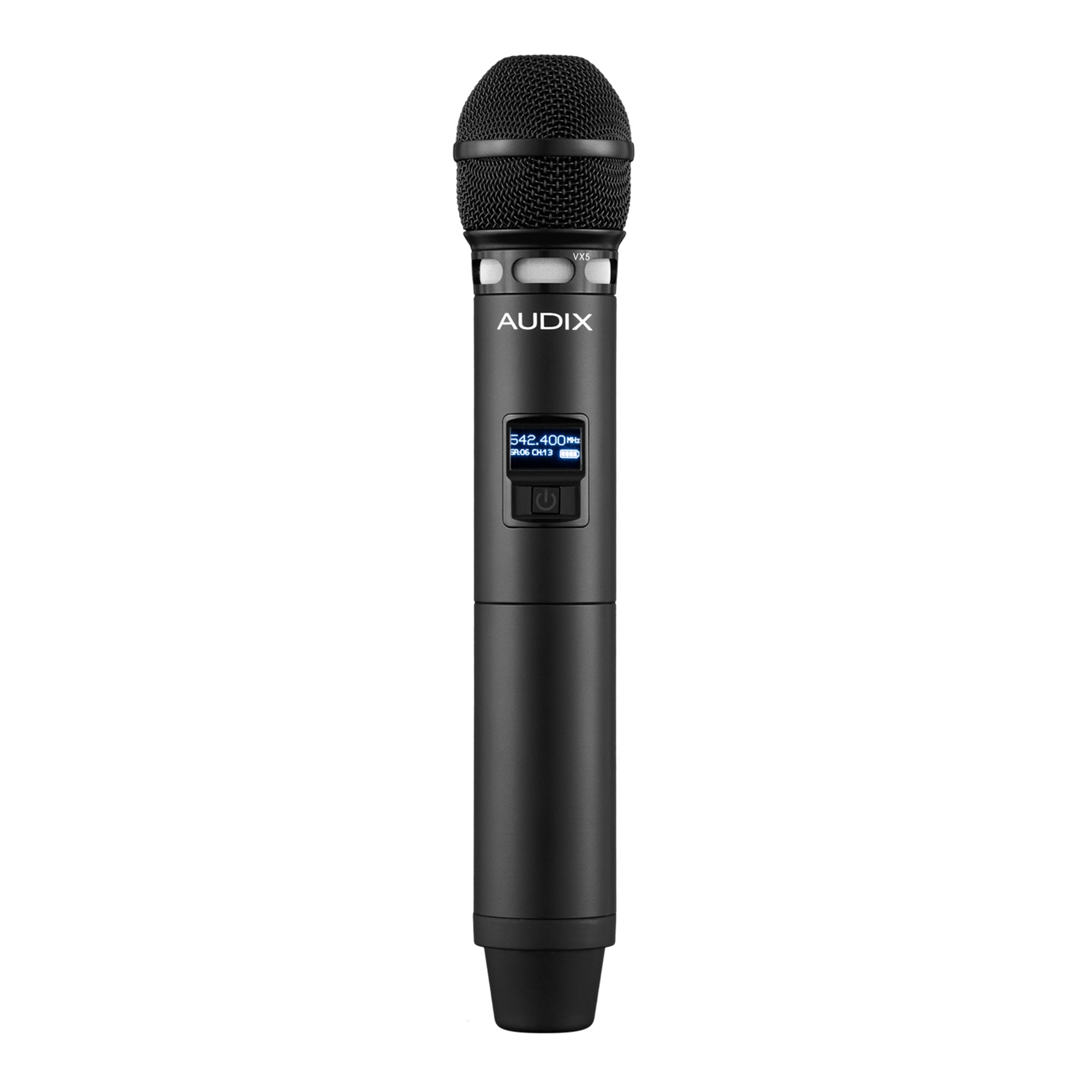

    H60 VX5 Handheld Microphone

    • 64 MHz Wide spectrum transmitter with VX5 Condenser capsule
    • Durable metal housing
    • 10 Hour run time - AA batteries

    Available Frequency Bands

    • A = 522 MHz - 554 MHz
    • B = 554 MHz - 586 MHz
  • R42 Receiver
    Frequency Range A Band: 522 MHz – 554 MHz
    B Band: 554 MHz - 586 MHz
    Bandwidth 32 MHz
    Compatible Systems 8 Compatible system operation
    Switchable Frequencies 106 Preset frequencies
    Frequency Response 45 Hz – 18 kHz
    Compander System 2:1
    Pilot Tone 32 kHz
    Receiving System Single tuner, diversity
    Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
    Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
    Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
    Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
    Output Connectors 1/4", XLR
    Audio Level Adjust Balanced: -12 to +9 dBu
    Line: -24 to +4 dBu (adjustable in 3 dB-steps)
    Range 300', (91 M)
    Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
    Dimensions 406 mm (W) x 209 mm (D) x 44 mm (H)
    Net Weight 4.4 lbs. / 2.0 kg
    H60 Handheld Transmitter
    RF Power Output 10 mW, 40 mW
    Frequency Bandwidth 64 MHz
    Gain Controls 0 dB, -6 dB, -12 dB
    Batteries Included 2 AA 1.5 V
    Current Consumption 110 mA typical
    Battery Life 10 hours
    Max Sound Pressure Level >140 dB (depending on capsule)
    Dimensions 2.1” diameter body, 10.43” (L),
    53 mm diameter body, 265 mm (L)
    Net Weight 11.0 oz / 312 g (without battery)
