Audix AP42 BP Dual Bodypack Wireless System (A Band / 522-554 MHz)

  • Dale #:

    AUDX-AP42BPA
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

A value packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, headworn or instrument microphone in the Audix line, as well as guitar and bass. Included is a rack mount kit and BNC cables for front mounting antennas. Features: R42 Tw... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A value packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, headworn or instrument microphone in the Audix line, as well as guitar and bass. Included is a rack mount kit and BNC cables for front mounting antennas.

Features:

R42 Two Channel Diversity Receiver

  • 32 MHz Wide spectrum tuning receiver
  • 106 Pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

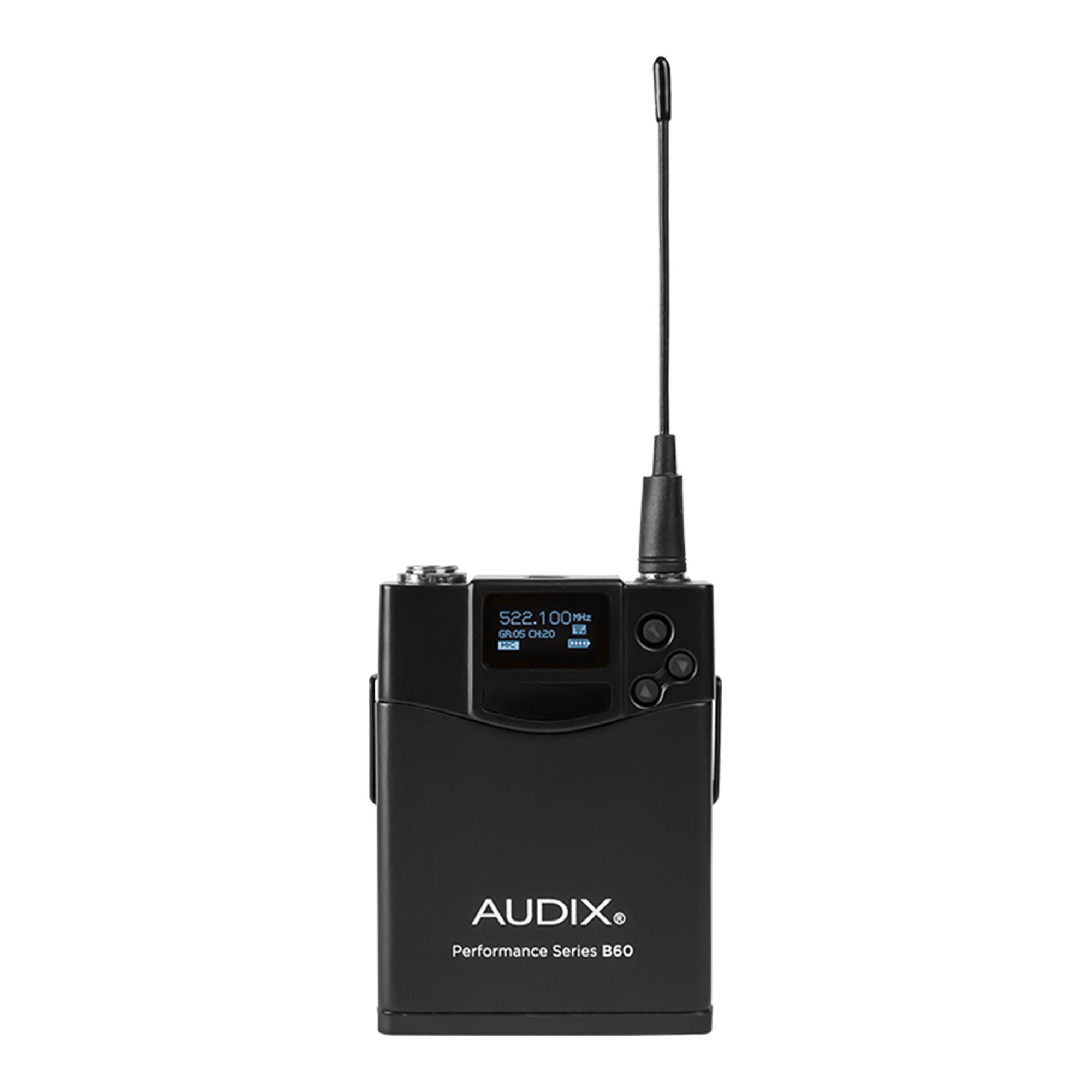

B60 Bodypack Transmitter

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 10 Hour run time - AA batteries

Available Frequency Bands

  • A = 522 MHz - 554 MHz
  • B = 554 MHz - 586 MHz

More +

Product Specs

R42 Receiver
Frequency Range A Band: 522 MHz – 554 MHz
B Band: 554 MHz - 586 MHz
Bandwidth 32 MHz
Compatible Systems 8 Compatible system operation
Switchable Frequencies 106 Preset frequencies
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Single tuner, diversity
Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors 1/4", XLR
Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range 300', (91 M)
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions 406 mm (W) x 209 mm (D) x 44 mm (H)
Net Weight 4.4 lbs. / 2.0 kg
B60 Bodypack
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 dB, -6 dB, -12 dB
Input Connector 3 pin mini-XLR
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 10 hours
Input Impedance Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D)
Net Weight 3.0 oz / 85 g (without battery)
