Audix AP42 BP Dual Bodypack Wireless System (B Band / 554-586 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A value packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, headworn or instrument microphone in the Audix line, as well as guitar and bass. Included is a rack mount kit and BNC cables for front mounting antennas.
Features:
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum tuning receiver
- 106 Pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

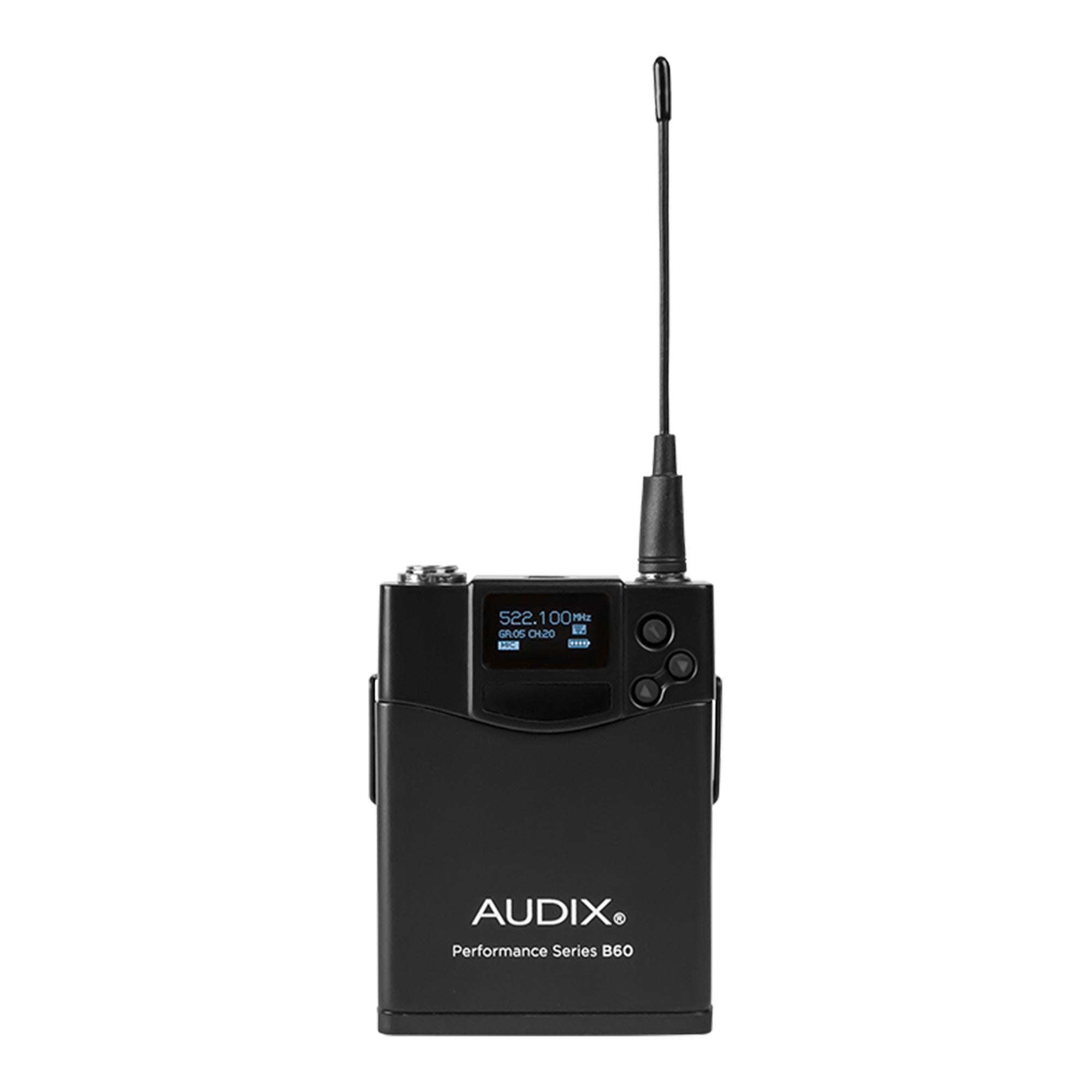

B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R42 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.4 lbs. / 2.0 kg |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
A value packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, headworn or instrument microphone in the Audix line, as well as guitar and bass. Included is a rack mount kit and BNC cables for front mounting antennas.
Features:
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum tuning receiver
- 106 Pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R42 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.4 lbs. / 2.0 kg |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
