Audix AP42 C210 Combo Wireless System (A Band / 522-554 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

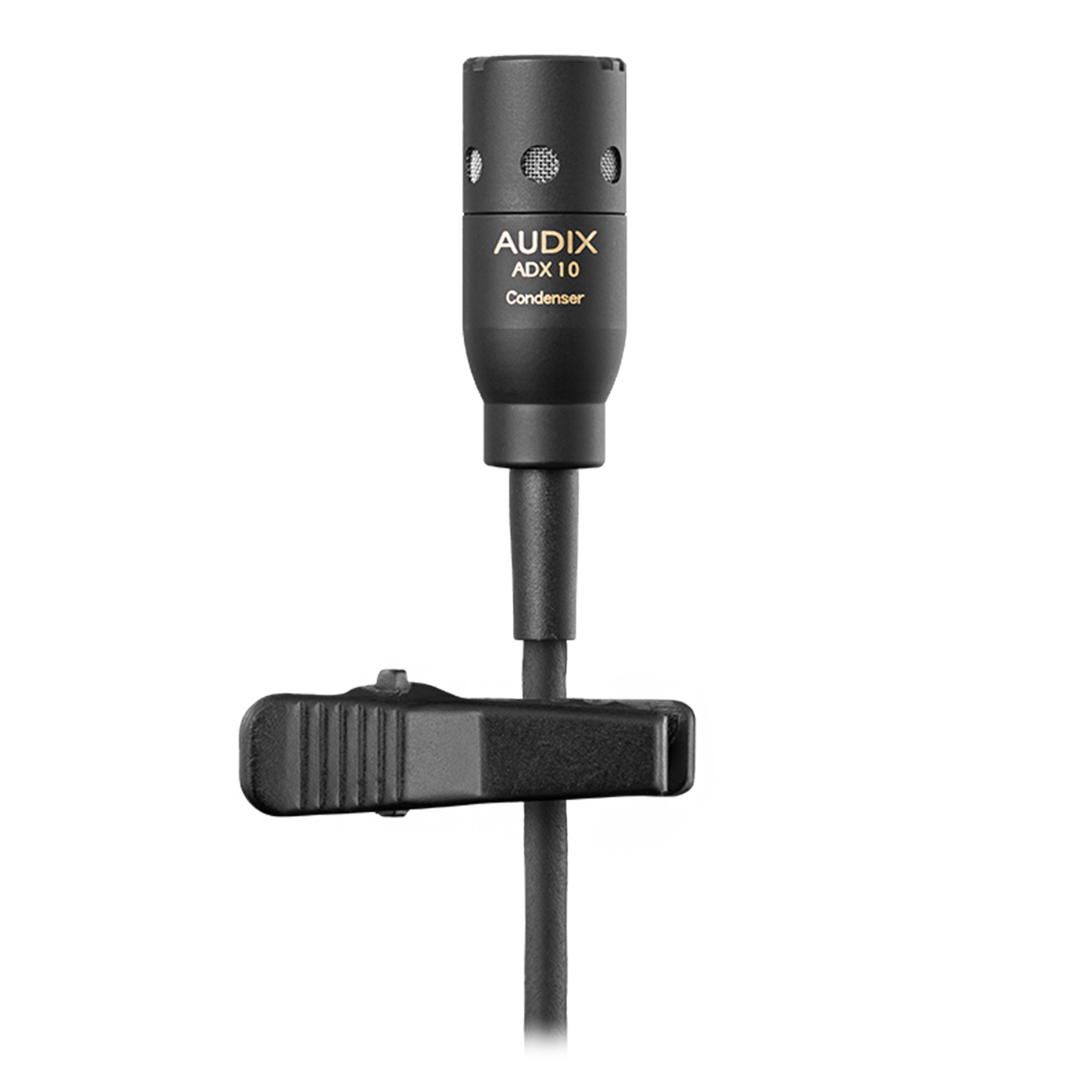

A dual channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system.
This is a very efficient and cost effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.
Features:
R42 Two Channel Diversity Receiver
- 32 MHz Wide spectrum tuning receiver
- 106 Pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam

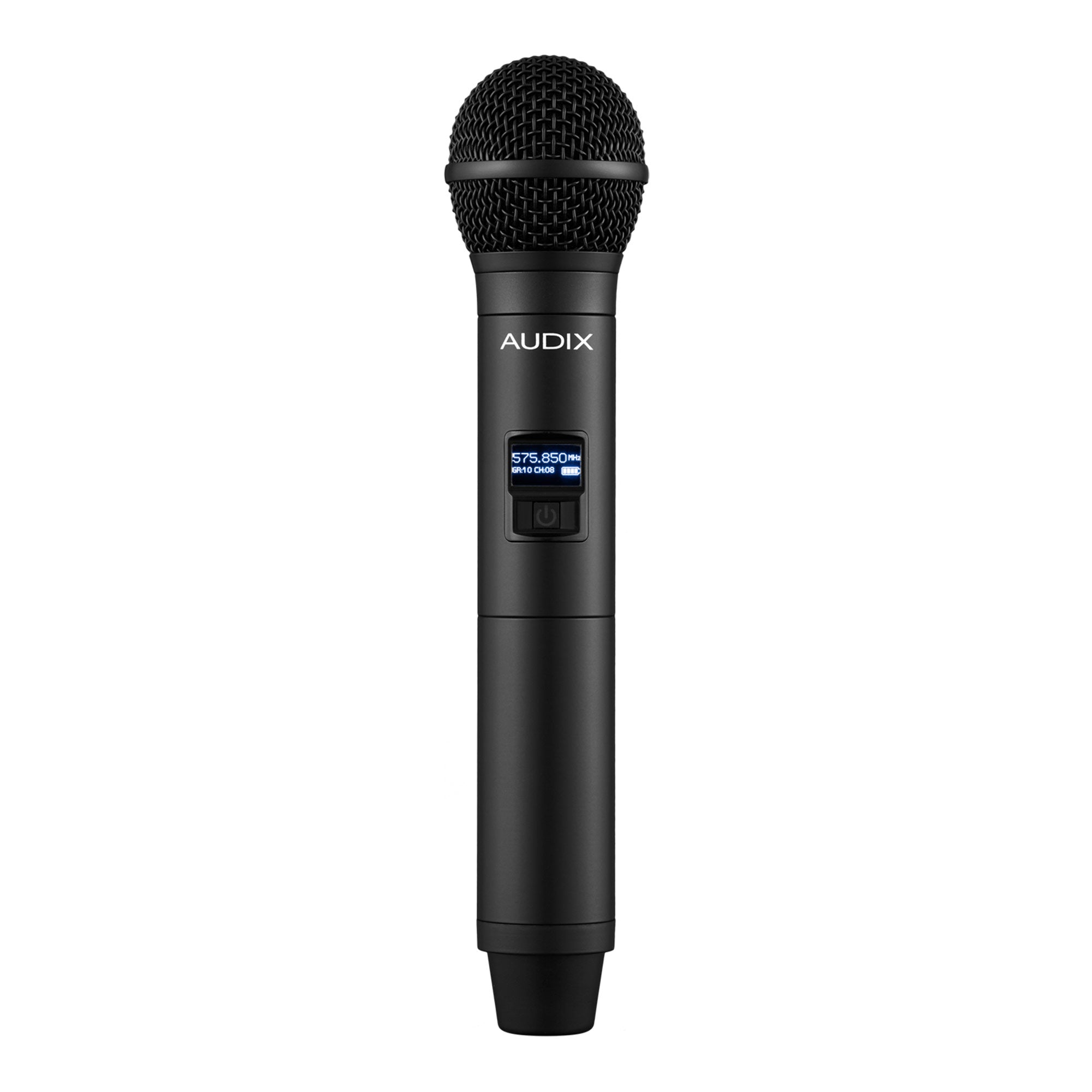

H60 OM2 Handheld Transmitter
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
- Durable metal housing
- 10 Hour run time - AA batteries

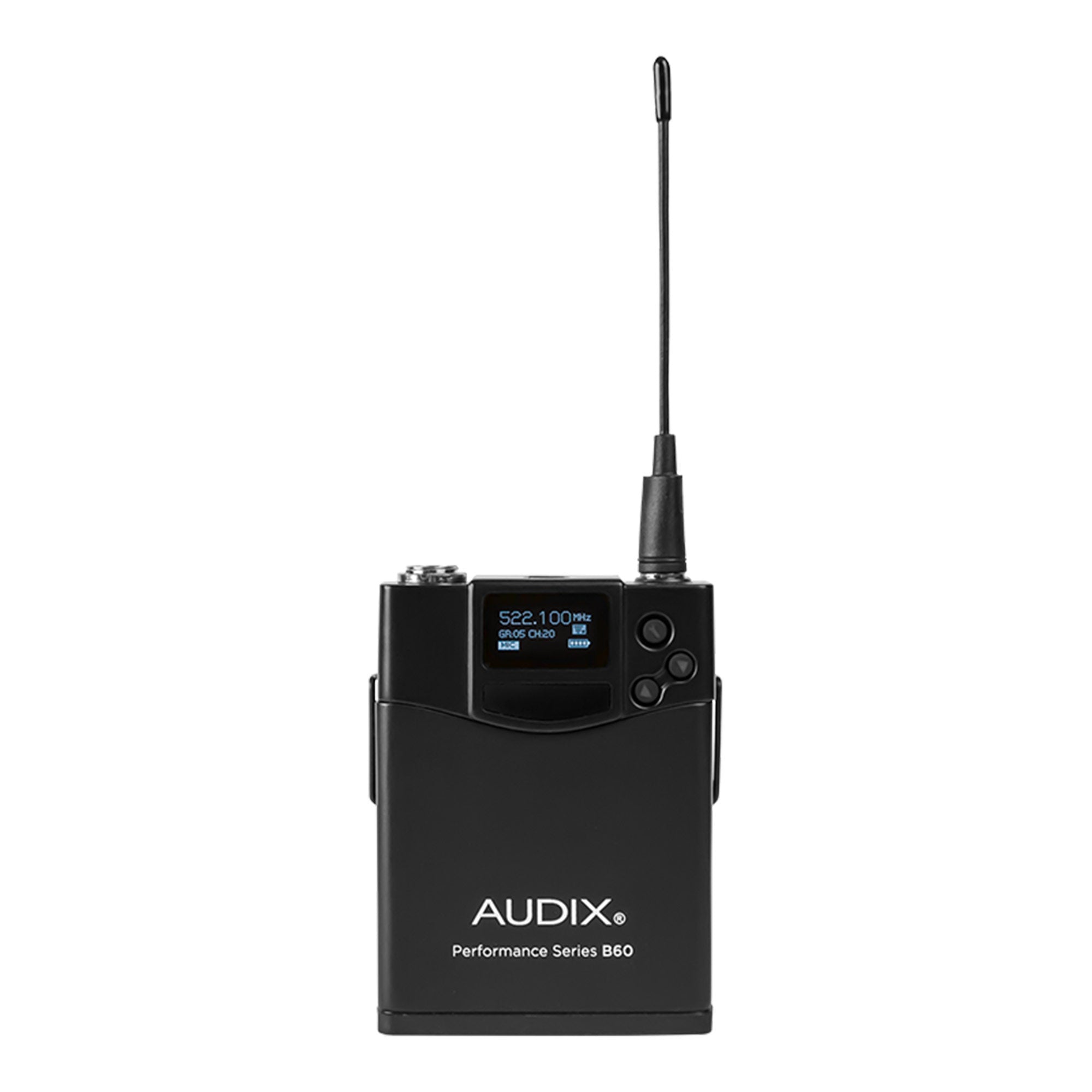

B60 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 10 Hour run time - AA batteries
Available Frequency Bands
- A = 522 MHz - 554 MHz
- B = 554 MHz - 586 MHz
| R42 Receiver | |
| Frequency Range | A Band: 522 MHz Ð 554 MHz B Band: 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 8 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | .7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions | 406 mm (W) x 209 mm (D) x 44 mm (H) |
| Net Weight | 4.4 lbs. / 2.0 kg |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
| H60 Handheld Transmitter | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 10 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L), 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
