Description
This is a very efficient and cost-effective wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.
R42 Two Channel Diversity Receiver:
- 32 MHz wide-spectrum tuning receiver
- 106 pre-coordinated frequencies
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam

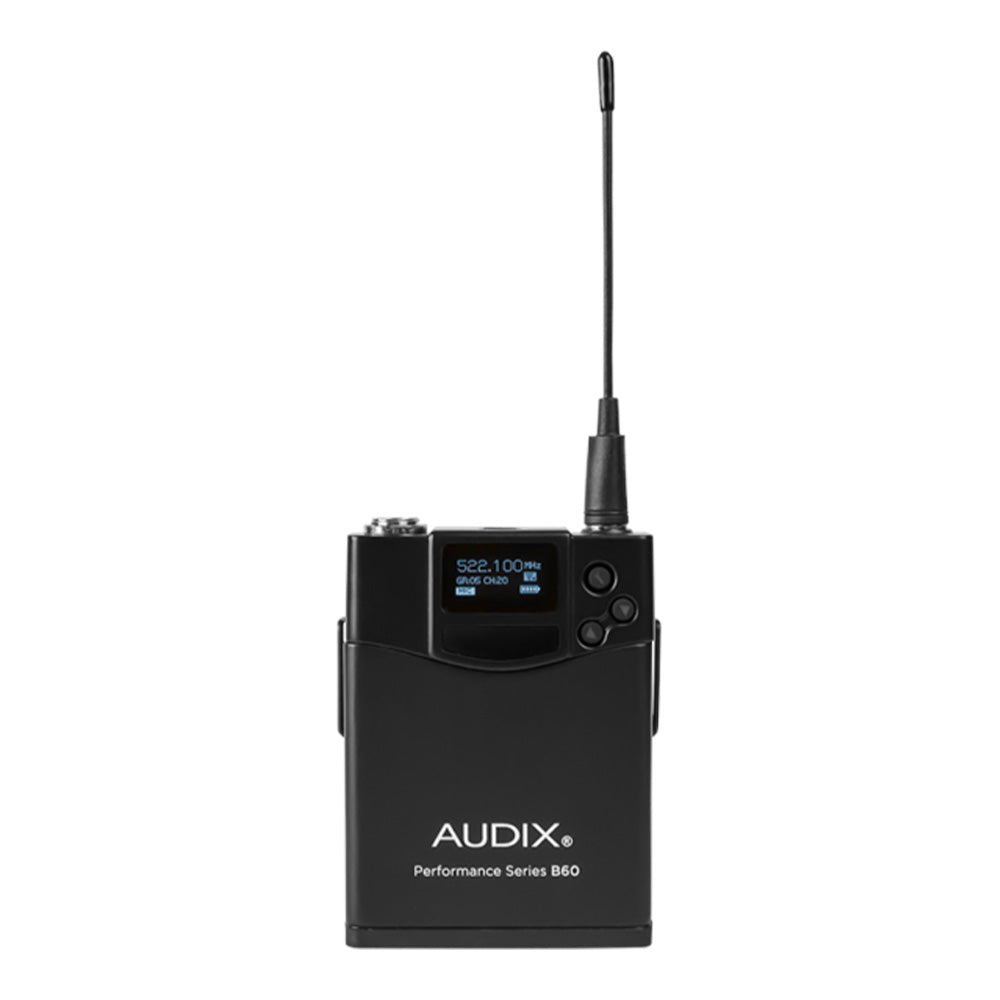

B60 Bodypack Transmitter:
- 64 MHz Wide spectrum transmitter
- Durable metal housing
- 14 Hour run time – AA batteries

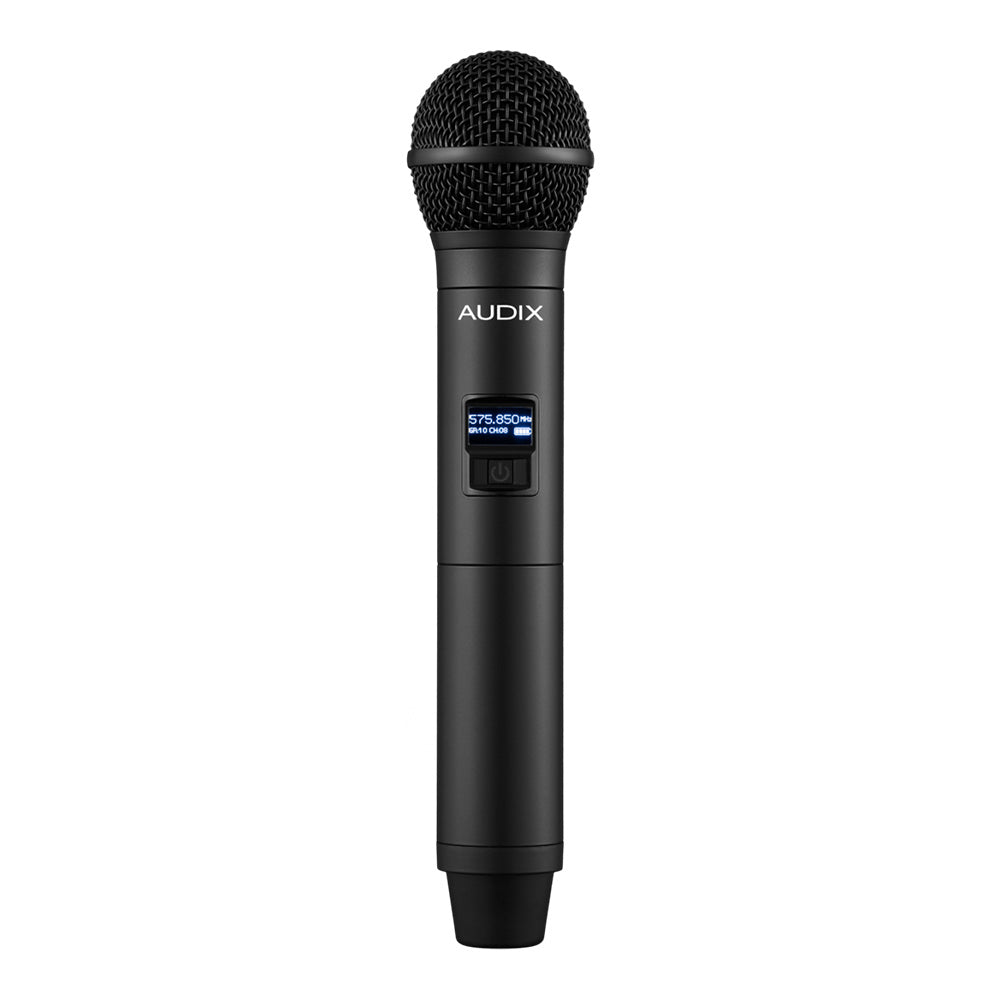

H60 OM2 Handheld Microphone:
- 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
- Durable metal housing
- 14 Hour run time – AA batteries
| R42 Receiver | |
| Frequency Range | 522 MHz Ð 554 MHz / 554 MHz - 586 MHz |
| Bandwidth | 32 MHz |
| Compatible Systems | 16 Compatible system operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz Ð 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | ?.7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dB?V (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300', (91 M) |
| Power Supply | 406 mm (W) x 209 mm (D) x 44 mm |
| Net Weight | 4.4 lbs. / 2.0 kg |
| H60 Handheld | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions | 2.1Ó diameter body, 10.43Ó (L) 53 mm diameter body, 265 mm (L) |
| Net Weight | 11.0 oz / 312 g (without battery) |
| B60 Bodypack | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 db, -6 dB, -12 dB |
| Input Connector | 3 pin mini-XLR |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Input Impedance | Mic: 10 kohm, Line: 1 Mohm |
| Max Sound Pressure Level | 128 dB to140 dB (depending on mic) |
| Dimensions | 67 mm (W) x 90 mm (L) x 17 mm (D) 2.6" (W) x 3.5" (L) x .67" (D) |
| Net Weight | 3.0 oz / 85 g (without battery) |
