Audix AP42 C2BP - Combo Wireless System (B Band / 554-586 MHz)

  • Dale #:

    AUDX-AP42C2BPB
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

This is a very efficient and cost-effective wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its exce... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

This is a very efficient and cost-effective wireless microphone system with the flexibility of a handheld mic. The OM2 has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.

R42 Two Channel Diversity Receiver:

  • 32 MHz wide-spectrum tuning receiver
  • 106 pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam

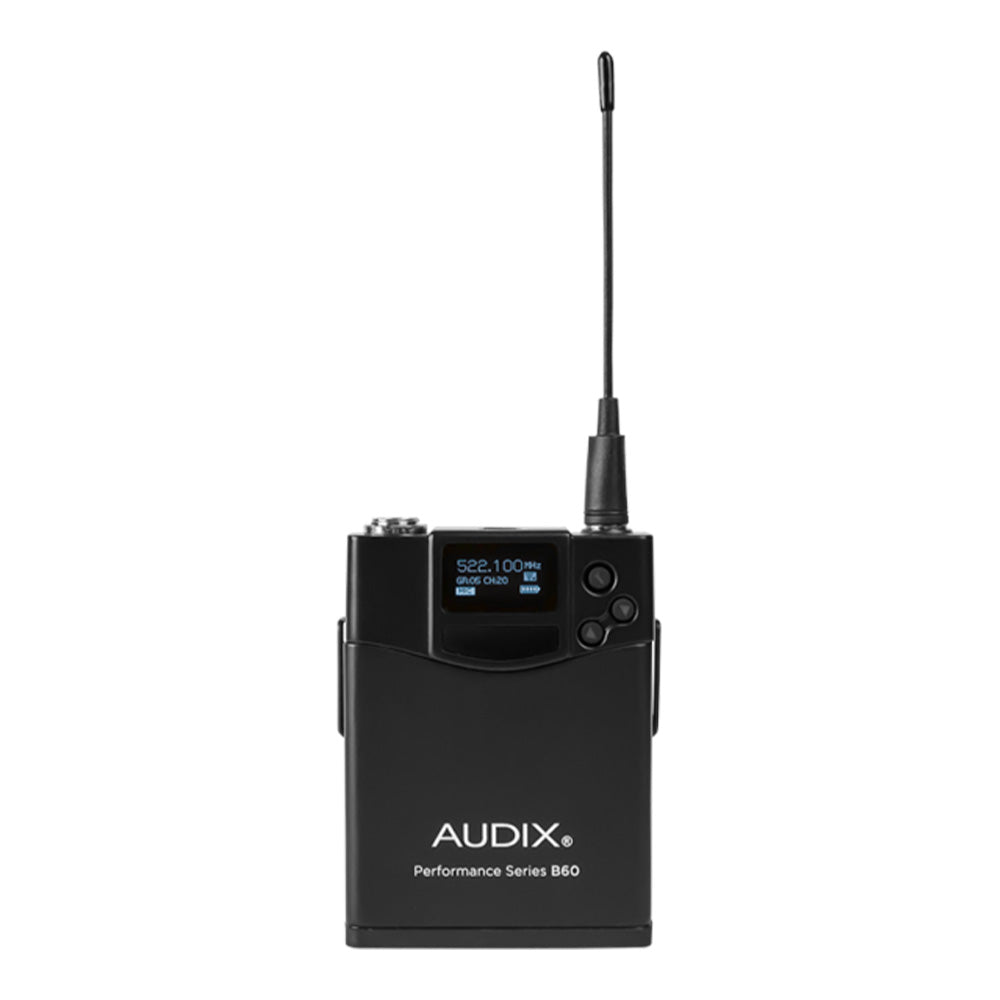

B60 Bodypack Transmitter:

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 14 Hour run time – AA batteries

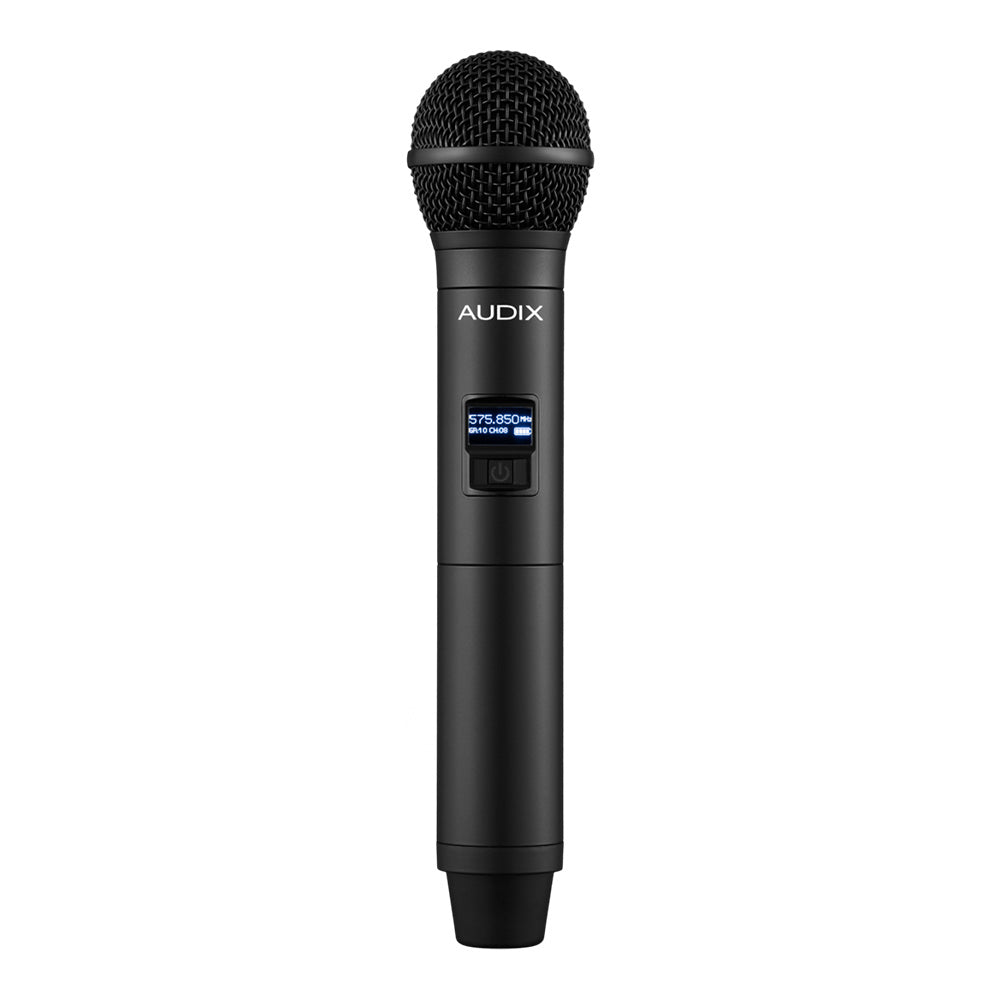

H60 OM2 Handheld Microphone:

  • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
  • Durable metal housing
  • 14 Hour run time – AA batteries

More +

Product Specs

R42 Receiver
Frequency Range 522 MHz – 554 MHz / 554 MHz - 586 MHz
Bandwidth 32 MHz
Compatible Systems 16 Compatible system operation
Switchable Frequencies 106 Preset frequencies
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Single tuner, diversity
Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion ?.7% (33 kHz deviation at 1 kHz)
Sensitivity 5 dB?V (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors 1/4", XLR
Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range 300', (91 M)
Power Supply 406 mm (W) x 209 mm (D) x 44 mm
Net Weight 4.4 lbs. / 2.0 kg
H60 Handheld
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 dB, -6 dB, -12 dB
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 14 hours
Max Sound Pressure Level >140 dB (depending on capsule)
Dimensions 2.1” diameter body, 10.43” (L)
53 mm diameter body, 265 mm (L)
Net Weight 11.0 oz / 312 g (without battery)
B60 Bodypack
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 db, -6 dB, -12 dB
Input Connector 3 pin mini-XLR
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 14 hours
Input Impedance Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions 67 mm (W) x 90 mm (L) x 17 mm (D)
2.6" (W) x 3.5" (L) x .67" (D)
Net Weight 3.0 oz / 85 g (without battery)
