Audix AP42 OM5 Dual Handheld Wireless System (A Band / 522-554 MHz)

  • Dale #:

    AUDX-AP42OM5A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

A high performance handheld diversity wireless system featuring the legendary Audix OM5. Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A high performance handheld diversity wireless system featuring the legendary Audix OM5. Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

Features:

R42 Two Channel Diversity Receiver

  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

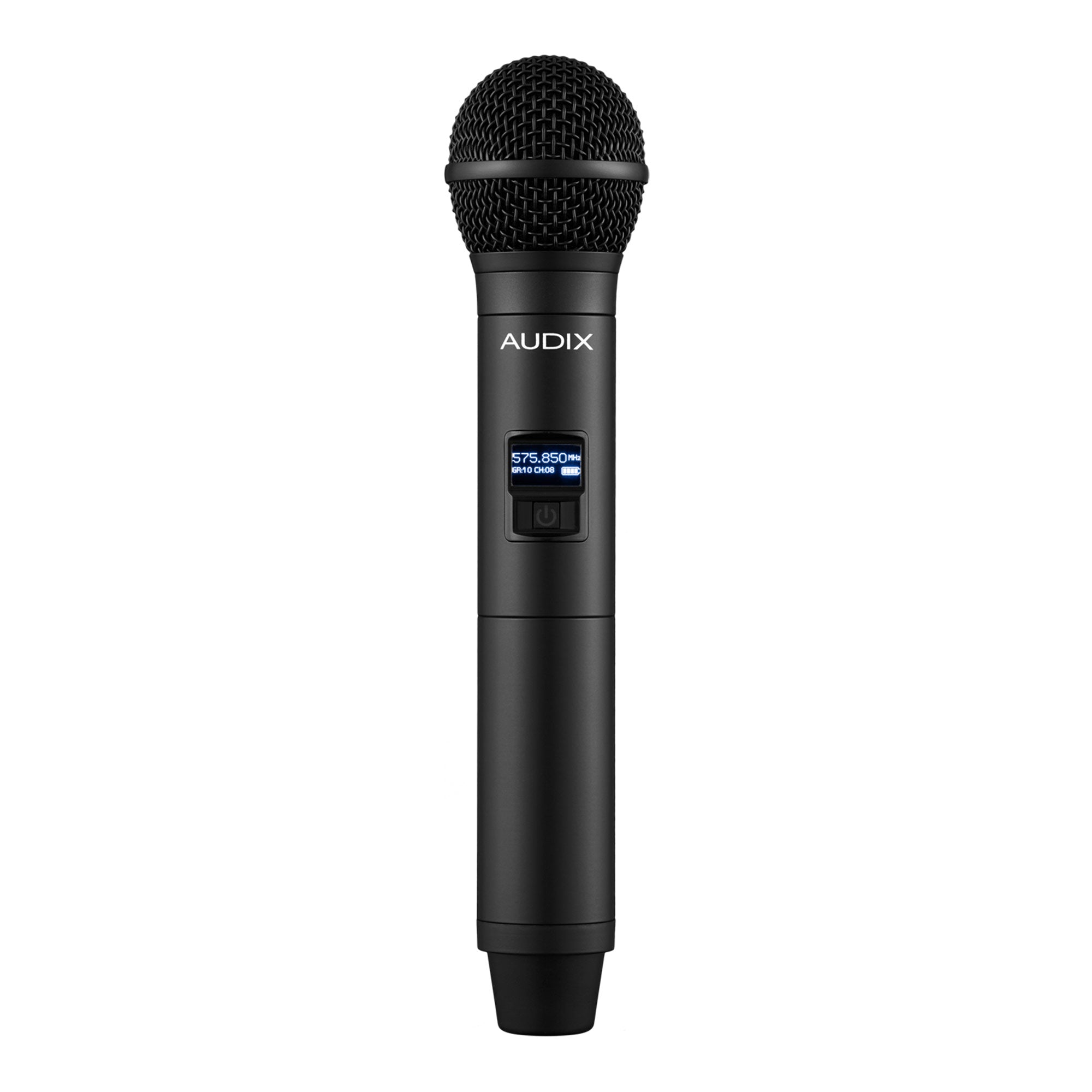

H60 OM5 Handheld Microphone

  • 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
  • Durable metal housing
  • 10 Hour run time - AA batteries

Available Frequency Bands

  • A = 522 MHz - 554 MHz
  • B = 554 MHz - 586 MHz

More +

Product Specs

R42 Receiver
Frequency Range A Band: 522 MHz – 554 MHz
B Band: 554 MHz - 586 MHz
Bandwidth 32 MHz
Compatible Systems 8 Compatible system operation
Switchable Frequencies 106 Preset frequencies
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Single tuner, diversity
Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion .7% (33 kHz deviation at 1 kHz)
Sensitivity 5 dB V (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors 1/4", XLR
Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range 300', (91 M)
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions 406 mm (W) x 209 mm (D) x 44 mm (H)
Net Weight 4.4 lbs. / 2.0 kg
H60 Handheld Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 dB, -6 dB, -12 dB
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life 10 hours
Max Sound Pressure Level >140 dB (depending on capsule)
Dimensions 2.1” diameter body, 10.43” (L),
53 mm diameter body, 265 mm (L)
Net Weight 11.0 oz / 312 g (without battery)
